- Ultra-Fast WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 2976 Mbps WiFi speeds.†
- High-Efficiency WiFi 6: More connected devices can enjoy faster speeds
- Centralized Cloud Management: Omada SDN integration manages the whole network locally or from the cloud via web UI or Omada app
- 160 MHz Channel: Double the data at peak transmission times on a single stream with HE160.‡
- Seamless Roaming: Video streams and voice calls are unaffected as users move between locations.§
- Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment.§

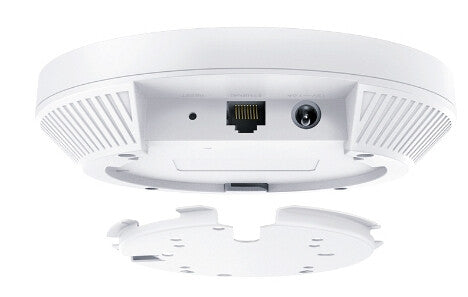

- PoE+ Powered: Supports both 802.3at PoE+ and DC (DC adapter sold separately) power supply for flexible installations
- Ultra-Slim Design: Φ160 mm × 33.6 mm elegant design brings more agility
Power up Your Business with New-Era Business WiFi 6
WiFi 6 brings faster speeds, lower lag, less interference, and higher capacity.

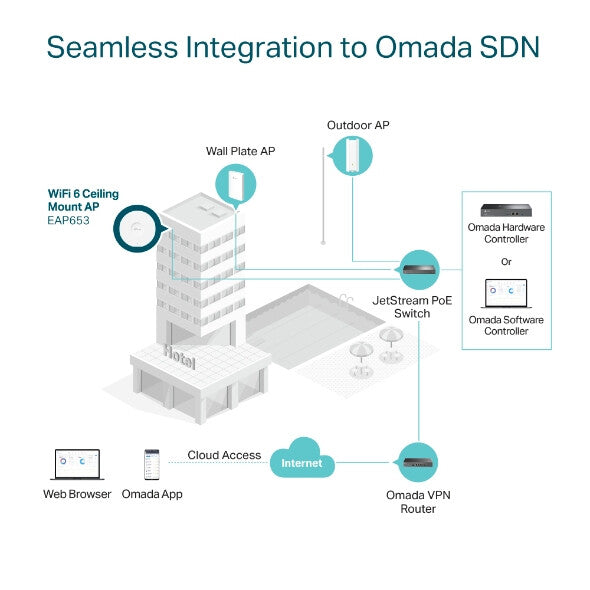

Seamless Integration into Omada SDN
The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers. It provides 100% centralized cloud management and creates a highly scalable network controlled from a single interface.
Auto Channel Selection and Power Adjustment
to Optimize Overall Performance*
Provides powerful wireless performance while significantly reducing WiFi interference by automatically adjusting the channel settings and transmission power levels of neighboring APs in the same network.
Easy Deployment & Higher Performance by Omada Mesh§
Easy Pairing, Less Wiring
With Mesh technology, Omada EAPs save you from extra wires by wirelessly extending your WiFi signal further and more flexibly to hard-to-wire areas.
Optimized Network Performance
Intelligent self-organization optimizes the best path between EAPs while self-healing ensures you stay online even when one AP is disrupted.

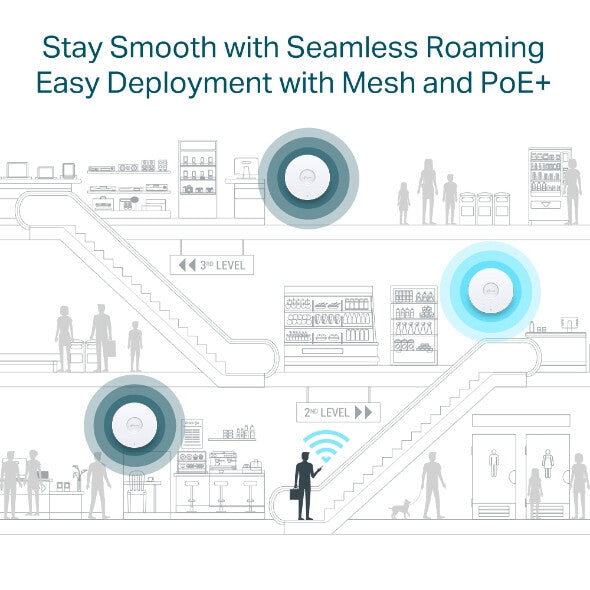

Always Stay Smooth with Fast Roaming§
Ensures customers to enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal.

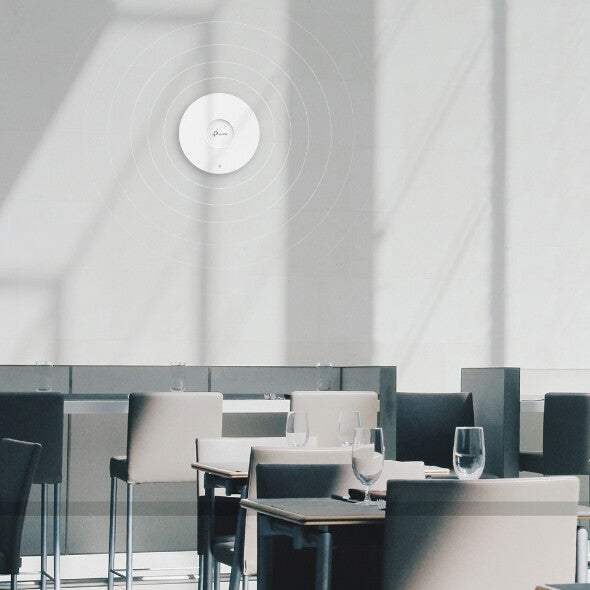

Ultra-Slim Design Brings More Agility
Exceptional performance with compact design ensures simple WiFi installation while saving space. The elegant appearance makes EAP653 perfectly blend into any modern office, hotel, classroom, or café.
| Features |
|---|
| 2.4 GHz |
Yes |
| 6 GHz |
No |
| 5 GHz |
Yes |
| Maximum data transfer rate |
2976 Mbit/s |
| Maximum data transfer rate (2.4 GHz) |
574 Mbit/s |
| Maximum data transfer rate (5 GHz) |
2402 Mbit/s |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Frequency band |
2.4 - 5 GHz |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11h |
| Cabling technology |
10/100/1000Base-T(X) |
| Number of users |
250 user(s) |
| Automatic channel scanning |
Yes |
| Automatic channel selection |
Yes |
| MIMO |
Yes |
| MIMO type |
Multi User MIMO |
| Spread spectrum method |
OFDMA |
| Fit AP mode features |
Mesh networking |
| VLAN support |
Yes |
| Rate limiting |
Yes |
| Flow control support |
Yes |
| Band steering |
Yes |
| Airtime Fairness (ATF) |
Yes |
| Quality of Service (QoS) support |
Yes |
| BeamForming |
Yes |
| Transmitting power (FCC) |
22 dBm |
| Transmitting power (CE) |
27 dBm |
| Security |
|---|
| Security algorithms |
HTTPS, SNMP, SNMPv2, SNMPv3, SSH, WPA, WPA2, WPA3 |
| MAC address filtering |
Yes |
| Management features |
|---|
| Web-based management |
Yes |
| Syslog |
Yes |
| Firmware upgradeable |
Yes |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
1 |
| DC-in jack |
Yes |
| Power |
|---|
| Power over Ethernet (PoE) |
Yes |
| DC voltage range |
12 V |
| Design |
|---|
| Placement |
Ceiling, Wall |
| Product colour |
White |
| Reset button |
Yes |
| LED indicators |
Yes |
| Antenna |
|---|
| Antenna type |
Internal |
| General |
|---|
| Product family |
Omada |
| Weight & dimensions |
|---|
| Width |
160 mm |
| Depth |
160 mm |
| Height |
33.6 mm |
| Packaging data |
|---|
| Package type |
Box |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Mounting kit |
Yes |
| Quick start guide |
Yes |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
10 - 90% |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Storage relative humidity (H-H) |
5 - 90% |
