- 8× 10/100 Mbps PoE+ ports with up to 30 W PoE output per port*
- 2x Gigabit non-PoE Ports
- 96 W total PoE budget*
- Up to 250 m (820ft) data and power transmitting range under Extend Mode**
- Isolation Mode allows one-click client traffic separation for higher security and performance
- PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
- Simply plug and play for instant connectivity with no configuration required
- Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses
- Desktop / Wall-mounting

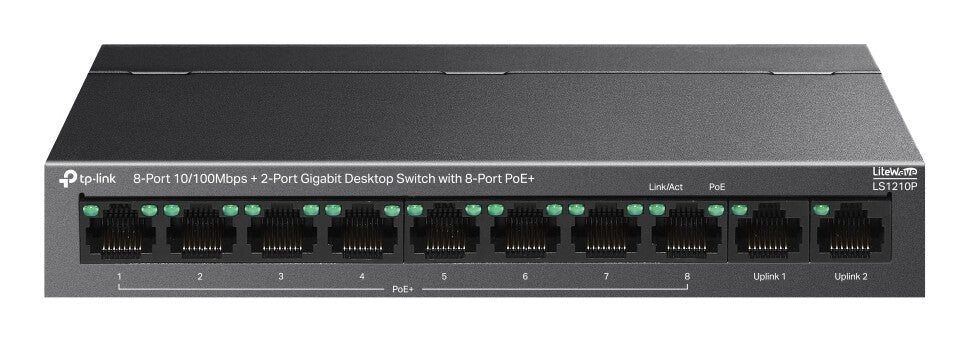

The LS1210P is an 8-Port 10/100Mbps + 2-Port Gigabit Desktop Switch with 8 ports supporting the PoE+ standard. It offers a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. It provides a total power budget of 96 W*, with up to 30 W per port. It supports up to 250 m (820ft) data and power transmitting range under Extend Mode**, and featured with Isolation Mode & PoE Auto Recovery, LS1210P is ideal for surveillance scenario.
| Management features |
| Switch type |
Unmanaged |
| Switch layer |
L2 |
| Ports & interfaces |
| Basic switching RJ-45 Ethernet ports quantity |
8 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Network |
| Networking standards |
IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3ab |
| 10G support |
No |
| Data transmission |
| MAC address table |
2000 entries |
| Switching capacity |
5.6 Gbit/s |
| Forwarding rate |
4.1664 Mpps |
| Jumbo frames support |
Yes |
| Packet buffer memory |
2 MB |
| Design |
| Rack mounting |
No |
| Stackable |
No |
| Form factor |
Desktop |
| Product colour |
Black |
| LED indicators |
Link, PoE, Power |
| Power |
| Power source |
DC |
| Power supply included |
Yes |
| AC input voltage |
220 - 240 V |
| AC input frequency |
50/60 Hz |
| DC input voltage |
53.5 V |
| Input current |
1.92 A |
| Power consumption (max) |
99.52 W |
| Power over Ethernet (PoE) |
| Power over Ethernet (PoE) |
Yes |
| Total Power over Ethernet (PoE) budget |
96 W |
| Operational conditions |
| Heat dissipation |
338.368 BTU/h |
| Weight & dimensions |
| Width |
171 mm |
| Depth |
98 mm |
| Height |
27 mm |
| Packaging content |
| User guide |
Yes |
| Certificates |
| Certification |
CE, RoHS |
