- 16× 10/100/1000Mbps ports
- Supports MAC address self-learning, Auto MDI/MDIX and Auto Negotiation
- Plug & play design
- QoS ensures smooth traffic for latency sensitive applications such as voice or video
- Innovative energy-efficient technology saves power consumption
- Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses
- Durable metal casing provides improved heat dissipation and ensures a longer product life
- Desktop or rackmount installation
What This Product Does

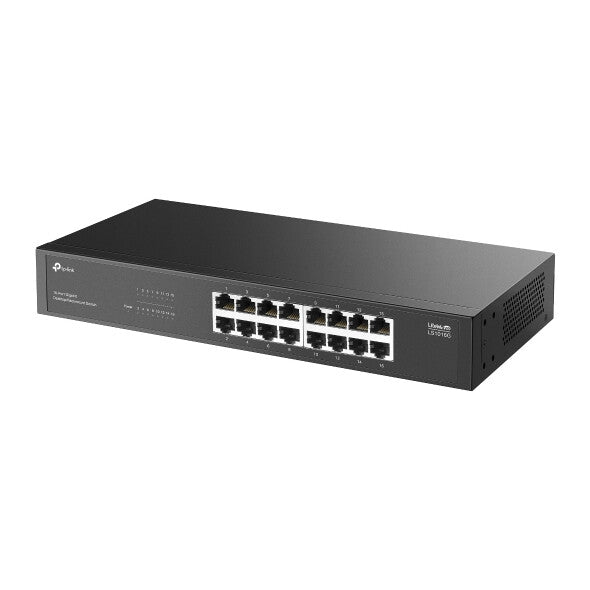

The LS1016G Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the LS1016G can save power consumption, making it an eco-friendly solution for your business network.
| Management features |
|---|
| Switch type |
Unmanaged |
| Ports & interfaces |
|---|
| Basic switching RJ-45 Ethernet ports quantity |
16 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Network |
|---|
| Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3p, IEEE 802.3u, IEEE 802.3x |
| 10G support |
No |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Auto-negotiation |
Yes |
| Auto MDI/MDI-X |
Yes |
| Data transmission |
|---|
| MAC address table |
8000 entries |
| Switching capacity |
32 Gbit/s |
| Forwarding rate |
23.808 Mpps |
| Store-and-forward |
Yes |
| Jumbo frames support |
Yes |
| Jumbo frames |
15000 |
| Design |
|---|
| Rack mounting |
Yes |
| Product colour |
Black |
| Power |
|---|
| Power source |
AC |
| Power supply included |
Yes |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Input current |
0.3 A |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) |
No |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 50 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Heat dissipation |
24.42 BTU/h |
| Weight & dimensions |
|---|
| Width |
294 mm |
| Depth |
140 mm |
| Height |
44 mm |
| Packaging content |
|---|
| Cables included |
AC |
| Rack mount kit |
Yes |
| Certificates |
|---|
| Certification |
FCC, CE, RoHs |
