- Up to 150Mbps on 5GHz wireless data rates
- 23dBi high-gain directional antenna and a dedicated metal reflector, ideal for long-distance application
- Excellent beam directivity, improved latency and noise cancellation

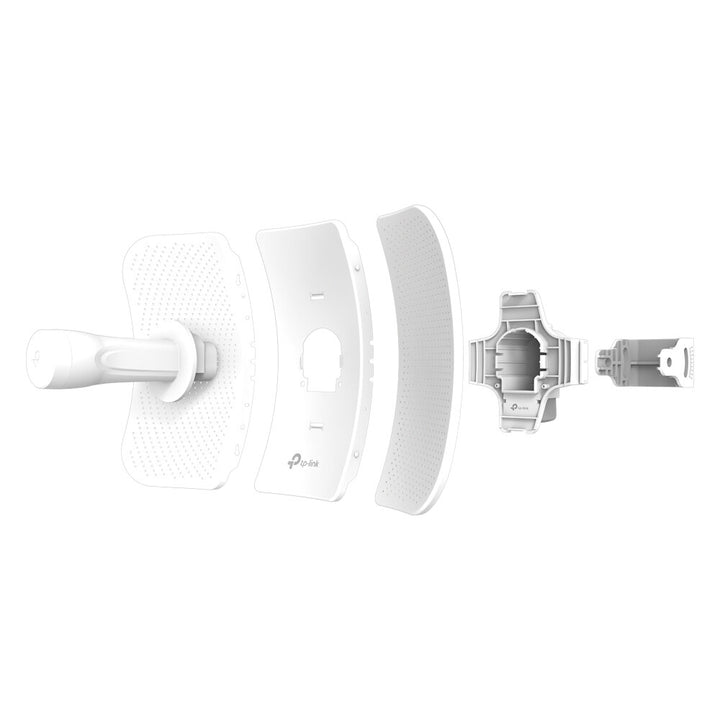

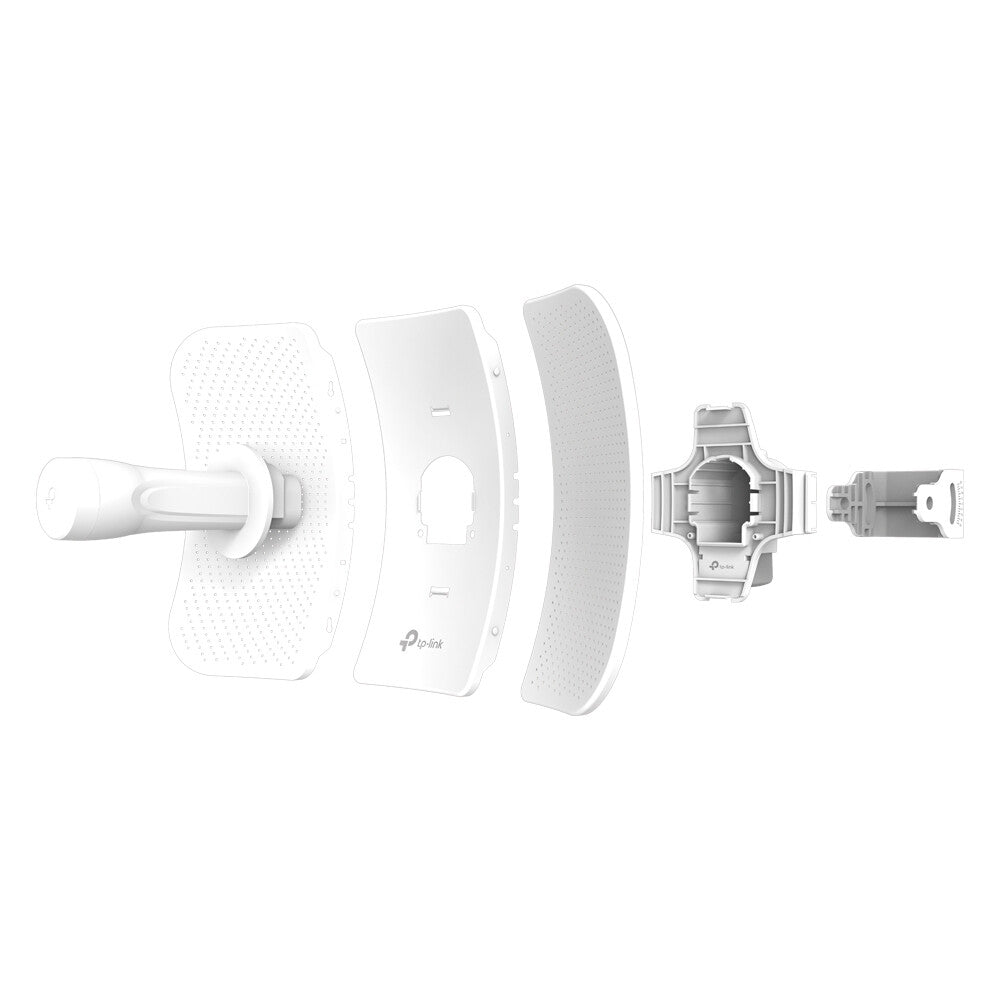

- Innovative snap-lock parts make for fast assembly and a sturdy structural design keeps CPE605 stable even in strong winds
- Durable IP65 weatherproof enclosure along with 15 kV ESD and 6 kV lightning protection ensures all-weather suitability
- TP-Link Pharos MAXtream TDMA technology improves throughput, capacity and latency performance
- Pharos Control gives administrators a free, centralized management system
- Passive PoE supports to allow flexible deployment and convenient installation
23dBi directional antenna and professional structural stability for long-distance outdoor Wi-Fi transmission
Professional-standard 23dBi Directional
Antenna for Long-range Wireless Transmission
With 23dBi high-gain directional Cassegrain antenna and dedicated metal reflector, the CPE605 provides excellent beam directivity, improved latency and noise immunity. Professional performance, coupled with user-friendly design, makes the 5GHz 150Mbps 23dBi Outdoor CPE605 an ideal choice and cost-effective solution for outdoor wireless networking applications.
Compact and Lightweight Packaging
Small and lightweight boxes benefit shipping, logistics and retail.
Pharos Control – Centralized Management System
CPE605 comes equipped with Pharos Control centralized management software, helping users easily manage all devices in their network from a single PC. Functions include device discovery, status monitoring, firmware upgrading, and network maintenance. An intuitive web-based interface-PharOS-provides an alternative management method, and allows professionals to access more detailed configurations.
| Performance |
|---|
| Antenna gain level (max) |
23 dBi |
| Frequency band |
5 GHz |
| Networking standards |
IEEE 802.11a, IEEE 802.11n |
| Cabling technology |
10/100Base-T(X) |
| Gain |
23 dBi |
| Vertical beam width |
10° |
| Horizontal beam width |
7° |
| Built-in processor |
Yes |
| Processor frequency |
560 MHz |
| Processor model |
Atheros MIPS 74Kc |
| Flash memory |
8 MB |
| Internal memory type |
DDR2 |
| Internal memory |
64 MB |
| Features |
|---|
| Antenna type |
Directional antenna |
| Product colour |
White |
| Housing material |
Plastic |
| Protection features |
Dust resistant, Water resistant |
| International Protection (IP) code |
IP65 |
| Waterproof |
Yes |
| Mounting |
Pole |
| Power |
|---|
| Power source type |
PoE |
| Input voltage |
16 - 27 V |
| Certificates |
|---|
| Compliance certificates |
RoHS |
| Certification |
CE, FCC |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-40 - 70 °C |
| Storage relative humidity (H-H) |
5 - 95% |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-40 - 70 °C |
| Weight & dimensions |
|---|
| Width |
233.4 mm |
| Depth |
170 mm |
| Height |
156 mm |
| Packaging data |
|---|
| Package width |
328 mm |
| Package depth |
155 mm |
| Package height |
135 mm |
| Package weight |
1.42 kg |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Cables included |
AC |
| Manual |
Yes |
| Quick installation guide |
Yes |
| Mounting kit |
Yes |
| Logistics data |
|---|
| Harmonized System (HS) code |
85177100 |
