- 10GbE & 2.5GbE: Built-in dual 10GBASE-T and dual 2.5GbE network ports to accelerate large file sharing and data-intensive transfers.
- Flexible E1.S/M.2 slots: Two built-in E1.S/M.2 NVMe PCIe slots allow flexible configuration of SSD caching or installation of the QXG-ES10G1T network module, ensuring the NAS is never limited in its specifications.
- Secure Snapshot Protection: Snapshots record the complete system state and data, allowing you to quickly restore the system to a normal state in the event of unexpected incidents.
- PCIe Gen 3 slot: Supports 5/10GbE NIC or QM2 expansion cards, offering flexible upgrades for high-speed networking and enhanced application performance.
- Built-in QuTS hero operating system: Utilizing the ZFS file system, it provides data protection features such as self-healing of static data, WORM, data deduplication, and snapshot backups, ensuring data integrity and system stability.
- Short depth design: The rackmount NAS has a short-depth design of only 30 cm. It is perfectly suited for installation in a compact rack, or places with a lot of cabling.

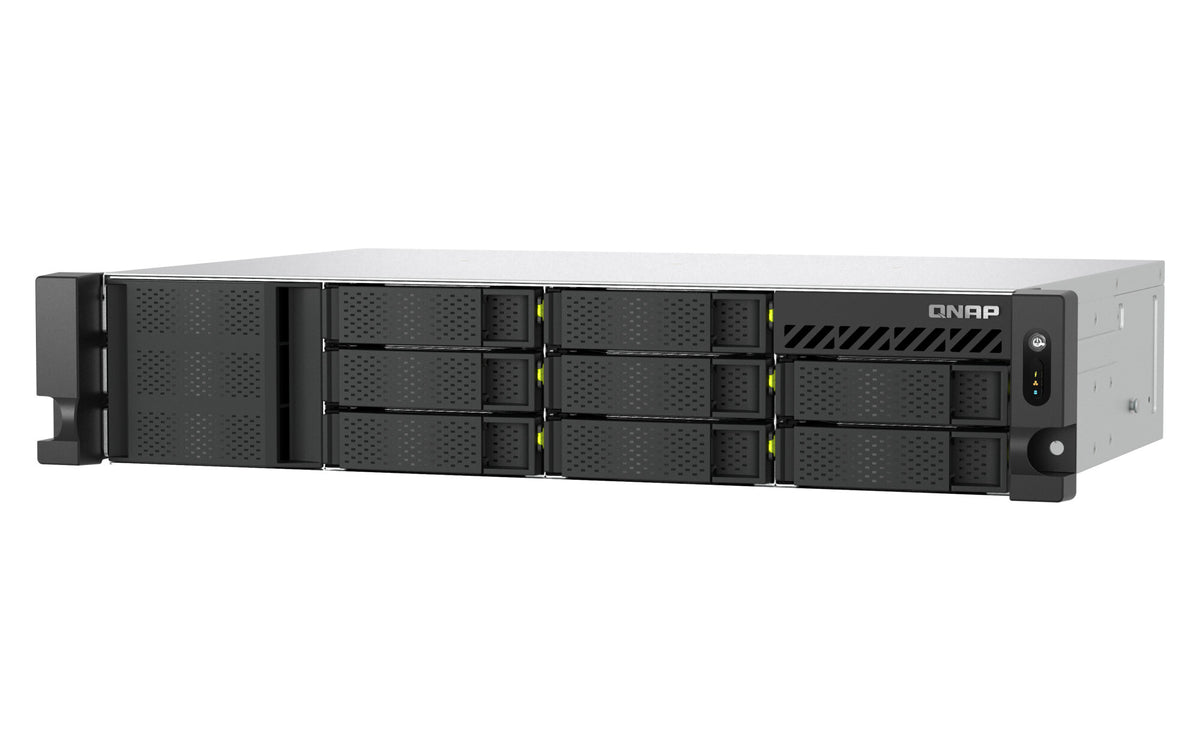

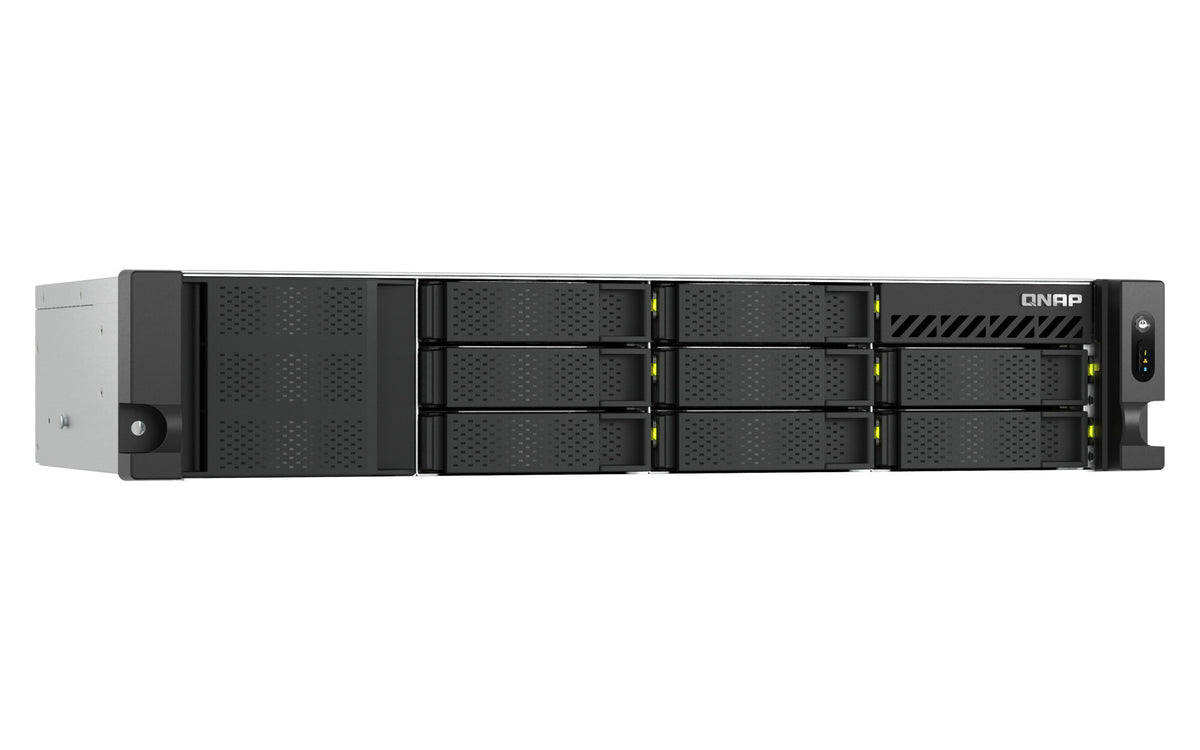

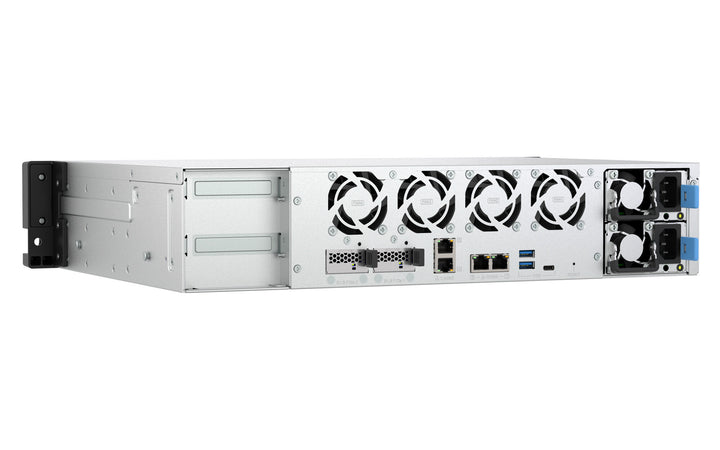

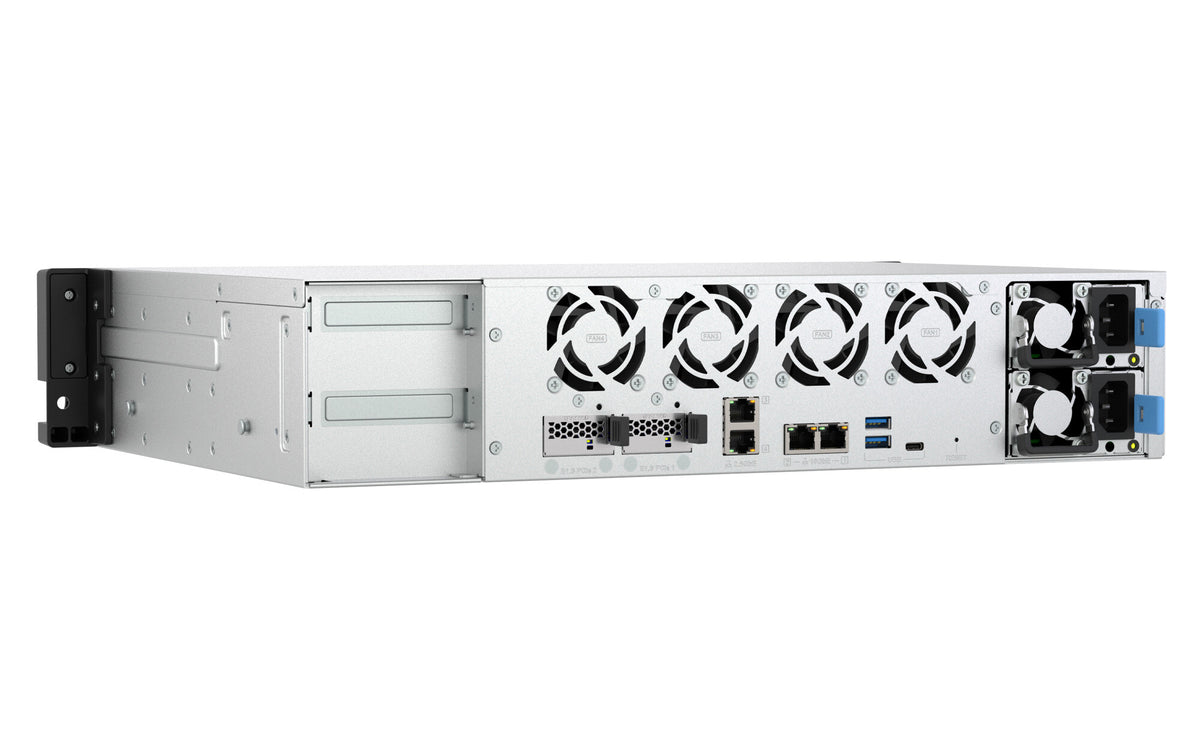

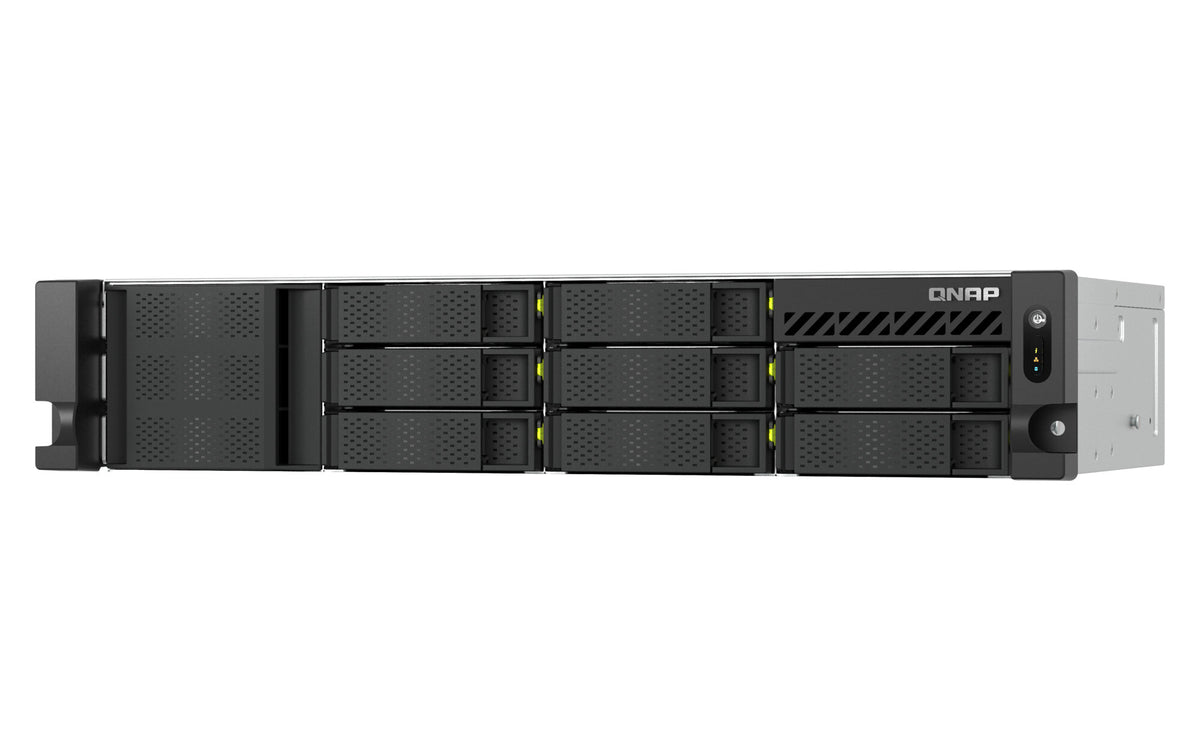

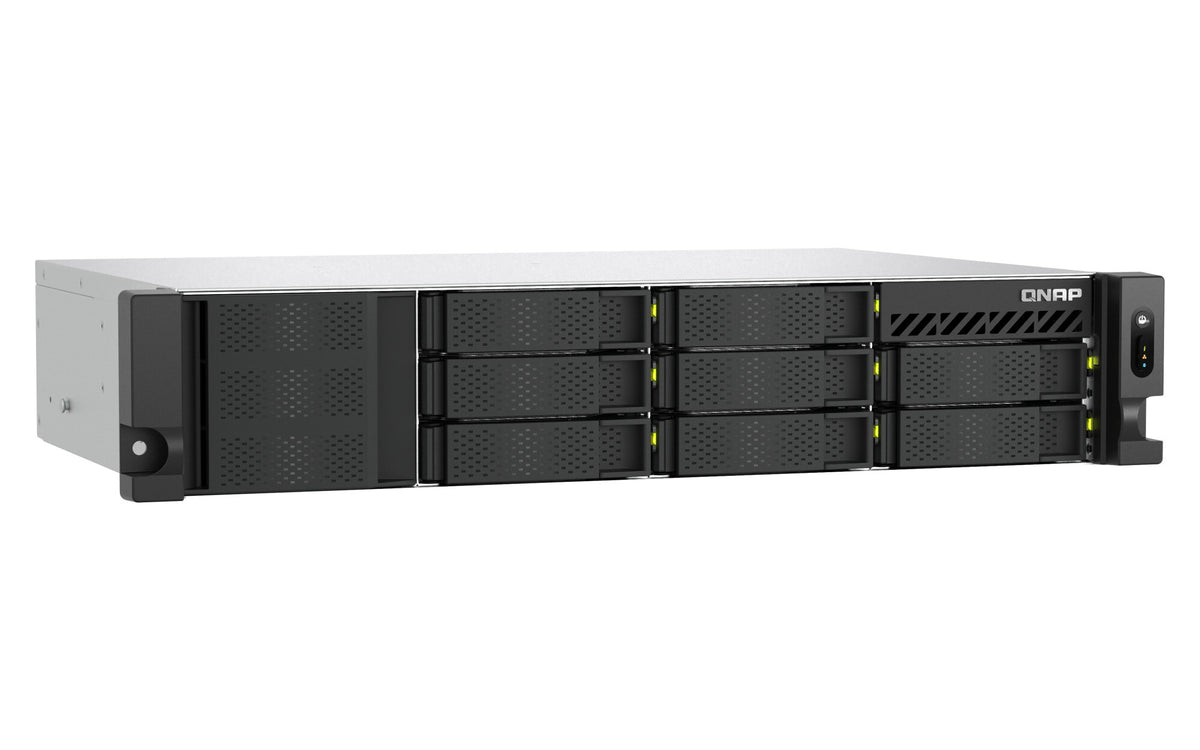

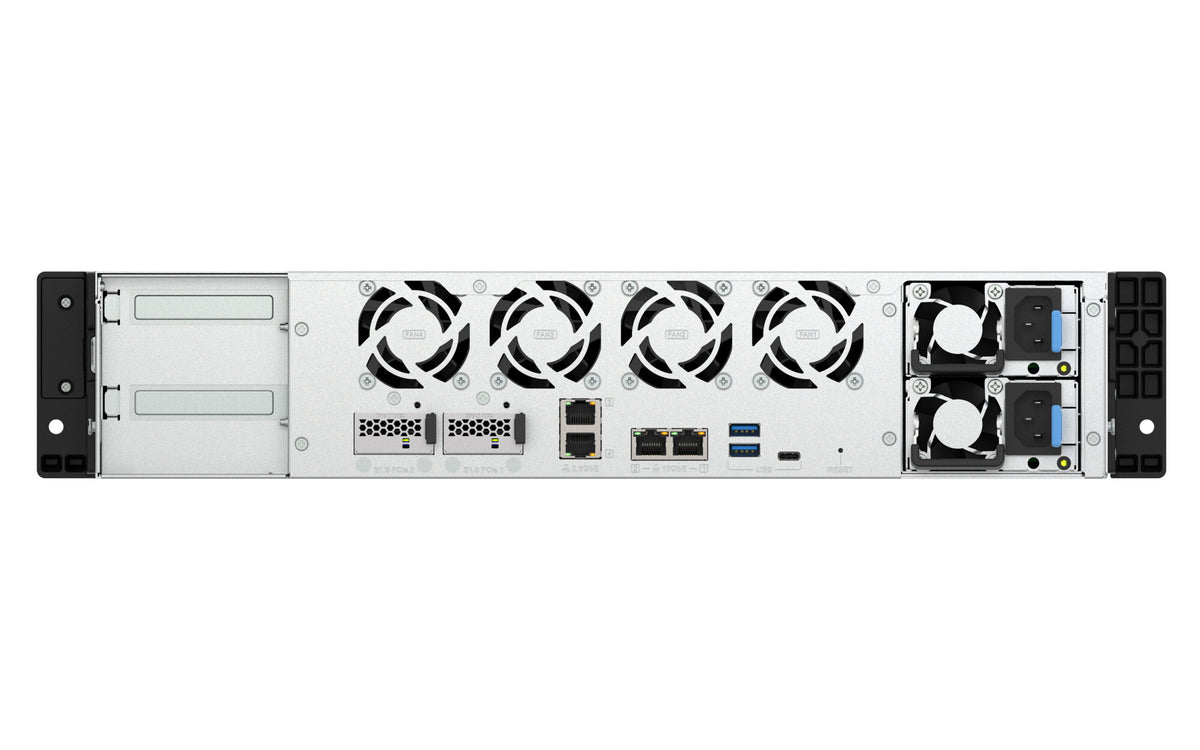

TS-h1073BXeU-RP
The TS-h1073BXeU-RP is powered by an AMD V1780B Ryzen™ Embedded quad-core processor (4C/8T, up to 3.35GHz) with 8GB DDR4 memory (expandable to 32GB), and equipped with dual 10GbE and dual 2.5GbE network ports supporting Port Trunking for up to 20 Gbps network bandwidth. Within a 2U short-chassis design, it offers 8 x 3.5"/2.5" SATA drive bays and 2 x E1.S NVMe PCIe SSD slots for flexible caching, backed by QuTS hero's ZFS data integrity and real-time snapshot protection. Dual redundant power supplies further ensure uninterrupted 24/7 operation of critical services.
| Storage |
|---|
| Storage drives installed |
No |
| Number of storage drives supported |
8 |
| Installed storage drive type |
No |
| Supported storage drive types |
HDD & SSD |
| Supported storage drive interfaces |
Serial ATA II, Serial ATA III |
| Storage drive sizes supported |
2.5,3.5,E1.S |
| RAID support |
Yes |
| RAID levels |
0, 1, 5, 6, 10, 50, 60, JBOD |
| Supported file systems |
ext3, ext4, NTFS, FAT32, HFS+, exFAT |
| Processor |
|---|
| Processor manufacturer |
AMD |
| Processor family |
Ryzen Embedded |
| Processor model |
V1780B |
| Processor frequency |
3.35 GHz |
| Processor cores |
4 |
| Processor threads |
8 |
| Memory |
|---|
| Internal memory |
8 GB |
| Internal memory type |
DDR4 |
| Maximum RAM supported |
64 GB |
| Memory form factor |
SO-DIMM |
| Memory slots |
2 |
| Flash memory |
5000 MB |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
1000,2500,10000 Mbit/s |
| Ethernet LAN data rate supported (max) |
10000 Mbit/s |
| DHCP server |
Yes |
| iSCSI support |
Yes |
| Wake-on-LAN ready |
Yes |
| Dynamic DNS (DDNS) |
Yes |
| Supported network protocols |
IPv4, IPv6 |
| Link aggregation |
Yes |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
4 |
| USB port |
Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| Fiber ports quantity |
2 |
| PCI Express x4 (Gen 3.x) slots |
1 |
| Design |
|---|
| Chassis type |
Rack (2U) |
| Cooling type |
Active |
| Product colour |
Black |
| Number of fans |
4 fan(s) |
| Fan diameter |
5 cm |
| LED indicators |
HDD, LAN, Power, SFP+, Status, USB |
| Performance |
|---|
| Type |
NAS |
| Device class |
Small & Medium Business |
| Backup function |
Yes |
| Backup features |
Cloud, USB drive |
| Buzzer |
Yes |
| Multilingual support |
Yes |
| Number of users |
4096 user(s) |
| Snapshot |
Yes |
| Management protocols |
SNMP V2, V3 |
| Share folder access right management |
Yes |
| USB copy function |
Yes |
| Disk scan |
Yes |
| Reset button |
Yes |
| Built-in FTP server |
Yes |
| Hot spare |
Yes |
| System log |
Yes |
| Access Control List (ACL) |
Yes |
| Browser supported |
Apple Safari, Google Chrome, Microsoft Edge, Mozilla Firefox |
| Share folder |
250 TB |
| S.M.A.R.T. support |
Yes |
| On/off switch |
Yes |
| Software |
|---|
| Operating system installed |
QNAP QTS |
| Operating system version |
5.2.9 |
| Windows operating systems supported |
Windows 7, Windows 8, Windows 10, Windows 11 |
| Linux operating systems supported |
Ubuntu 14.04, CentOS 7.0, Yes |
| Mac operating systems supported |
MacOS |
| Other operating systems supported |
Linux, Solaris 10 |
| Power |
|---|
| Power supply location |
Built-in |
| Power supply unit (PSU) capacity |
350 W |
| Number of power supply units |
2 |
| Redundant power supply (RPS) support |
Yes |
| Power consumption (typical) |
212.12 W |
| AC input voltage |
100 - 240 V |
| Fan voltage |
12 V |
| Weight & dimensions |
|---|
| Width |
432 mm |
| Depth |
294.9 mm |
| Height |
88.6 mm |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Storage temperature (T-T) |
-20 - 70 °C |
| Logistics data |
|---|
| Master (outer) case width |
530 mm |
| Master (outer) case length |
210 mm |
| Master (outer) case height |
592 mm |
| Master (outer) case gross weight |
9.47 kg |
| Products per master (outer) case |
1 pc(s) |
| Other features |
|---|
| Warranty period |
3 year(s) |
