QNAP TS-H1073BXEU NAS Rack (2U) Ryzen Embedded V1780B 8 GB DDR4 QNAP QTS Black
€3,000.99 EUR
inc. VATSpread the cost with KlarnaFrom 3 interest-free payments of €1,000.33 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Key specs
- Processor modelV1780B
- Internal memory8 GB
- Internal memory typeDDR4
- Operating system installedQNAP QTS
Out of stock
FREE delivery
Express €9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- 10GbE & 2.5GbE: Built-in dual 10GBASE-T and dual 2.5GbE network ports to accelerate large file sharing and data-intensive transfers.
- Flexible E1.S/M.2 slots: Two built-in E1.S/M.2 NVMe PCIe slots allow flexible configuration of SSD caching or installation of the QXG-ES10G1T network module, ensuring the NAS is never limited in its specifications.
- Secure Snapshot Protection: Snapshots record the complete system state and data, allowing you to quickly restore the system to a normal state in the event of unexpected incidents.
- PCIe Gen 3 slot: Supports 5/10GbE NIC or QM2 expansion cards, offering flexible upgrades for high-speed networking and enhanced application performance.
- Built-in QuTS hero operating system: Utilizing the ZFS file system, it provides data protection features such as self-healing of static data, WORM, data deduplication, and snapshot backups, ensuring data integrity and system stability.
- Short depth design: The rackmount NAS has a short-depth design of only 30 cm. It is perfectly suited for installation in a compact rack, or places with a lot of cabling.

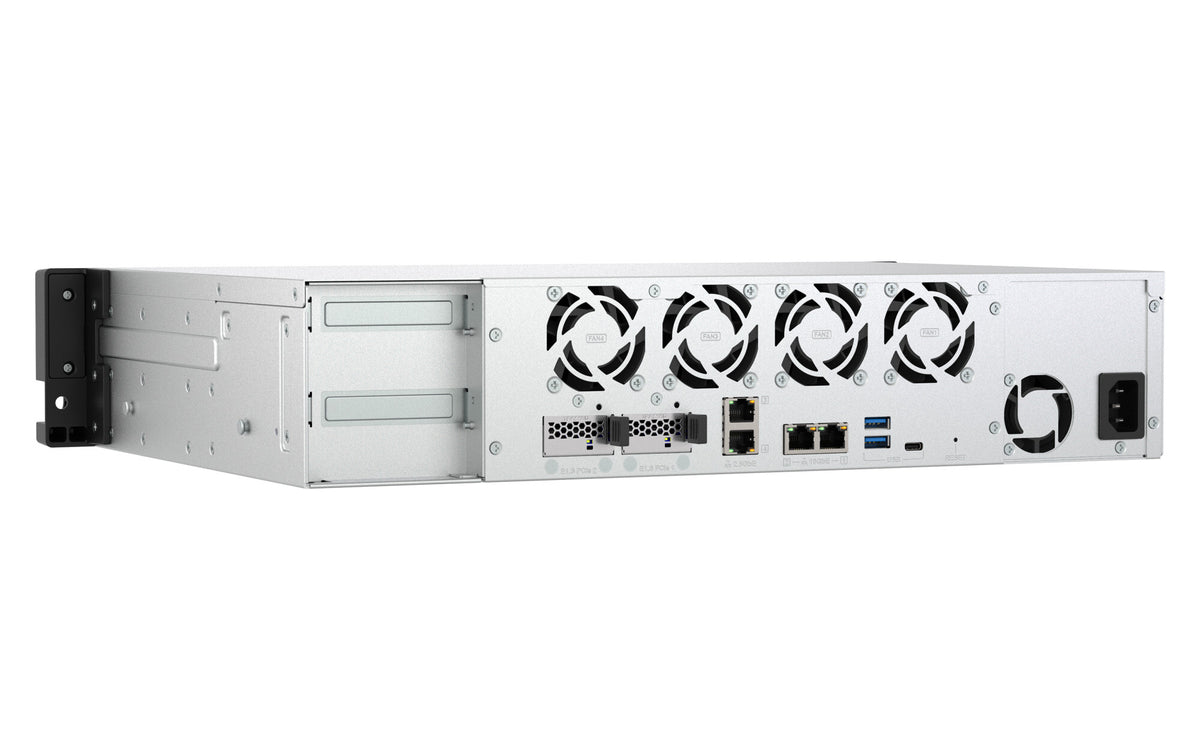

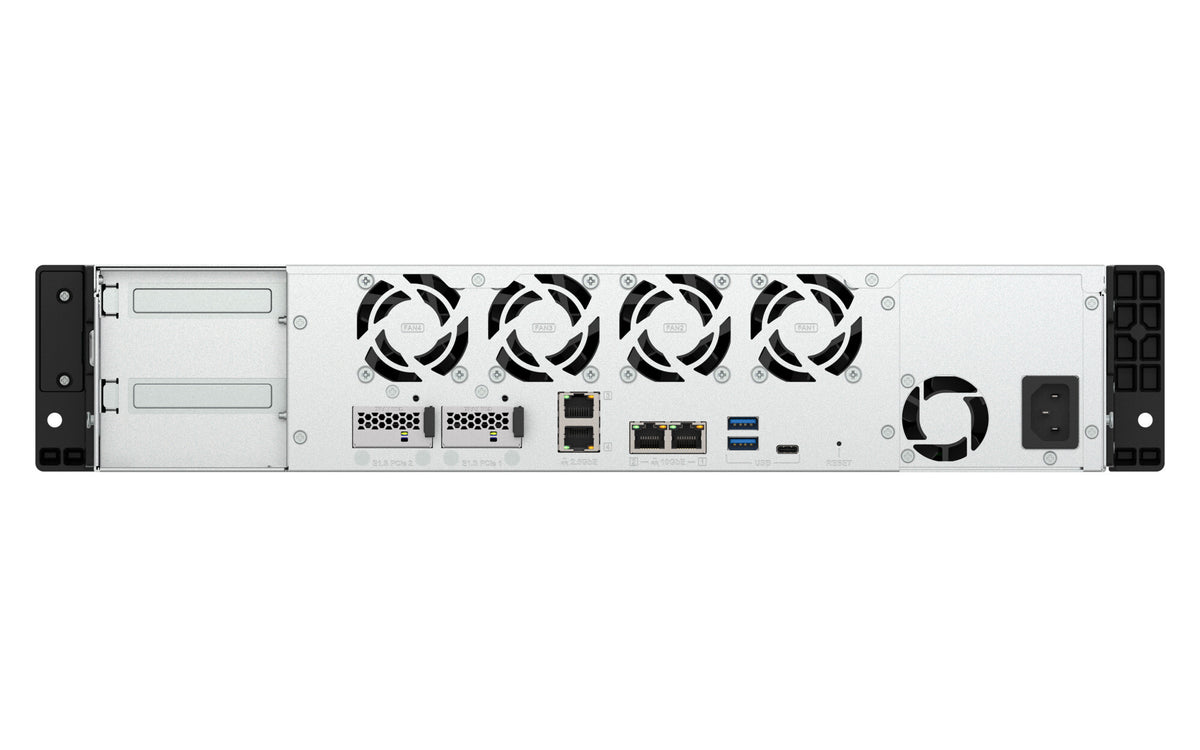

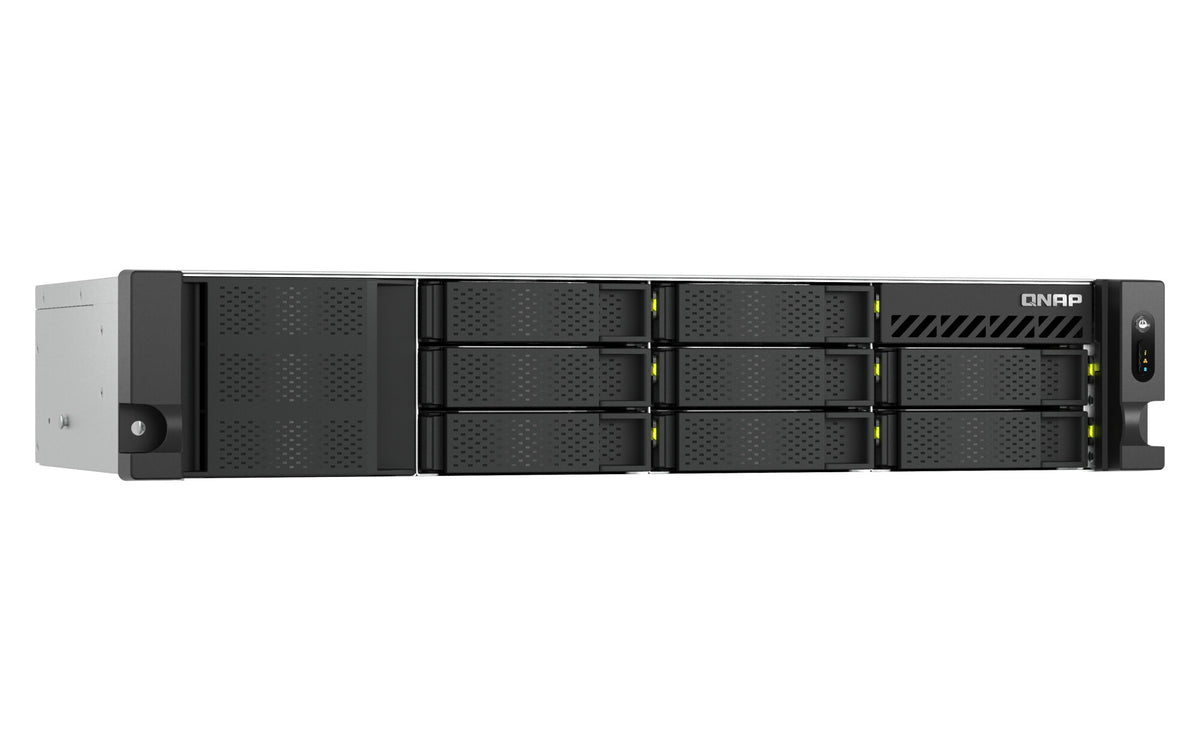

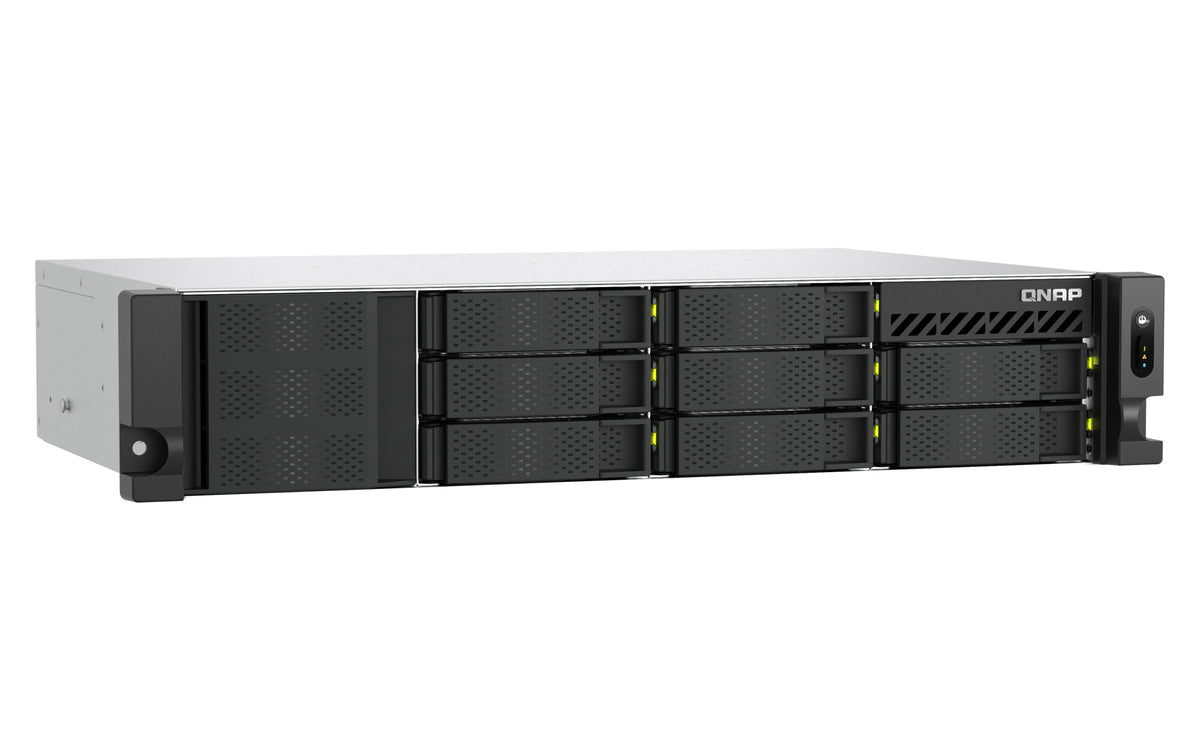

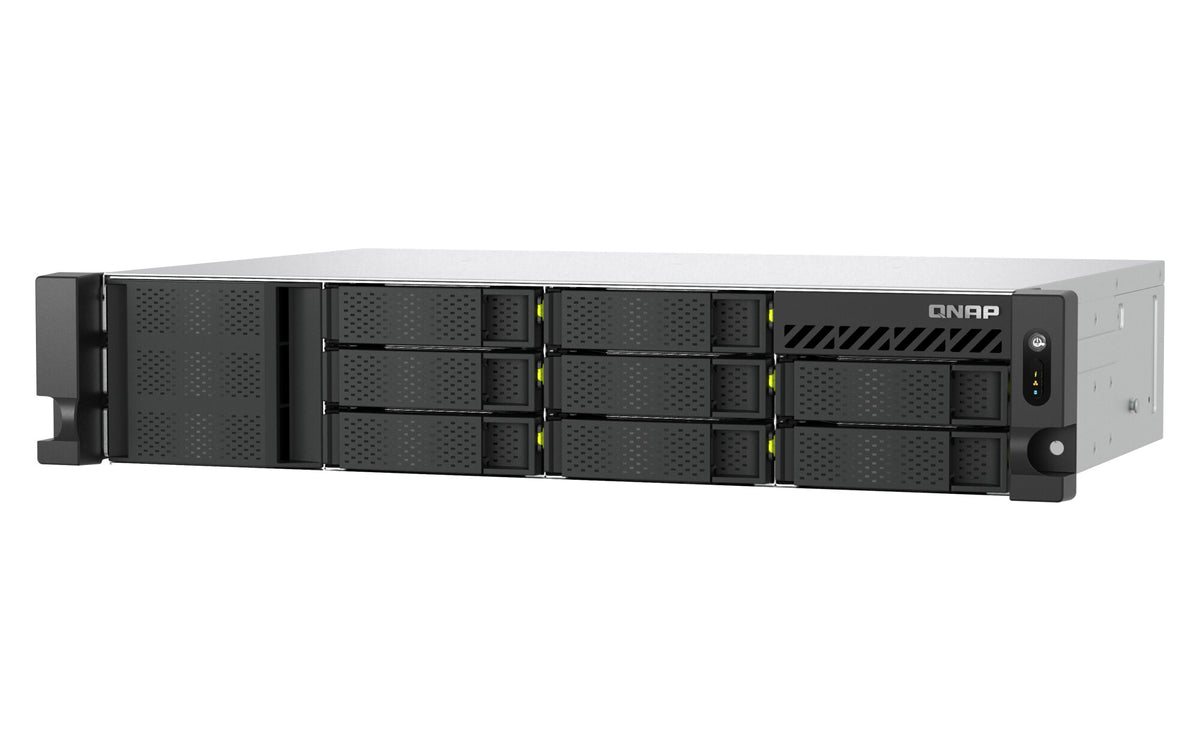

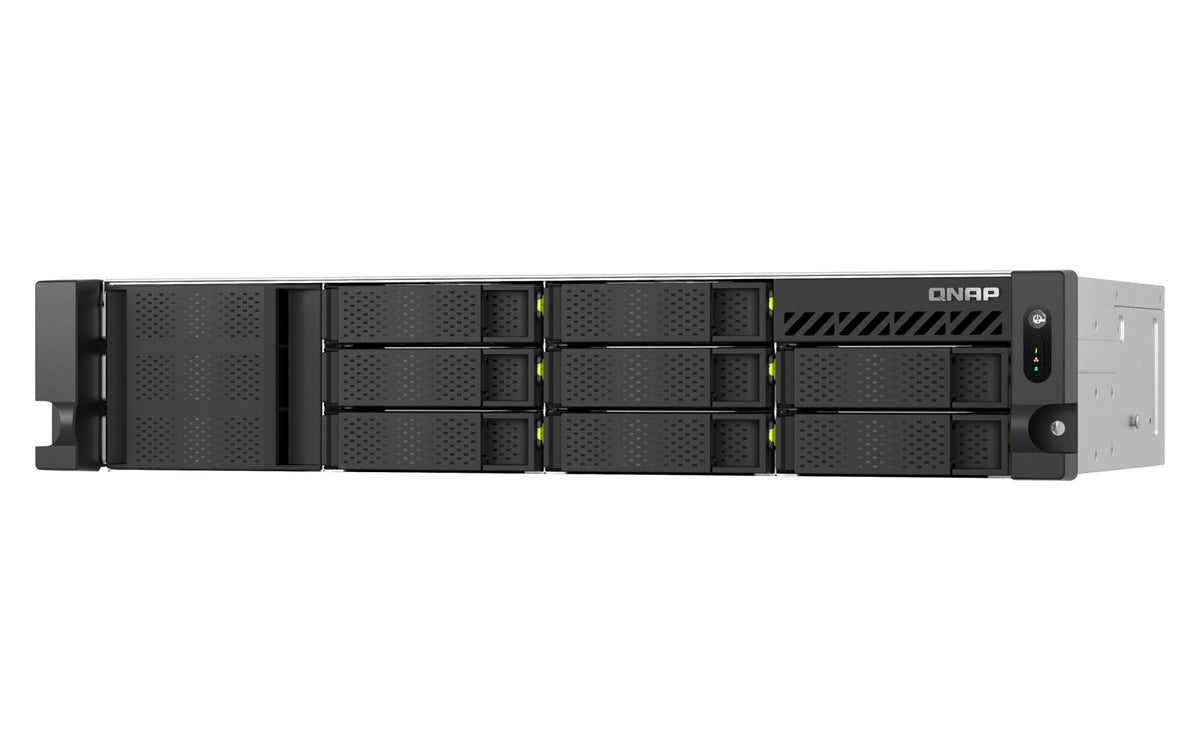

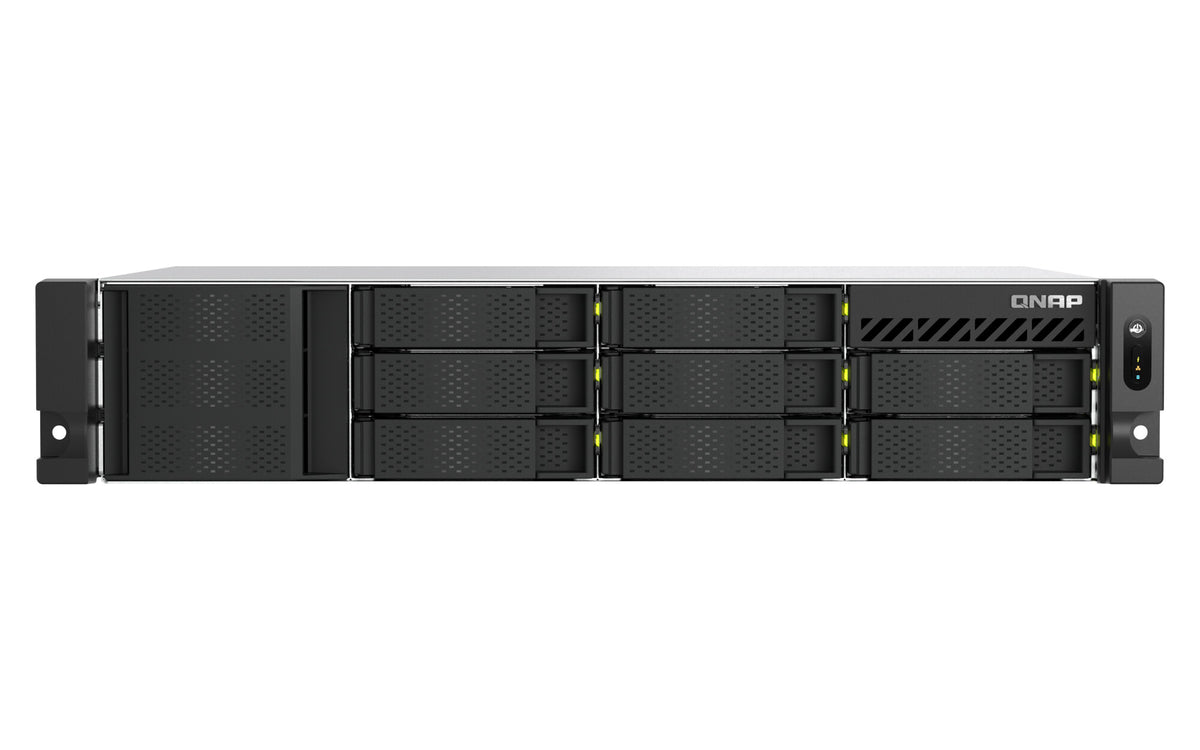

TS-h1073BXeU
The TS-h1073BXeU is powered by an AMD V1780B Ryzen™ Embedded quad-core processor (4C/8T, up to 3.35GHz) with 8GB DDR4 memory (expandable to 32GB), and equipped with dual 10GbE and dual 2.5GbE network ports supporting Port Trunking for up to 20 Gbps network bandwidth. Within a 2U short-chassis design, it offers 8 x 3.5"/2.5" SATA drive bays and 2 x E1.S NVMe PCIe SSD slots for flexible caching, backed by QuTS hero's ZFS data integrity and real-time snapshot protection for business-critical data.
Specifications
Storage
| Storage drives installed | No |
|---|---|
| Number of storage drives supported | 8 |
| Installed storage drive type | No |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | Serial ATA III, Serial ATA II |
| Storage drive sizes supported | 2.5,3.5,E1.S |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 6, 10, 50, 60, JBOD |
| Supported file systems | ext3, ext4, NTFS, FAT32, HFS+, exFAT |
Processor
| Processor manufacturer | AMD |
|---|---|
| Processor family | Ryzen Embedded |
| Processor model | V1780B |
| Processor frequency | 3.35 GHz |
| Processor cores | 4 |
| Processor threads | 8 |
Show all 80 specificationsShow fewer specifications
Memory
| Internal memory | 8 GB |
|---|---|
| Internal memory type | DDR4 |
| Maximum RAM supported | 64 GB |
| Memory form factor | SO-DIMM |
| Memory slots | 2 |
| Flash memory | 5000 MB |
Network
| Ethernet LAN | Yes |
|---|---|
| Ethernet LAN data rates | 1000,2500,10000 Mbit/s |
| Ethernet LAN data rate supported (max) | 10000 Mbit/s |
| DHCP server | Yes |
| iSCSI support | Yes |
| Wake-on-LAN ready | Yes |
| Dynamic DNS (DDNS) | Yes |
| Supported network protocols | IPv4, IPv6 |
| Link aggregation | Yes |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 4 |
|---|---|
| USB port | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Fiber ports quantity | 2 |
| PCI Express x4 (Gen 3.x) slots | 1 |
Design
| Chassis type | Rack (2U) |
|---|---|
| Cooling type | Active |
| Product colour | Black |
| Number of fans | 4 fan(s) |
| Fan diameter | 5 cm |
| LED indicators | HDD, LAN, USB, Power, Status |
Performance
| Type | NAS |
|---|---|
| Device class | Small & Medium Business |
| Backup function | Yes |
| Backup features | Cloud, USB drive |
| Buzzer | Yes |
| Multilingual support | Yes |
| Number of users | 4096 user(s) |
| Snapshot | Yes |
| Management protocols | SNMP V2, V3 |
| Share folder access right management | Yes |
| USB copy function | Yes |
| Disk scan | Yes |
| Reset button | Yes |
| Built-in FTP server | Yes |
| Hot spare | Yes |
| System log | Yes |
| Access Control List (ACL) | Yes |
| Browser supported | Apple Safari, Google Chrome, Microsoft Edge, Mozilla Firefox |
| Share folder | 250 TB |
| S.M.A.R.T. support | Yes |
| On/off switch | Yes |
Software
| Operating system installed | QNAP QTS |
|---|---|
| Operating system version | 5.2.9 |
| Windows operating systems supported | Windows 7, Windows 8, Windows 10, Windows 11 |
| Mac operating systems supported | Mac OS X 10.10 Yosemite |
| Other operating systems supported | Linux, Solaris 10 |
Power
| Power supply location | Built-in |
|---|---|
| Power supply unit (PSU) capacity | 300 W |
| Power consumption (typical) | 212.12 W |
| AC input voltage | 100 - 240 V |
| Fan voltage | 12 V |
Weight & dimensions
| Width | 432 mm |
|---|---|
| Depth | 294.9 mm |
| Height | 88.6 mm |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -20 - 70 °C |
Other features
| Warranty period | 3 year(s) |
|---|
