- Dual 10GbE Ports: Built-in high-speed 10GBASE-T Multi-Gig networking with full support for 10G/5G/2.5G/1G transfer rates — accelerating large file transfers, intensive access, and shortening backup times.
- Flexible PCIe Expansion: One PCIe Gen 3 x4 slot supports 2.5GbE/10GbE network cards, QM2 M.2 NVMe/SATA SSD expansion cards, and USB 3.2 Gen 2 (10Gbps) expansion cards to boost application performance.
- SSD Cache Acceleration: Two dedicated M.2 2280 PCIe NVMe SSD slots support Qtier auto-tiering and SSD caching technology for round-the-clock storage acceleration.
- ECC Memory Support: Ships standard with 4GB of memory, with the flexibility to upgrade to ECC (Error Correcting Code) memory, which automatically detects and corrects single-bit errors to help prevent project data corruption.
- USB 4 JBOD Storage Expansion Support: Supports external USB storage expansion units such as the TL-D810TC4 , giving teams a flexible way to scale up capacity. No complicated setup required — easily handle large project backups and massive file archiving needs.
- QTS / QuTS hero OS Support: Ships with QTS by default for an intuitive user experience, while also supporting a switch to QuTS hero to harness the power of the ZFS file system for data reduction and efficient backups.

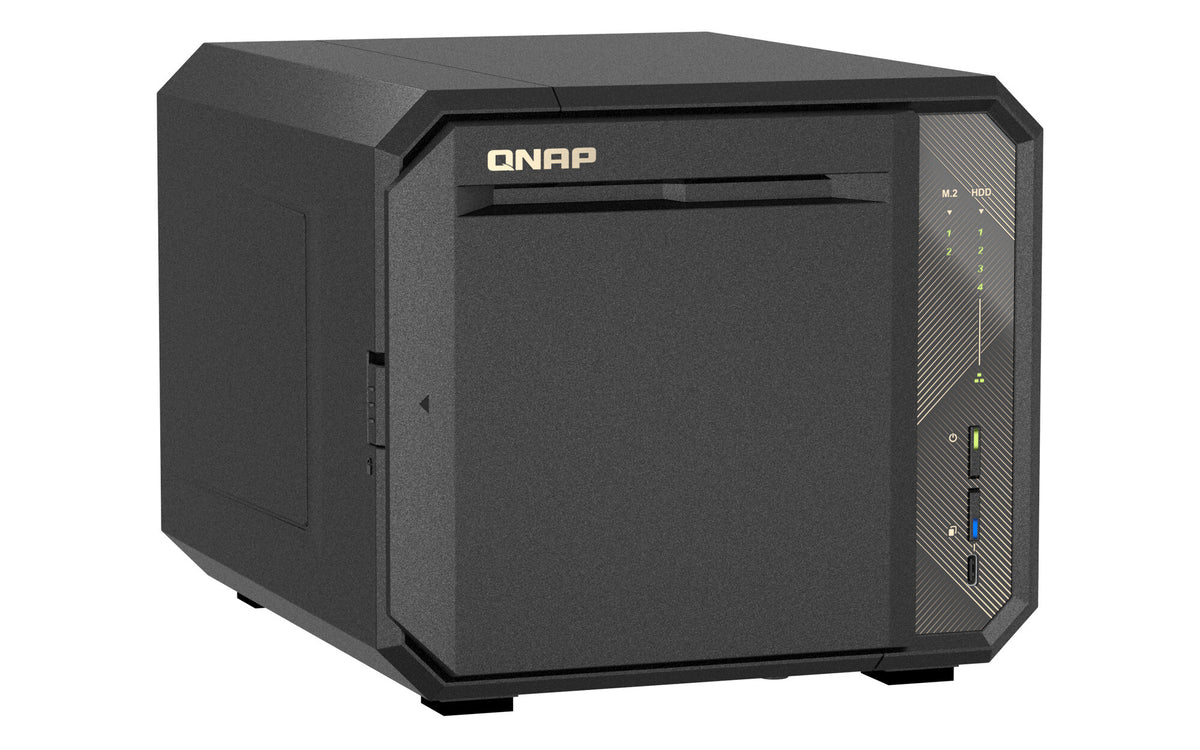

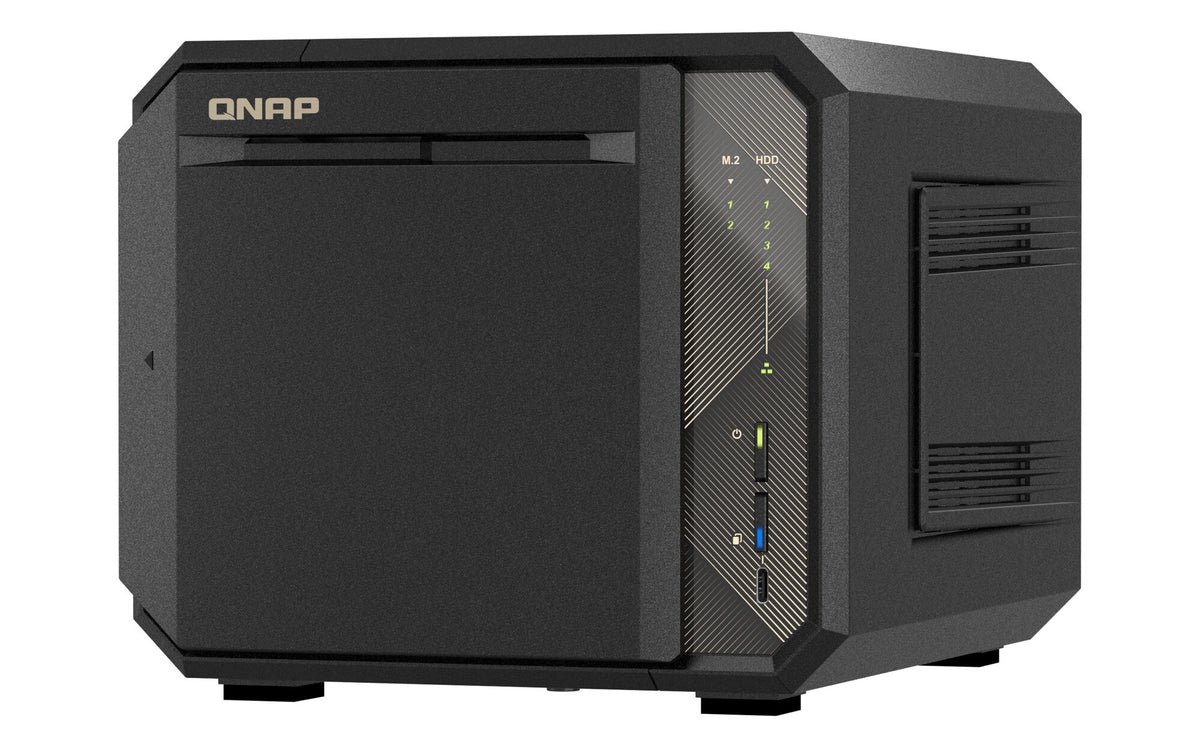

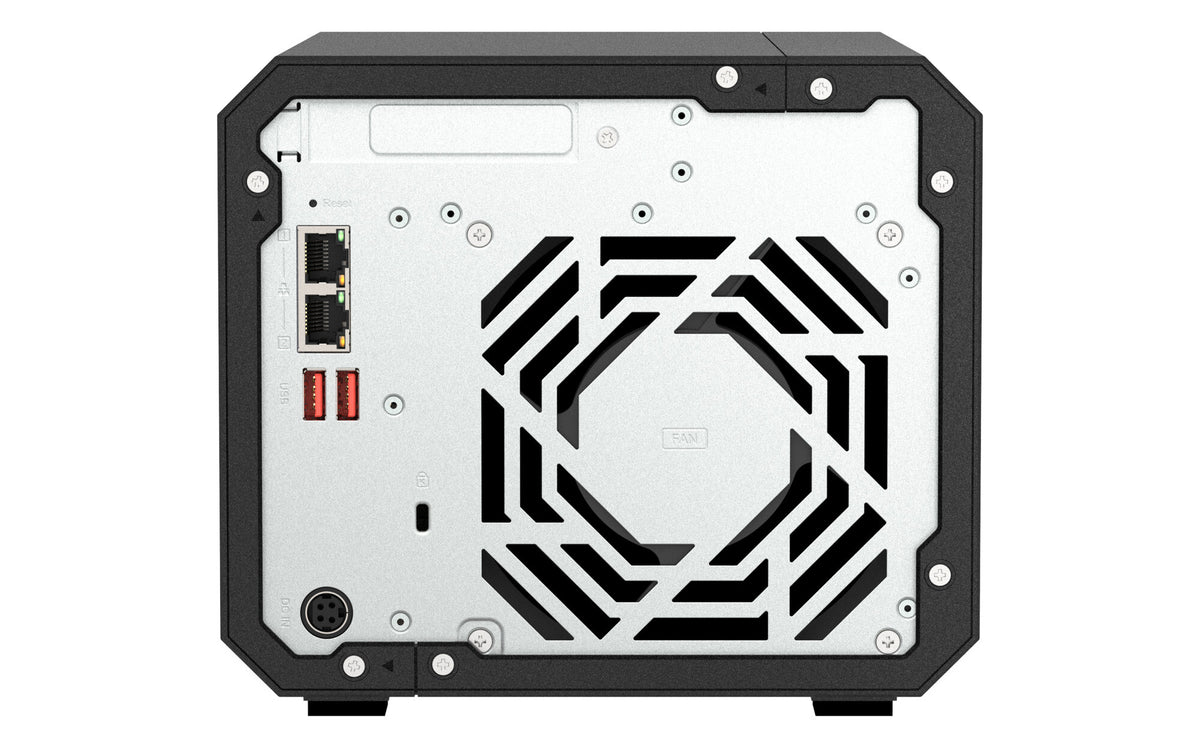

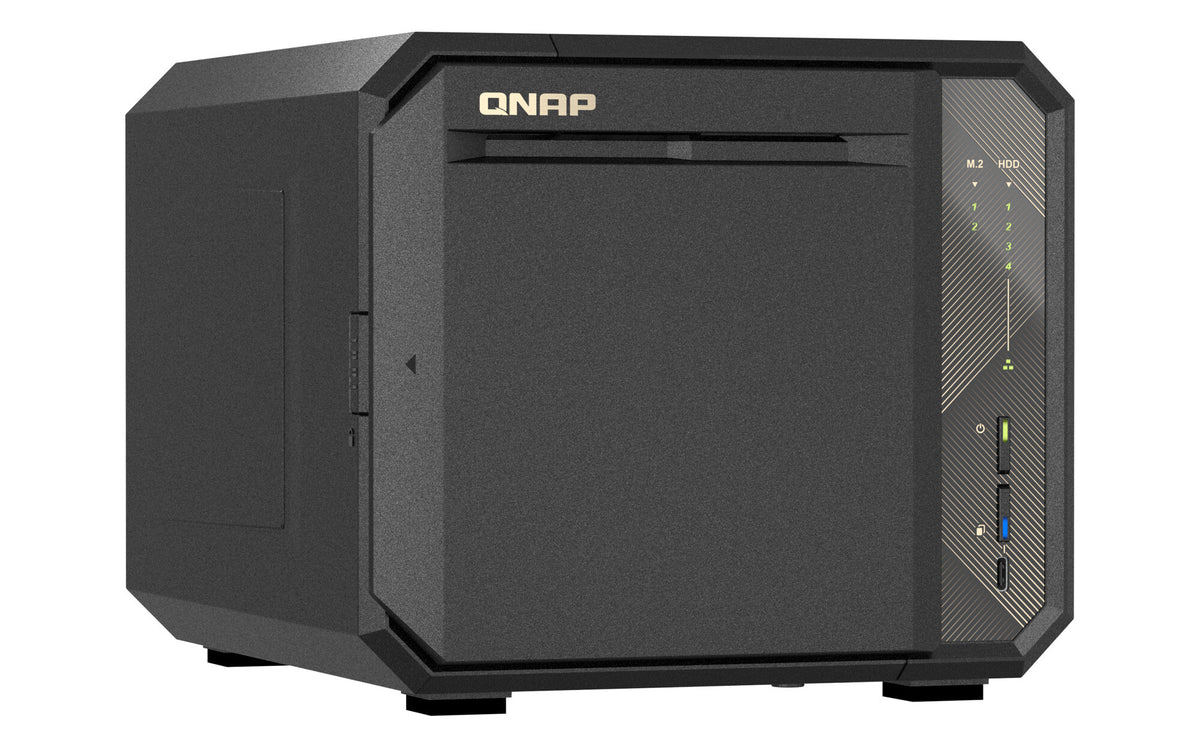

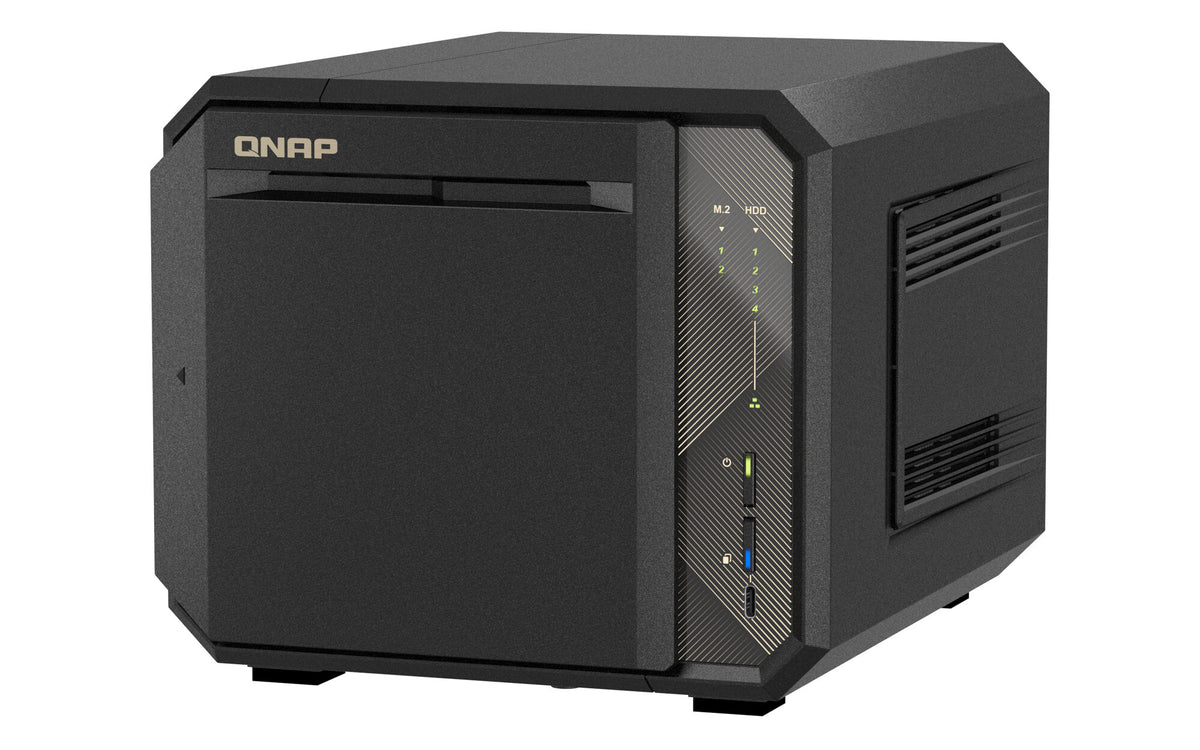

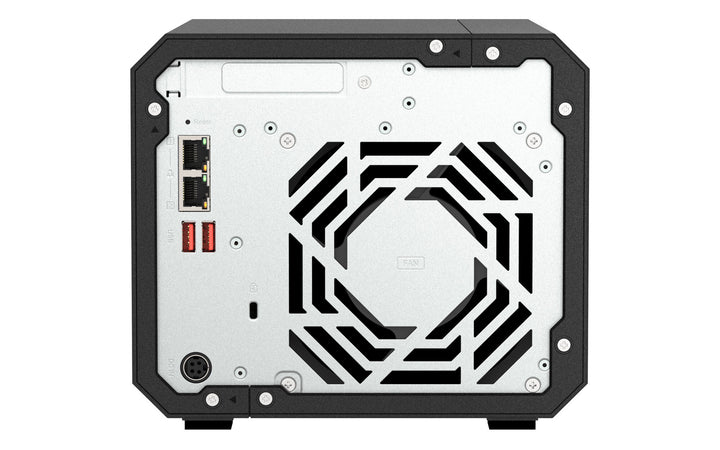

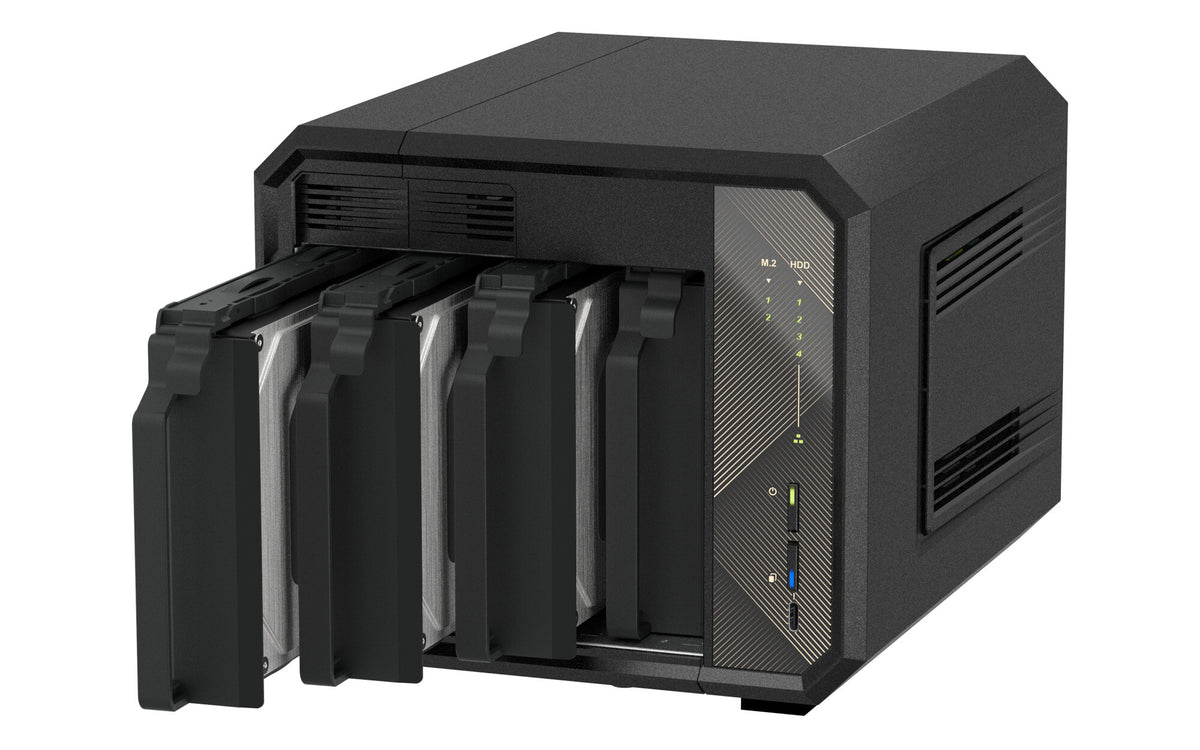

TS-467X
Built-in 10GbE, PCIe expansion, and USB4 deliver cost-effective, high-speed storage for studios and enterprises.
Powered by an AMD Ryzen™ V1500B quad-core/8-thread processor, the TS-467X delivers professional-grade dual-port 10GBASE-T networking at an exceptional price. With precisely optimized hardware, it's the ideal storage solution for SMBs and professional teams that demand blazing-fast transfers — leave bandwidth bottlenecks behind, whether you're collaborating online with your team or backing up large-scale projects. The TS-467X also lets you freely switch between QTS and QuTS hero operating systems, striking the perfect balance of high performance, high bandwidth, and outstanding value — making it the ideal choice for SMBs and SOHO studios ready to upgrade to a 10GbE environment.
| Storage |
|---|
| Storage drives installed |
Yes |
| Number of storage drives supported |
6 |
| Supported storage drive types |
HDD & SSD |
| Supported storage drive interfaces |
Serial ATA III, M.2 |
| Storage drive sizes supported |
2.5,3.5" |
| Number of M.2 (M & B) slots |
2 |
| RAID support |
Yes |
| RAID levels |
JBOD, 0, 1, 5, 6, 10, 50, 60 |
| Hot-swap drive bays |
Yes |
| Supported file systems |
ext3, ext4, FAT32, HFS+, NTFS, exFAT |
| Disk roaming |
Yes |
| Processor |
|---|
| Processor manufacturer |
AMD |
| Processor family |
Ryzen Embedded |
| Processor model |
V1500B |
| Processor frequency |
2.2 GHz |
| Processor cores |
4 |
| Processor threads |
8 |
| Memory |
|---|
| Internal memory |
4 GB |
| Internal memory type |
DDR4 |
| Maximum RAM supported |
64 GB |
| ECC |
No |
| Memory form factor |
SO-DIMM |
| Memory slots |
2 |
| Flash memory |
8000 MB |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
10000 Mbit/s |
| Ethernet LAN data rate supported (max) |
10000 Mbit/s |
| DHCP server |
Yes |
| iSCSI support |
Yes |
| Dynamic DNS (DDNS) |
Yes |
| Supported network protocols |
IPv4, IPv6 |
| Link aggregation |
Yes |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
2 |
| USB port |
Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| PCI Express x4 (Gen 3.x) slots |
1 |
| Design |
|---|
| Chassis type |
Tower |
| Cooling type |
Active |
| Product colour |
Black |
| Number of fans |
1 fan(s) |
| Fan diameter |
12 cm |
| LED indicators |
LAN, M.2, Power, Status, USB |
| Cable lock slot |
Yes |
| Cable lock slot type |
Kensington |
| Performance |
|---|
| Type |
NAS |
| Device class |
Small & Medium Business |
| Backup function |
Yes |
| Buzzer |
Yes |
| Multilingual support |
Yes |
| Number of users |
4096 user(s) |
| Snapshot |
Yes |
| Management protocols |
SNMP V2, V3 |
| Share folder access right management |
Yes |
| Web-based management |
Yes |
| USB copy function |
Yes |
| Disk scan |
Yes |
| Reset button |
Yes |
| Built-in FTP server |
Yes |
| Hot spare |
Yes |
| System log |
Yes |
| Access Control List (ACL) |
Yes |
| Browser supported |
Apple Safari, Google Chrome, Microsoft Edge, Mozilla Firefox |
| Share folder |
250 TB |
| S.M.A.R.T. support |
Yes |
| On/off switch |
Yes |
| Security algorithms |
FIPS 140-2, AES |
| Software |
|---|
| Operating system installed |
QNAP QTS |
| Operating system version |
5.2.9 |
| Windows operating systems supported |
Windows 7, Windows 8, Windows 10, Windows 11 |
| Linux operating systems supported |
Ubuntu 14.04, CentOS 7.0, Red Hat Enterprise Linux 7.9, SuSE Linux 12.0 |
| Mac operating systems supported |
Mac OS X 10.10 Yosemite |
| Other operating systems supported |
Linux |
| Power |
|---|
| Power supply location |
External |
| Power supply unit (PSU) capacity |
90 W |
| Power consumption (typical) |
28 W |
| Power consumption (HDD standby) |
15 W |
| AC input voltage |
100 - 240 V |
| Weight & dimensions |
|---|
| Width |
195 mm |
| Depth |
232 mm |
| Height |
171 mm |
| Weight |
2.49 kg |
| Package weight |
4.91 kg |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Storage temperature (T-T) |
-20 - 70 °C |
| Logistics data |
|---|
| Master (outer) case width |
393 mm |
| Master (outer) case length |
227 mm |
| Master (outer) case height |
287 mm |
| Master (outer) case gross weight |
2.49 kg |
| Products per master (outer) case |
4 pc(s) |
| Other features |
|---|
| Warranty period |
3 year(s) |
