- 25GbE and 10GbE Hybrid Design: Twelve 10GbE RJ45 ports to connect NAS, servers, and workstations, plus six 25GbE SFP28 ports for high-speed uplinks to core switches or storage networks.
- PTP (Precision Time Protocol) Support: Supports PTP for high-precision time synchronization, ensuring frame-accurate playback across video walls and multi-display AV systems.
- L3 Lite: Provides IP settings (IPv4, IPv6, DNS), static routing, DHCP server, SNTP and advanced VLAN settings to deploy and manage high-performance and secure enterprise network infrastructure.
- Continuous Enterprise networks: Adopts MC-LAG, (Multi-chassis link aggregation group) to offer High Availability and redundancy to guarantee uninterrupted network switching.
- Secure network management: Supports ACL, Qfinder Pro login, and SNMP (Simple Network Management Protocol) management to ensure secure connections between the switch and network devices and enable central management and maintenance.
- Cloud-centralized control for hassle-free management: No additional hardware or software is required. Use the AMIZcloud management platform to monitor multiple switches across various locations, enabling remote IT troubleshooting and reducing operational costs.

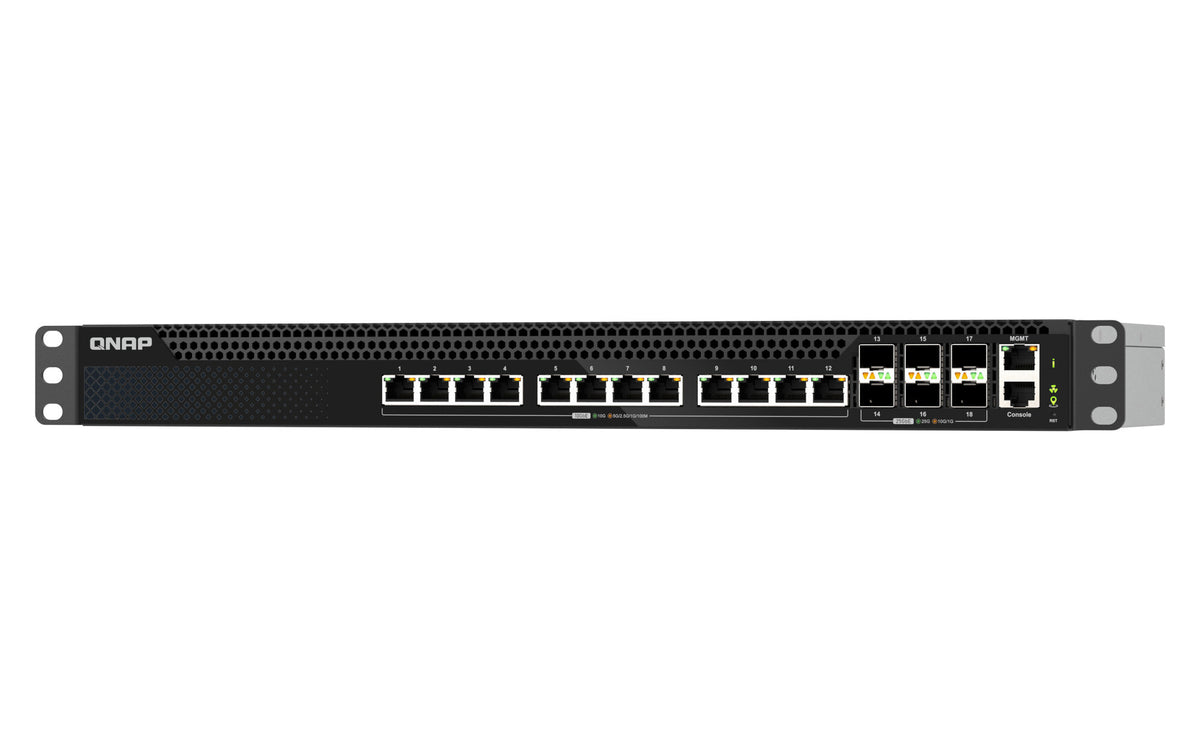

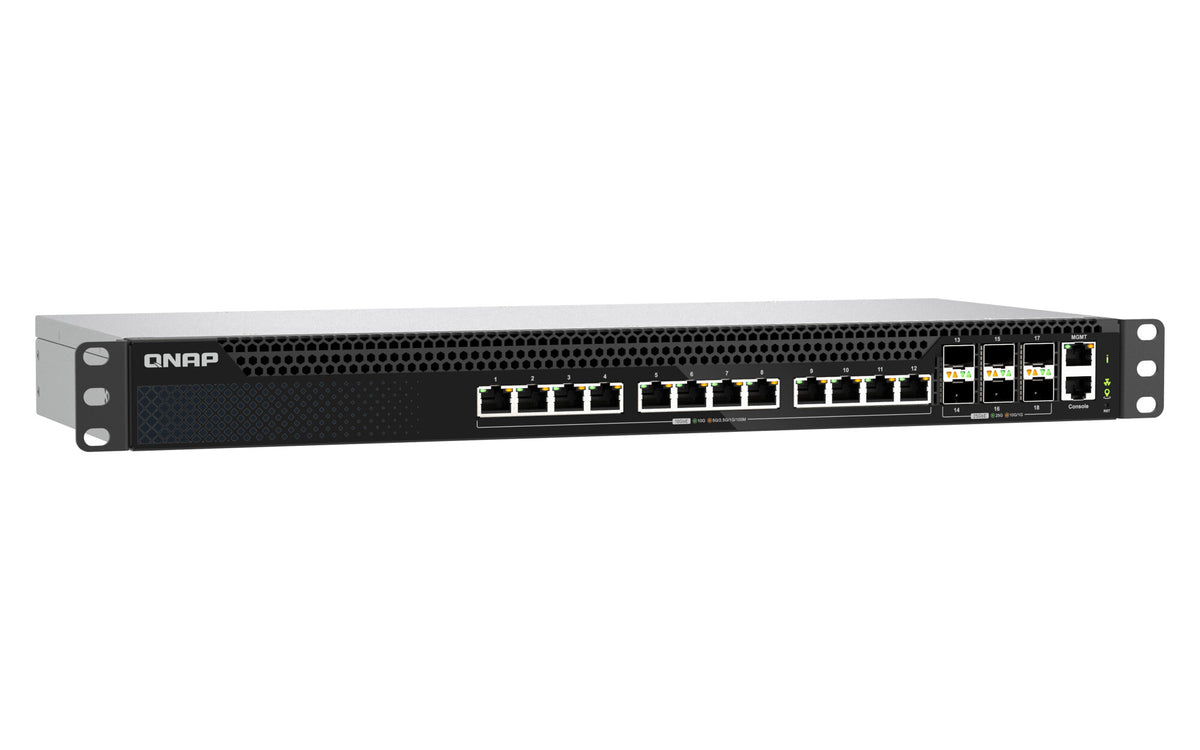

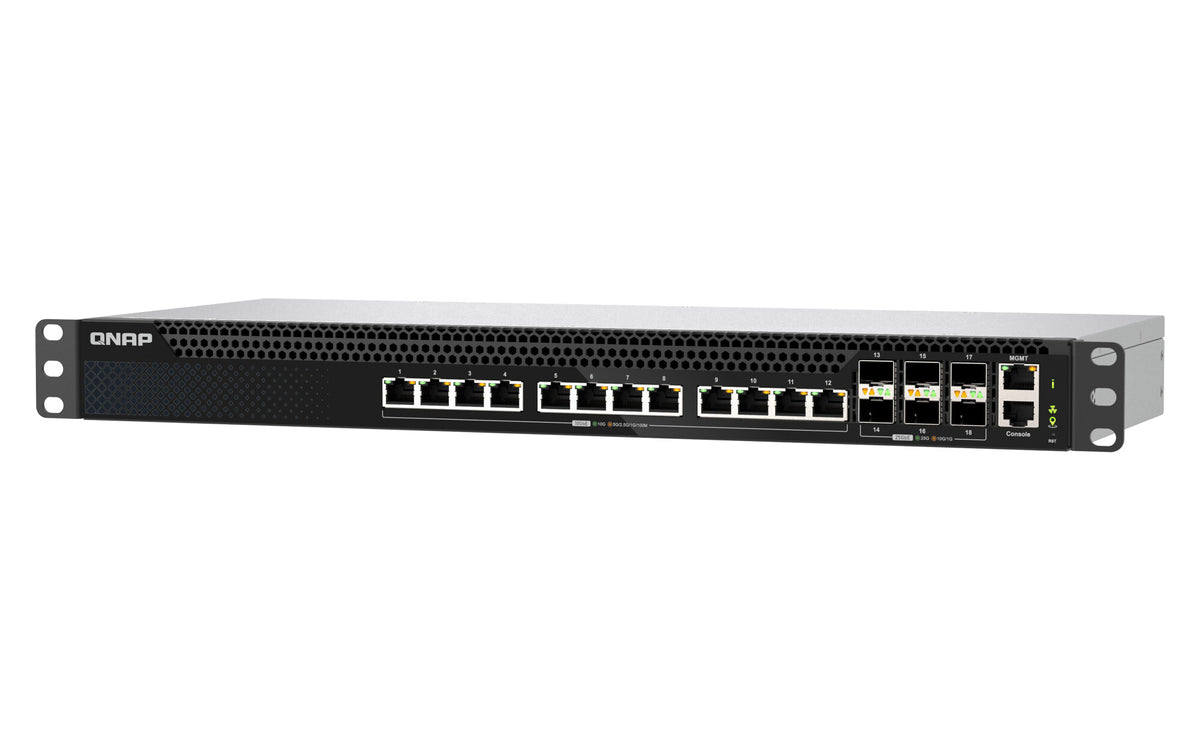

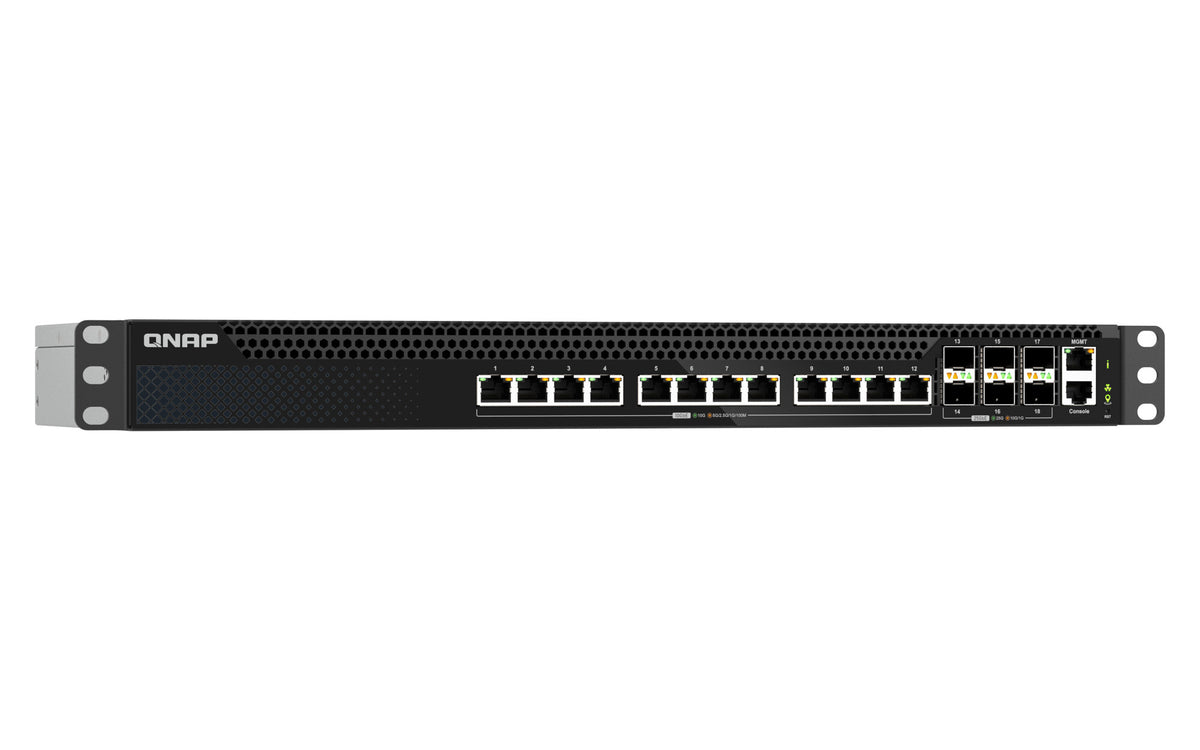

QSW-M5218-6F12T
Flexible Deployment, Efficient Backbone: A Layer 3 Managed Switch Combining 25GbE and 10GbE
The QSW-M5218-6F12T features twelve 10GbE RJ45 and six 25GbE SFP28 high-speed network ports, delivering Layer 3 advanced routing, MC-LAG high availability, and IEEE 1588v2 PTP support. Whether upgrading enterprise core networks, performing high-resolution video editing, or implementing broadcast-grade time synchronization, it helps you build a stable, efficient, and seamlessly upgradable IT infrastructure.
| Management features |
|---|
| Switch type |
Managed |
| Switch layer |
L3 |
| Quality of Service (QoS) support |
Yes |
| Web-based management |
Yes |
| Ports & interfaces |
|---|
| Basic switching RJ-45 Ethernet ports quantity |
12 |
| Basic switching RJ-45 Ethernet ports type |
10G Ethernet (100/1000/10000) |
| Console port |
RJ-45 |
| SFP28 ports quantity |
6 |
| Network |
|---|
| Networking standards |
IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support |
Yes |
| Full duplex |
Yes |
| Flow control support |
Yes |
| VLAN support |
Yes |
| Data transmission |
|---|
| MAC address table |
32000 entries |
| Switching capacity |
540 Gbit/s |
| Jumbo frames support |
Yes |
| Jumbo frames |
9000 |
| Design |
|---|
| Rack mounting |
Yes |
| Form factor |
1U |
| Product colour |
Black |
| Reset button |
Yes |
| LED indicators |
Activity, Link, Power, Status, Speed |

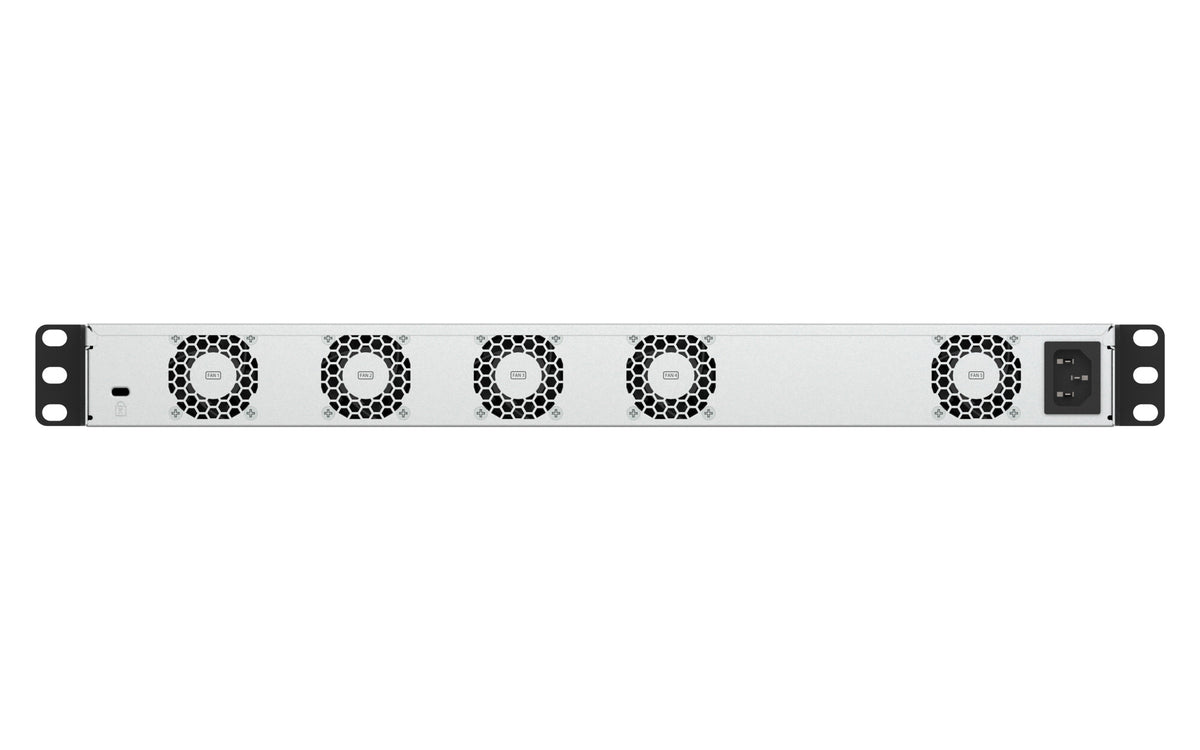

| Number of fans |
5 fan(s) |
| Electromagnetic compatibility |
CLASS A |
| Power |
|---|
| Power source |
AC |
| Power supply included |
Yes |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Power consumption (max) |
80 W |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) |
No |
| Other features |
|---|
| Warranty period |
2 year(s) |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Weight & dimensions |
|---|
| Width |
439 mm |
| Depth |
190 mm |
| Height |
44 mm |
| Weight |
2.74 kg |
| Packaging data |
|---|
| Package weight |
4.62 kg |
| Certificates |
|---|
| Certification |
CE, FCC, VCCI, BSMI, ICES, RCM, UKCA, LVD |
