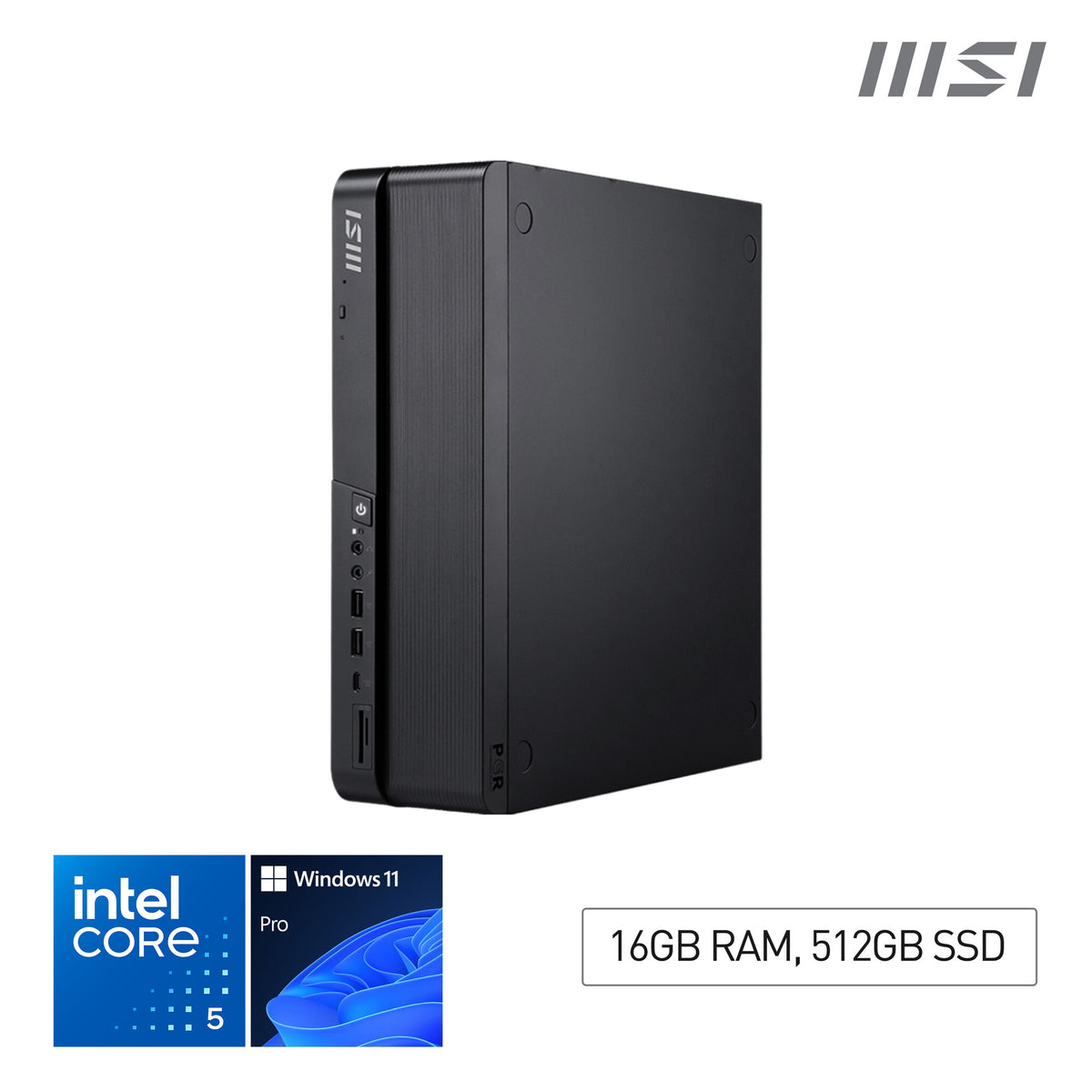

MSI Pro DP80 A14G Intel Core i5 14400 ( 14th Gen Desktop CPU ), Desktop PC, DP80 A14G, SFF, Mini Computer, HTPC, (16GB RAM, 512GB Storage, Windows 11 ), Intel Graphics/DDR5/Dual HDMI/Dual LAN/WiFi 6E/BT 5.3 - DP80 A14G i5 14400 FS 16GB 512GB W11P
MSI
-
Regular price
-
€1,063.99
-
Sale price
-
€1,063.99
-
Regular price
-
-
Unit price
-
/
per
Tax included.
- Business PC Black 300 W
- Intel® Core™ i5 i5-14400 2.5 GHz Processor cores: 10
- 16 GB DDR5-SDRAM 5600 MHz 2 x 8 GB
- 512 GB SSD
- Intel UHD Graphics 730 On-board graphics card cores: 24
- Ethernet LAN 10,100,1000,2500 Mbit/s Wi-Fi 6E (802.11ax) Bluetooth 5.3
- Windows 11 Pro 64-bit
| Processor |
|---|
| Processor manufacturer |
Intel |
| Processor family |
Intel® Core™ i5 |
| Processor generation |
Intel® Core™ i5 (14th gen) |
| Processor model |
i5-14400 |
| Processor cores |
10 |
| Processor threads |
16 |
| Processor boost frequency |
4.7 GHz |
| Processor frequency |
2.5 GHz |
| Performance cores |
6 |
| Efficient cores |
4 |
| Performance-core Max Turbo Frequency |
4.7 GHz |
| Efficient-core Max Turbo Frequency |
3.5 GHz |
| Performance-core base frequency |
2.5 GHz |
| Efficient-core base frequency |
1.8 GHz |
| Processor cache |
20 MB |
| Processor cache type |
Smart Cache |
| Number of processors installed |
1 |
| Maximum turbo power |
148 W |
| Processor base power |
65 W |
| Neural processor unit (NPU) |
|---|
| Neural processor unit (NPU) |
No |
| Memory |
|---|
| Internal memory |
16 GB |
| Maximum internal memory |
64 GB |
| Internal memory type |
DDR5-SDRAM |
| Memory layout (slots x size) |
2 x 8 GB |
| Memory slots |
2x SO-DIMM |
| Memory clock speed |
5600 MHz |
| Memory data transfer rate |
38.4 MT/s |
| Buffered memory type |
Clocked unregistered (unbuffered) |
| Memory channels |
Dual-channel |
| Non-ECC |
Yes |
| ECC |
No |
| Storage |
|---|
| Total storage capacity |
512 GB |
| Optical drive type |
No |
| Storage media |
SSD |
| Number of storage drives installed |
1 |
| Total HDDs capacity |
0 GB |
| HDD capacity |
0 GB |
| Total SSDs capacity |
512 GB |
| Number of SSDs installed |
1 |
| SSD memory type |
TLC |
| SSD capacity |
512 GB |
| NVMe |
Yes |
| SSD interface |
PCI Express 4.0 |
| SSD form factor |
M.2 |
| M.2 SSD size |
2280 (22 x 80 mm) |
| Intel® Optane™ Memory module installed |
No |
| Intel® Optane™ Memory module capacity |
0 GB |
| Embedded storage capacity |
0 MB |
| Graphics |
|---|
| Discrete graphics card |
No |
| On-board graphics card |
Yes |
| Discrete graphics card model |
Not available |
| On-board GPU manufacturer |
Intel |
| On-board graphics card family |
Intel® UHD Graphics |
| On-board graphics card model |
Intel UHD Graphics 730 |
| On-board graphics card cores |
24 |
| On-board graphics card 6K support |
No |
| On-board graphics card 8K support |
Yes |
| Number of external displays supported |
3 |
| Graphics card Open GL support |
Yes |
| AMD FreeSync |
No |
| Ray tracing acceleration |
No |
| CUDA |
No |
| NVIDIA G-SYNC |
No |
| NVIDIA GameWorks VR |
No |
| Graphics card VGA (D-Sub) ports quantity |
1 |
| Graphics card DisplayPorts quantity |
1 |
| Graphics card HDMI ports quantity |
1 |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
10,100,1000,2500 Mbit/s |
| LAN controller |
Intel® I219-V, Intel I226-V |
| Wi-Fi |
Yes |
| Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
| WLAN controller manufacturer |
Intel |
| Wi-Fi standards |
Wi-Fi 6E (802.11ax) |
| WLAN controller model |
Intel Wi-Fi 6E AX211 |
| Bluetooth |
Yes |
| Bluetooth Low Energy (BLE) |
Yes |
| Bluetooth version |
5.3 |
| Wake-on-LAN ready |
Yes |
| Miracast |
Yes |
| Ports & interfaces |
|---|
| USB 2.0 ports quantity |
4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| Number of USB ports with PowerShare support |
1 |
| PowerShare |
Yes |
| USB Type-C DisplayPort Alternate Mode |
No |
| Intel® Thunderbolt 4 |
No |
| Intel® Thunderbolt 5 |
No |
| VGA (D-Sub) ports quantity |
1 |
| DVI port |
No |
| HDMI ports quantity |
1 |
| HDMI version |
2.1 |
| DisplayPorts quantity |
1 |
| DisplayPort version |
1.4 |
| PS/2 ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
2 |
| Microphone in |
Yes |
| Headphone outputs |
1 |
| Line-in |
Yes |
| Line-out |
Yes |
| Combo headphone/mic port |
No |
| S/PDIF out port |
No |
| DC-in jack |
No |
| Serial ports quantity |
1 |
| Fiber NIC port (Flex I/O) |
No |
| Number of rear audio ports |
3 |
| Number of front audio ports |
2 |
| Number of front USB ports |
3 |
| Number of rear USB ports |
6 |
| Total number of SATA connectors |
4 |
| Number of SATA III connectors |
4 |
| Expansion slots |
|---|
| PCI Express x1 slots |
1 |
| PCI Express x1 (Gen 3.x) slots |
1 |
| PCI Express x16 slots |
1 |
| PCI Express x16 (Gen 4.x) slots |
1 |
| Design |
|---|
| Chassis type |
Mini Tower |
| Colour name |
Black |
| Placement supported |
Vertical |
| Water cooling system |
No |
| Number of 3.5" bays |
1 |
| Number of 2.5" bays |
1 |
| Cable lock slot |
Yes |
| Cable lock slot type |
Kensington |
| Copilot key |
No |
| Product colour |
Black |
| Introduction month |
June |
| Housing material |
Metal, Steel |
| Viewing window |
No |
| RGB memory lighting |
No |
| Introduction year |
2025 |
| Country of origin |
China |
| Refurbished |
No |
| Certified refurbished |
No |
| Performance |
|---|
| Product type |
PC |
| Market positioning |
Business |
| Powered by |
MSI |
| Virtual Reality (VR) ready |
No |
| Motherboard chipset |
Intel H610 |
| Motherboard form factor |
micro ATX |
| Compatible processor series |
Intel Core i5 14th Gen |
| Audio chip |
Realtek ALC897 |
| Audio system |
High Definition Audio |
| Audio output channels |
7.1 channels |
| Built-in speaker(s) |
No |
| Password protection |
Yes |
| Password protection type |
BIOS, HDD |
| Fingerprint reader |
No |
| BIOS type |
UEFI AMI |
| Trusted Platform Module (TPM) version |
2.0 |
| Trusted Platform Module (TPM) |
Yes |
| Software |
|---|
| Operating system installed |
Windows 11 Pro |
| Copilot+ PC |
No |
| Operating system architecture |
64-bit |
| Windows 11 free upgrade |
No |
| Operating system language |
English |
| Apple Intelligence |
No |
| Drivers included |
Yes |
| Processor special features |
|---|
| Video encode engine |
Yes |
| Video decode engine |
Yes |
| Power |
|---|
| Power supply |
300 W |
| Power supply input voltage |
100 - 240 V |
| Power supply input frequency |
50 - 60 Hz |
| Power consumption (max) |
219 W |
| 80 PLUS certification |
80 PLUS Bronze |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 35 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
0 - 85% |
| Storage relative humidity (H-H) |
0 - 90% |
| Operating altitude |
0 - 2000 m |
| Non-operating altitude |
0 - 12000 m |
| Operating vibration |
0.21 G |
| Non-operating vibration |
2 G |
| Operating shock |
10 G |
| Non-operating shock |
40 G |
| Certificates |
|---|
| PSTI certified |
No |
| Waste Electrical and Electronic Equipment (WEEE) compliance |
Yes |
| Compliance certificates |
CE, Federal Communications Commission (FCC), RoHS |
| Low halogen |
No |
| Weight & dimensions |
|---|
| Width |
95 mm |
| Depth |
296 mm |
| Height |
330 mm |
| Package width |
561 mm |
| Package depth |
234 mm |
| Package height |
402 mm |
| Packaging content |
|---|
| Display included |
No |
| Mouse included |
No |
| Keyboard included |
No |
| Keyboard backlit |
No |
| Numeric keypad |
No |
| Cables included |
AC |
| VESA mount included |
No |
| Screws included |
No |
| Manual |
Yes |
| General |
|---|
| Product family |
Pro |
| Technical details |
|---|
| Not classified as hazardous under GHS |
Yes |
| Other features |
|---|
| Video compression formats |
H.264, H.265 |
| TV tuner integrated |
No |
| Locale |
English |
| Built-in microphone |
No |
| Warranty period |
3 year(s) |
