- Control two DVI-Dual Link computers with one keyboard, monitor and mouse
- True Transparent USB - supports all widely used mice and keyboards
- DDC support for 'Plug and Play' monitors
- Independent audio switching meaning you can listen to music on a computer while browsing the internet on the other
- 2 year warranty

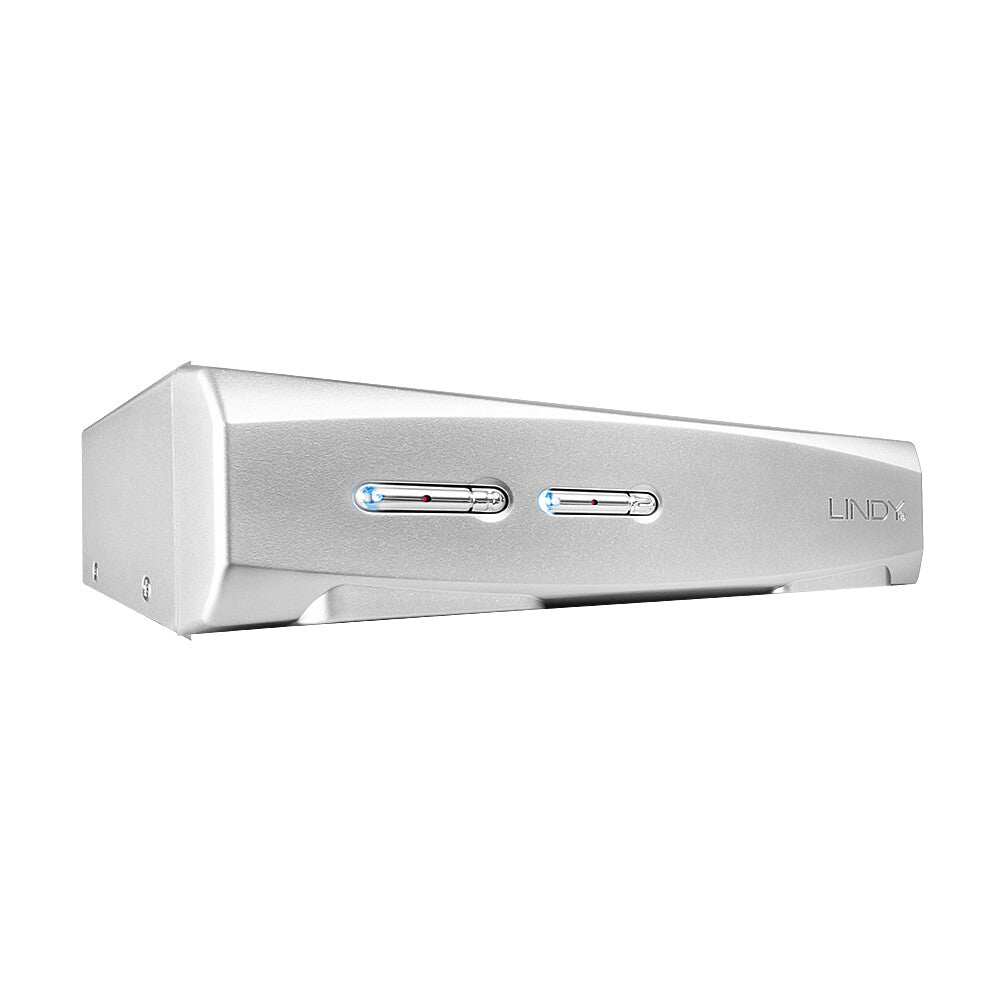

The Lindy 2 Port DVI-I KVM switch allows you to control two DVI-Dual Link equipped computers using a single keyboard, monitor and mouse along with independent control over audio. An integrated USB 2.0 hub allows you to share USB devices such as pen drives, hard drives and printers, between the computers. Representing excellent value for money it can support both high resolution digital and analogue systems.
True Transparent USB Function
True Transparent USB switching is an advanced USB emulation technology. It allows the KVM to recognise specific Keyboard and Mouse models and emulate any of their associated special key and function information.
Unique Switching Options
A unique switching arrangement allows the built-in USB hub to be switched independently of the computers allowing you to print from one PC whilst playing games on another. Similarly, independent audio switching means you can listen to music from one computer while browsing the internet on the other.
DVI-I Support
Supports DVI-I dual link monitors and computers with video resolutions of up to 2560 x 1600. The switch can also be used with analogue VGA computers using compatible adapter cables.
| Ports & interfaces |
|---|
| Number of computers controlled |
2 |
| Keyboard port type |
USB |
| Mouse port type |
USB |
| Video port type |
DVI-I |
| DVI-I ports quantity |
3 |
| USB 2.0 Type-B ports quantity |
2 |
| Console USB ports quantity |
2 |

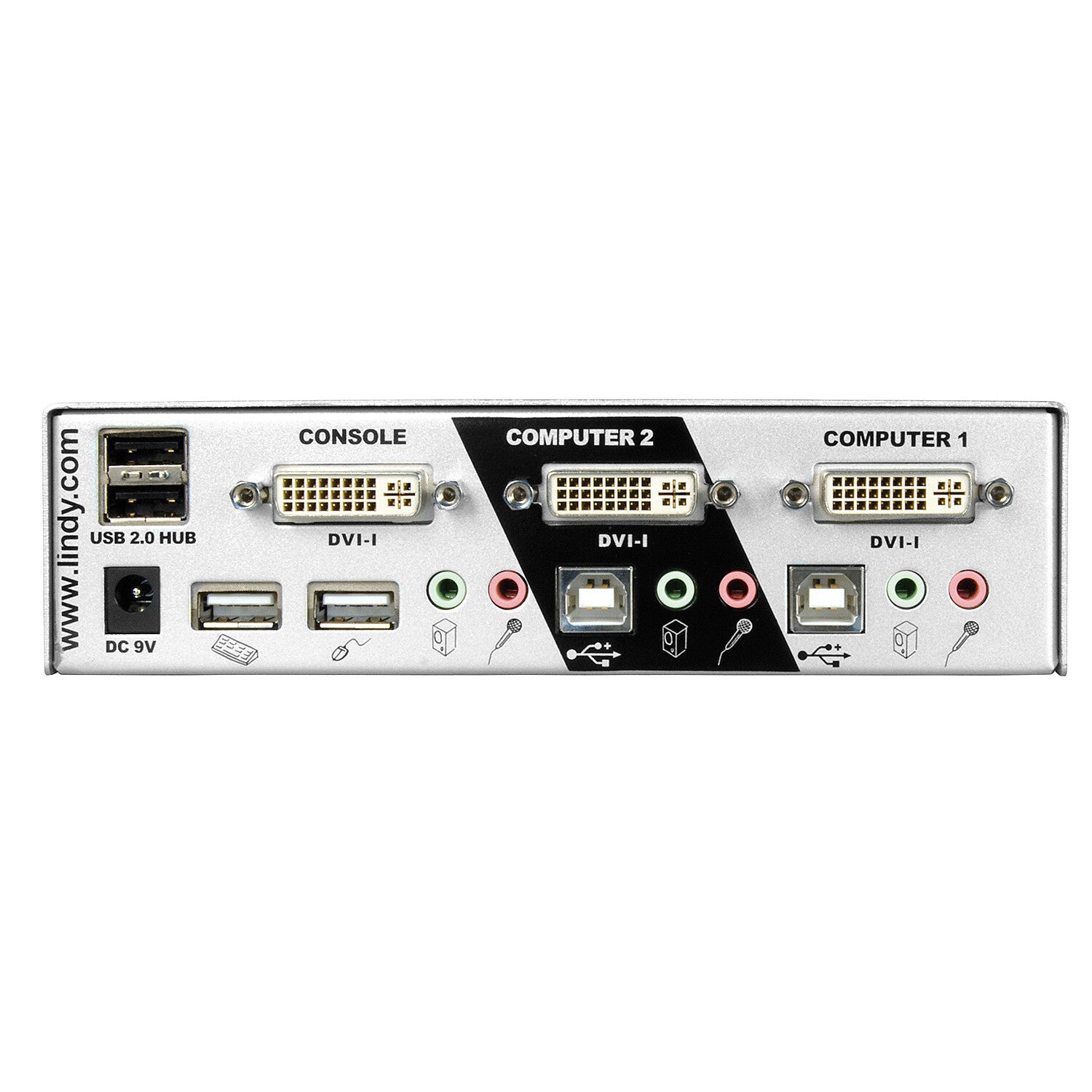

| Console ports |
3.5mm headphone, 3.5mm mic, DVI-I, USB A |
| USB hub |
Yes |
| USB 2.0 Type-A hub ports quantity |
2 |
| USB connector type |
USB Type-A, USB Type-B |
| Audio connections |
Yes |
| Headphone outputs |
3 |
| Number of microphone inputs |
3 |
| DC-in jack |
Yes |
| Performance |
|---|
| HD type |
Full HD+ |
| Maximum resolution |
2048 x 1536 pixels |
| Design |
|---|
| Product colour |
Silver |
| Housing material |
Metal, Plastic |
| Cascadable |
Yes |
| Display switch button |
Yes |
| Hot keys |
Yes |
| Certification |
CE, FCC, REACH |
| Display |
|---|
| Built-in display |
No |
| Power |
|---|
| Power source |
DC |
| Input voltage |
9 V |
| Input current |
1.1 A |
| Sustainability |
|---|
| Compliance certificates |
RoHS |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 50 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
0 - 90% |
| Weight & dimensions |
|---|
| Width |
165 mm |
| Depth |
110 mm |
| Height |
46 mm |
| Weight |
950 g |
| Packaging data |
|---|
| Package width |
260 mm |
| Package depth |
170 mm |
| Package height |
70 mm |
| Package weight |
1.3 kg |
| Packaging content |
|---|
| AC adapter included |
Yes |
| Manual |
Yes |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176200 |
