- AMD Ryzen Threadripper PRO 7945WX (12C/24T, 4.7/5.3GHz, 12MB L2/64MB L3)
- 2x 16GB RDIMM DDR5-4800 ECC
- 1x 1TB SSD M.2 2280 PCIe 4.0x4 NVMe Opal
- Windows 11 Pro
Revolutionary design, accelerated power
- Groundbreaking AMD Ryzen™ Threadripper™ PRO-powered workstation
- ISV-certified, zips through multi-threaded & GPU-intensive workloads
- Game-changing power & speed with up to 96 cores and 5.3GHz

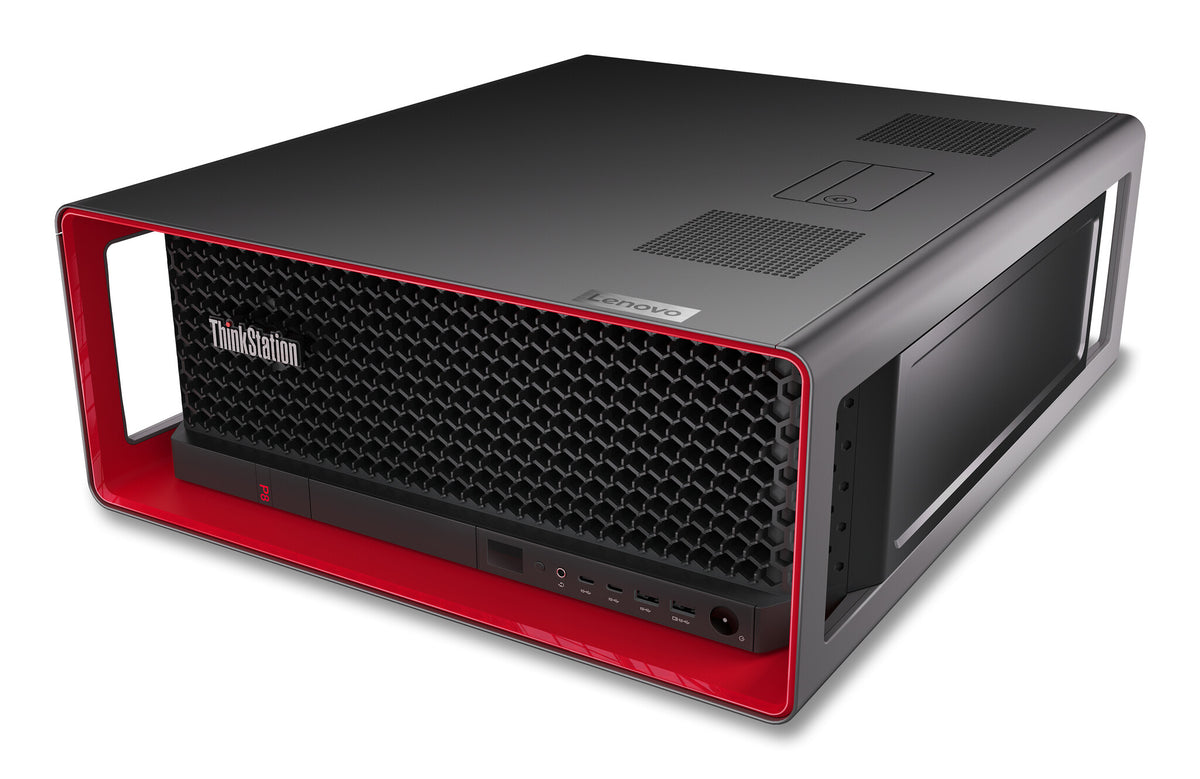

- Advanced chassis & thermal design, co-developed with Aston Martin
- Rack-optimized, perfect for those who demand accelerated performance
| Processor |
|---|
| Processor manufacturer |
AMD |
| Processor family |
AMD Ryzen Threadripper PRO |
| Processor generation |
AMD Ryzen Threadripper PRO 7000 WX-Series |
| Processor model |
7945WX |
| Processor cores |
12 |
| Processor threads |
24 |
| Processor boost frequency |
5.3 GHz |
| Processor frequency |
4.7 GHz |
| Memory |
|---|
| Internal memory |
32 GB |
| Maximum internal memory |
1 TB |
| Internal memory type |
DDR5-SDRAM |
| Memory layout (slots x size) |
2 x 16 GB |
| Memory slots |
8x DIMM |
| Memory clock speed |
4800 MHz |
| Storage |
|---|
| Total storage capacity |
1 TB |
| Optical drive type |
No |
| Storage media |
SSD |
| Total SSDs capacity |
1 TB |
| Number of SSDs installed |
1 |
| SSD capacity |
1 TB |
| NVMe |
Yes |
| SSD interface |
PCI Express 4.0 |
| SSD form factor |
M.2 |
| Graphics |
|---|
| Discrete graphics card |
No |
| On-board graphics card |
No |
| Discrete graphics card model |
Not available |
| On-board graphics card model |
Not available |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
10,100,1000,2500,5000,10000 Mbit/s |
| Wi-Fi |
No |
| Ports & interfaces |
|---|
| USB 2.0 ports quantity |
2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
2 |
| USB 3.2 Gen 2x2 Type-C ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
2 |
| Line-in |
Yes |
| Line-out |
Yes |
| Combo headphone/mic port |
Yes |
| Design |
|---|
| Chassis type |
Tower |
| Volume |
39 L |
| Placement supported |
Horizontal/Vertical |
| Cable lock slot |
Yes |
| Cable lock slot type |
Kensington |
| Product colour |
Black, Red |
| Performance |
|---|
| Product type |
Workstation |
| Audio chip |
Realtek ALC897-Q |
| Audio system |
High Definition Audio |
| Trusted Platform Module (TPM) |
Yes |
| Software |
|---|
| Operating system installed |
Windows 11 Pro |
| Operating system architecture |
64-bit |
| Power |
|---|
| Power supply |
1000 W |
| Power supply input voltage |
100 - 240 V |
| Power supply input frequency |
50 - 60 Hz |
| Operational conditions |
|---|
| Operating temperature (T-T) |
10 - 35 °C |
| Storage temperature (T-T) |
-40 - 60 °C |
| Operating relative humidity (H-H) |
20 - 80% |
| Storage relative humidity (H-H) |
10 - 90% |
| Operating altitude |
0 - 3048 m |
| Non-operating altitude |
0 - 12192 m |
| Weight & dimensions |
|---|
| Width |
175 mm |
| Depth |
508 mm |
| Height |
434.4 mm |
| Weight |
22.7 kg |
| Packaging content |
|---|
| Display included |
No |
| Mouse included |
Yes |
| Keyboard included |
Yes |
| General |
|---|
| Product series |
P |
| Product family |
ThinkStation |
