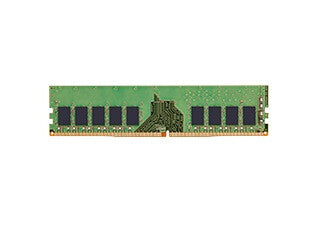

Kingston Technology KSM26ES8/16MF memory module 16 GB 1 x 16 GB DDR4 2666 MT/s ECC

• Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
• Data transfer rates: PC4-2666, PC4-2400, PC4-2133, PC4-1866, PC4-1600
• Low-power auto self refresh (LPASR)
• Data bus inversion (DBI) for data bus
• On-die VREFDQ generation and calibration
• Single-rank
• On-board I2 serial presence-detect (SPD) EEPROM
• Temperature sensor with integrated SPD
• 16 internal banks; 4 groups of 4 banks each

Kingston's KSM26ES8/16MF is a 2G x 72-bit (16GB) DDR4-2666 CL19 SDRAM (Synchronous DRAM), 1Rx8, ECC, memory module, based on nine 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-2666 timing of 19-19-19 at 1.2V. Each 288-pin DIMM uses gold contact fingers.
