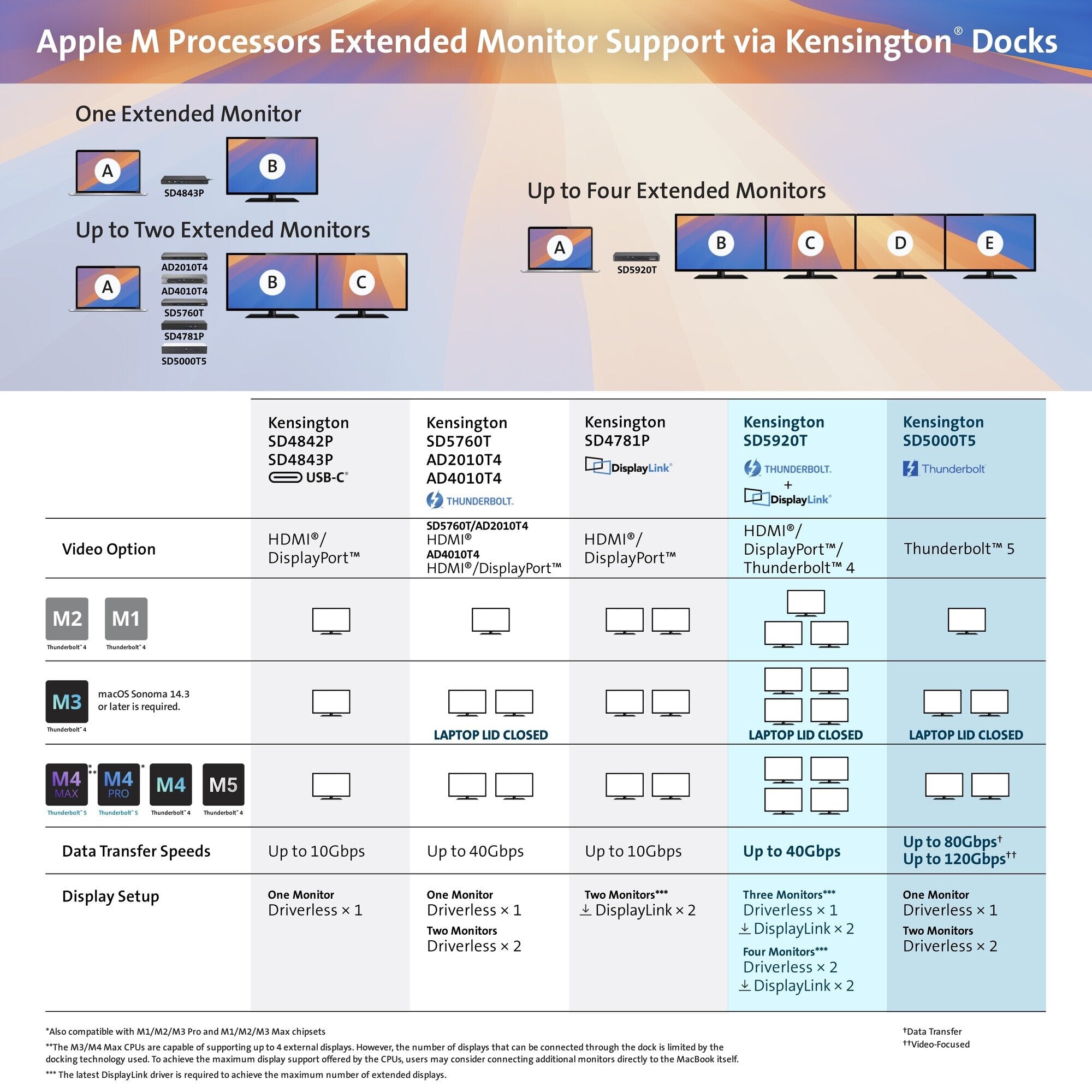

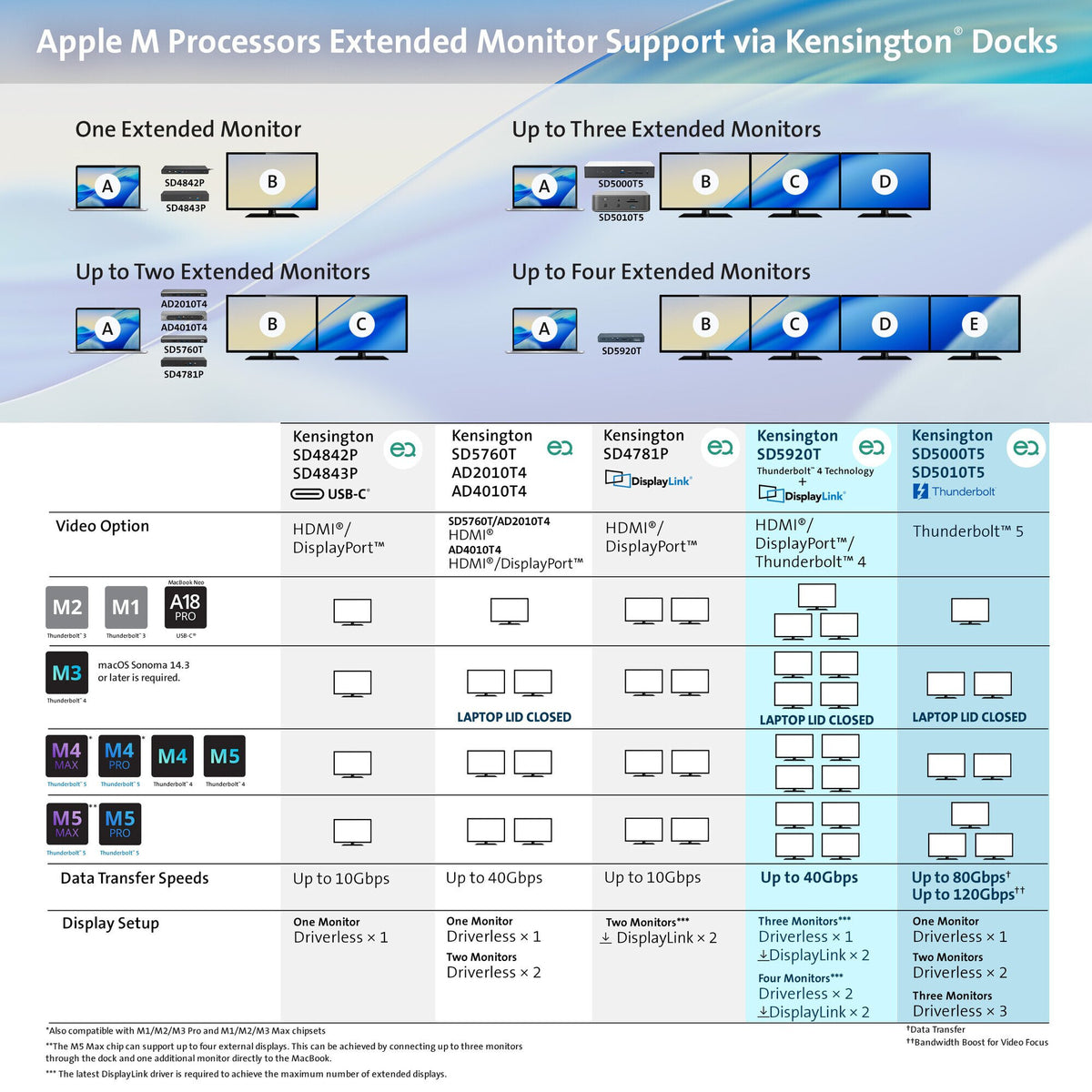

- Supports up to Quad 4K @ 60Hz for ThunderboltTM 4 laptops and devices via plug-and-play TB4 port and MacBook* models with M1/M2/M3 Pro and Max chipsets via DisplayLink®. * For MacBook M1/M2/M3/M4 with Pro and Max chipsets (and M3 base chipset when laptop lid is closed), this dock supports up to quad 4K @ 60Hz. It also supports up to triple 4K @ 60Hz for M1/M2 base chipsets.
- Optimised for ThunderboltTM 4, ThunderboltTM 3, USB4® and USB-C® devices running Windows (10 or later), macOS (11 or later) and ChromeOS (116 or later).
- Composed of 100% post-consumer recycled (PCR) aluminium* and delivered in FSC® certified packaging. * The outer casing of the docking station is made of aluminium. The PCBA and any related inner components are not made of aluminium.
- Combines ThunderboltTM with DisplayLink® to provide next-level productivity experiences, including up to 40Gbps of data, video and audio, daisy chain support, together with Intel VT-d DMA protection.
- Up to 100W Charging (96W certified) to power your laptop and connected accessories.
- Productive 16-in-1 design allows users to work more efficiently and connect to a variety of setups.

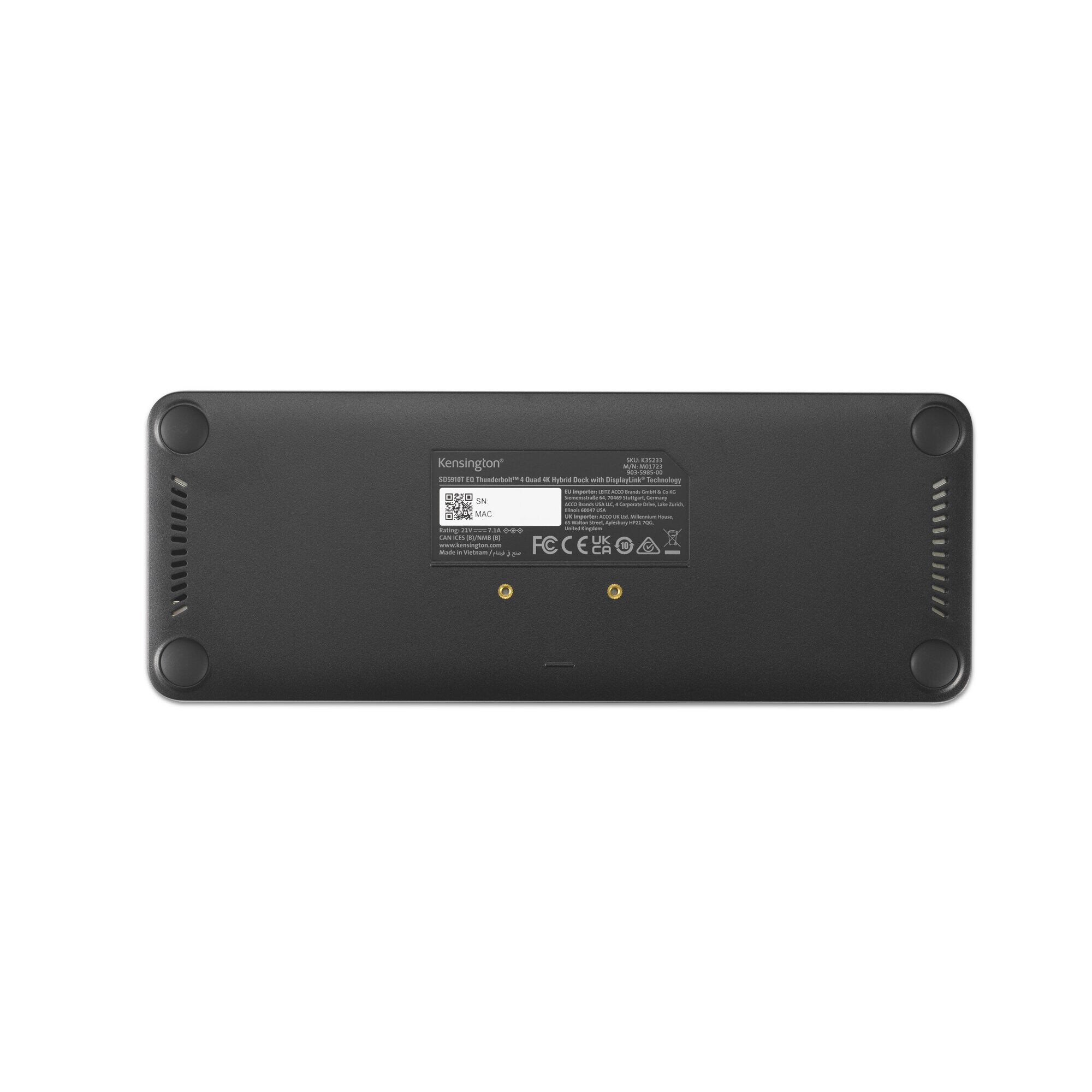

- Zero-footprint mounting option support a tidier workspace.

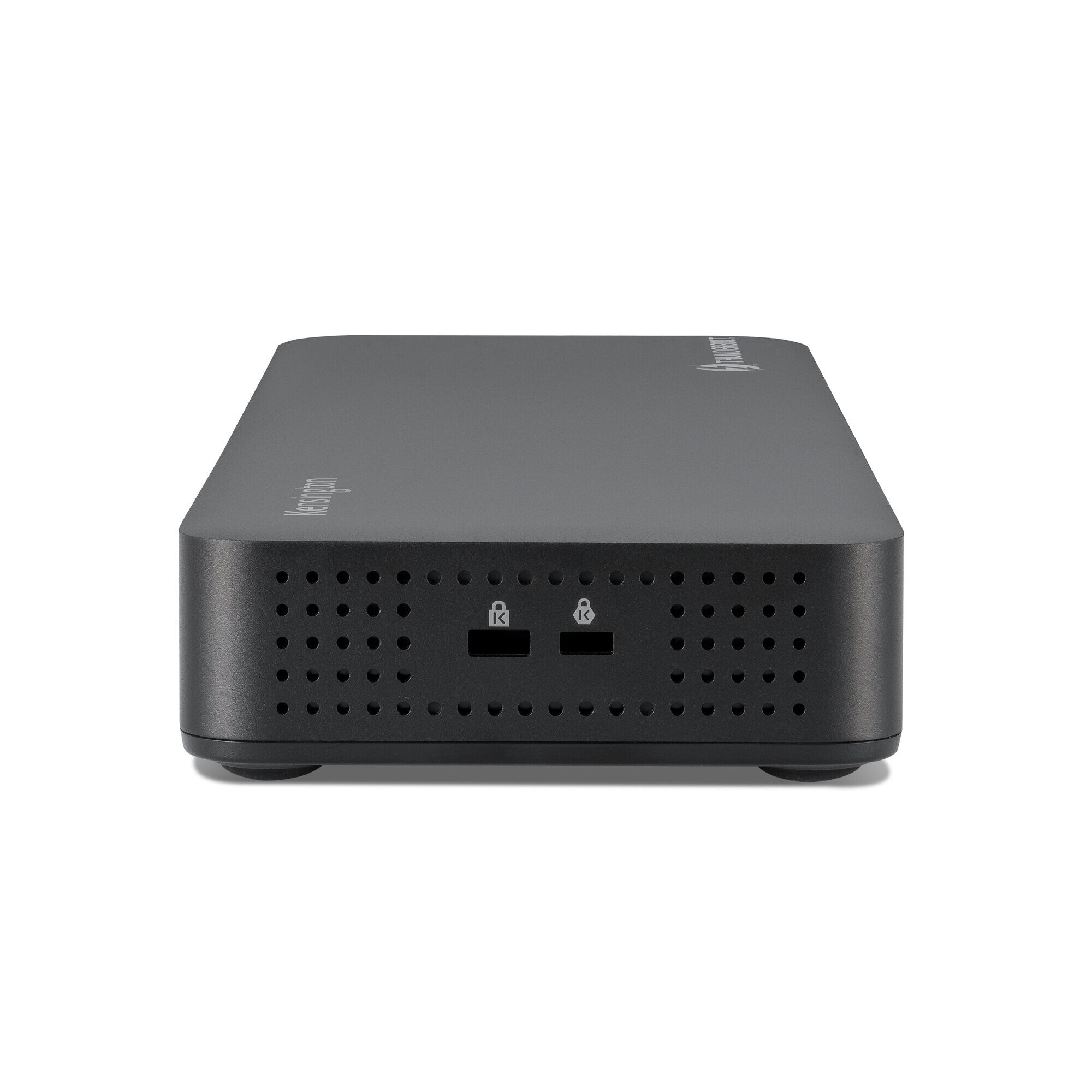

- Security cable lock slots support device protection.
- 3-year limited warranty. This warranty does not affect your statutory rights.

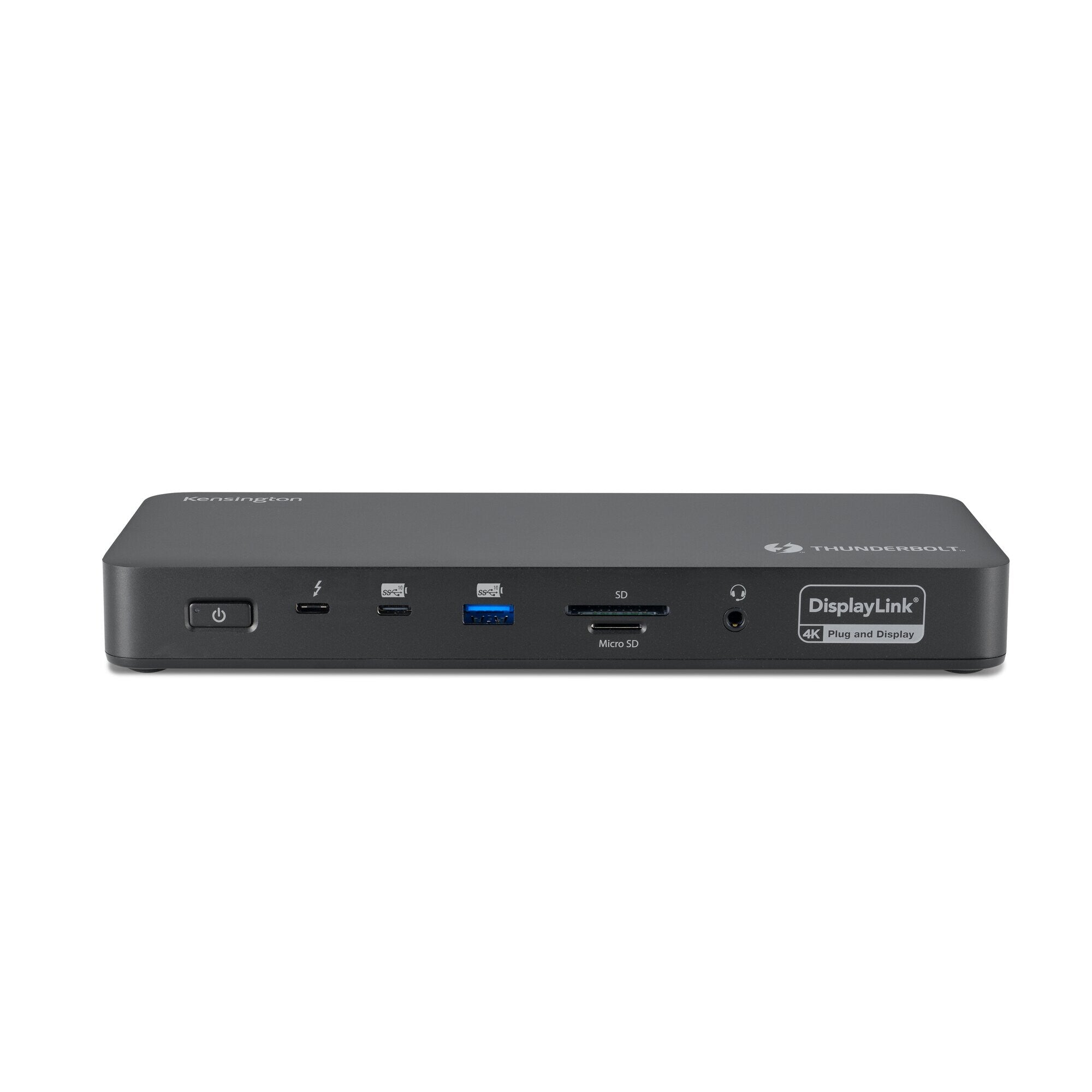

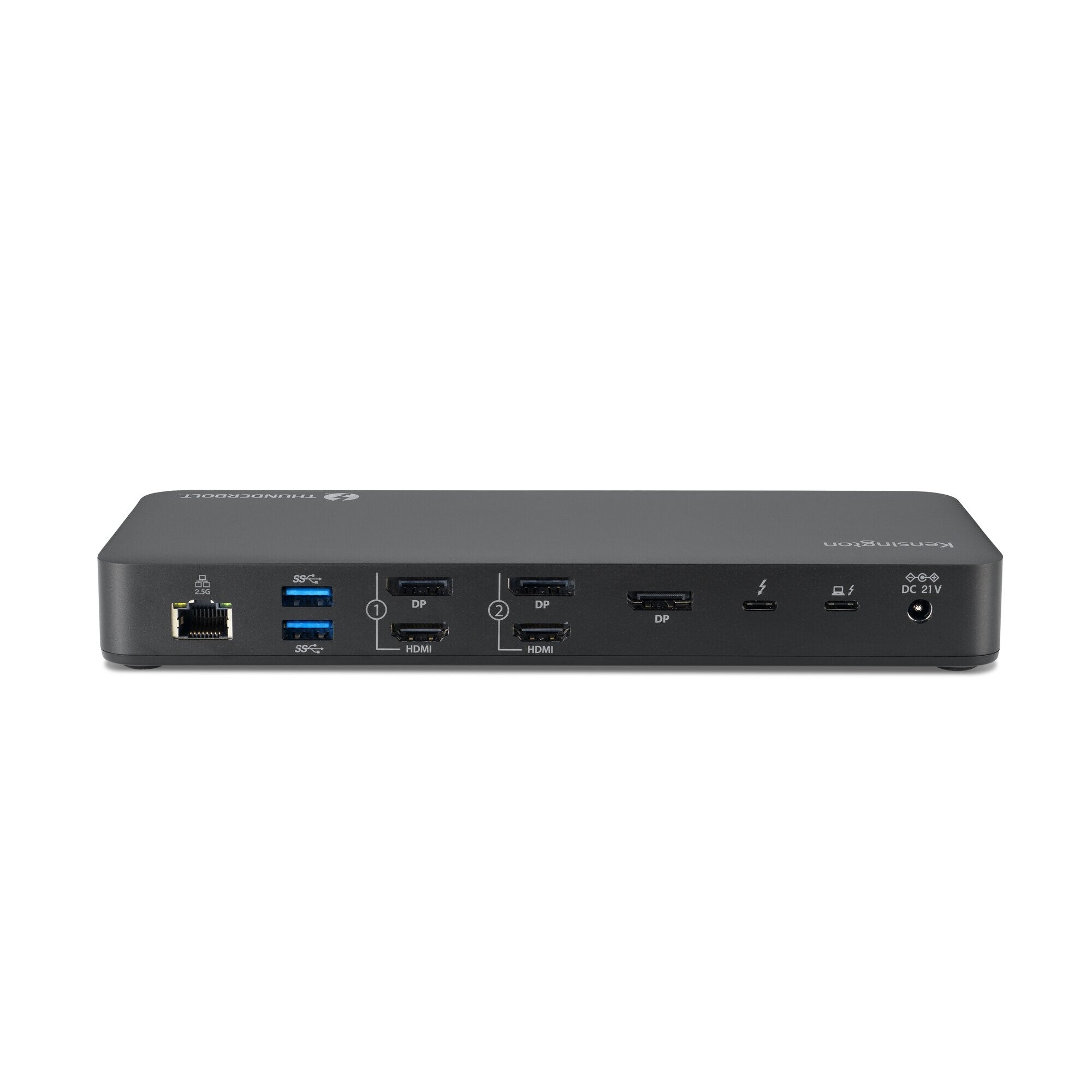

Supporting up to four external displays on laptops running Windows, macOS and ChromeOS, the SD5920T EQ ThunderboltTM 4 Quad 4K Hybrid Dock with DisplayLink® Technology is a versatile docking station for unlocking the full potential of ThunderboltTM 4, ThunderboltTM 3, USB4® and USB-C® devices. Flexible video connections include 2 x HDMI®/DP ports, 1 x DP port and 1 x ThunderboltTM 4 port, supporting up to Quad 4K @ 60Hz. Focused on productivity, the SD5920T supports up to 100W Charging (96W certified) to the laptop, 40Gbps data transfer speeds and includes 16 connectivity ports. Partially made with recycled materials. Includes a 3-Year Limited Warranty. This warranty does not affect your statutory rights. * For MacBook M1/M2/M3/M4 with Pro and Max chipsets (and M3 base chipset when laptop lid is closed), this dock supports up to quad 4K @ 60Hz. It also supports up to triple 4K @ 60Hz for M1/M2 base chipsets.
| Ports & interfaces |
|---|
| Host interface |
Thunderbolt 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| USB Power Delivery (USB PD) |
Yes |
| USB Power Delivery up to |
96 W |
| USB Power Delivery revision |
3.0 |
| Combo headphone/mic port |
Yes |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
10,1000,2500 Mbit/s |
| Performance |
|---|
| Card reader integrated |
Yes |
| Compatible memory cards |
SD, MicroSD (TransFlash) |
| Data transfer rate |
40 Gbit/s |
| HD type |
8K Ultra HD |
| Number of displays supported |
4 |
| Cable lock slot |
Yes |
| Cable lock slot type |
Nano, Kensington |
| Software |
|---|
| Windows operating systems supported |
Yes |
| Mac operating systems supported |
Yes |
| Other operating systems supported |
ChromeOS |
| Packaging data |
|---|
| Quantity per pack |
1 pc(s) |
| Package width |
245 mm |
| Package depth |
107 mm |
| Package height |
94 mm |
| Package weight |
1.5 kg |
| Logistics data |
|---|
| Master (outer) case net weight |
9.63 kg |
| Master (outer) case gross weight |
9.63 kg |
| Master (outer) case height |
135 mm |
| Master (outer) case length |
495 mm |
| Master (outer) case width |
360 mm |
| Products per master (outer) case |
6 pc(s) |
| Other features |
|---|
| Special features |
EQ |
| USB ports quantity |
4 |
| Compatible operating systems |
Chrome OS 116 or above; Windows 10 or above; macOS 11 or above |
