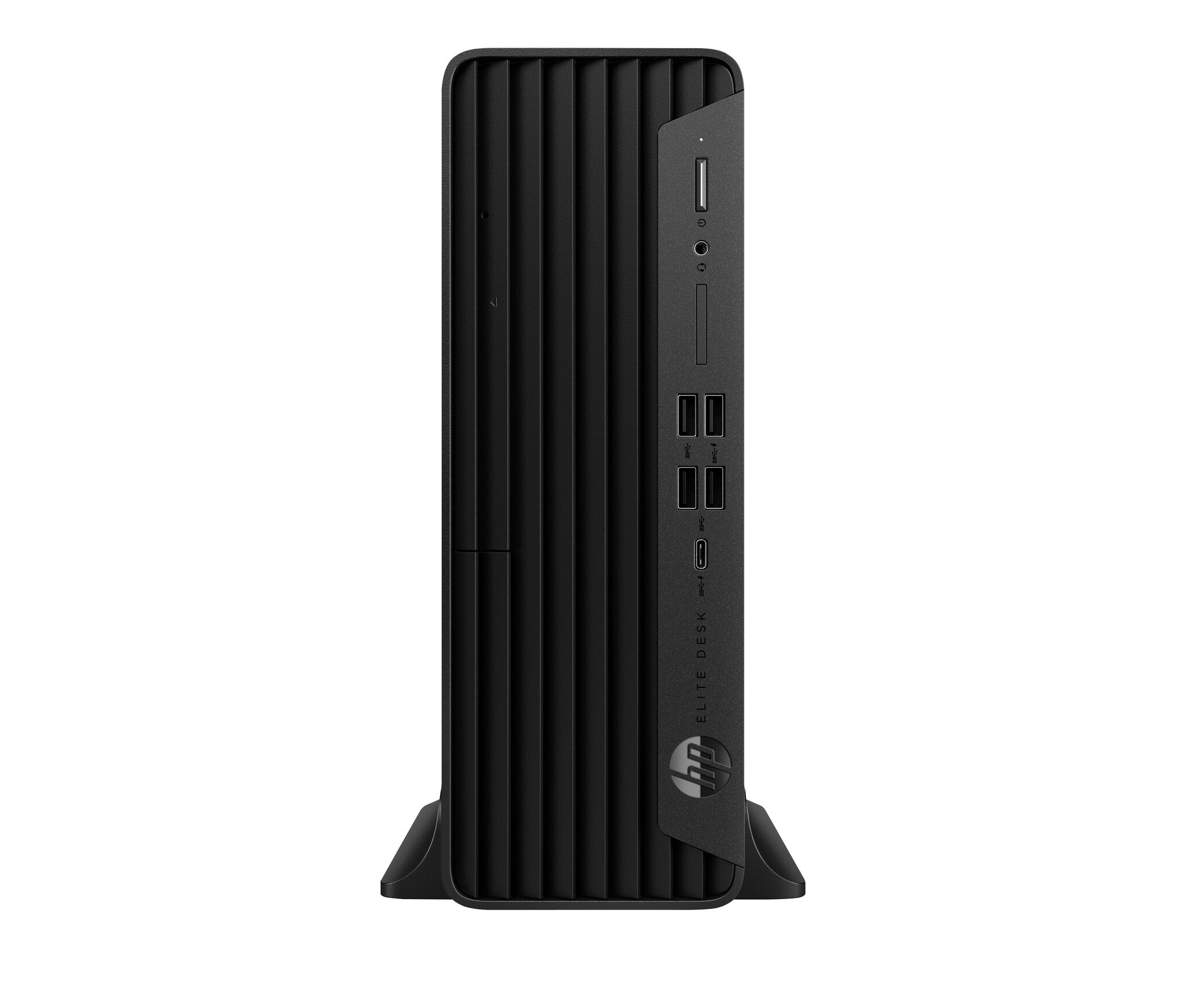

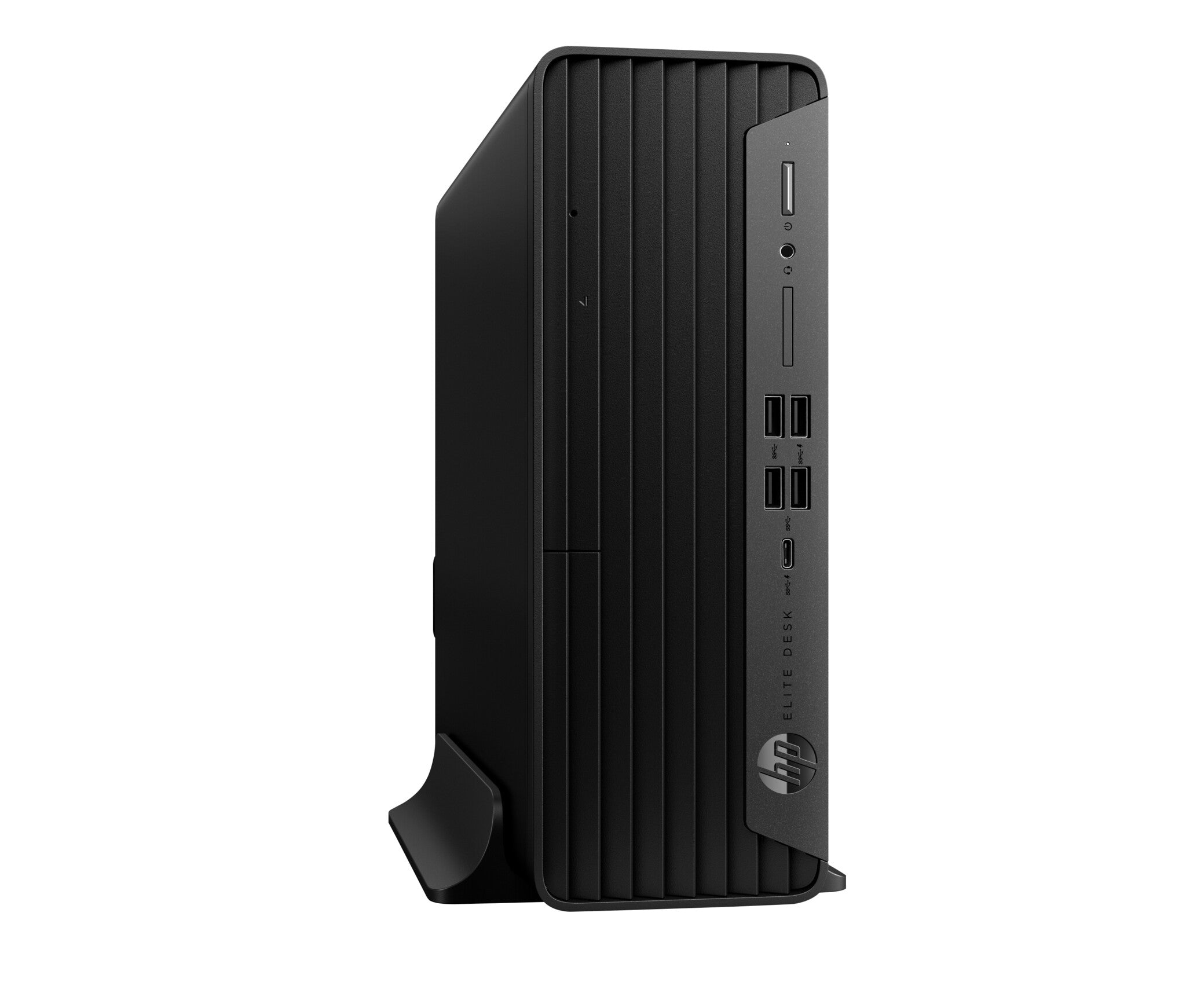

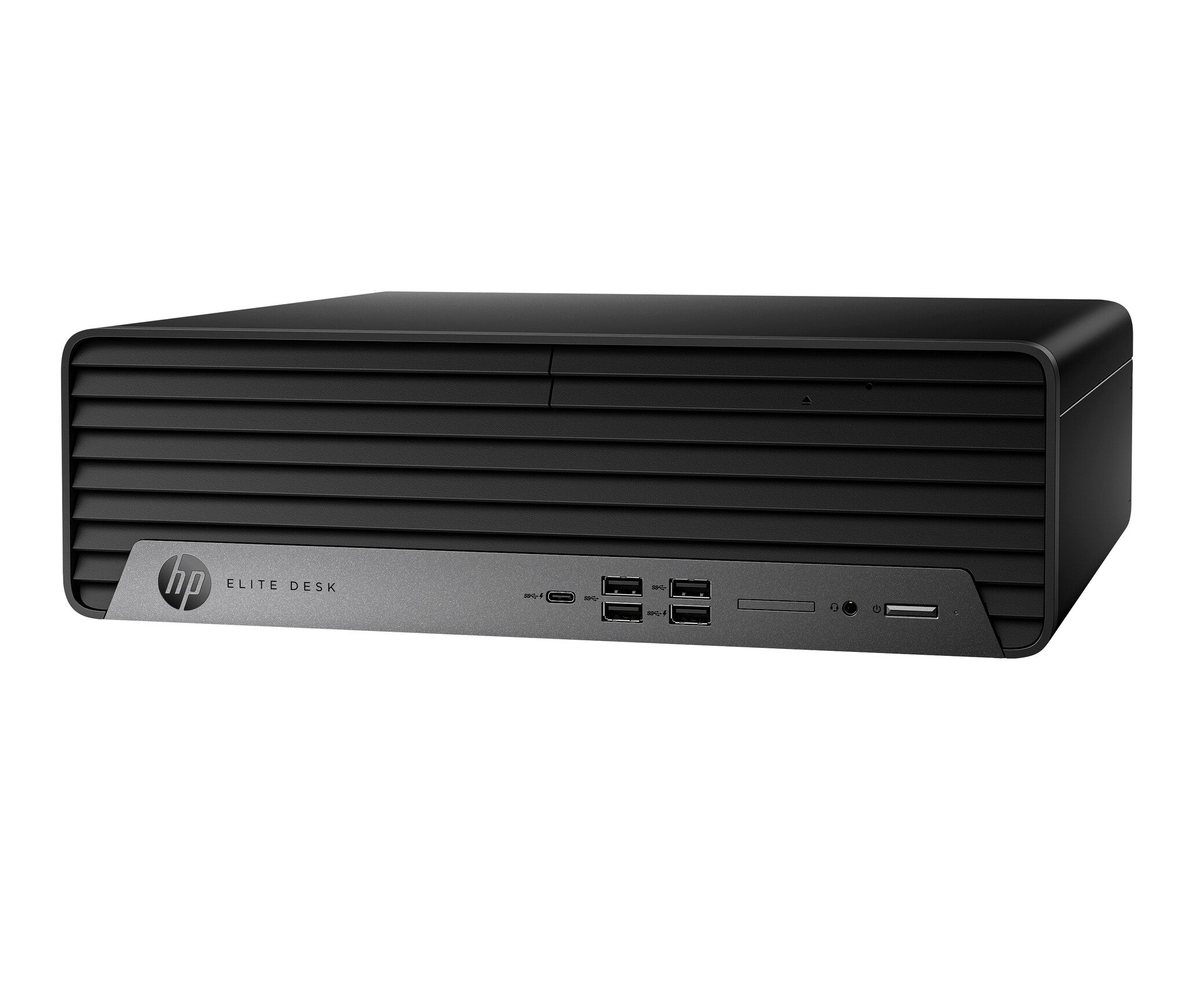

Optimized for expandability The HP Elite 800 SFF Desktop PC delivers uncompromising performance, expandability, and reliability in a space-saving design. Equipped with the latest Intel processor[2], speedy storage, and memory, this is the right PC for big jobs performed in smaller workspaces.
Specifications
Processor
Processor manufacturer
Intel
Processor family
Intel® Core™ i7
Processor generation
12th gen Intel® Core™ i7
Processor model
i7-12700
Processor cores
12
Processor threads
20
Processor boost frequency
4.9 GHz
Processor frequency
2.1 GHz
Processor cache
25 MB
Processor cache type
L3
Bus type
DMI4
Number of processors installed
1
Memory
Internal memory
8 GB
Maximum internal memory
128 GB
Internal memory type
DDR5-SDRAM
Memory layout (slots x size)
1 x 8 GB
Memory slots
4x DIMM
Memory clock speed
4800 MHz
Show all 109 specificationsShow fewer specifications
Storage
Total storage capacity
512 GB
Optical drive type
No
Storage media
SSD
Number of storage drives installed
1
Total SSDs capacity
512 GB
Number of SSDs installed
1
SSD capacity
512 GB
NVMe
Yes
SSD interface
PCI Express
Graphics
Discrete graphics card
No
On-board graphics card
Yes
Discrete graphics card model
Not available
On-board GPU manufacturer
Intel
On-board graphics card family
Intel® UHD Graphics
On-board graphics card model
Intel UHD Graphics 770
Network
Ethernet LAN
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
Wi-Fi
No
Ports & interfaces
USB 2.0 ports quantity
3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
4
USB 3.2 Gen 2x2 Type-C ports quantity
1
HDMI ports quantity
1
HDMI version
1.4
DisplayPorts quantity
2
Ethernet LAN (RJ-45) ports
1
Microphone in
Yes
Line-in
Yes
Line-out
Yes
Expansion slots
PCI Express x1 (Gen 3.x) slots
2
PCI Express x16 (Gen 3.x) slots
1
PCI Express x16 (Gen 4.x) slots
1
Design
Chassis type
SFF
Colour name
Jack black
Number of 3.5" bays
2
Product colour
Black
Country of origin
Czech Republic
Performance
Product type
PC
Motherboard chipset
Intel Q670
Audio chip
Realtek ALC3252
Password protection
Yes
Password protection type
BIOS, Power on
Trusted Platform Module (TPM) version
2.0
Trusted Platform Module (TPM)
Yes
Software
Operating system installed
Windows 11 Pro
Pre-installed software
HP Notifications; HP PC Hardware Diagnostics UEFI; HP Support Assistant; HP Connection Optimizer; HP Privacy Settings; HP PC Hardware Diagnostics Windows; HP Desktop Support Utilities; MyHP; HP Easy Clean; Touchpoint Customizer for Commercial; HP Easy Clean Keyboard Driver; HSA Fusion for Commercial; HSA Telemetry for Commercial
Processor special features
Intel Virtualization Technology (VT-x)
Yes
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
CPU configuration (max)
1
Execute Disable Bit
Yes
Intel Trusted Execution Technology
Yes
Intel Stable Image Platform Program (SIPP)
Yes
Idle States
Yes
Intel VT-x with Extended Page Tables (EPT)
Yes
Embedded options available
No
Enhanced Intel SpeedStep Technology
Yes
Intel 64
Yes
Intel® Turbo Boost Technology
Yes
Brand-specific features
HP Support Assistant
Yes
HP Security tools
HP Sure Run; Trusted Platform Module TPM 2.0 Embedded Security Chip shipped with Windows 10 (Common Criteria EAL4+ Certified)(FIPS 140-2 Level 2 Certified); HP Sure Start; HP Secure Erase; HP Sure Click; HP Sure Sense; Absolute Persistence module; HP Sure Recover; HP Sure Admin; HP Client Security Manager Gen7; HP Tamper Lock; HP Sure Start Gen7; HP Sure Sense2; HP Sure Run Gen5; HP Sure Recover Gen5
HP Management tools
HP Client Catalog (download); HP Driver Packs (download); HP Image Assistant; HP Client Management Script Library (download); HP Connect for Microsoft Endpoint Manager; HP Manageability Integration Kit (download); HP Patch Assistant (download); HP CECP Enabled Configuration
HP Software provided
HP Notifications; HP PC Hardware Diagnostics UEFI; HP Connection Optimizer;HP Privacy Settings; HP PC Hardware Diagnostics Windows; HP Desktop Support Utilities; MyHP; HP QuickDrop; HP Easy Clean; HP Easy Clean Keyboard Driver
HP segment
Business
HP GTIN (EAN/UPC)
196548998302
Power
Power supply
260 W
Operational conditions
Operating temperature (T-T)
10 - 35 °C
Operating relative humidity (H-H)
10 - 90%
Sustainability
Sustainable technologies and materials
At least 58% post-consumer recycled plastic; At least 10% ITE-derived closed loop plastic; Ocean-bound plastic in speaker enclosure and I/O strip; Molded paper pulp cushion inside box is made of 100% recycled or certified sources; Bulk packaging available; 80 Plus Platinum power supplies available; Outside box and corrugated cushions are made of 100% recycled or certified sources
1 year (1/1/1) limited warranty includes 1 year of parts, labor and on-site repair. Terms and conditions vary by country. Certain restrictions and exclusions apply.
Number of free internal memory expansion slots
1
Memory module type
UDIMM
UNSPSC-code
43211507
Keyboard type
USB
