- Space saving: Compact design without compromise on engineering quality
- Fast performance: Up to 70ppm/140ipm scanning at 200 or 300dpi colour
- Flexible scanning: Scan passports and bound media up to 6mm in thickness
- Control and security: Advanced paper handing with paper-protection sensors
- High capacity: Heavy duty 120-sheet document feeder (ADF)

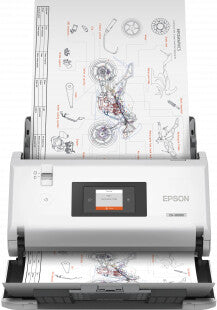

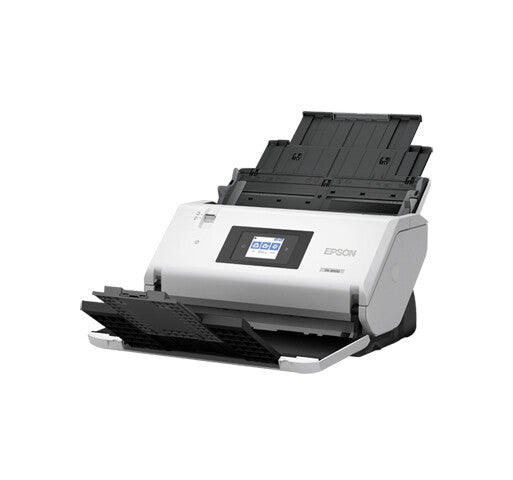

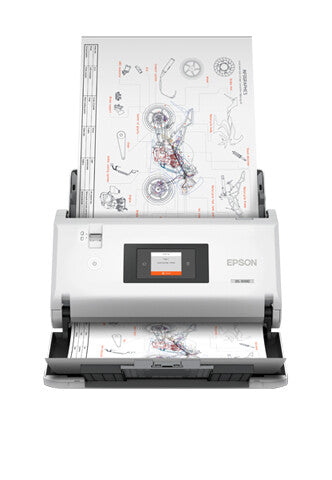

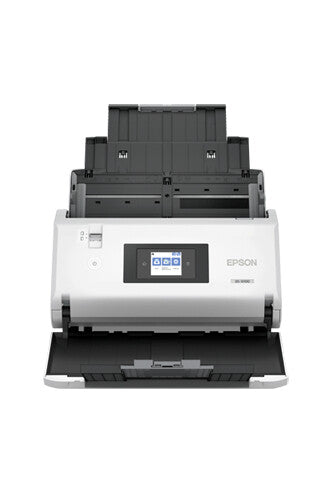

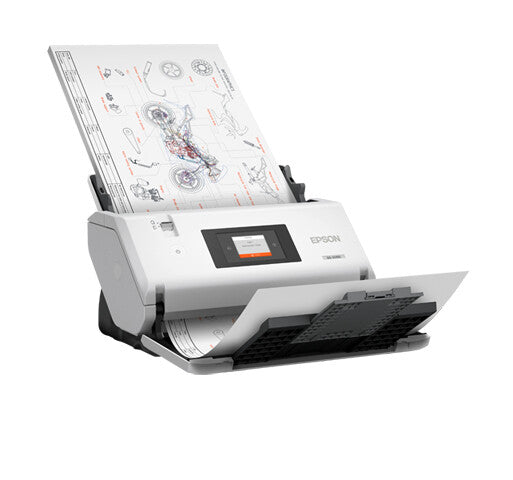

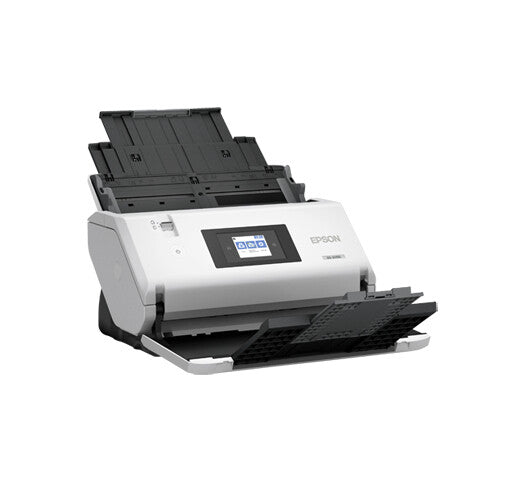

High performance A3 sheetfed scanners

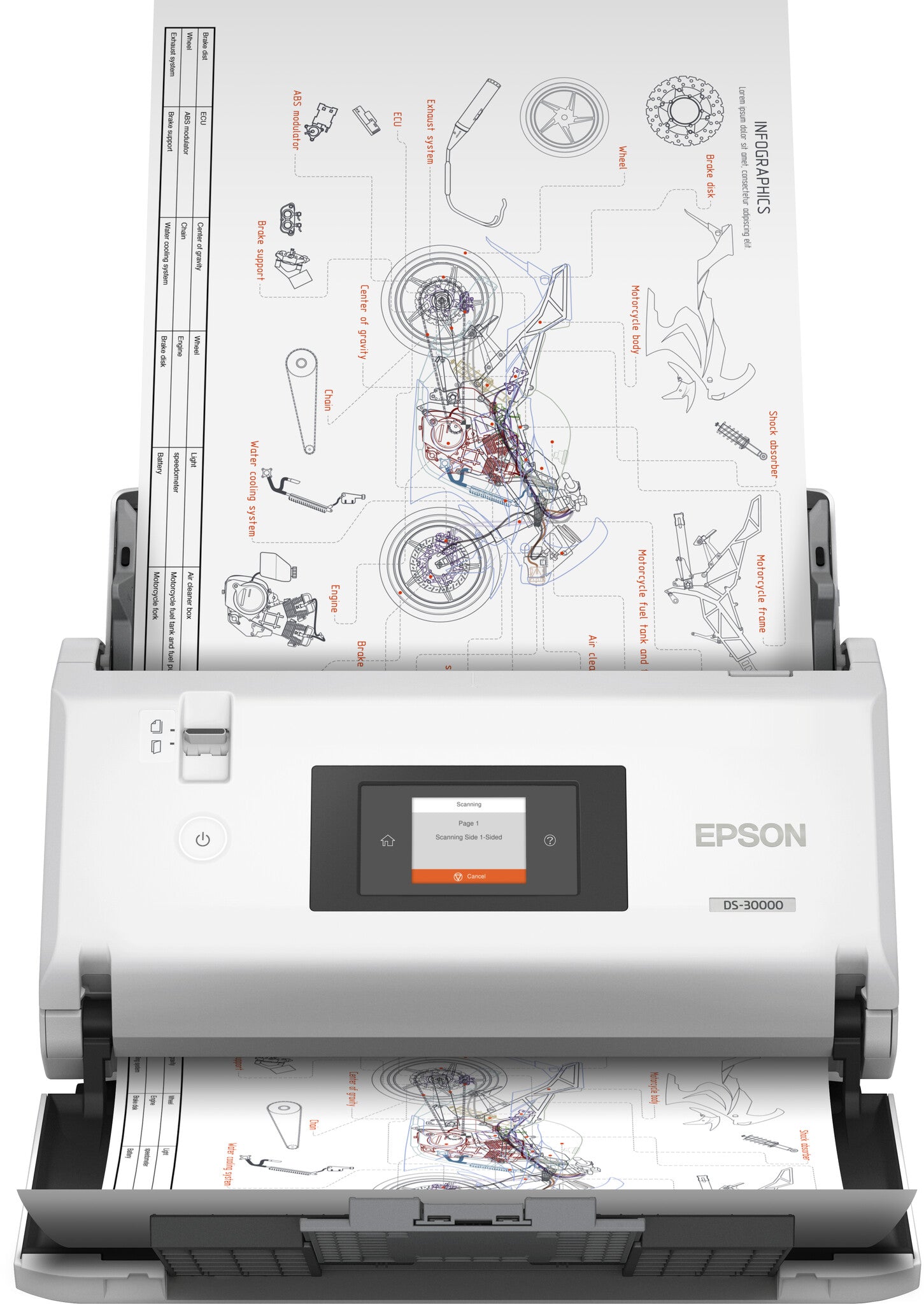

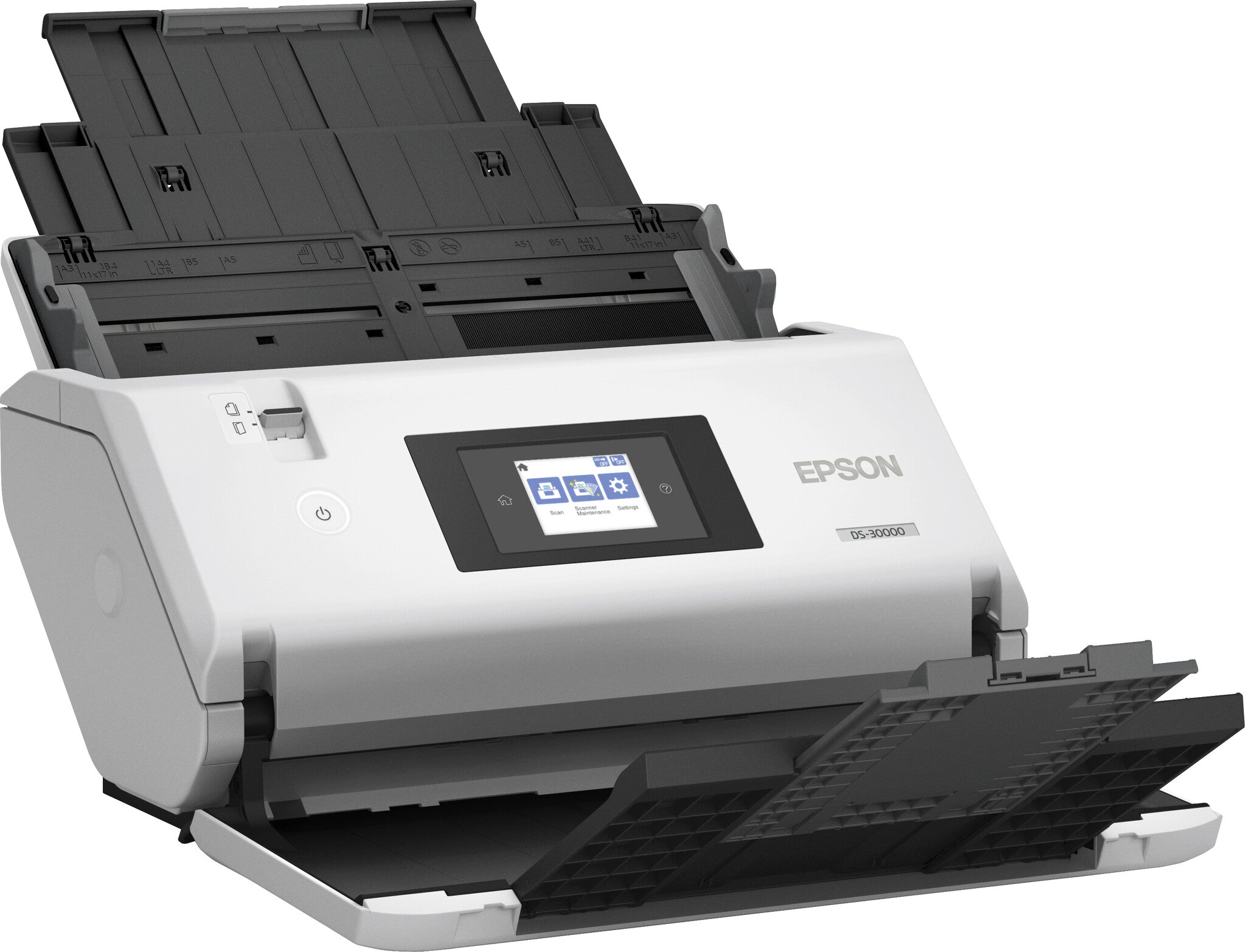

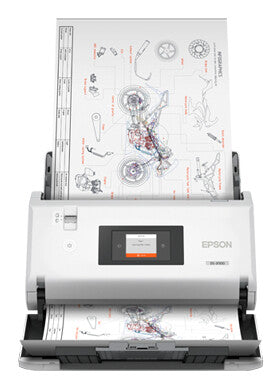

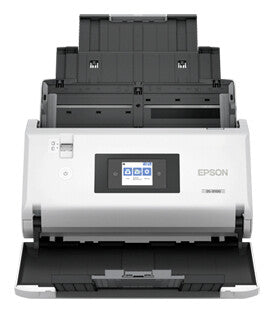

Epson's first compact A3 desktop scanner supports busy office environments. It features a high-capacity feeder, wide media scanning capabilities and a touchscreen front panel that puts users in control to scan up to 30,000 pages per day.
Versatile
Thanks to Epson's new Complex Production Architecture, the DS-30000 has been engineered to the highest standards to meet the demands of busy departments. High in capacity and with a robust design, the Automatic Document Feeder (ADF) has the ability to scan the widest range of media in its class¹. Scan passports², passbooks, ID cards and large-format documents.
Scanning made simple

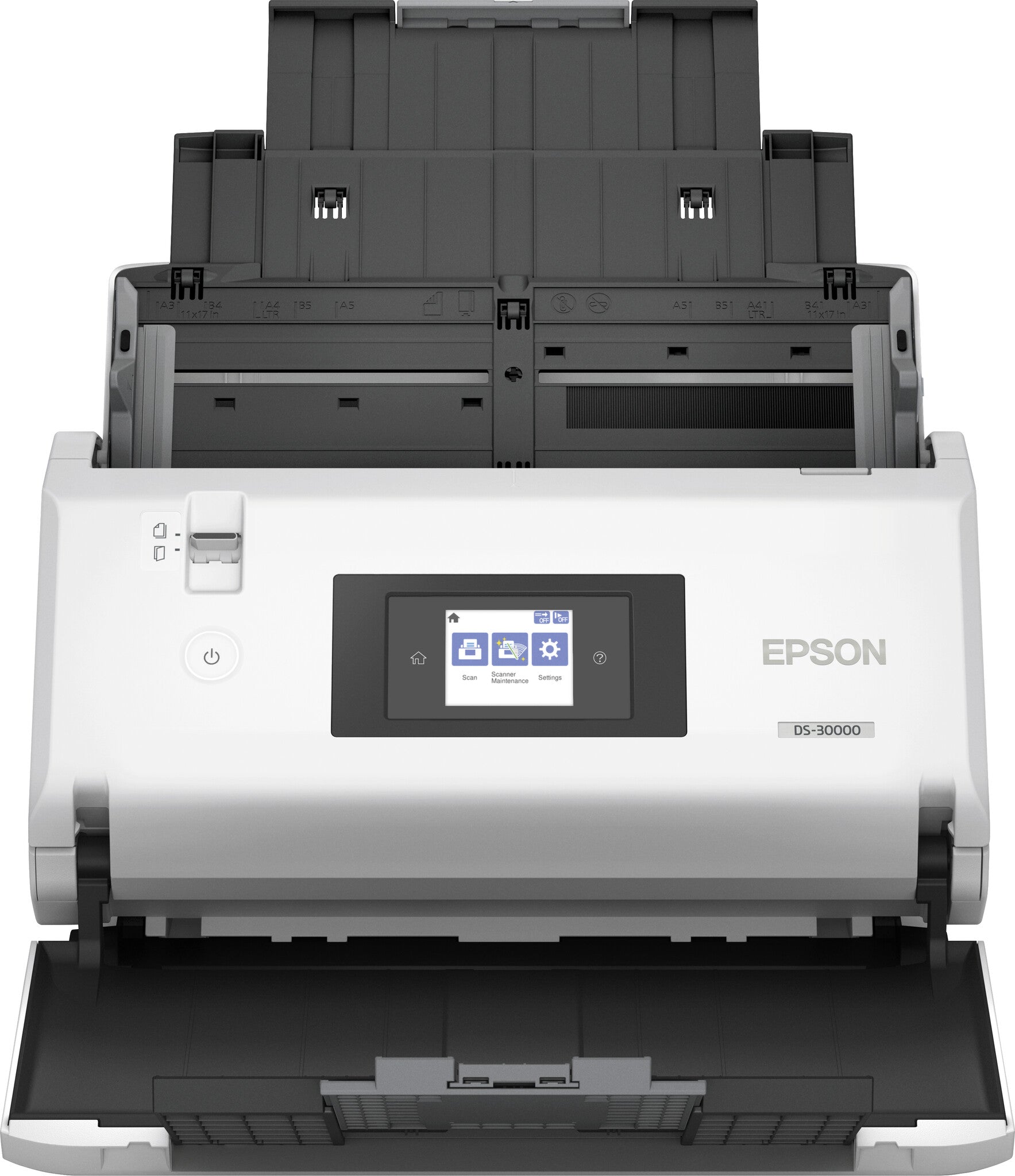

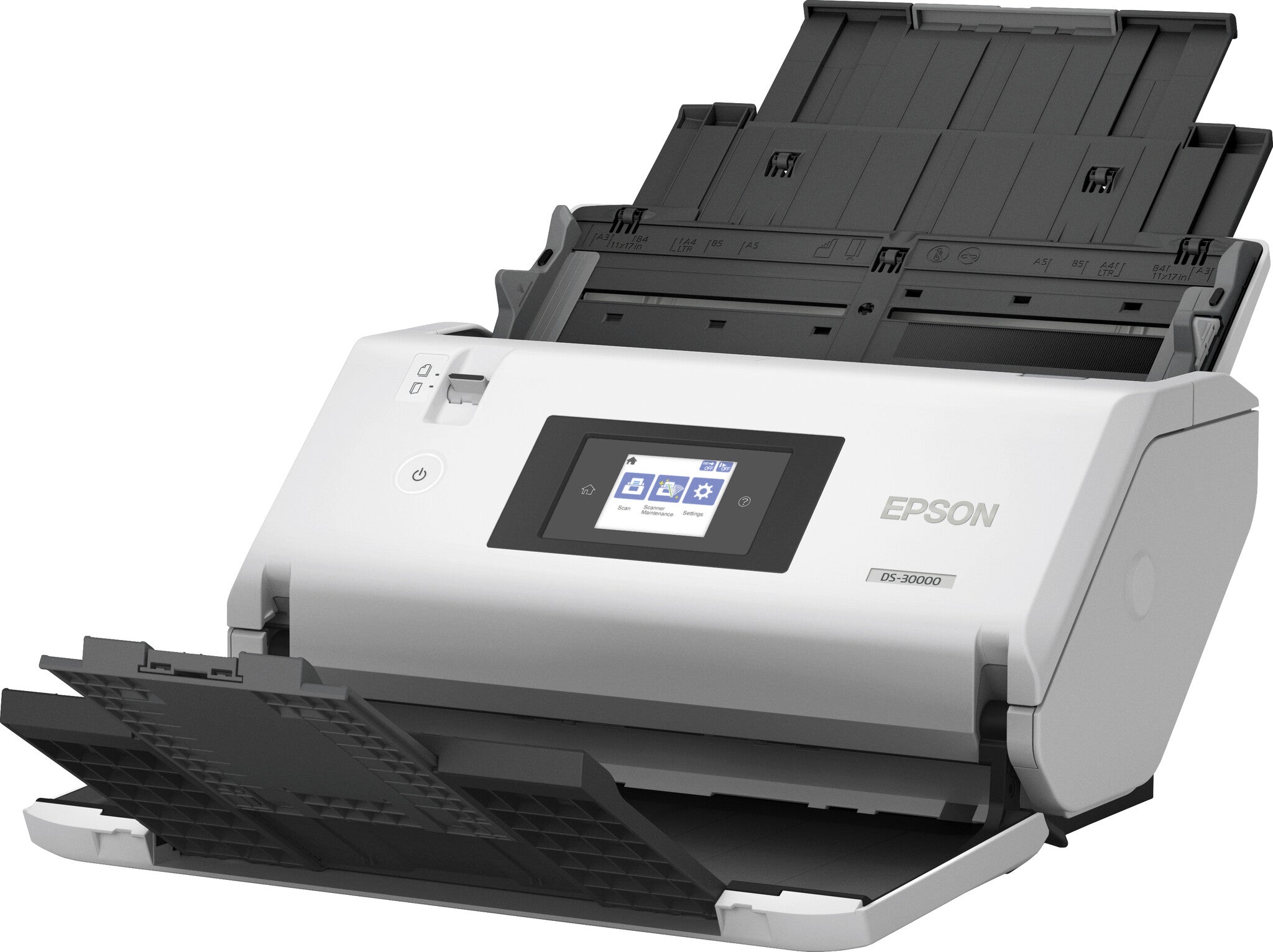

The DS-30000 simplifies scanning tasks, putting users in control with a 2.7" backlit touchscreen that can display pre-defined scan jobs and highlights machine cleaning and maintenance requirements with easy-to-follow, step-by-step instructions.
Safe and secure
The inbuilt advanced paper-protection sensors also prevent documents from being damaged and ultra-sonic sensors ensure all documents are scanned, maintaining data integrity. For optimum performance, the DS-30000 comes with Document Capture Pro 3.0 software with inbuilt OCR functionality, supporting crisp, clear images.
Seamless integration
A wide range of drivers, including TWAIN, ISIS, WIA, SANE, and ICA, allow for easy integration into most document management systems. For added flexibility and convenience, the optional A4 (DS-5500) and A3 (DS-50000) flatbed scanners enable scanning of books, bound, and other media.
| Scanning |
|---|
| Maximum scan size |
304.8 x 5588 mm |
| Optical scanning resolution |
600 x 600 DPI |
| Colour scanning |
Yes |
| Duplex scanning |
Yes |
| Input colour depth |
30 bit |
| Output colour depth |
24 bit |
| ADF scan speed (b/w, A4) |
70 ppm |
| Design |
|---|
| Scanner type |
Sheet-fed scanner |
| Built-in display |
Yes |
| Product colour |
Black, White |
| Display |
LCD |
| Display diagonal |
6.81 cm (2.68") |
| Colour display |
Yes |
| Control type |
Touch |
| Performance |
|---|
| Sensor type |
CIS |
| Daily duty cycle (max) |
30000 pages |
| Image quality improvement |
Dust removal, Noise reduction, Unsharp mask |
| Scan to |
E-mail, FTP, Network folder, Print, USB, PC |
| Ultrasonic sensor |
Yes |
| Scan drivers |
TWAIN, SANE, WIA, ICA, ISIS |
| Sound pressure level (max) |
51 dB |
| Input capacity |
|---|
| Standard input capacity |
120 sheets |
| Auto document feeder (ADF) input capacity |
120 sheets |
| Paper handling |
|---|
| Maximum ISO A-series paper size |
A3 |
| ISO B-series sizes (B0...B9) |
B6, B5, B4 |
| ISO A-series sizes (A0...A9) |
A3, A4, A5, A6, A7 |
| Paper tray media weight |
27 - 413 g/m² |
| Maximum scan area (ADF) |
50.8 x 69 mm |
| Ports & interfaces |
|---|
| USB port |
Yes |
| USB version |
3.2 Gen 1 (3.1 Gen 1) |
| Standard interfaces |
USB 3.2 Gen 1 (3.1 Gen 1) |
| Power |
|---|
| Power consumption (typical) |
17 W |
| Power supply type |
AC |
| Power consumption (standby) |
9 W |
| Power consumption (off) |
0.1 W |
| AC input frequency |
50 - 60 Hz |
| Sleep mode |
Yes |
| Input voltage |
100 - 240 V |
| Weight & dimensions |
|---|
| Width |
371 mm |
| Depth |
208 mm |
| Height |
219 mm |
| Weight |
5.8 kg |
| Packaging data |
|---|
| Quantity per pack |
1 pc(s) |
| Package width |
330 mm |
| Package depth |
460 mm |
| Package height |
325 mm |
| Package weight |
7.5 kg |
| Packaging content |
|---|
| Bundled software |
Epson Document Capture (Mac only), Epson Document Capture Pro (Windows only), Epson Scan 2 |
| General |
|---|
| Product family |
WorkForce |
| System requirements |
|---|
| Compatible operating systems |
Mac OS 10.6+, Windows 10, Windows 10 (32/64 bit), Windows 11, Windows 7, Windows 8, Windows 8.1, Windows Server 2003, Windows Server 2008 (32/64bit), Windows Server 2012 R2, Windows Server 2016, Windows Vista, Windows XP SP3 |
| Operational conditions |
|---|
| Operating temperature (T-T) |
5 - 35 °C |
| Storage temperature (T-T) |
60 - 25 °C |
| Operating relative humidity (H-H) |
15 - 80% |
| Storage relative humidity (H-H) |
15 - 85% |
| Other features |
|---|
| Interface |
USB - compatible with USB 2.0 specification, USB 3.2 Gen 1x1 |
| Image formats supported |
BMP, JPEG, TIFF, MTIFF, PNG |
| Linear scan speed (metric) |
Monochrome:70 pages/min - Color:70 pages/min measured with Size: A4 , Resolution: 300 dpi, Monochrome:140 image/min - Color:140 image/min measured with Size: A4 , Resolution: 300 dpi |
| Scanner features |
Advanced Colour Dropout / Enhance, Skip blank page, Punch holes removal, Automatic de-skew, RGB colour enhance, Auto-rotation, Text enhancement, Descreening, Barcode Recognition |
| Printer features |
Advanced Colour Dropout / Enhance, Skip blank page, Punch holes removal, Automatic de-skew, RGB colour enhance, Auto-rotation, Text enhancement, Descreening, Barcode Recognition |
| Box contents |
AC adapter, Main unit, USB 3.0 cable, User guide, User manual (CD) |
| Output resolutions |
75, 100, 150, 200, 240, 300, 600, 1200, 50 DPI |
| Technical details |
|---|
| Data compression |
TIFF Compression (JPEG(7) , CITT G4, LZW), PDF Compression, JPEG compression |
| Logistics data |
|---|
| Products per pallet |
30 pc(s) |
| Country of origin |
Indonesia |
| Products per pallet (UK) |
42 pc(s) |
| Harmonized System (HS) code |
84716070 |
