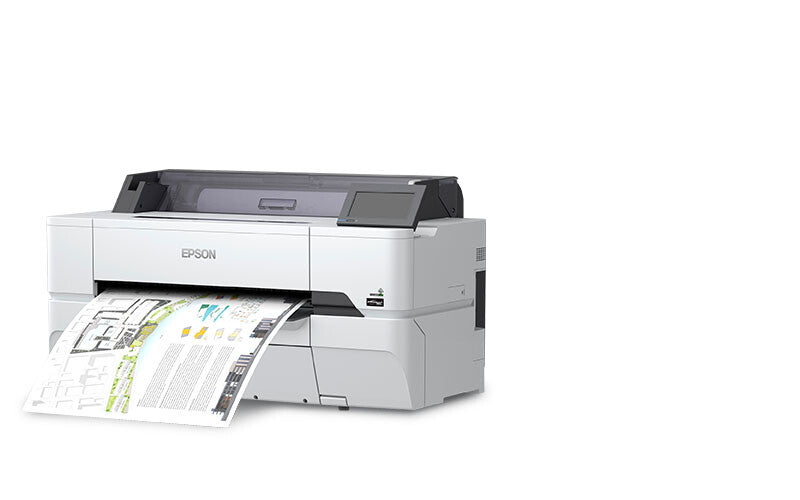

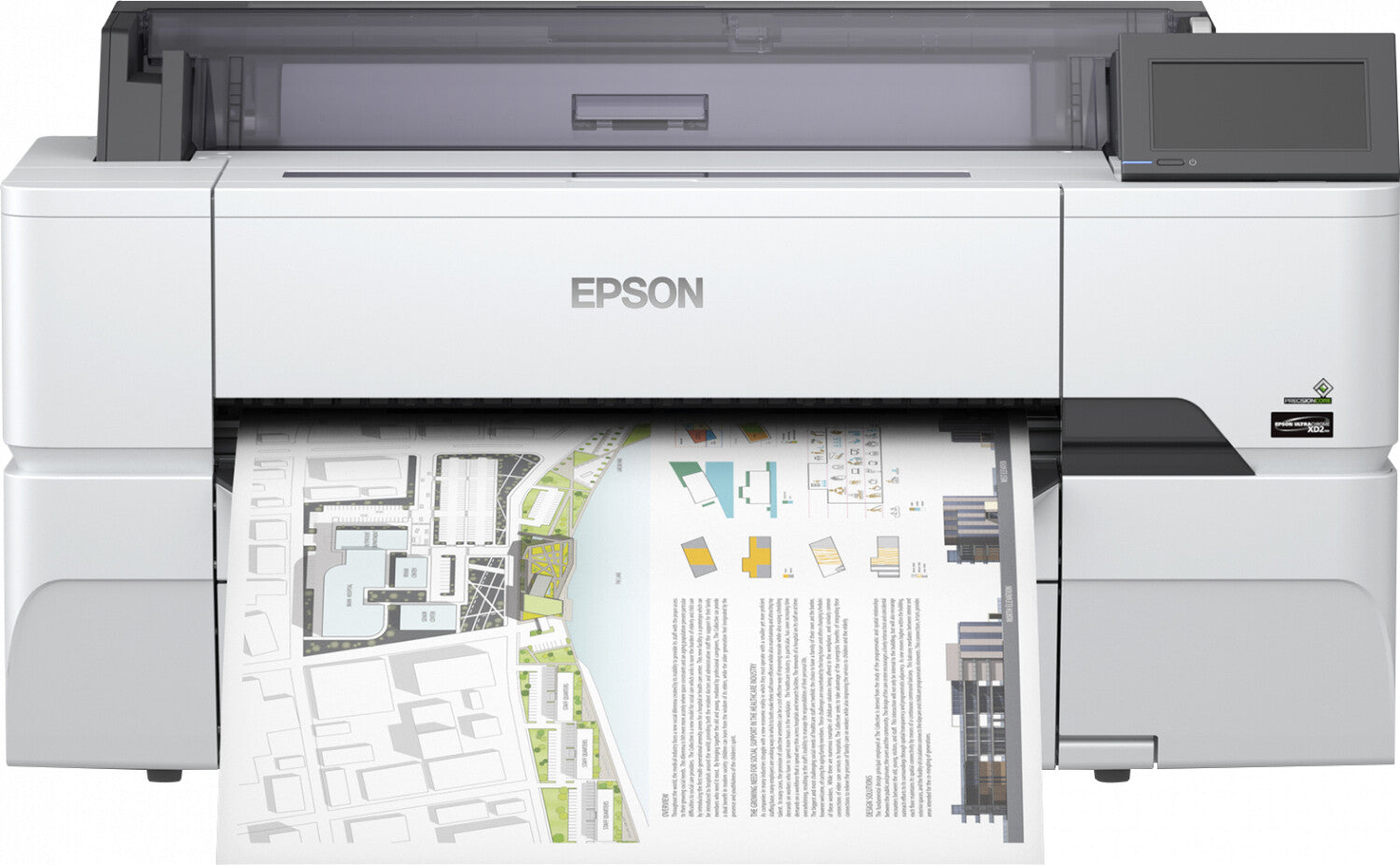

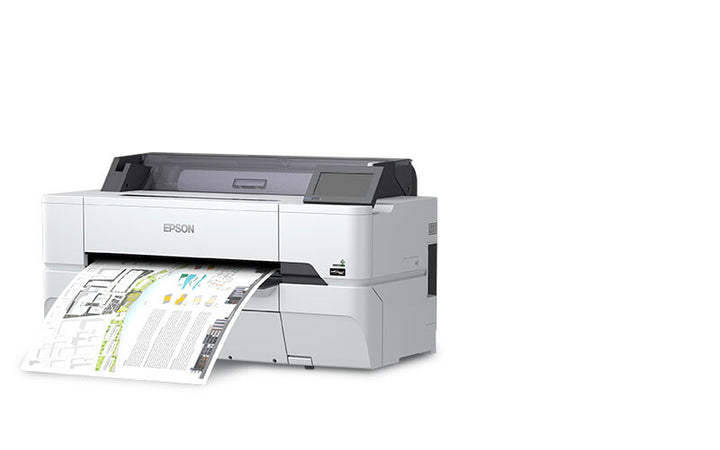

Flexible large format technical printer If you’re an engineer or architect, or work with topography plans, city management or territory scale studies, and need to print accurately, reliably and in fine detail then the SC-T3405N has been designed to meet your needs. This technical large format printer (LFP) can also produce high-quality posters, whether for schools, for retailers’ in-store signage or for high-visibility colourful posters advertising events.
Flexibility The addition of 700ml ink cartridges means that the SC-T3405N is capable of handling a wider range of applications, including high-precision CAD and technical drawings, and GIS data. Combined with two further cartridge sizes (110ml and 350ml), this allows you to react to changing print demands quickly, and handle unforeseen requests in an instant. Also, the 4-colour pigment UltraChrome XD2 inks used are smudge and water-resistant.
Productivity The new 700ml cartridges means you have the option to lower your TCO and reduce the amount of interventions during long print runs, meaning you pay less to print than you would with smaller cartridges. With the introduction of POP Draft Mode, you can now print banners and posters in as little as 24 seconds.
Peace of mind Even occasional users can expect consistent print quality. Unique Nozzle Verification Technology (NVT) helps prevent misprints by constantly monitoring for any blockages.
Easy to use The SC-T3405N allows users to print wirelessly from PCs, tablets and smartphones. Users can also enlarge documents by connecting (via USB) to another printer or scanner. It also features a highly intuitive 4.3-inch touchscreen.
Unobtrusive design Due to its discreet design this desktop printer fits seamlessly into busy professional working environments.
Specifications
Printing
Colour
Yes
Maximum resolution
2400 x 1200 DPI
Print resolution black
2400 x 1200 DPI
Print resolution colour
2400 x 1200 DPI
Page description languages
ESC/P-R, HP-GL/2
Printing colours
Yellow, Magenta, Cyan, Black
Borderless printing
Yes
Print head
PrecisionCore™ Print Head
Print head nozzles
800 Nozzles Black, 800 Nozzles per Color
Colour printing technology
Pigment ink, Ultrachrome® XD2
Copying
Copying
Colour copying
Show all 58 specificationsShow fewer specifications
Scanning
Scanning
Colour scanning
Paper handling
Maximum print size
A1 (594 x 841 mm)
Paper tray media types
Roll
ISO A-series sizes (A0...A9)
A1, A2, A3+, A3, A4
ISO B-series sizes (B0...B9)
B5, B4, B3, B2, B1
Cut sheets
Yes
Media thickness
0.05 - 0.3 mm
Print margin cut-sheet
3 mm
Print margin roll
3 mm
Roll top margin
3 mm
Ports & interfaces
Ethernet LAN
Yes
Wi-Fi
Yes
USB port
Yes
USB connector
USB Type-A
Direct printing
Yes
Security algorithms
SNMP, IPSec, TLS
Mobile printing technologies
Apple AirPrint
Performance
Product colour
Grey, White
Built-in display
Yes
Colour display
Yes
Display diagonal
10.9 cm (4.29")
Control type
Touch
Internal memory
1024 MB
Sound pressure level (standby)
32 dB
Sound pressure level (printing)
50 dB
Country of origin
Indonesia
Power
Power consumption (typical)
38 W
Power consumption (standby)
13 W
Power consumption (off)
0.25 W
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
System requirements
Compatible operating systems
Mac OS X 10.6.8 or later, Windows 10, Windows 7, Windows 8, Windows Vista, Windows XP
Mac operating systems supported
Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur
Windows operating systems supported
Windows 10, Windows 8, Windows Vista, Windows XP
Weight & dimensions
Width
1080 mm
Depth
750 mm
Height
1060 mm
Weight
49 kg
General
Product family
SureColor
Other features
Line accuracy
+/-0.1
Minimum line width
0.02 mm
Printer features
Touchscreen, Direct Print, Direct scan-to-print without PC, Direct print from USB
Ink drop
4 pl, With Variable-Sized Droplet Technology
Technical details
Safety warning
Contains 1,2-benzisothiazol-3(2H)-one. May produce an allergic reaction. Contains 2,4,7,9-tetramethyldec-5-yne-4,7-diol. May produce an allergic reaction. Always follow the information on the product label.
