- Affordable: Cost effective alternative to other passbook printers
- Fast performance: Prints up to 540 characters per second with 6+1 copies
- Reliable: Significantly increased mean time between failure rate of 35,000 hours
- Compatible consumables: Same long-lasting ribbons compatible with all models
- Design: Improved, modern design

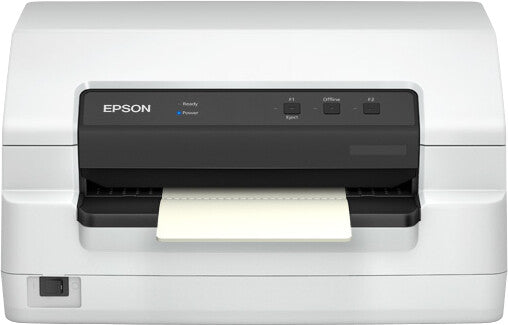

24-pin dot matrix printer
The PLQ-35 is a dot matrix printer that is affordable, ultra-reliable and has the capability to handle passbooks. The product is able to replicate previous emulations, which reduces the need for retraining.
When an economic solution is needed to replace existing passbook printers, the PLQ-35 is the ideal choice. With a 150% improved mean time between failures of 35,000 hours and reliable dot matrix technology, you can depend on these printers to deliver high-quality output with minimal intervention.
In addition, when time is of the essence, the PLQ-35 delivers fast printing of up to 540 characters per second (High-Speed-Draft, 10cpi), utilising 24-pins and 94 columns. Additionally, up to 6 copies can be produced simultaneously with the original.
The printer’s performance is matched by its cost-effectiveness. The ribbon is compatible across all of the Epson Passbook range and represents a budget friendly printing solution. Keep costs of business down, while keeping inline with current demands for CSR and organisational waste.
| Printing |
|---|
| Maximum printing width (columns) |
94 |
| Maximum print speed |
10 cps |
| Maximum print speed (draft) |
10 cps |
| Maximum print speed (LQ) |
10 cps |
| Maximum print speed (NLQ) |
10 cps |
| Normal print speed |
10 cps |
| Character pitch |
10,12,15 cpi |
| Maximum number of copies |
6 copies |
| Built-in barcodes |
CODABAR (NW-7), Code-128 Codabar Library, Code-39 Library, EAN13, EAN8, Industrial 2/5, Interleaved 2/5, Matrix 2/5, POSTNET, UPC-A, UPC-E |
| Bitmap fonts |
Courier, Draft, OCR-B, Orator, Orator-S, Prestige, Roman, Sans Serif, Script, Script C |
| Number of characters |
14 |
| Character sets |
ISO 8859-15, Italic, PC437, PC708, PC720, PC850, PC858, PC864, PCAPTEC, PCAR864, Roman 8 |
| Print speed |
HighSpeed-Draft: 480 cpi: 10 chars/s, Draft: 360 cpi: 10 chars/s, LQ: 120 cpi: 10 chars/s, Ultra Speed-Draft: 540 cpi: 10 chars/s |
| Paper handling |
|---|
| Multi-part paper thickness range |
0.12 - 0.53 mm |
| Single sheet thickness range |
0.065 - 0.19 mm |
| Features |
|---|
| Buffer size |
128 KB |
| Sound pressure level (printing) |
55 dB |
| Sound pressure level (quiet mode) |
52 dB |
| Country of origin |
Indonesia |
| Ports & interfaces |
|---|
| Standard interfaces |
RS-232, USB |
| Optional connectivity |
Serial (RS-232) |
| Endurance |
|---|
| Print head |
24-pin |
| Print head life |
400 million characters |
| Mean time between failures (MTBF) |
35000 h |
| Power |
|---|
| AC input frequency |
50 - 60 Hz |
| AC input voltage |
220 - 240 V |
| Power consumption (standby) |
0.7 W |
| Power consumption (typical) |
61 W |
| Operational conditions |
|---|
| Operating temperature (T-T) |
5 - 38 °C |
| Operating relative humidity (H-H) |
10 - 85% |
| Weight & dimensions |
|---|
| Width |
384 mm |
| Depth |
280 mm |
| Height |
203 mm |
| Weight |
7.8 kg |
| Packaging data |
|---|
| Quantity per pack |
1 pc(s) |
| Package width |
365 mm |
| Package depth |
455 mm |
| Package height |
255 mm |
| Package weight |
9.27 kg |
| Other features |
|---|
| Print technology |
Dot matrix |
| Box contents |
Power cable, Ribbon, Setup guide, User manual (CD) |
| Logistics data |
|---|
| Products per pallet (UK) |
48 pc(s) |
