- Wired
- PCI Express Ethernet
- 1000 Mbit/s 10/100/1000BaseT(X)
- Internal Component for: Server

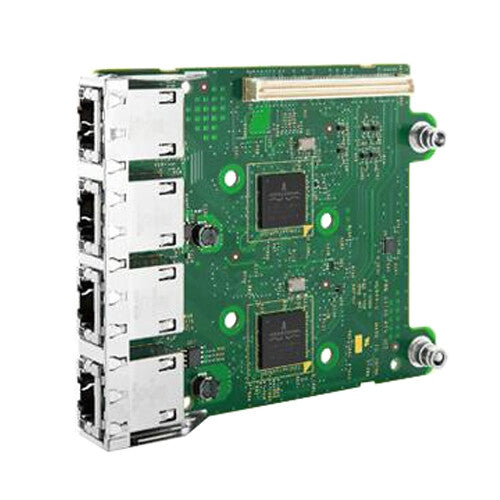

The BCM5720 is a fully integrated 10/100/1000BASE-T Gigabit Ethernet media access control and physical layer transceiver solution for high-performance network applications. The Quad-Port Gigabit Network Daughter Card features quad triple-speed IEEE 802.3-compliant Media Access Controllers (MACs) with quad 10/100/1000 Ethernet transceivers (PHYs), PCI Express bus interface, and on-chip memory buffer in a single device. It's based on dual BCM5720 Controllers each providing two ports.
This product is compatible with the following systems:
- PowerEdge R620
- PowerEdge R630
- PowerEdge R720
- PowerEdge R720xd
- PowerEdge R730
- PowerEdge R730XD
- PowerEdge R820
- PowerEdge R920
- PowerVault DL4000
- PowerVault DR4100
- PowerVault DX6112 SN.
| Ports & interfaces |
|---|
| Connectivity technology |
Wired |
| Host interface |
PCI Express |
| Interface |
Ethernet |
| Ethernet LAN (RJ-45) ports |
4 |
| Network |
|---|
| Maximum data transfer rate |
1000 Mbit/s |
| Networking standards |
IEEE 802.3 |
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Cabling technology |
10/100/1000BaseT(X) |
| LAN controller |
Broadcom BCM5720 |
| Design |
|---|
| Internal |
Yes |
| Component for |
Server |
| Product colour |
Green |
| Compatible products |
DELL PowerEdge R620, R630, R720, R720xd, R730, R730XD, R820, R920, PowerVault DL4000, DR4100, DX6112 SN |
| System requirements |
|---|
| Windows operating systems supported |
Yes |
| Linux operating systems supported |
Yes |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
| Other features |
|---|
| Receive Side Scaling (RSS) |
Yes |
| Quantity per pack |
1 pc(s) |
