RELAYIO500 | Hardware Monitor and locally manage a Smart App UPS system
Product Overview

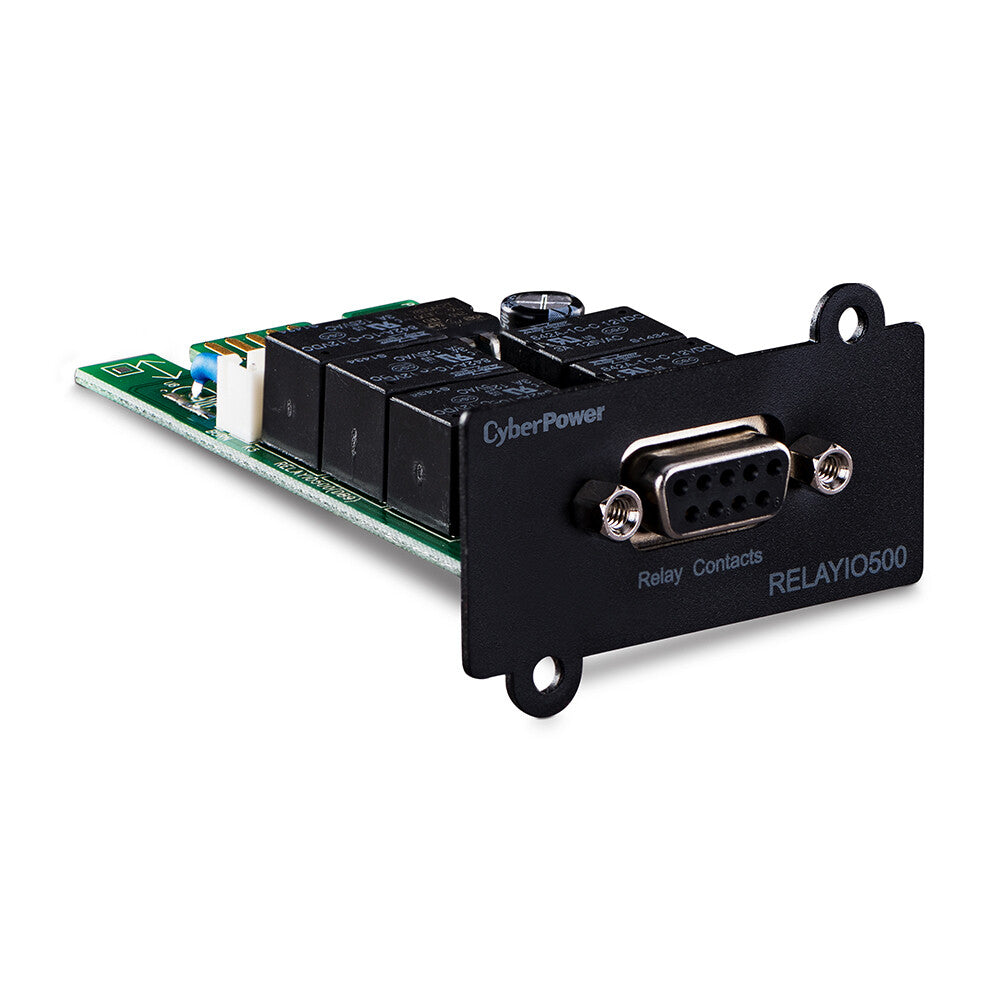

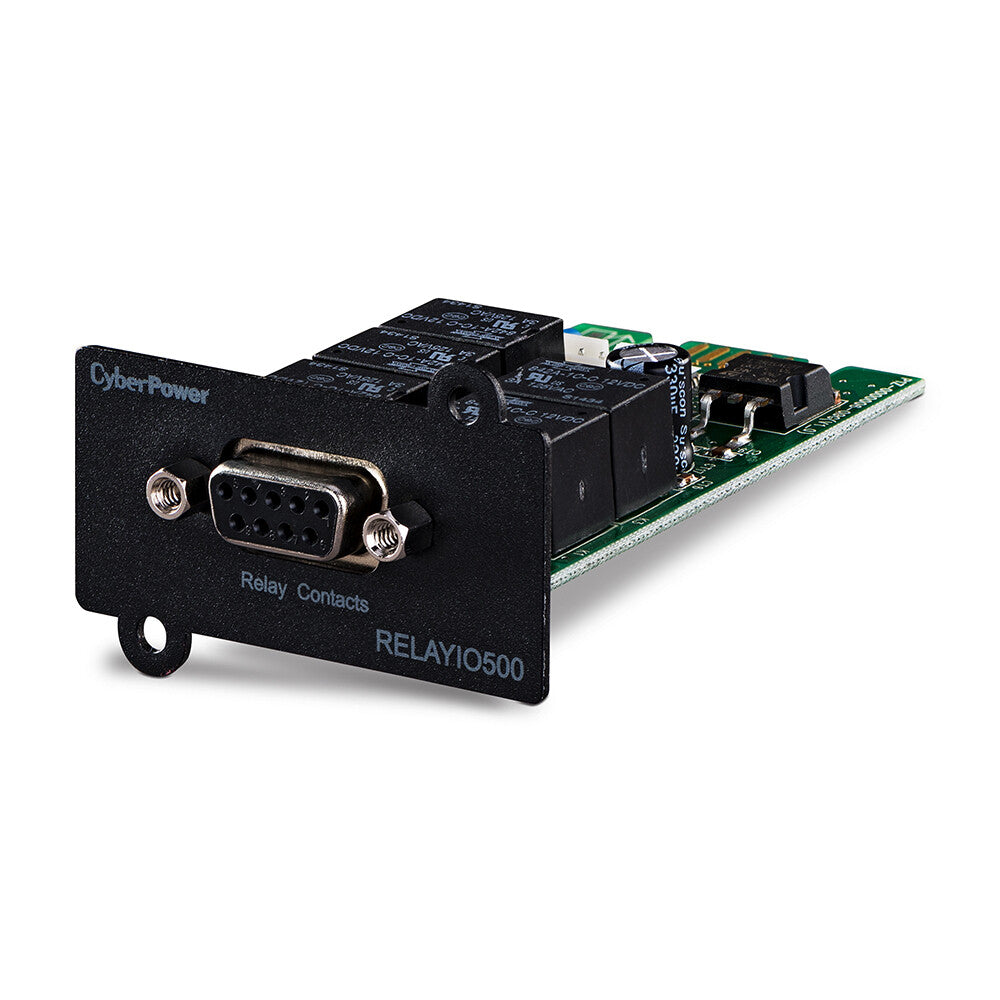

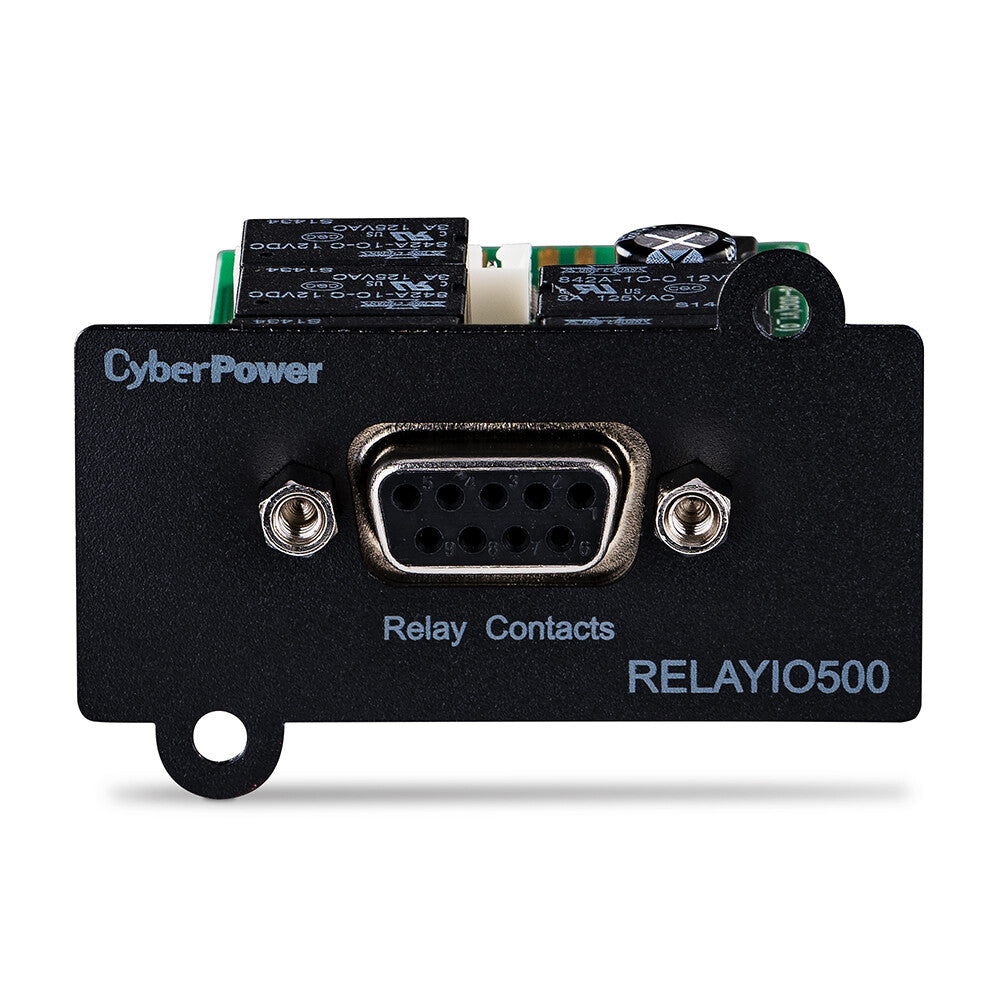

They CyberPower RELAYIO500 is a local management solution that provides users the ability to monitor UPS status and events via 5 contact closure outputs. Easy to install in any compatible* Smart App UPS with expansion slot.
Input contact closure allows the UPS to be shutdown remotely while on Battery Mode to preserver battery power in the event of a prolonged power outage. The RELAYIO500 comes with a three-year warranty.
Remote Shutdown in Battery Mode Preserves battery power in the event of a prolonged power outage.
Interfacing with External Alarms External alarm devices can be interfaced via the DB9 port.
Three-Year Warranty Covers defects in materials and workmanship in the product under normal use and conditions within three years of the purchase date. See warranty for details.
Design
Internal
Yes
Certification
RoHS
Features
Plug and Play
Yes
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-10 - 50 °C
Operating relative humidity (H-H)
0 - 90%
Storage relative humidity (H-H)
0 - 95%
Technical details
Compliance certificates
RoHS
Weight & dimensions
Width
41.8 mm
Depth
81 mm
Height
14.2 mm
Weight
52 g
Packaging data
Package width
168 mm
Package depth
162 mm
Package height
58 mm
Package weight
160 g
Logistics data
Harmonized System (HS) code
84733020
Other features
Interface
UPS
Connector type
D9
Compatibility
OR Series UPS systems, PR Series UPS systems, OL1000RTXL2U, OL1500RTXL2U, OL1500RTXL2UN, OL3000RTXL2UHV
