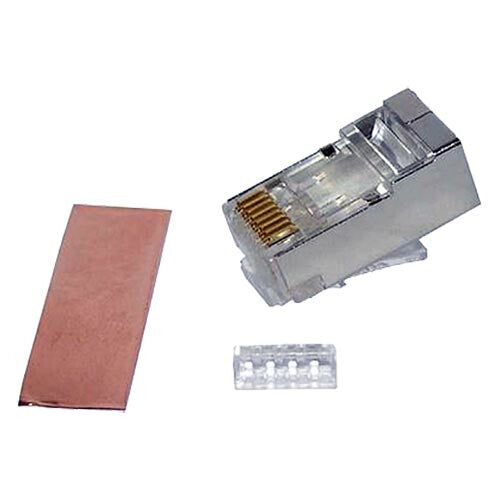

Cablenet Cat6/Cat6a RJ45 FTP Plug Up to 7mm OD (3 Part)

• Clear Plastic Body
• Gold plated contacts ensures durability
• Suitable for stranded or solid wire from 22-26 AWG up to 7mm outside diameter
• Supplied in packs of 50

High performance shielded connector suitable for termination of large outer diameter cables for Category 6 and Category 6A.

Accepts solid or stranded cable up to 7mm diameter.

RJ45 cables can be terminated in two different ways as defined in TIA/EIA-568. One version is called T-568A and the other is T-568B.
Both wiring standards are listed below

T-568B - Most common wiring scheme
1 - White/Orange (Transmit +)
2 - Orange (Transmit -)
3 - White/Green (Receive +)
4 - Blue
5 - White/Blue
6 - Green (Receive -)
7 - White/Brown
8 - Brown

T-568A
1 - White/Green (Receive +)
2 - Green (Receive -)
3 - White/Orange (Transmit +)
4 - Blue
5 - White/Blue
6 - Orange (Transmit -)
7 - White/Brown
8 - Brown
