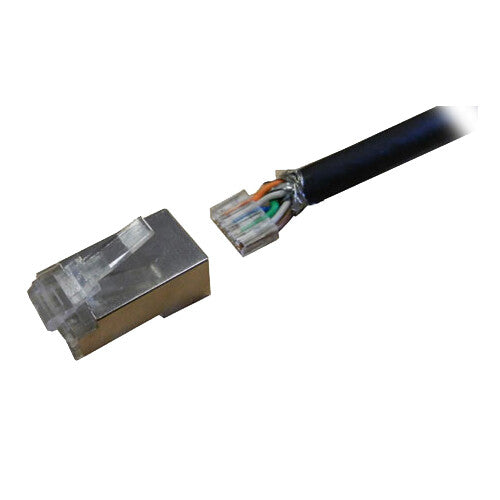

Cablenet Cat6 RJ45 FTP 50u Crimp Plug Stranded (2 Part)

• Clear Plastic Body
• Gold plated contacts ensures durability
• Suitable for stranded or solid cable 24 and 26 AWG
• Supplied in packs of 50

Performance Cat6/Cat6a shielded 2-part RJ45 Crimp plug can be terminated with generic RJ45 crimping tools.
Utilising a staggered transparent load bar to maintain pair separation and to offer a consistent level of performance.

Cat6 requires the 6mm Bubble Boots and the Cat6a requires the 6.5mm Bubble Boots

High Performance Crimp Plug
Suitable for 26AWG Stranded Conductors
2 Part Construction
Utilises low cost crimp tools

Accepts solid or stranded cable up to 7mm diameter.

RJ45 cables can be terminated in two different ways as defined in TIA/EIA-568. One version is called T-568A and the other is T-568B.
Both wiring standards are listed below

T-568B - Most common wiring scheme
1 - White/Orange (Transmit +)
2 - Orange (Transmit -)
3 - White/Green (Receive +)
4 - Blue
5 - White/Blue
6 - Green (Receive -)
7 - White/Brown
8 - Brown

T-568A
1 - White/Green (Receive +)
2 - Green (Receive -)
3 - White/Orange (Transmit +)
4 - Blue
5 - White/Blue
6 - Orange (Transmit -)
7 - White/Brown
8 - Brown
