- AMD Socket AM5 AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
- PC ATX AMD B850 Realtek ALC1220P 7.1 channels
- DDR5-SDRAM 4 DIMM Maximum internal memory: 256 GB
- HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 7
- BIOS type: UEFI AMI 256 Mbit
- 2.5 Gigabit Ethernet Wi-Fi Wi-Fi 7 (802.11be) Bluetooth 5.4

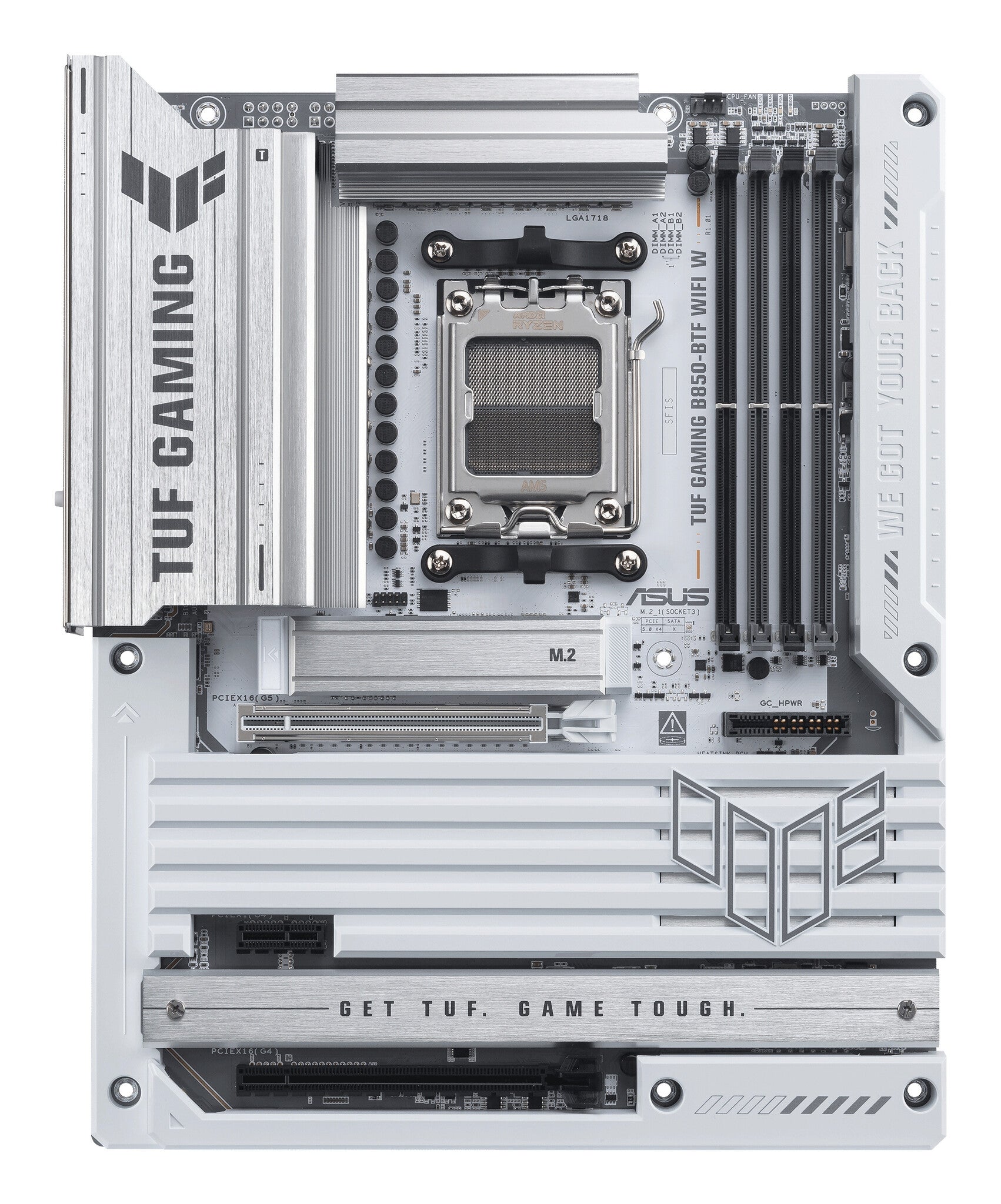

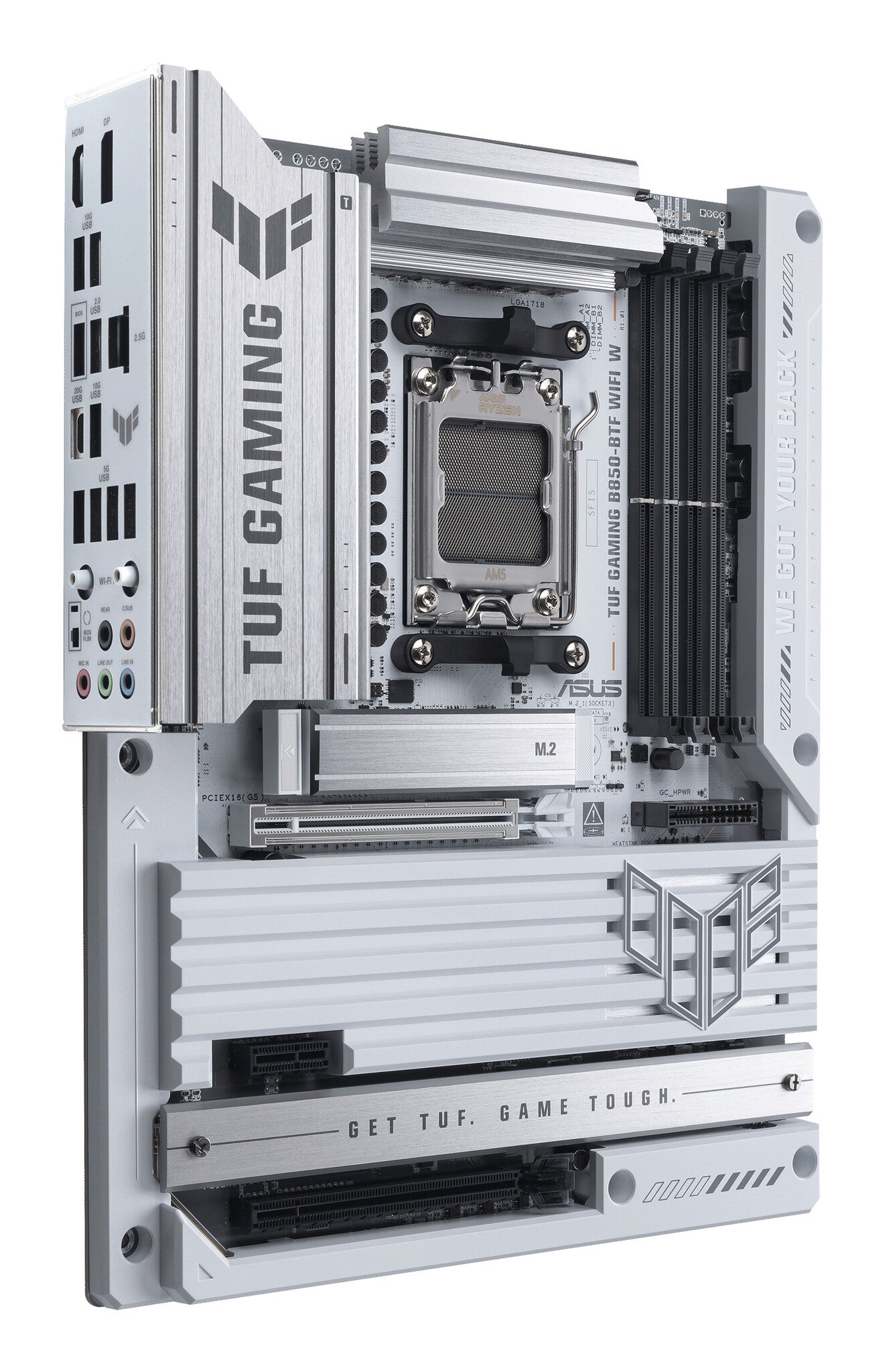

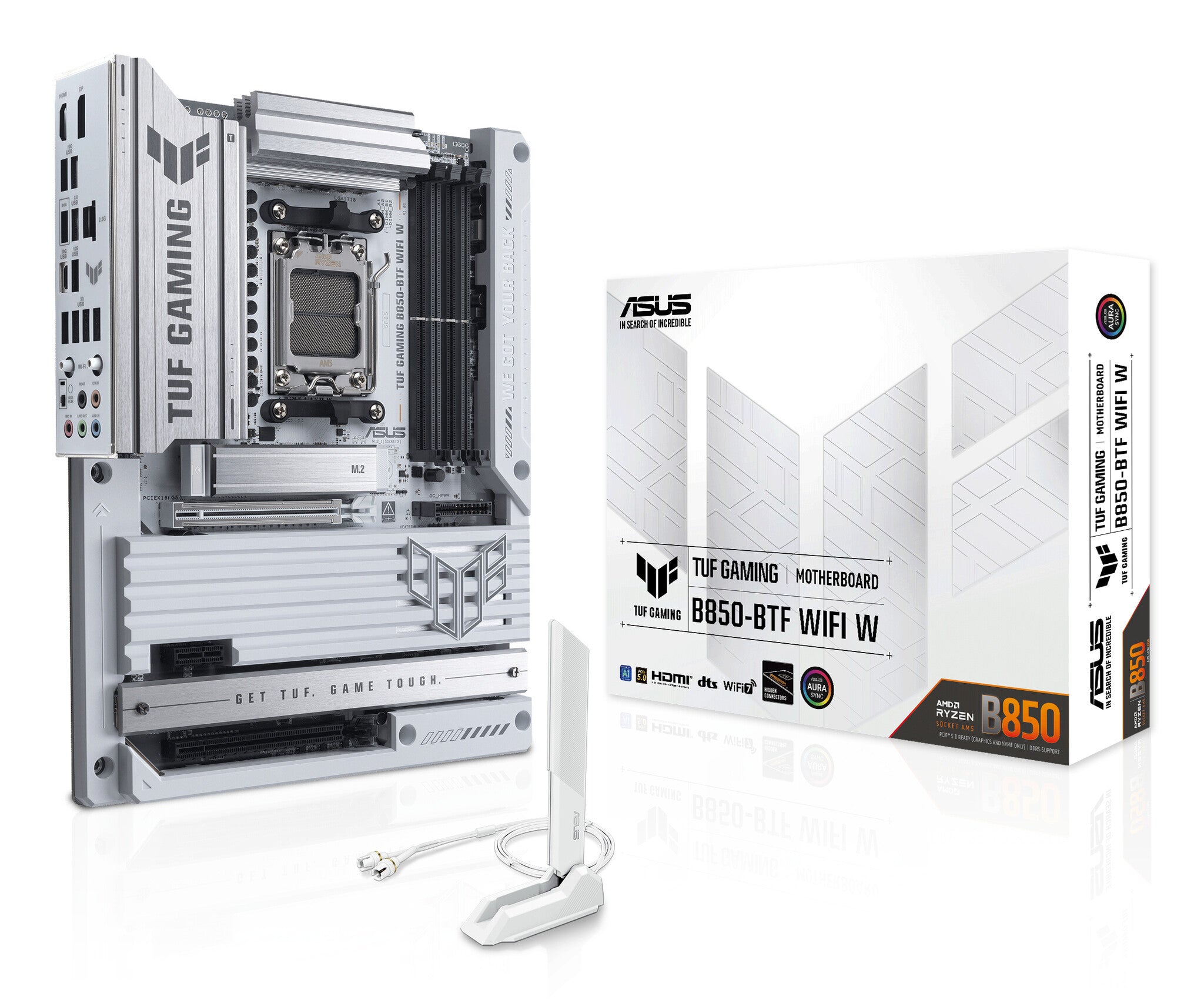

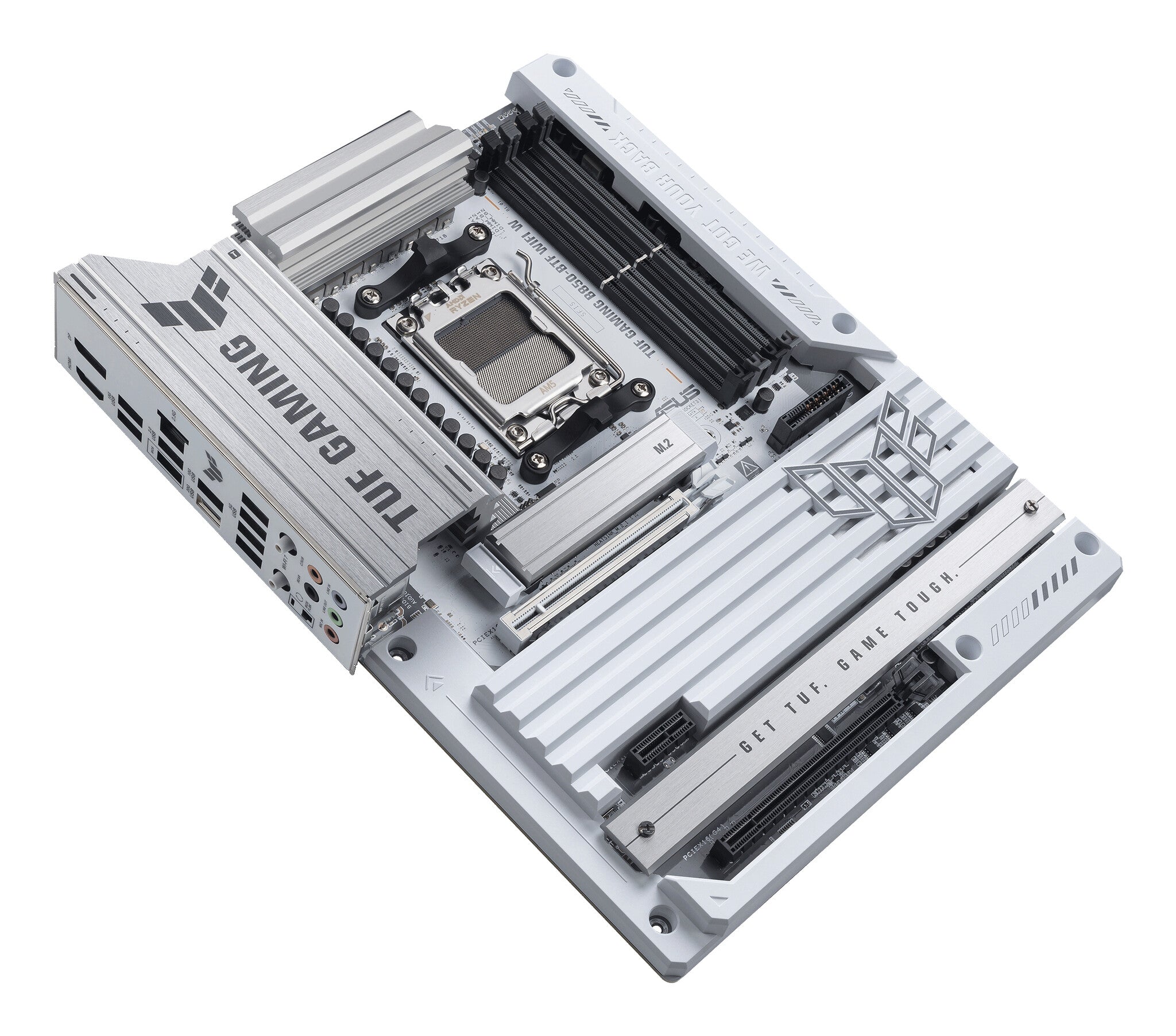

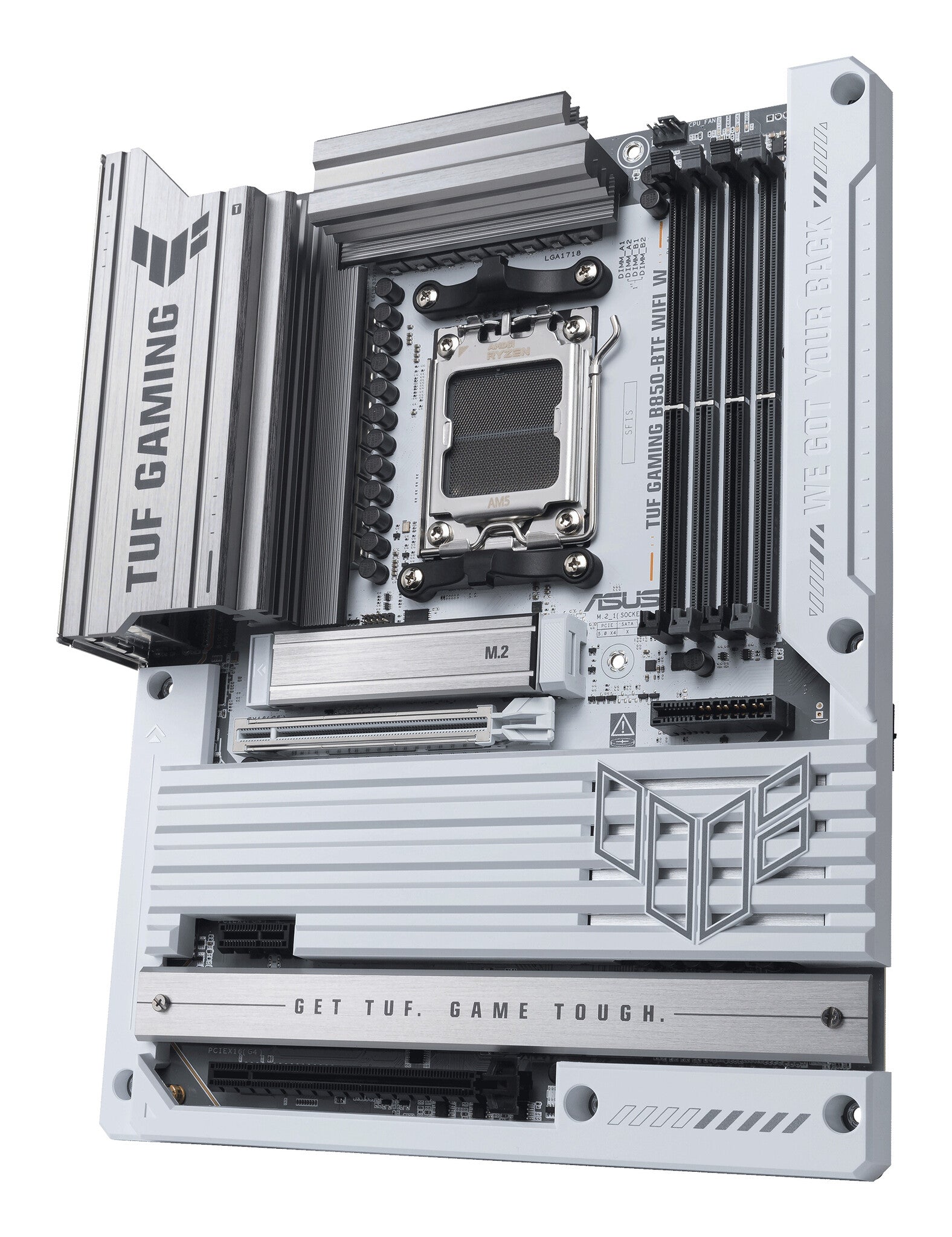

TUF GAMING B850-BTF WIFI W

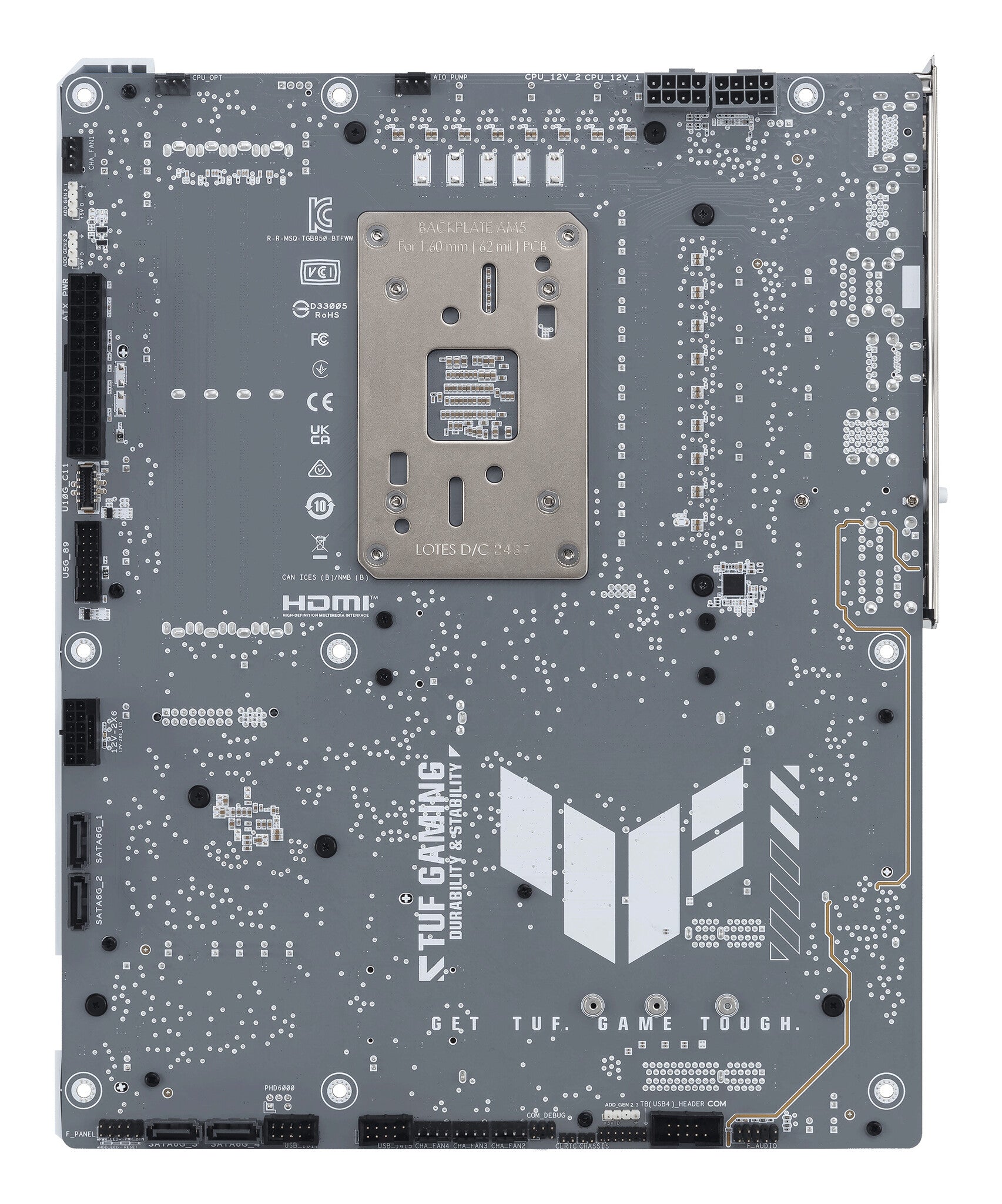

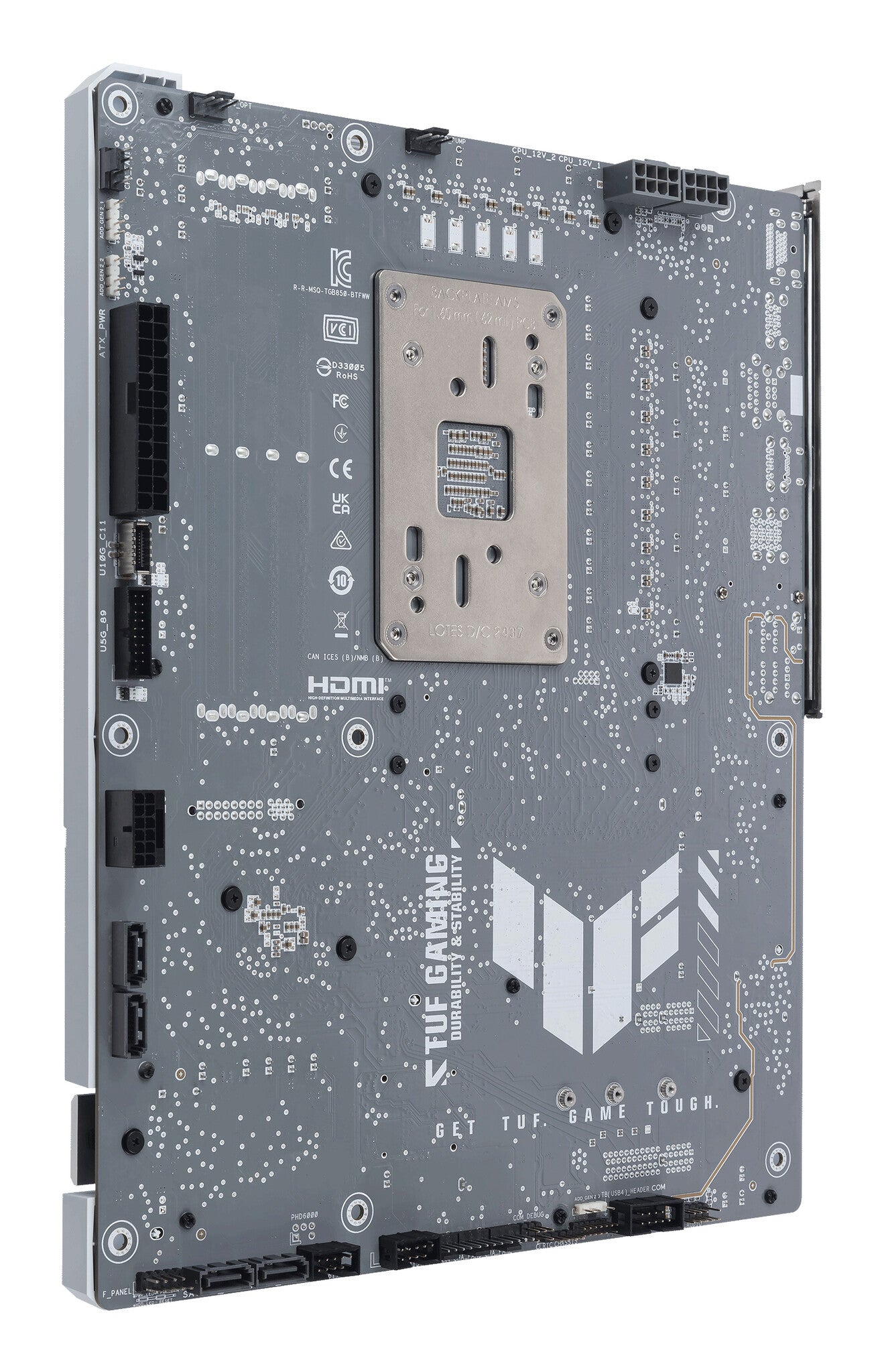

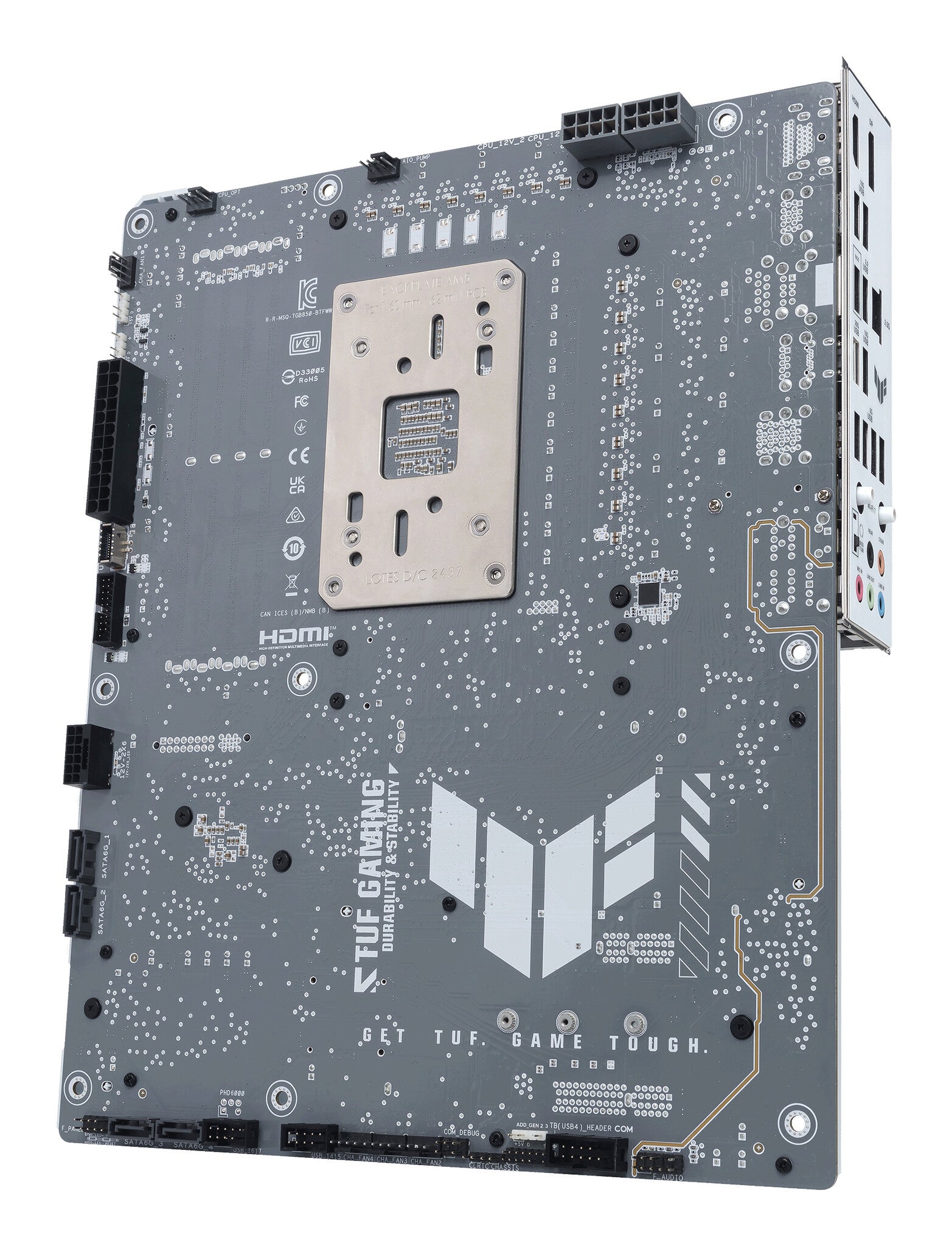

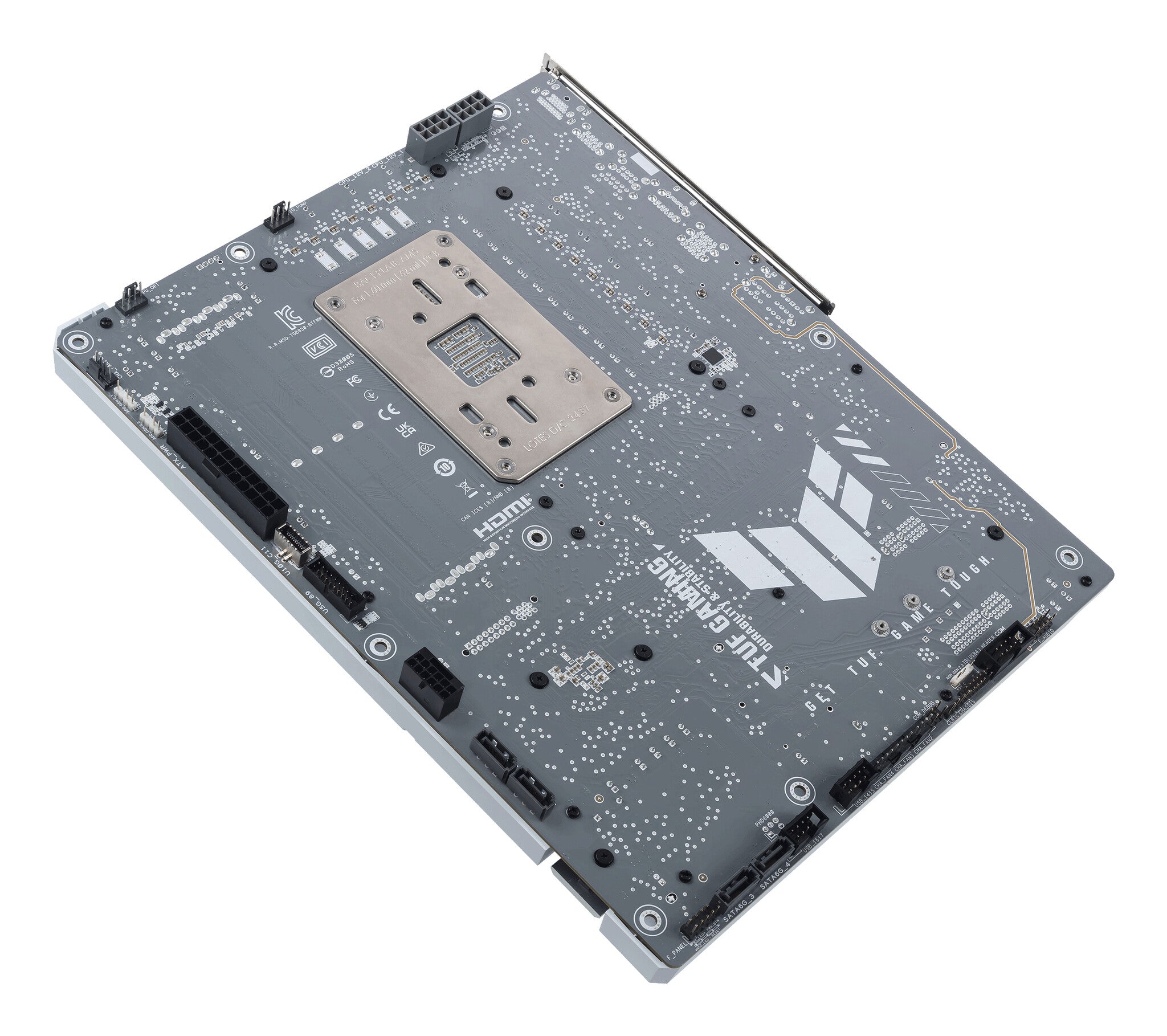

TUF GAMING B850-BTF WIFI W takes all the essential elements of the latest AMD Ryzen™ processors and combines them with game-ready features and proven durability. “BTF” means “Back To (the) Future” for a new era for all PC DIY gamers; the advanced BTF series not only hides all its connectors on the underside of the motherboard, but it also delivers up to 600 watts for BTF graphics cards through a graphics card high-power slot, for clean cable management and a minimalist build appearance. This platform delivers the power and connectivity that advanced AI PC applications demand.
| Processor |
|---|
| Processor manufacturer |
AMD |
| Processor socket |
Socket AM5 |
| Compatible processor series |
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Memory |
|---|
| Supported memory types |
DDR5-SDRAM |
| Number of memory slots |
4 |
| Memory slots type |
DIMM |
| Memory channels |
Dual-channel |
| ECC сompatibility |
ECC & Non-ECC |
| Supported memory clock speed (max) |
8000 MHz |
| Maximum internal memory |
256 GB |
| Unbuffered memory |
Yes |
| Storage controllers |
|---|
| Supported storage drive types |
HDD & SSD |
| Supported storage drive interfaces |
M.2, SATA III |
| Number of storage drives supported |
7 |
| Number of HDDs supported |
4 |
| RAID support |
Yes |
| RAID levels |
0, 1, 5, 10 |
| Graphics |
|---|
| Parallel processing technology support |
Not supported |
| On-board graphics card |
No |
| Internal I/O |
|---|
| USB 2.0 connectors |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors |
1 |
| Number of SATA III connectors |
4 |
| Front panel audio connector |
Yes |
| Front panel connector |
Yes |
| ATX Power connector (24-pin) |
Yes |
| CPU fan connector |
Yes |
| Number of CPU fan connectors |
1 |
| Number of chassis fan connectors |
4 |
| Chassis intrusion connector |
Yes |
| EPS power connector (8-pin) |
Yes |
| Number of water pump connectors |
1 |
| 12V power connector |
Yes |
| Thunderbolt headers |
1 |
| Number of COM connectors |
1 |
| RGB LED pin header |
Yes |
| Number of RGB LED pin headers |
3 |

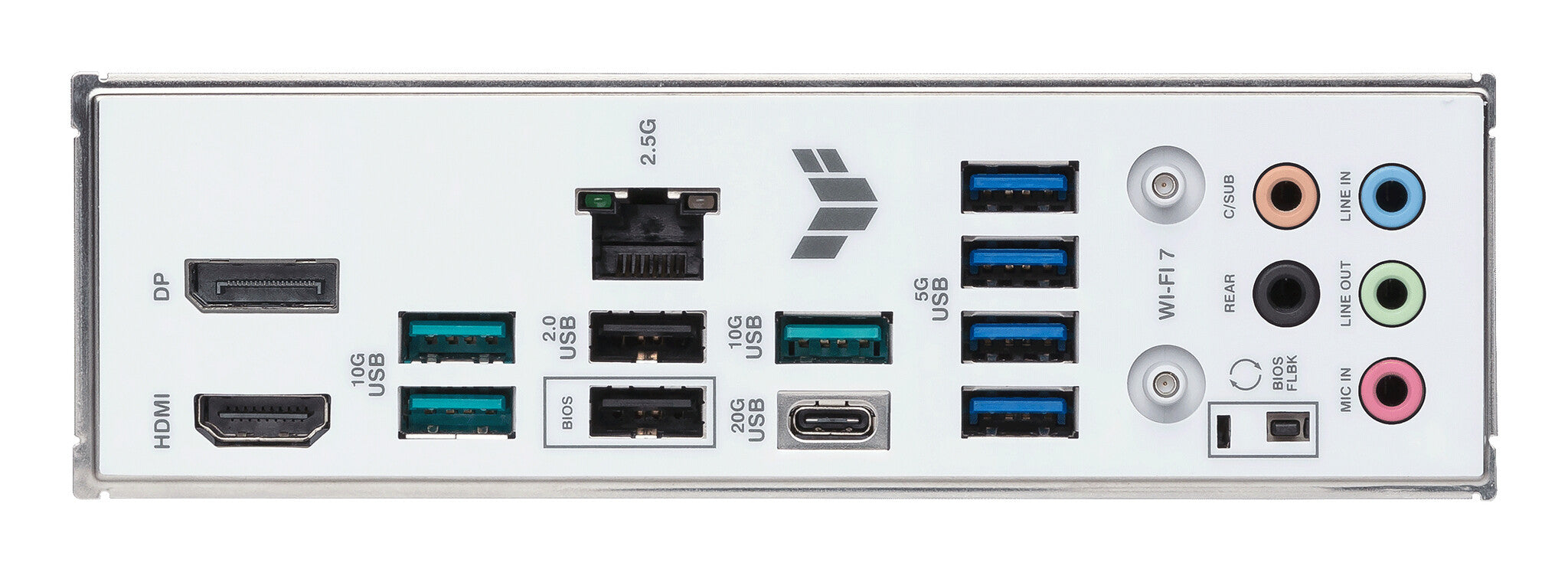

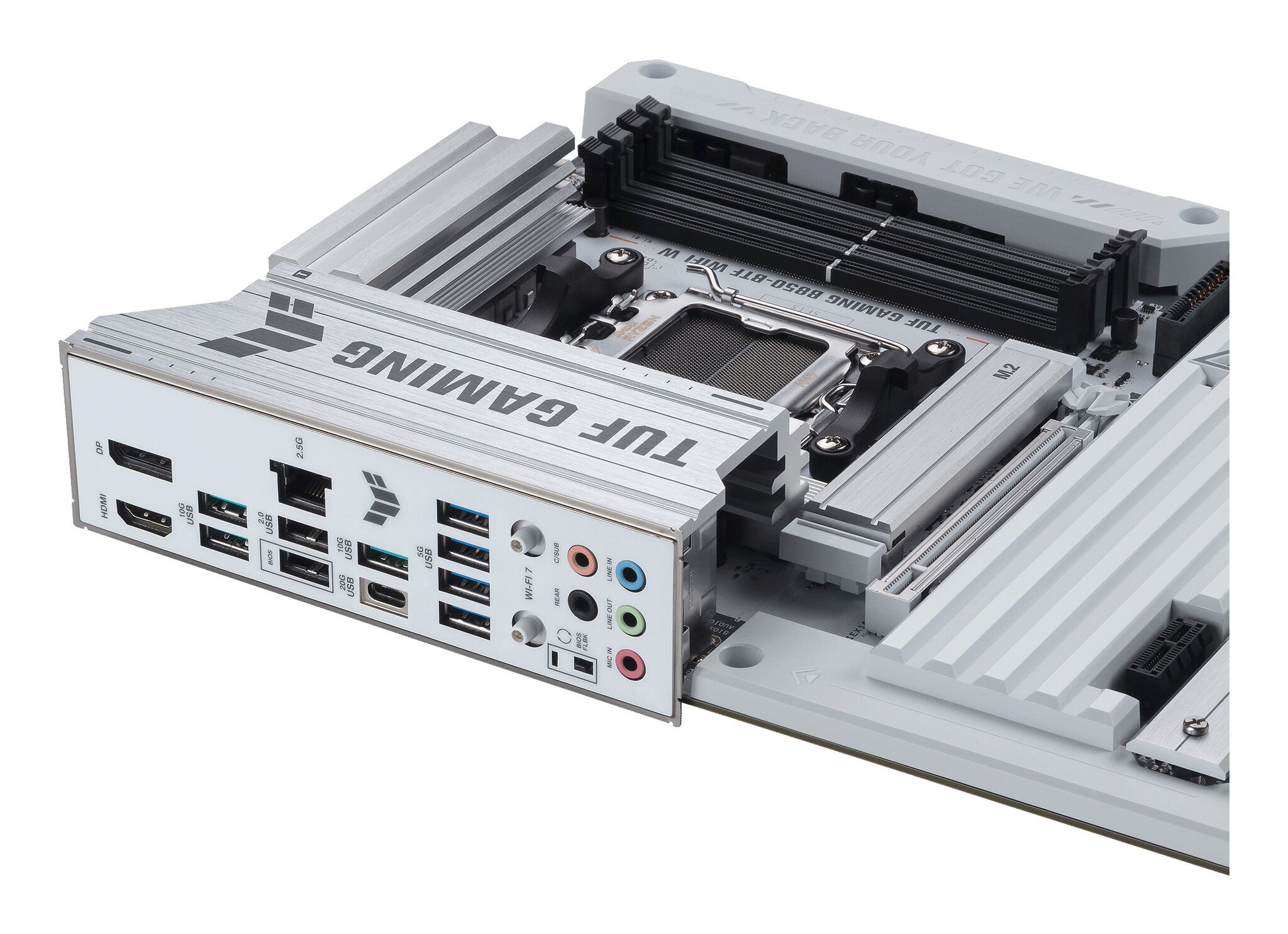

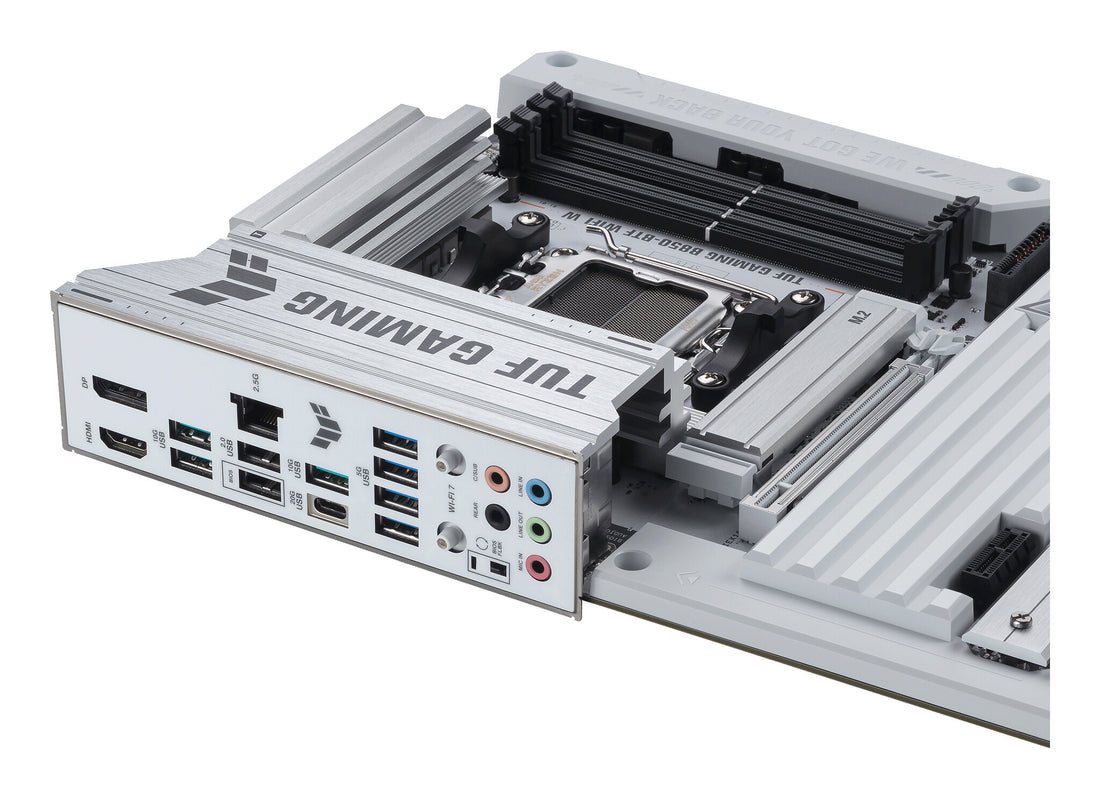

| Rear panel I/O ports |
|---|
| USB 2.0 ports quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
3 |
| USB 3.2 Gen 2x2 Type-C ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| HDMI ports quantity |
1 |
| DisplayPorts quantity |
1 |
| Line-in |
Yes |
| Microphone in |
Yes |
| WiFi-AP antenna jack |
2 |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ethernet interface type |
2.5 Gigabit Ethernet |
| Wi-Fi |
Yes |
| Top Wi-Fi standard |
Wi-Fi 7 (802.11be) |
| Wi-Fi standards |
Wi-Fi 7 (802.11be) |
| Bluetooth |
Yes |
| Bluetooth version |
5.4 |
| Features |
|---|
| Component for |
PC |
| Motherboard form factor |
ATX |
| Motherboard chipset family |
AMD |
| Motherboard chipset |
AMD B850 |
| Audio chip |
Realtek ALC1220P |
| Audio output channels |
7.1 channels |
| Product colour |
White |
| Cooling type |
Passive |
| Windows operating systems supported |
Windows 11 |
| Expansion slots |
|---|
| PCI Express x1 (Gen 4.x) slots |
1 |
| PCI Express x16 (Gen 4.x) slots |
1 |
| PCI Express x16 (Gen 5.x) slots |
1 |
| Number of M.2 (M) slots |
3 |
| 1st M.2 largest key size |
22110 |
| 1st M.2 highest PCI Express generation |
4.0 |
| BIOS |
|---|
| BIOS type |
UEFI AMI |
| BIOS memory size |
256 Mbit |
| Packaging data |
|---|
| Package width |
353 mm |
| Package depth |
273 mm |
| Package height |
68 mm |
| Package weight |
2.04 kg |
| Weight & dimensions |
|---|
| Width |
305 mm |
| Depth |
244 mm |
| Height |
57 mm |

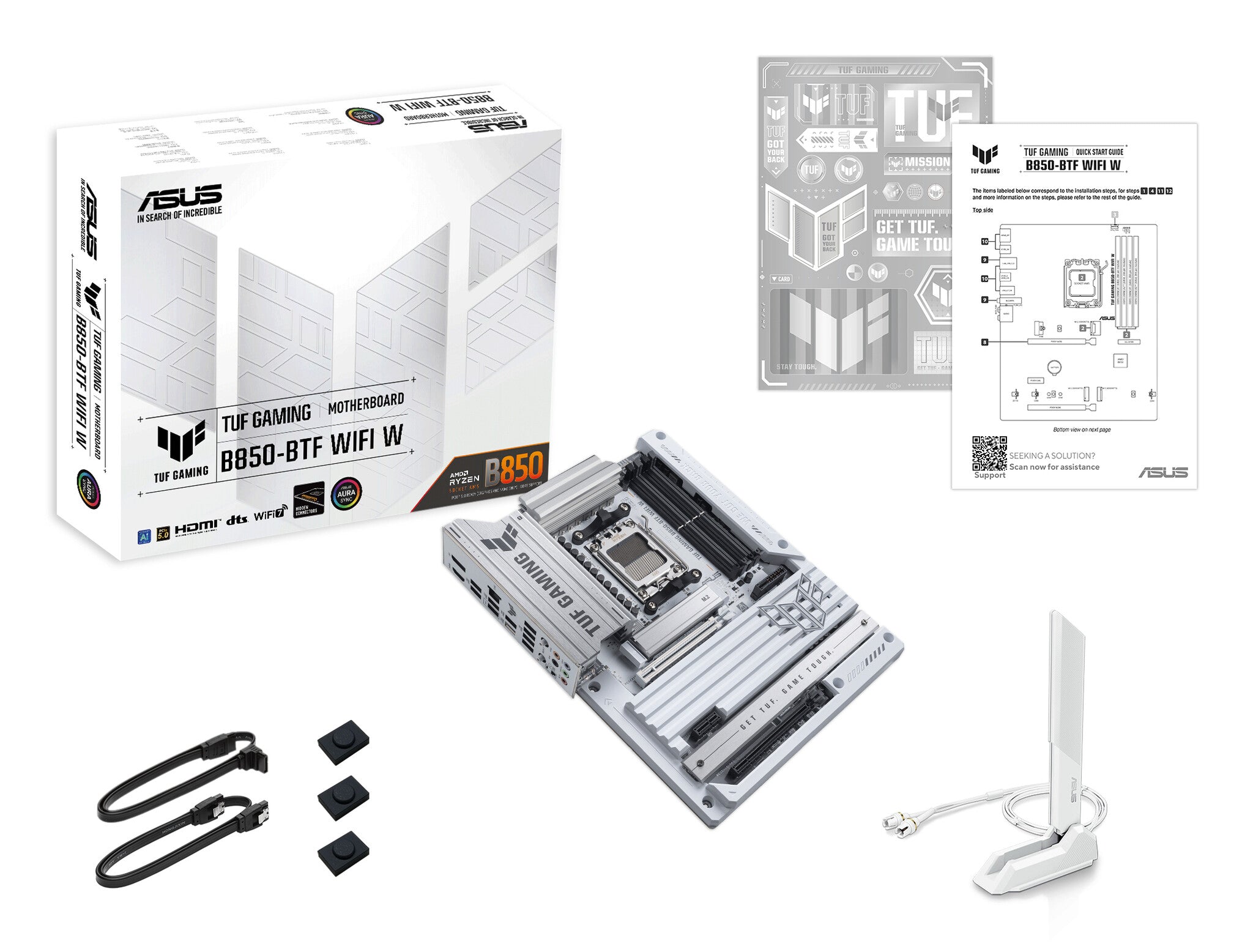

| Packaging content |
|---|
| Antenna included |
Yes |
| Other features |
|---|
| Weight |
1.44 kg |
