- Intel LGA 1851 (Socket V1) Intel Core Ultra (Series 2)
- PC mini ITX Intel B860 Realtek ALC1220P 7.1 channels
- DDR5-SDRAM 2 DIMM Maximum internal memory: 128 GB
- HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 6
- BIOS type: UEFI AMI 256 Mbit Clear CMOS button
- 2.5 Gigabit Ethernet Wi-Fi Wi-Fi 7 (802.11be) Bluetooth 5.4

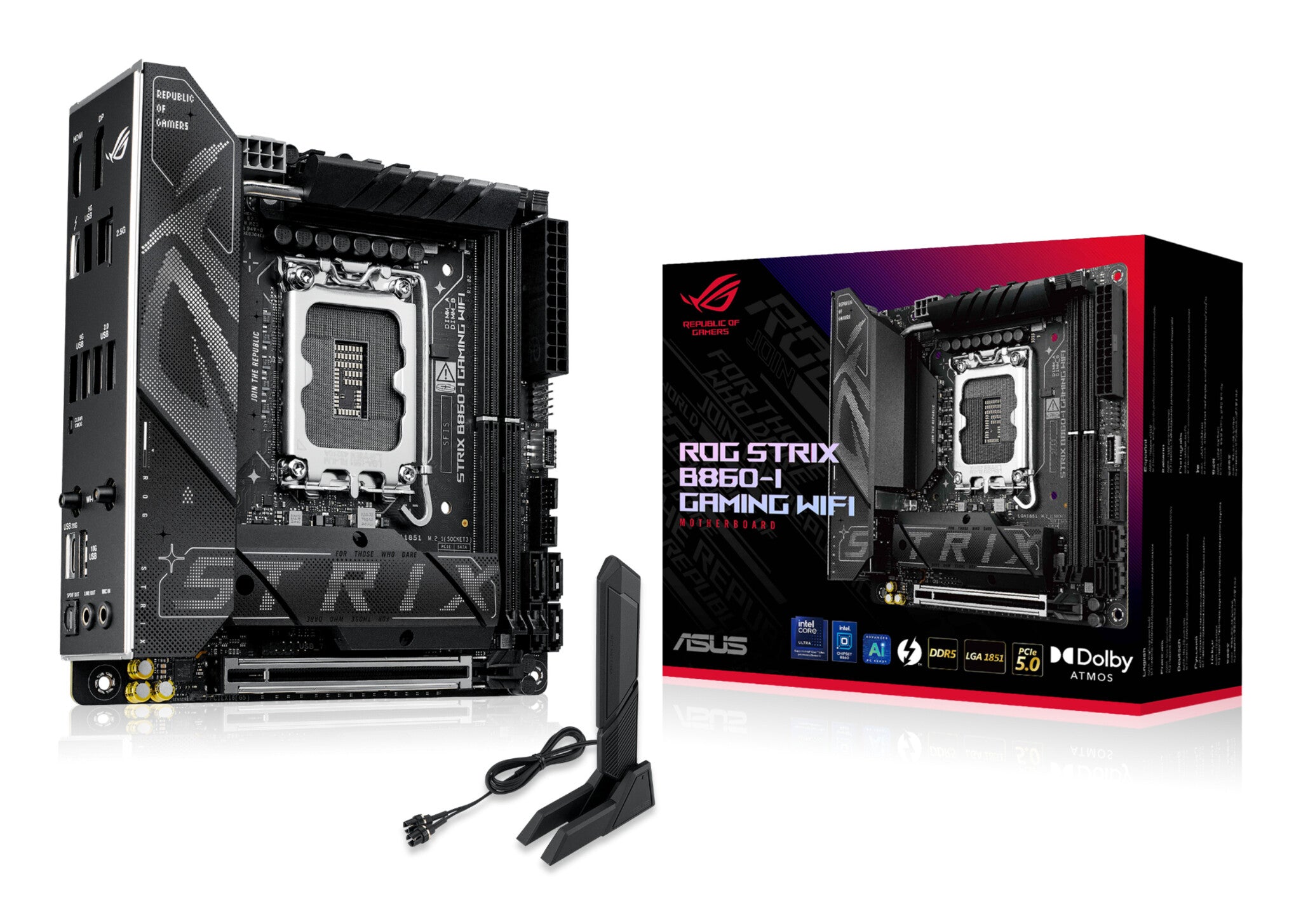

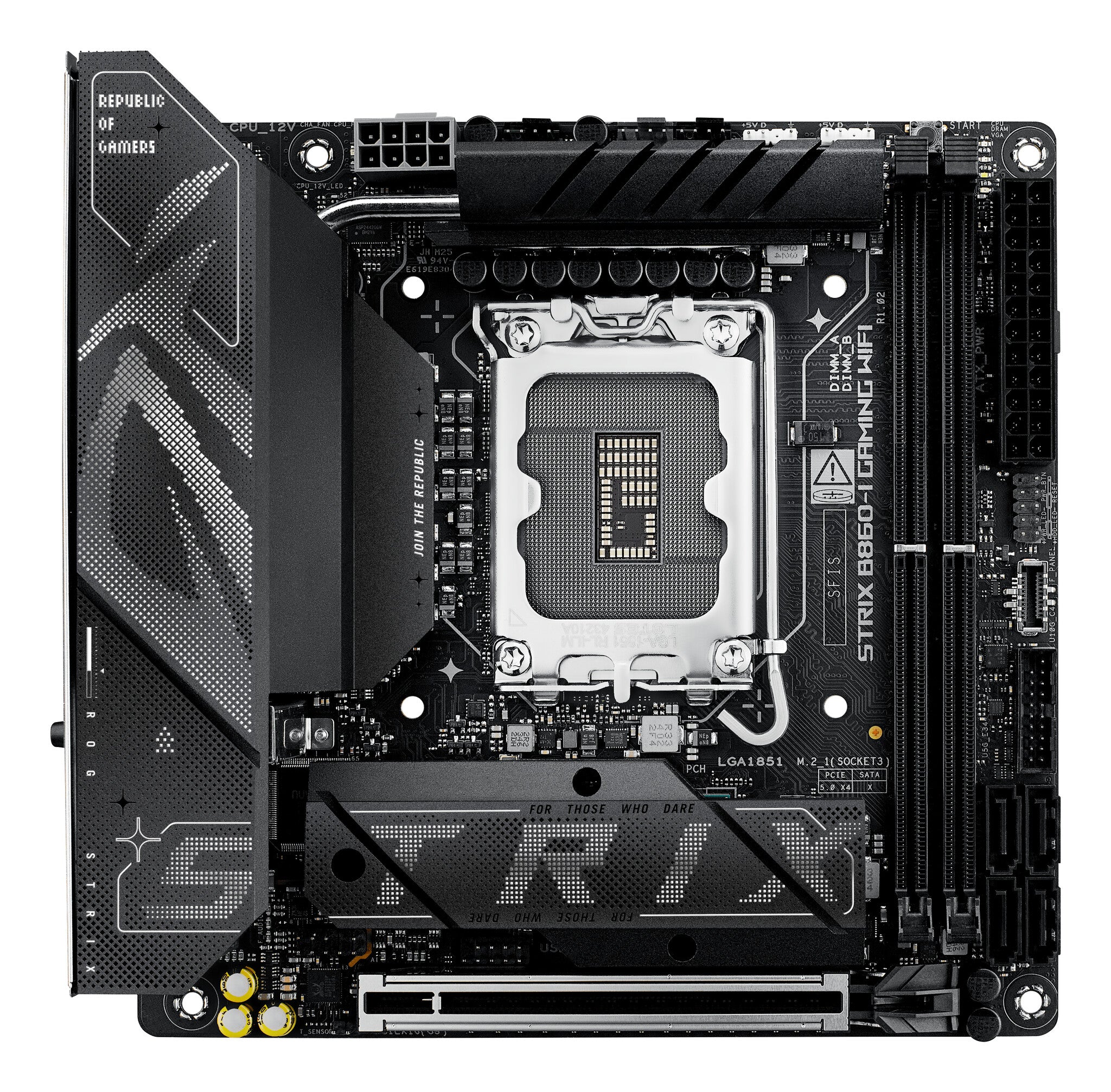

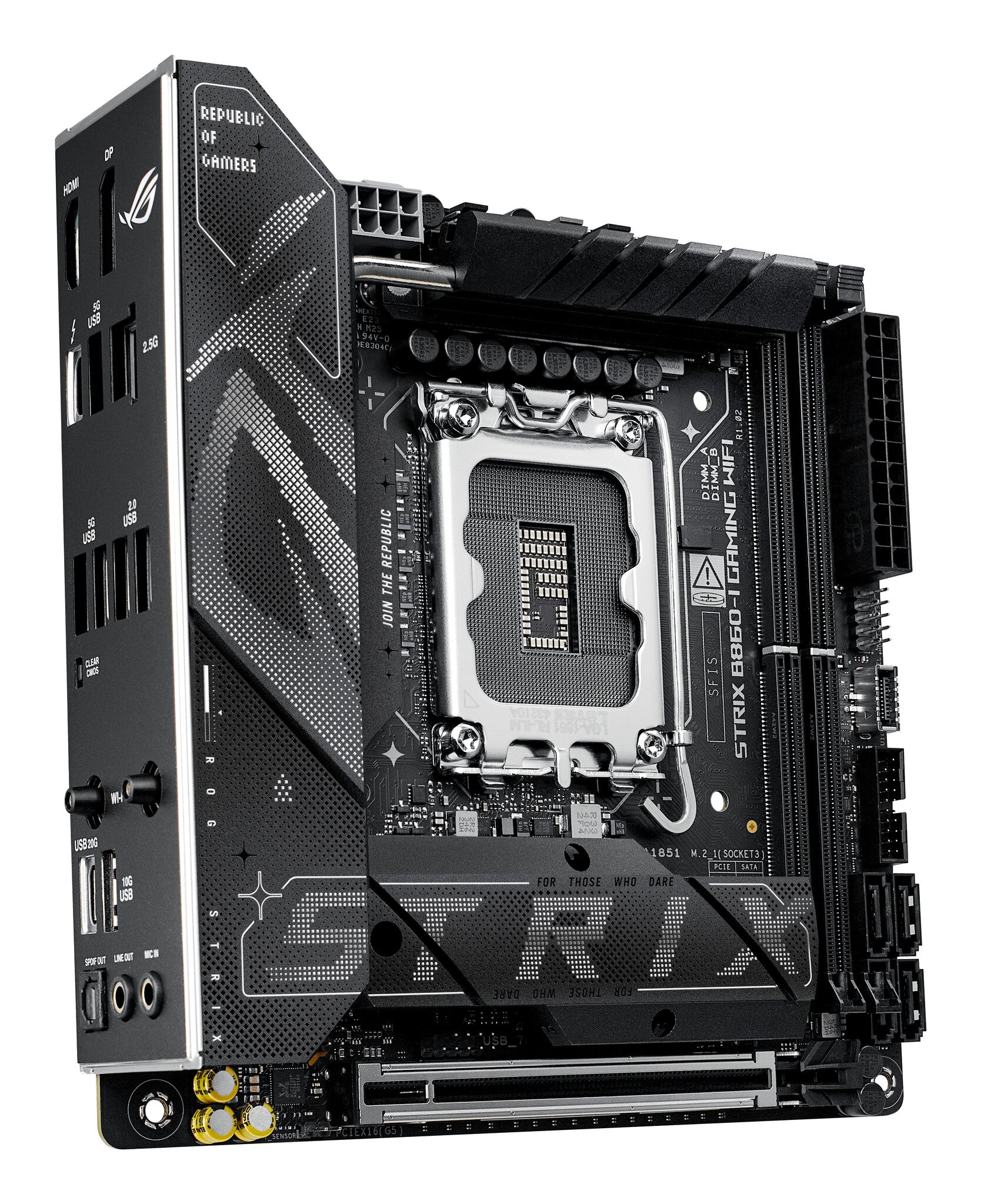

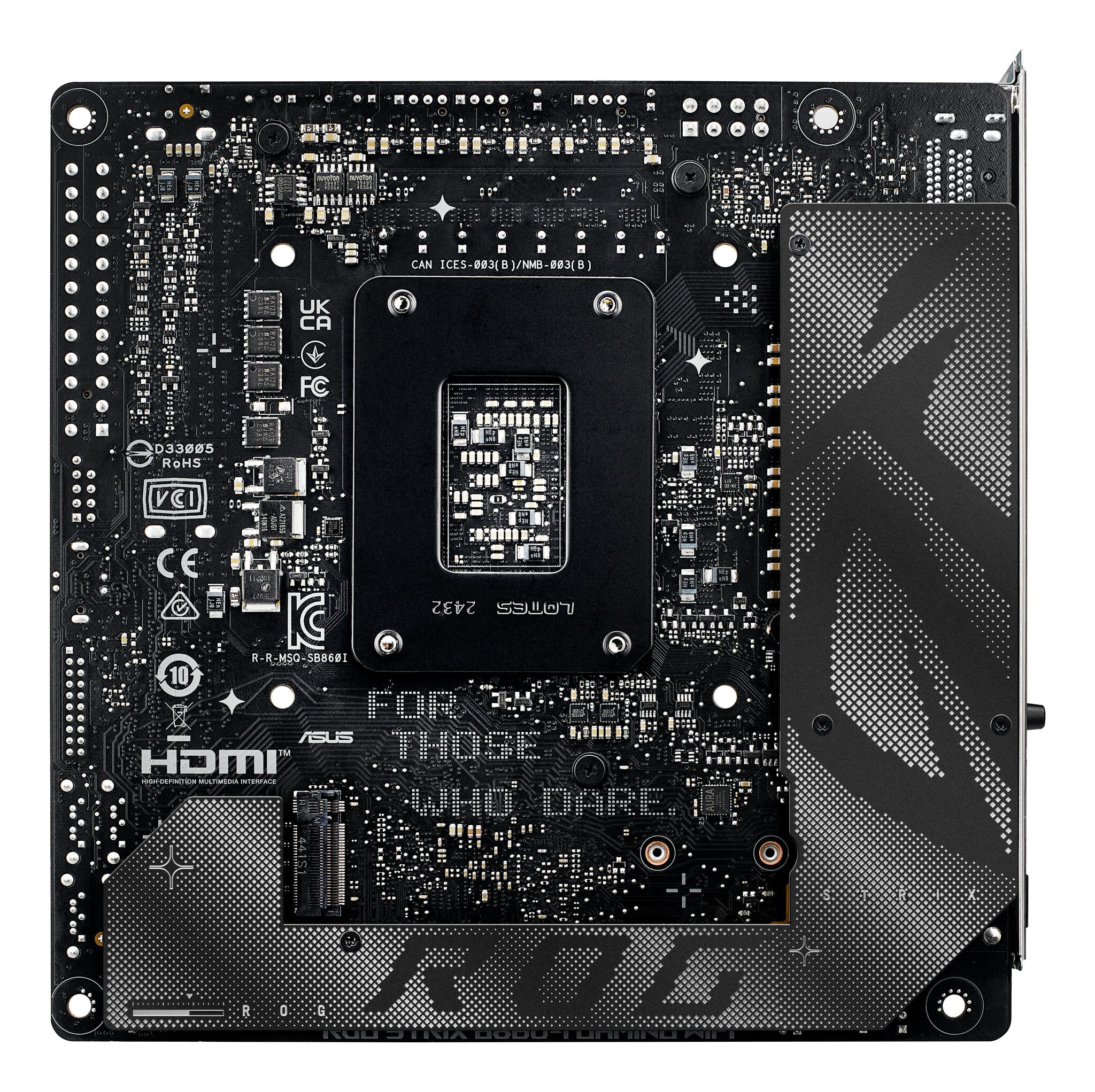

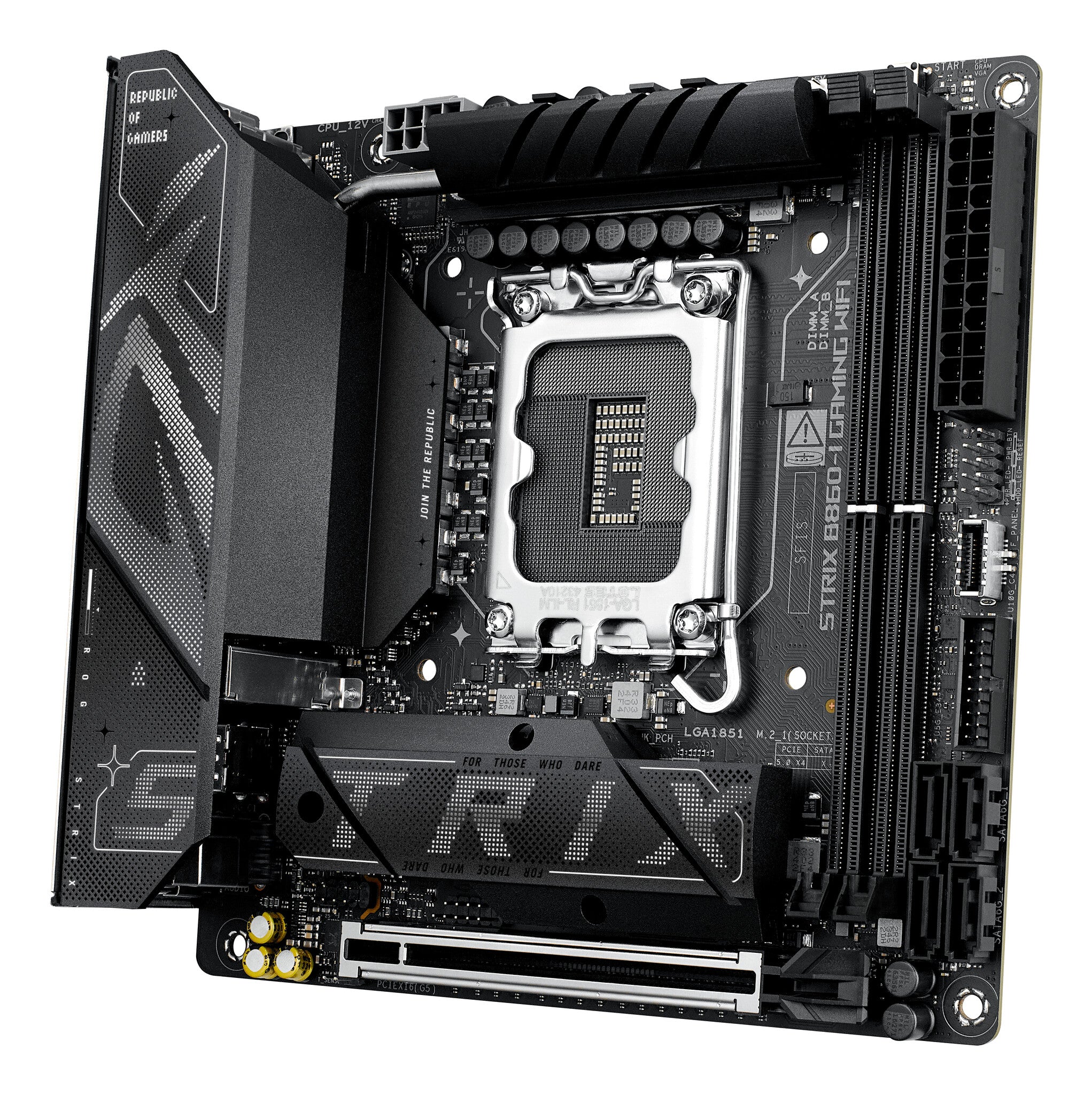

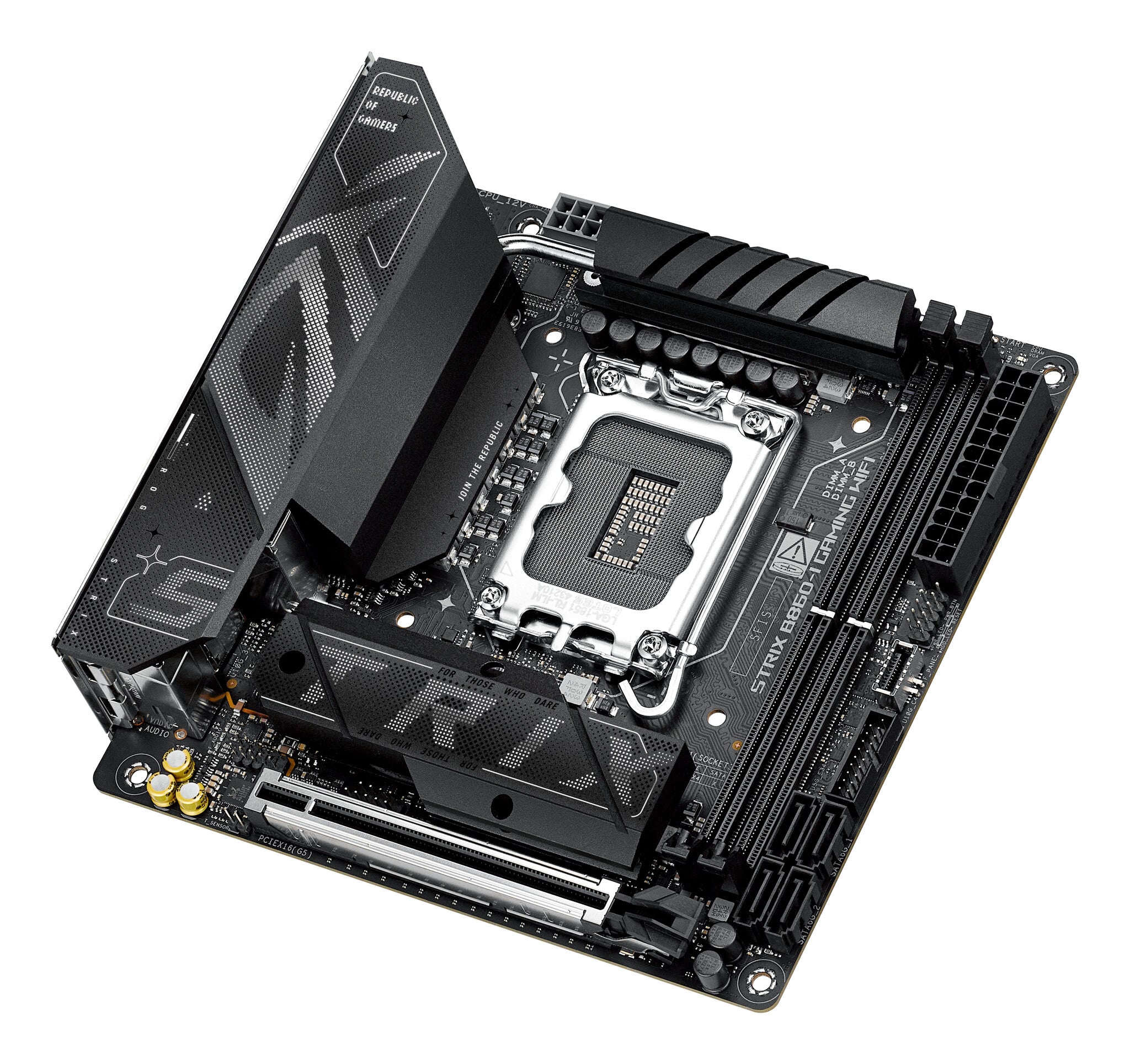

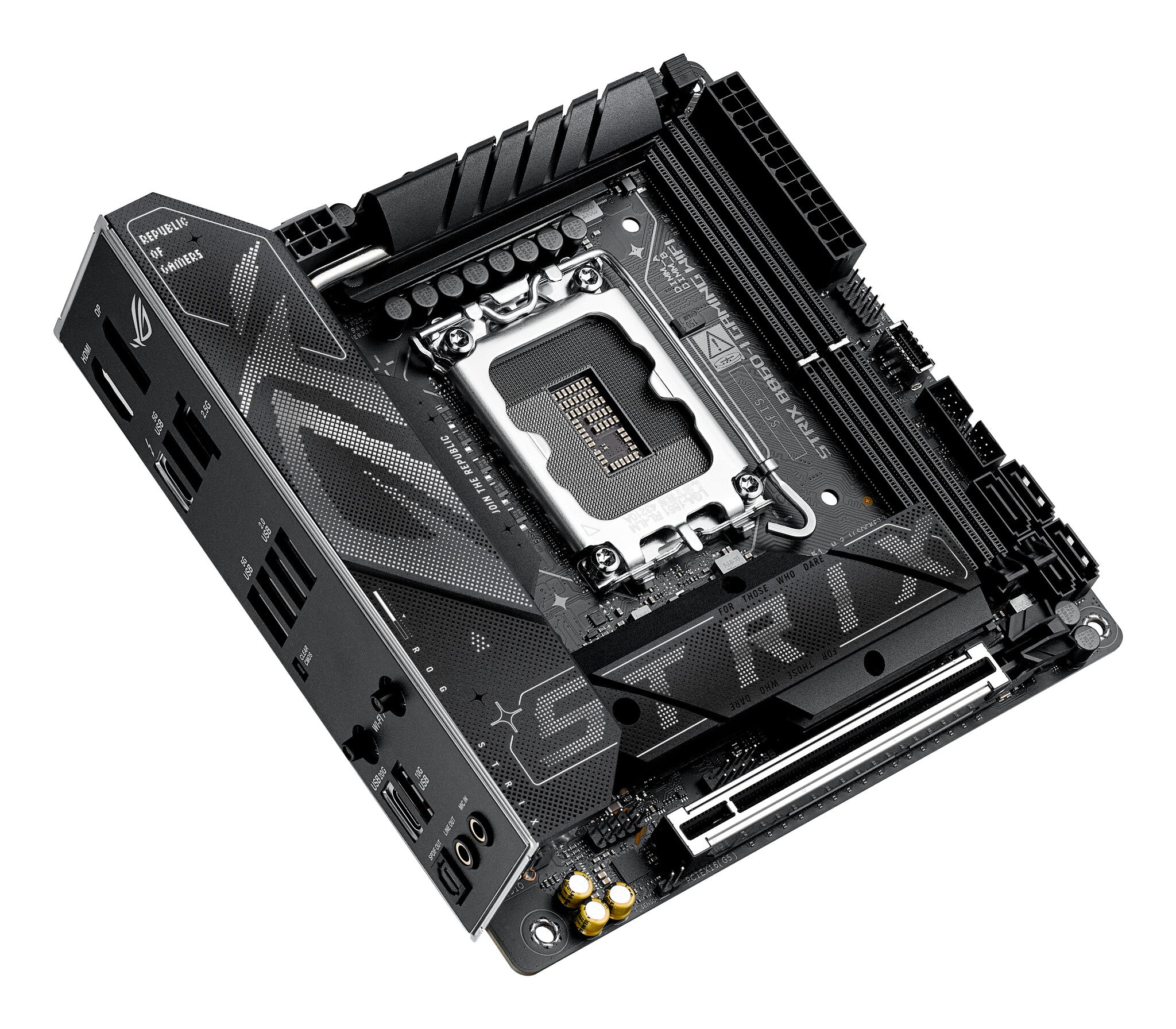

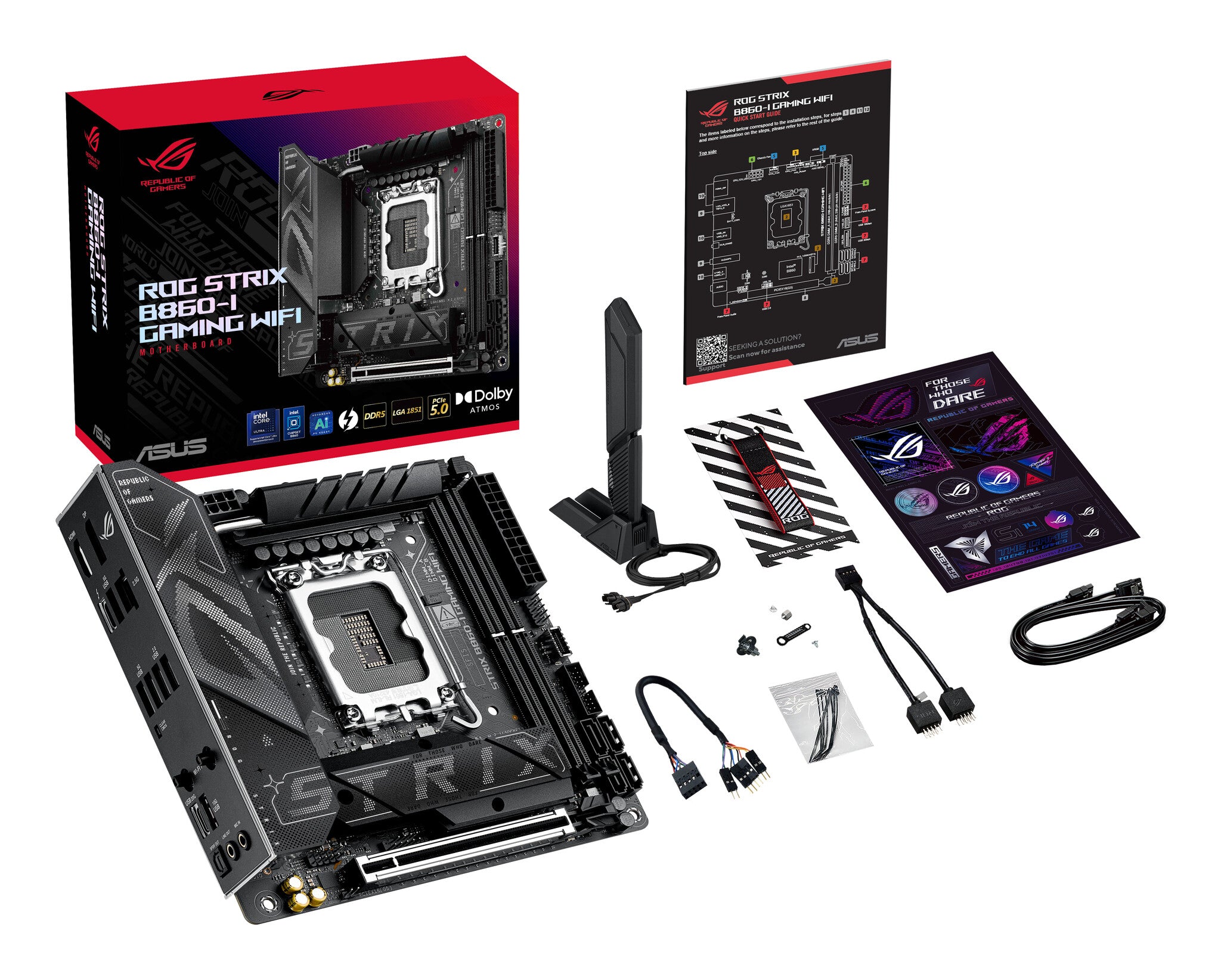

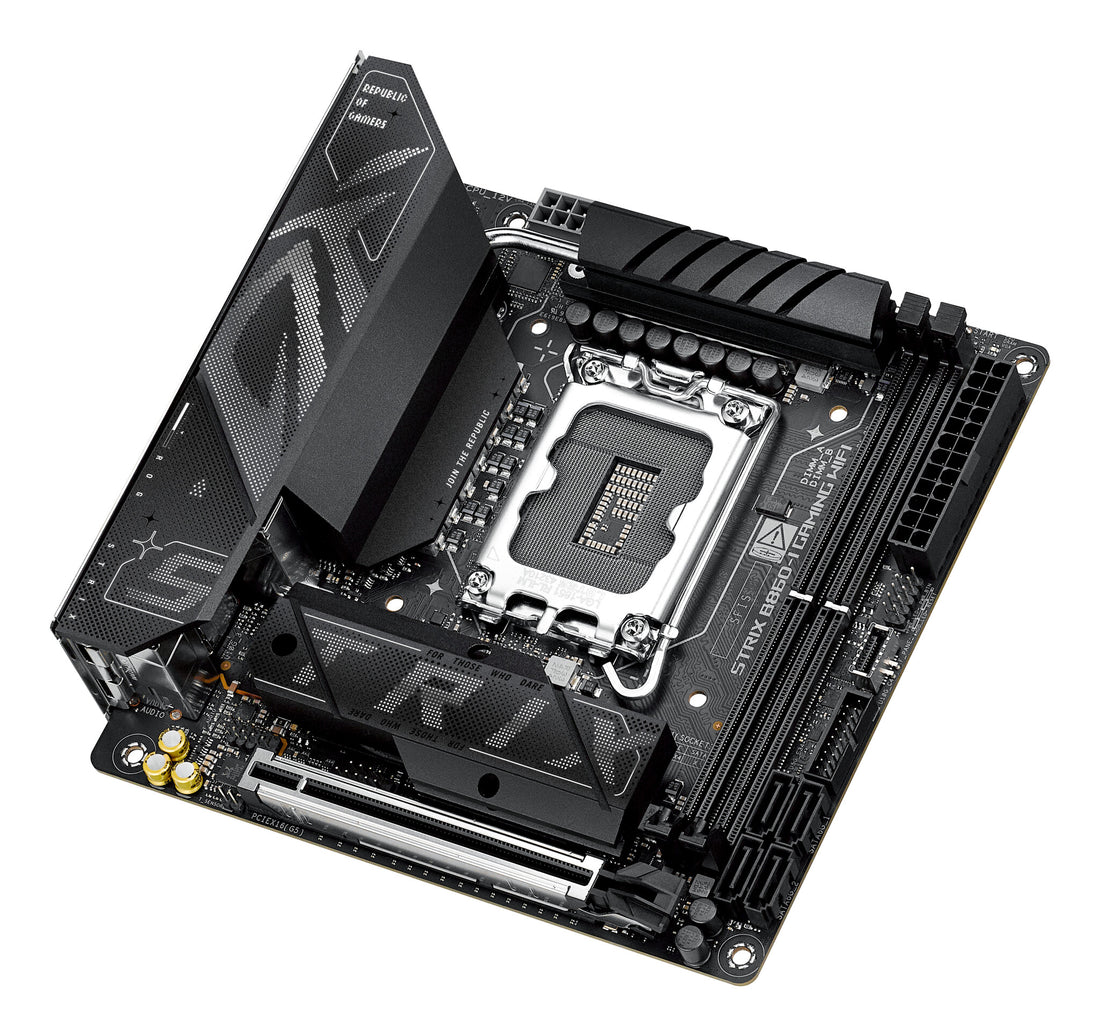

ROG STRIX B860-I gaming wifi
The ROG Strix B860-I Gaming WiFi is designed to dominate with Intel® Core™ Ultra Processors(Series 2). Its advanced power design and AI solutions drive top-tier performance, while Thunderbolt™ 4, WiFi 7 and high-speed DDR5 slots offer cutting-edge connectivity. This motherboard delivers the power and speed needed for elite gaming and demanding AI applications.
| Processor |
|---|
| Processor manufacturer |
Intel |
| Processor socket |
LGA 1851 (Socket V1) |
| Compatible processor series |
Intel Core Ultra (Series 2) |
| Memory |
|---|
| Supported memory types |
DDR5-SDRAM |
| Number of memory slots |
2 |
| Memory slots type |
DIMM |
| Memory channels |
Dual-channel |
| ECC сompatibility |
Non-ECC |
| Supported memory clock speed (max) |
9066 MHz |
| Maximum internal memory |
128 GB |
| Unbuffered memory |
Yes |
| Storage controllers |
|---|
| Supported storage drive types |
HDD & SSD |
| Supported storage drive interfaces |
M.2, SATA III |
| Number of storage drives supported |
6 |
| Number of HDDs supported |
4 |
| RAID support |
Yes |
| RAID levels |
0, 1, 5, 10 |
| Graphics |
|---|
| Parallel processing technology support |
Not supported |
| On-board graphics card |
No |
| Internal I/O |
|---|
| USB 2.0 connectors |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors |
1 |
| Number of SATA III connectors |
4 |
| Front panel audio connector |
Yes |
| ATX Power connector (24-pin) |
Yes |
| CPU fan connector |
Yes |
| Number of CPU fan connectors |
1 |
| Number of chassis fan connectors |
1 |
| EPS power connector (8-pin) |
Yes |
| 12V power connector |
Yes |

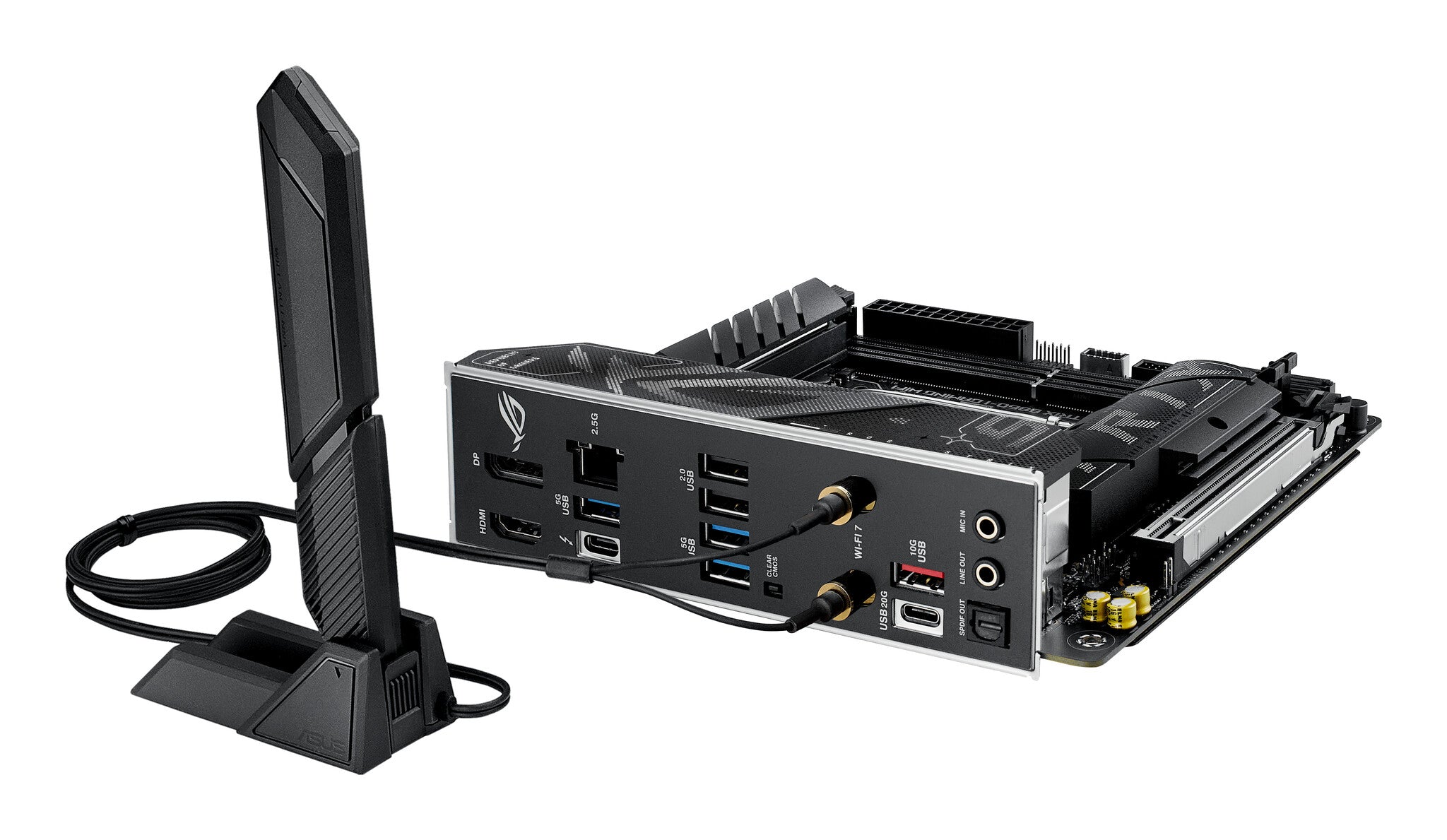

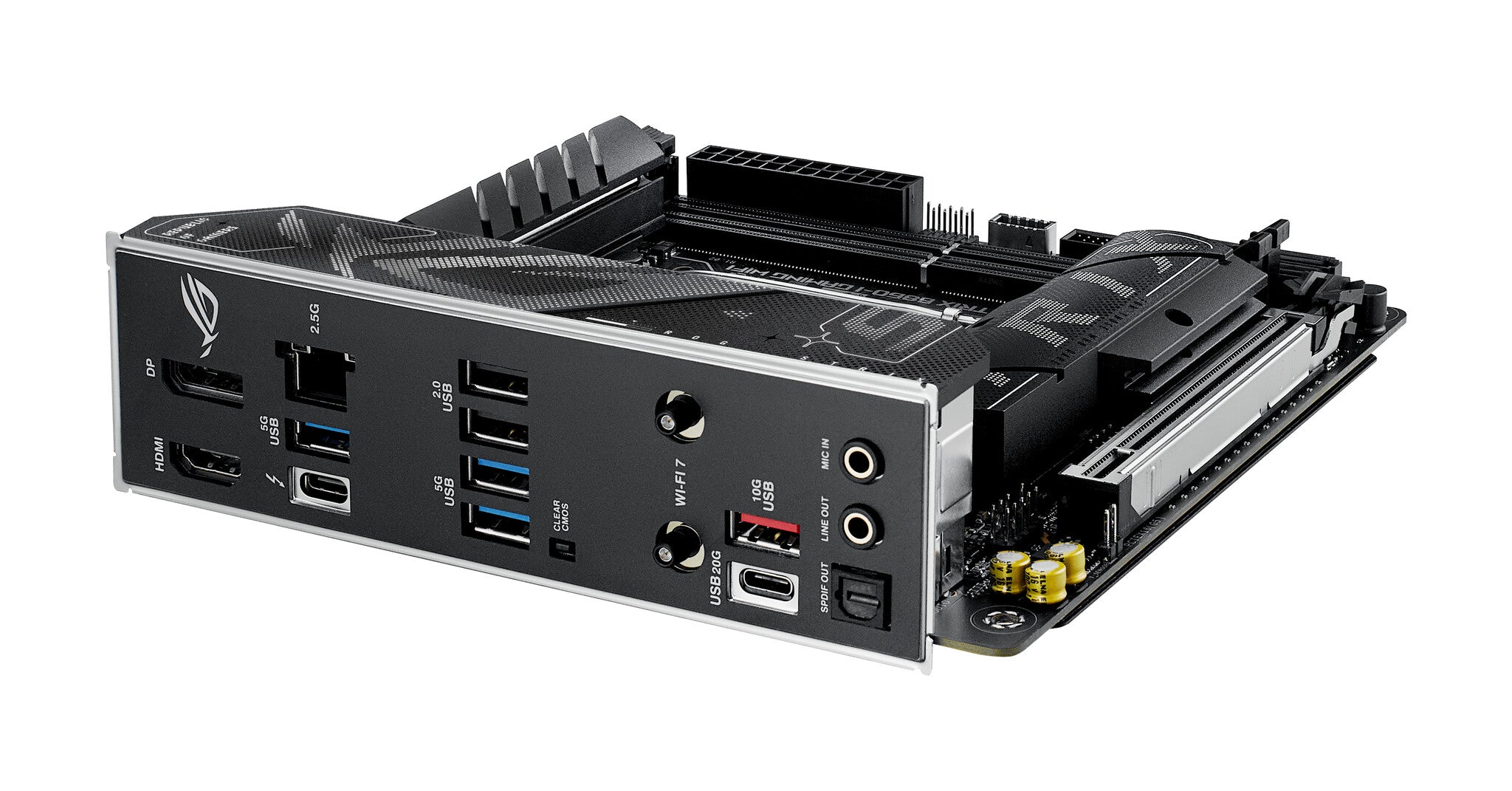

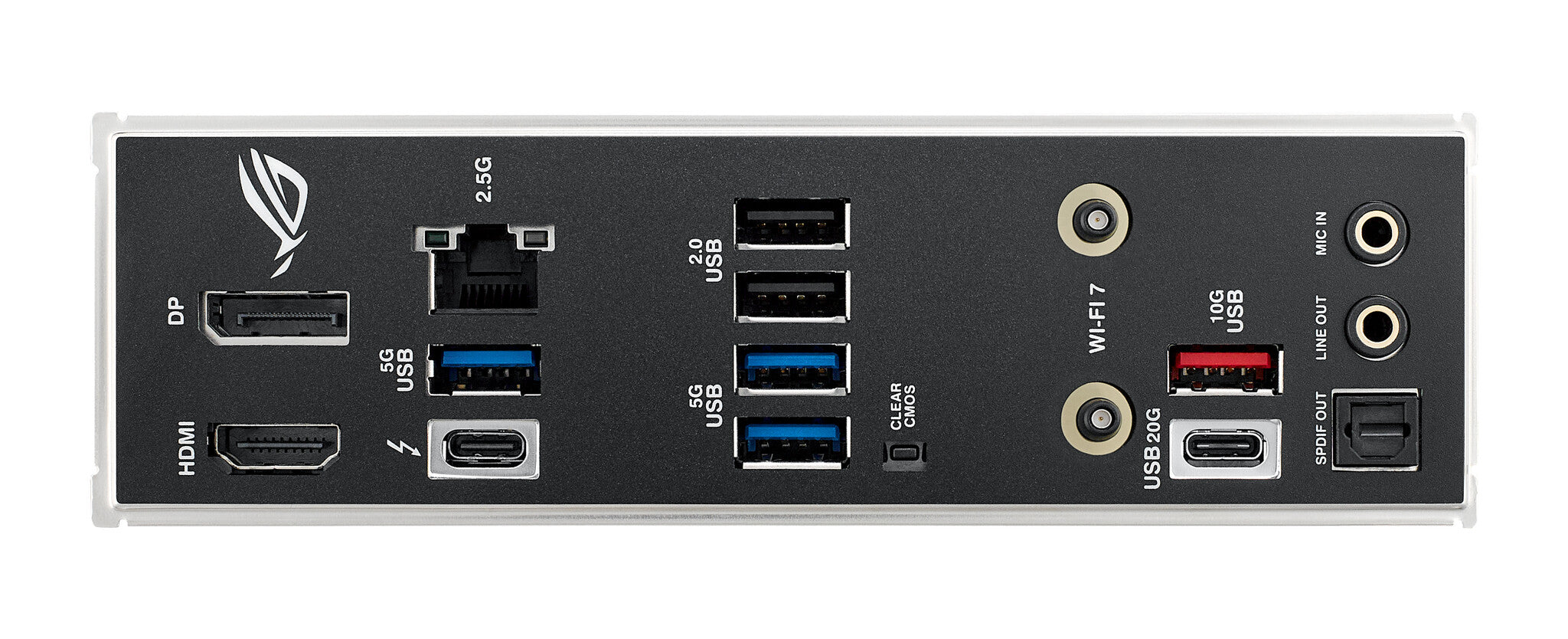

| Rear panel I/O ports |
|---|
| USB 2.0 ports quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
1 |
| USB 3.2 Gen 2x2 Type-C ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| HDMI ports quantity |
1 |
| DisplayPorts quantity |
1 |
| Microphone in |
Yes |
| S/PDIF out port |
Yes |
| Thunderbolt ports quantity |
1 |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ethernet interface type |
2.5 Gigabit Ethernet |
| Wi-Fi |
Yes |
| Top Wi-Fi standard |
Wi-Fi 7 (802.11be) |
| Bluetooth |
Yes |
| Bluetooth version |
5.4 |
| Features |
|---|
| Component for |
PC |
| Motherboard form factor |
mini ITX |
| Motherboard chipset family |
Intel |
| Motherboard chipset |
Intel B860 |
| Audio chip |
Realtek ALC1220P |
| Audio output channels |
7.1 channels |
| Product colour |
Multicolour |
| Windows operating systems supported |
Windows 11 |
| Expansion slots |
|---|
| PCI Express x16 (Gen 5.x) slots |
1 |
| Number of M.2 (M) slots |
2 |
| BIOS |
|---|
| BIOS type |
UEFI AMI |
| BIOS memory size |
256 Mbit |
| Clear CMOS button |
Yes |
| Packaging data |
|---|
| Package width |
228 mm |
| Package depth |
187 mm |
| Package height |
96 mm |
| Package weight |
1.47 kg |
| Weight & dimensions |
|---|
| Width |
170 mm |
| Depth |
170 mm |
| Other features |
|---|
| Weight |
812.6 g |
