- Creator-centric, minimalist design with flexible mounting options fits clean, professional studio setups
- Works with ProArt routers to enable creator-first network optimization across connected creative devices

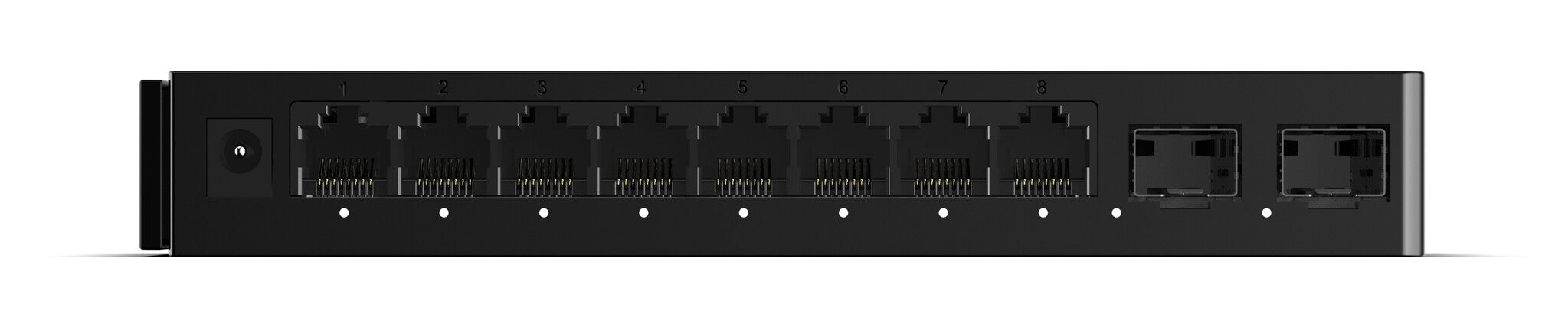

- Eight 2.5G RJ45 ports and two 10G SFP+ ports provide high-speed wired connectivity for large file transfers, storage, and streaming using existing CAT5e cables
- Connect 2.5G and 10G devices such as NAS and Wi-Fi 7 access points to build a future-ready creator studio network
- True plug-and-play setup enables quick, intuitive expansion for creator studios and easy configuration
Creator-First Networking

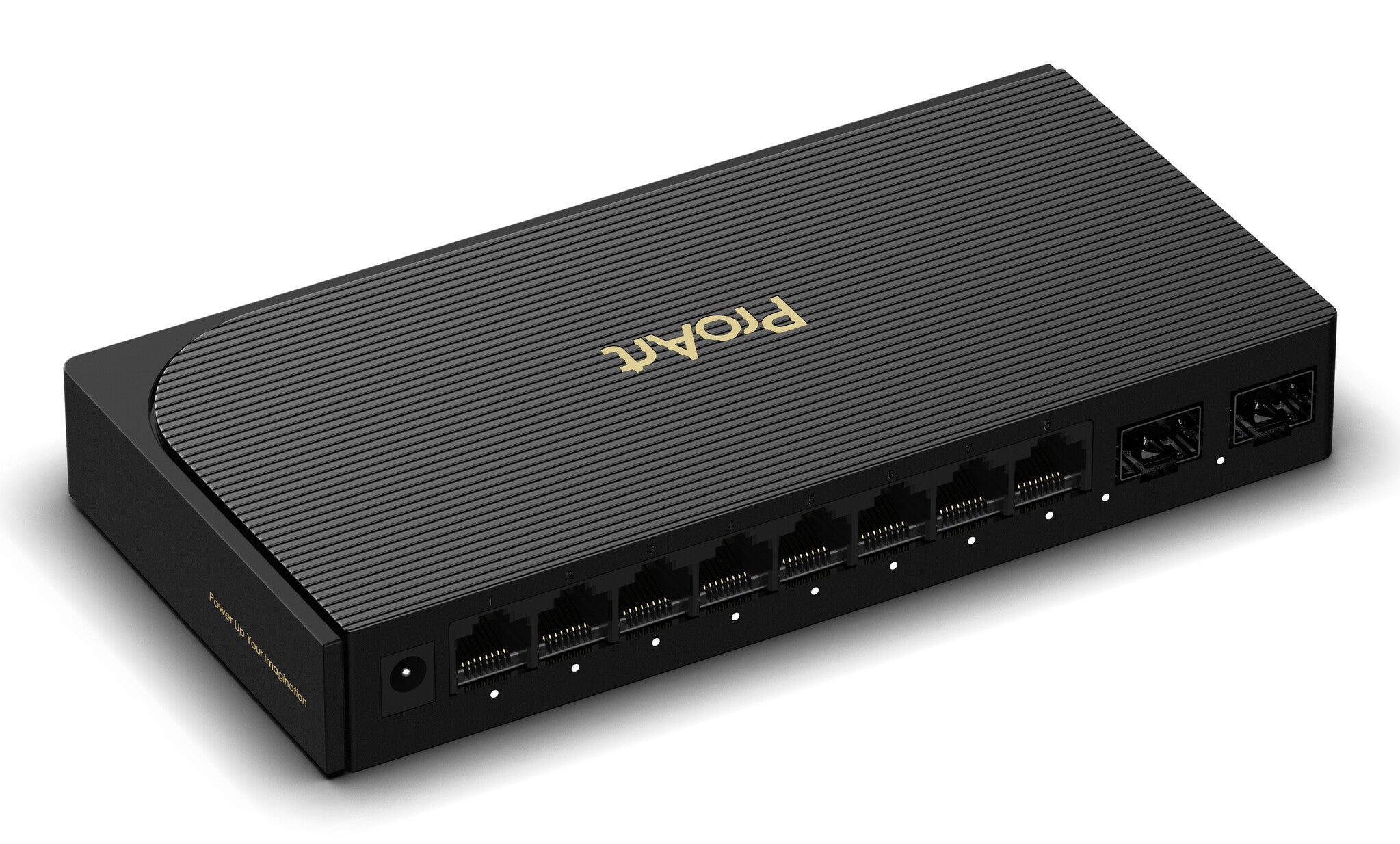

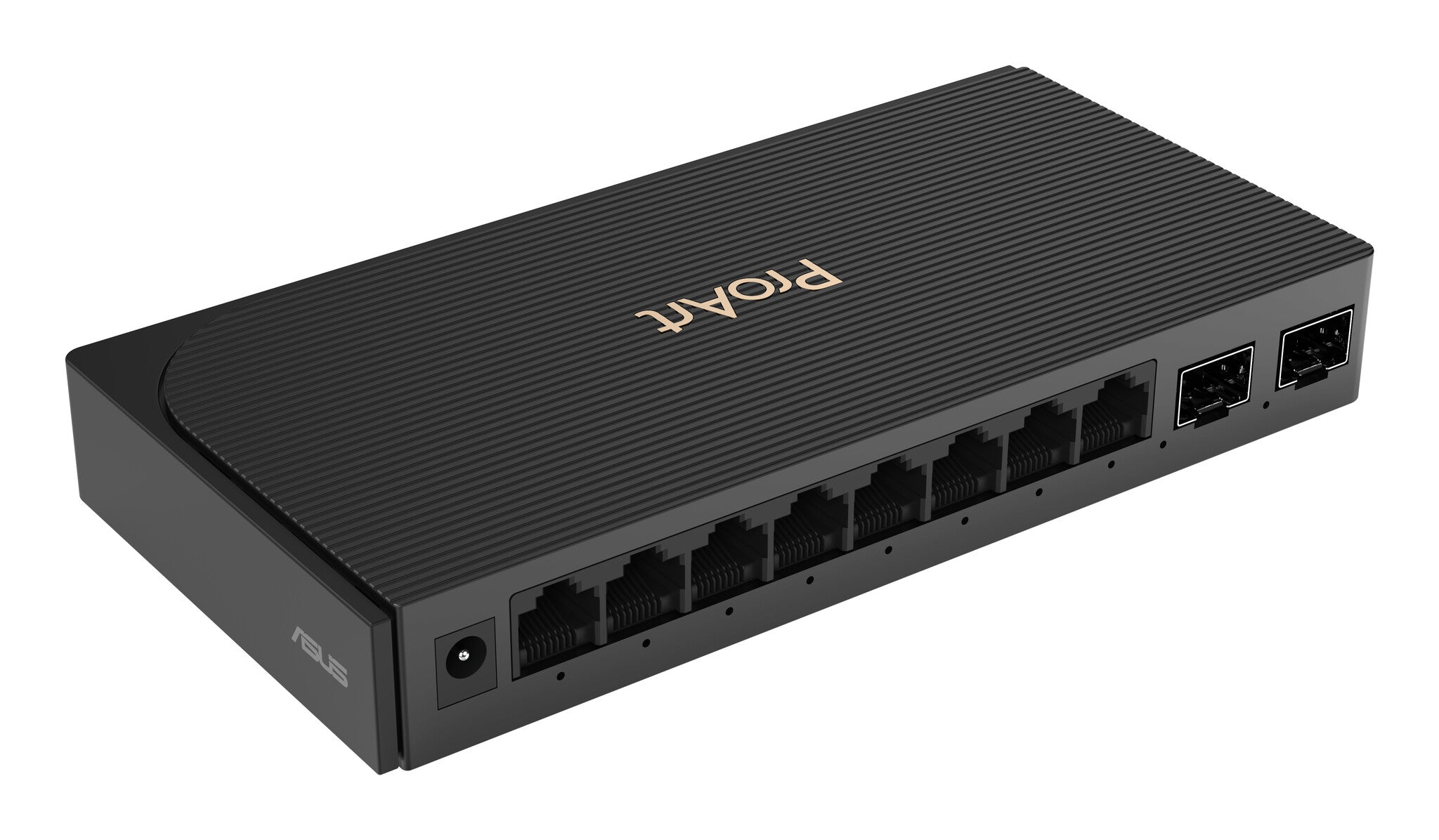

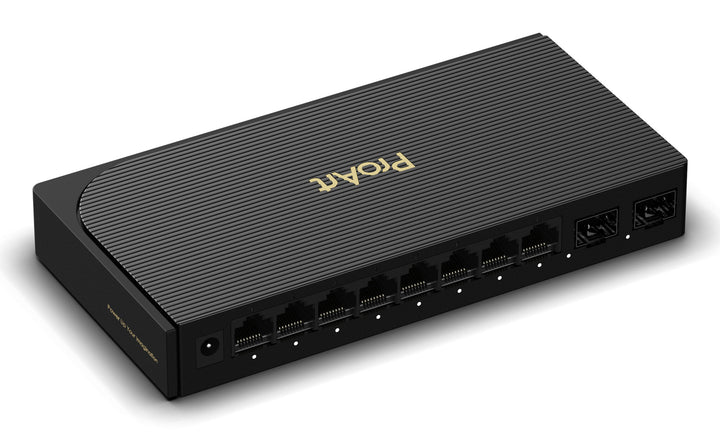

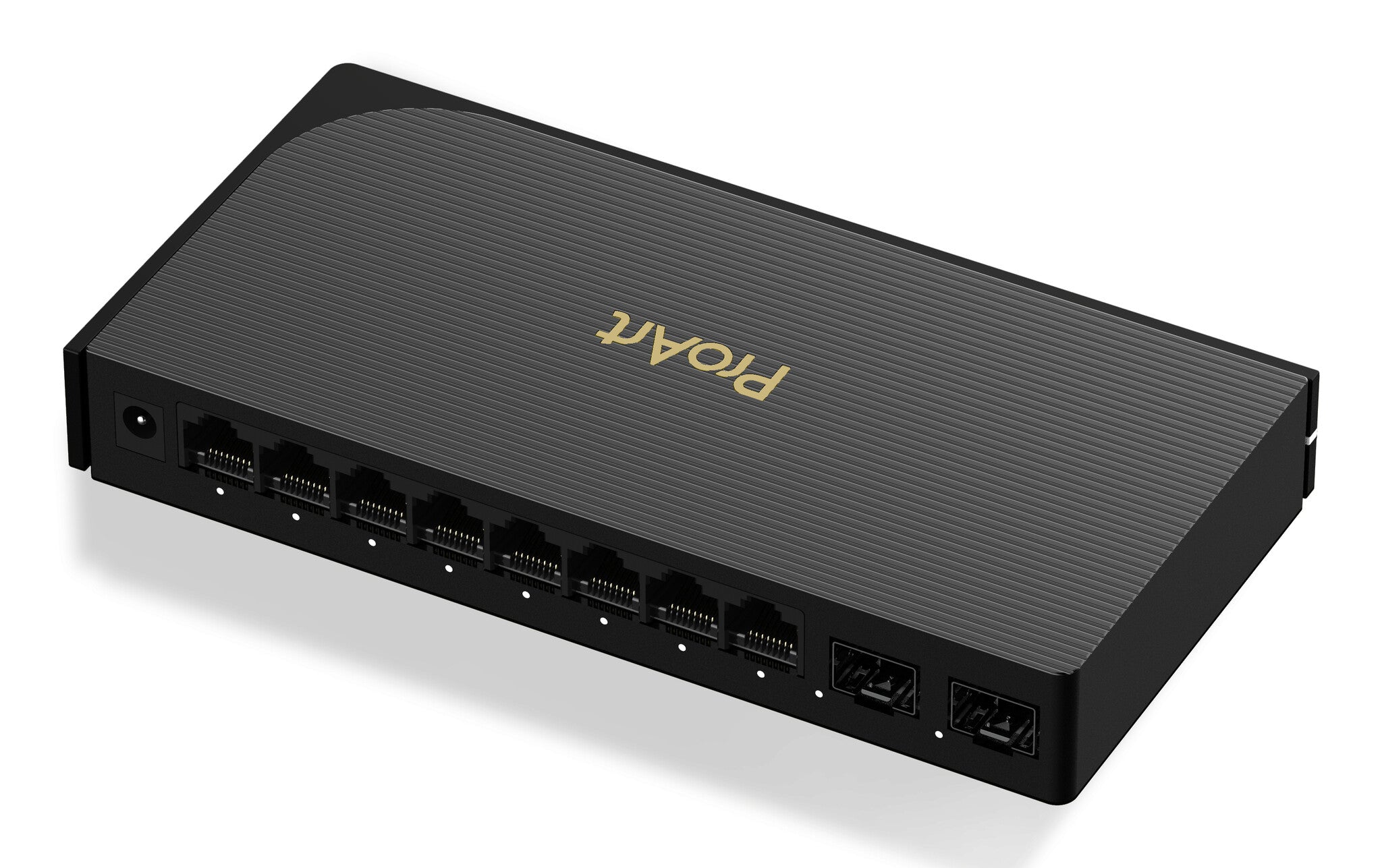

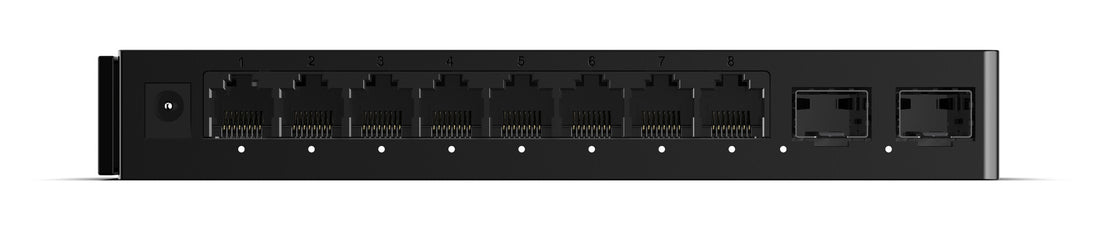

The ProArt Switch PQG-U1080 features eight 2.5G RJ45 ports and two 10G SFP+ ports to deliver high-speed wired expansion for creator studios, enabling stable connections, large file transfers, backup workflows and multi-device collaboration for network-attached storage (NAS), workstations, and other devices. Plug-and-play setup and versatile mounting options make it easy to integrate into clean, modern workspaces.
| Management features |
|---|
| Switch type |
Unmanaged |
| Ports & interfaces |
|---|
| Basic switching RJ-45 Ethernet ports quantity |
8 |
| Basic switching RJ-45 Ethernet ports type |
2.5G Ethernet (100/1000/2500) |
| SFP+ module slots quantity |
2 |
| Network |
|---|
| Networking standards |
IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3az |
| 10G support |
Yes |
| Copper ethernet cabling technology |
100BASE-TX, 1000BASE-T, 2500BASE-T |
| Cable types supported |
Cat5e |
| Flow control support |
Yes |
| Data transmission |
|---|
| MAC address table |
16000 entries |
| Forwarding rate |
59.52 Mpps |
| Jumbo frames support |
Yes |
| Jumbo frames |
10000 |
| Packet buffer memory |
8 MB |
| Design |
|---|
| Rack mounting |
No |
| Stackable |
No |
| Product colour |
Black |
| Power |
|---|
| Power source |
DC |
| Power supply included |
Yes |
| DC input voltage |
12 V |
| Input current |
1 A |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) |
No |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Weight & dimensions |
|---|
| Width |
180 mm |
| Depth |
89.5 mm |
| Height |
26 mm |
| Weight |
260 g |
| Packaging content |
|---|
| Quick start guide |
Yes |
| Packaging data |
|---|
| Package type |
Box |
| Package width |
215 mm |
| Package depth |
125 mm |
| Package height |
110 mm |
| Package weight |
760 g |
