- Intel® LGA 1851 Socket: Ready for Intel® Core™ Ultra Processors (Series 2)
- ASUS CSM program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboards
- ASUS Control Center Express: Integrated IT monitoring and management software that simplifies enterprise-level system administration
- Enhanced system security: A self-recovering BIOS, and TPM to safeguard PCs
- Consistent and reliable performance: High-quality components and rigorous testing to help ensure durability in harsh environments
- Efficient management and customization: An event log and commercial BIOS kit to enable easy maintenance
- Better serviceability: Q-LED Core diagnostic display and COM debug header to facilitate building and support processes
- Ultrafast Connectivity: PCIe 5.0 M.2 slot, DDR5 SO-DIMM slots, Front USB 20Gbps Type-C® and rear USB 10Gbps Type-A
Pro
ASUS Pro business motherboards provide enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability and reliability and an improved management suite for easier customization. Known as the world's biggest and best-known motherboard brand, ASUS provides world-class after-sales service and guaranteed long-term availability to maximize your investment over the product life cycle and offers a high-quality, TCO-optimized solution for your business computing-needs.
| Processor |
|---|
| Processor manufacturer |
Intel |
| Processor socket |
LGA 1851 (Socket V1) |
| Compatible processor series |
Intel Core Ultra (Series 2) |
| Memory |
|---|
| Supported memory types |
DDR5-SDRAM |
| Number of memory slots |
2 |
| Memory slots type |
SO-DIMM |
| Memory channels |
Dual-channel |
| ECC сompatibility |
Non-ECC |
| Supported memory clock speed (max) |
6400 MHz |
| Maximum internal memory |
128 GB |
| Unbuffered memory |
Yes |
| Storage controllers |
|---|
| Supported storage drive types |
HDD & SSD |
| Supported storage drive interfaces |
M.2, SATA III |
| Number of storage drives supported |
3 |
| Number of HDDs supported |
2 |
| Graphics |
|---|
| Parallel processing technology support |
Not supported |
| Internal I/O |
|---|
| USB 2.0 connectors |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
1 |
| Number of SATA III connectors |
2 |
| Front panel audio connector |
Yes |
| CPU fan connector |
Yes |
| Number of CPU fan connectors |
1 |
| Number of chassis fan connectors |
1 |
| Chassis intrusion connector |
Yes |
| TPM connector |
Yes |
| Number of COM connectors |
2 |

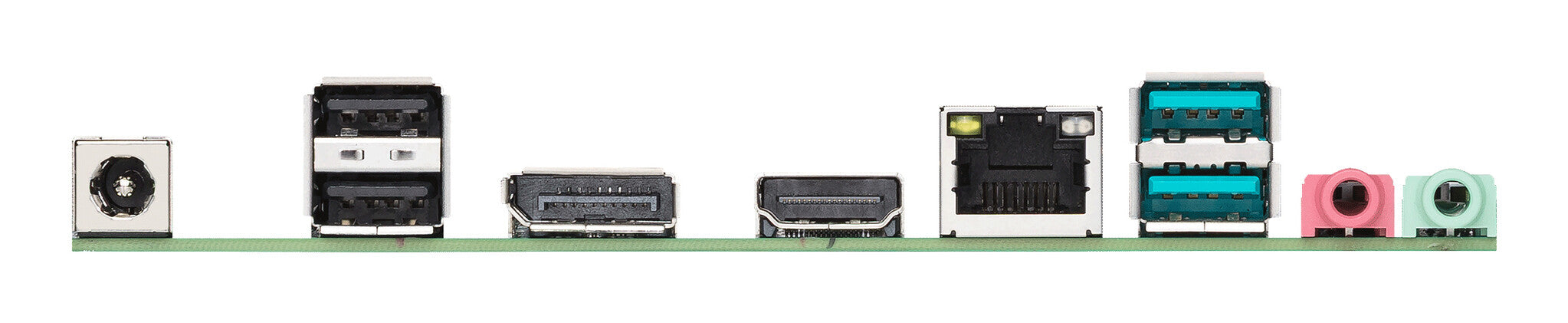

| Rear panel I/O ports |
|---|
| USB 2.0 ports quantity |
2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
2 |
| Ethernet LAN (RJ-45) ports |
1 |
| HDMI ports quantity |
1 |
| DisplayPorts quantity |
1 |
| Headphone outputs |
1 |
| Microphone in |
Yes |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ethernet interface type |
Gigabit Ethernet |
| Wi-Fi |
No |
| Top Wi-Fi standard |
Not available |
| Features |
|---|
| Component for |
PC |
| Motherboard form factor |
Thin Mini ITX |
| Motherboard chipset family |
Intel |
| Motherboard chipset |
Intel H810 |
| Audio output channels |
7.1 channels |
| Product colour |
Multicolour |
| Windows operating systems supported |
Windows 10 x64, Windows 11 |
| Compatible operating systems |
Windows 11 (22H2 & later), Windows 10 64-bit(21H2 & later) |
| Expansion slots |
|---|
| Number of M.2 (M) slots |
1 |
| BIOS |
|---|
| BIOS type |
UEFI AMI |
| BIOS memory size |
256 Mbit |
| Packaging data |
|---|
| Package width |
226 mm |
| Package depth |
182 mm |
| Package height |
60 mm |
| Package weight |
6.9 kg |
| Weight & dimensions |
|---|
| Width |
170 mm |
| Depth |
170 mm |
| Height |
49 mm |
| Other features |
|---|
| Weight |
319 g |
