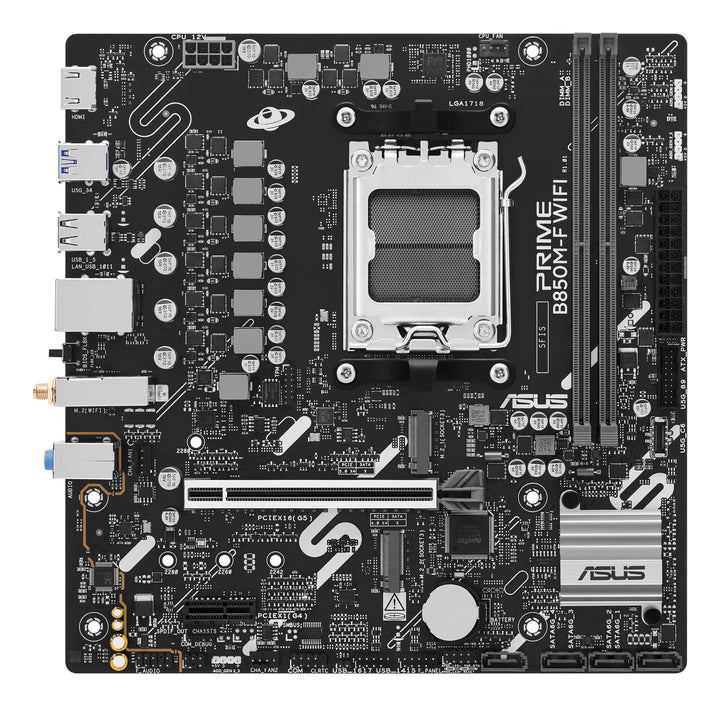

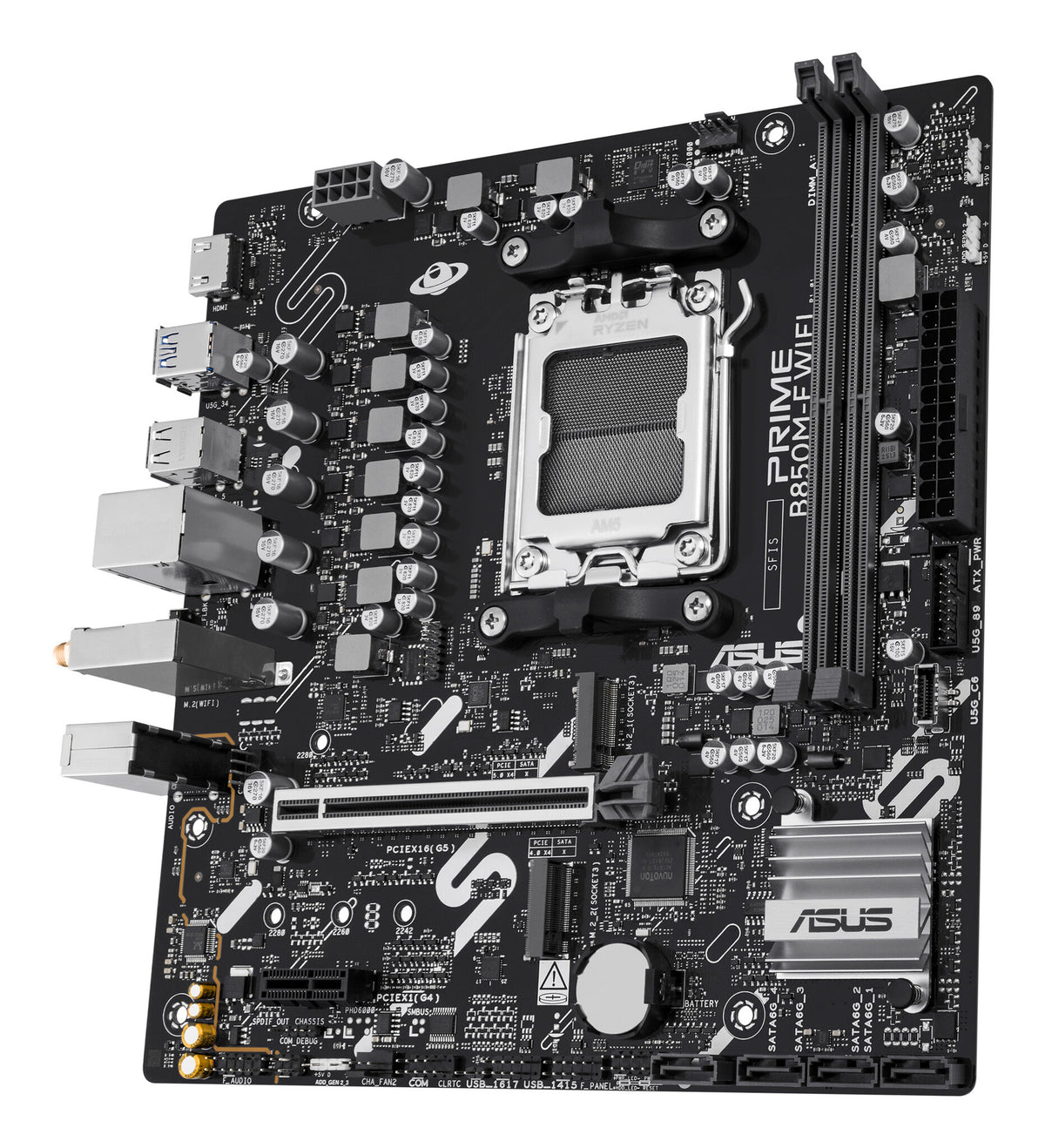

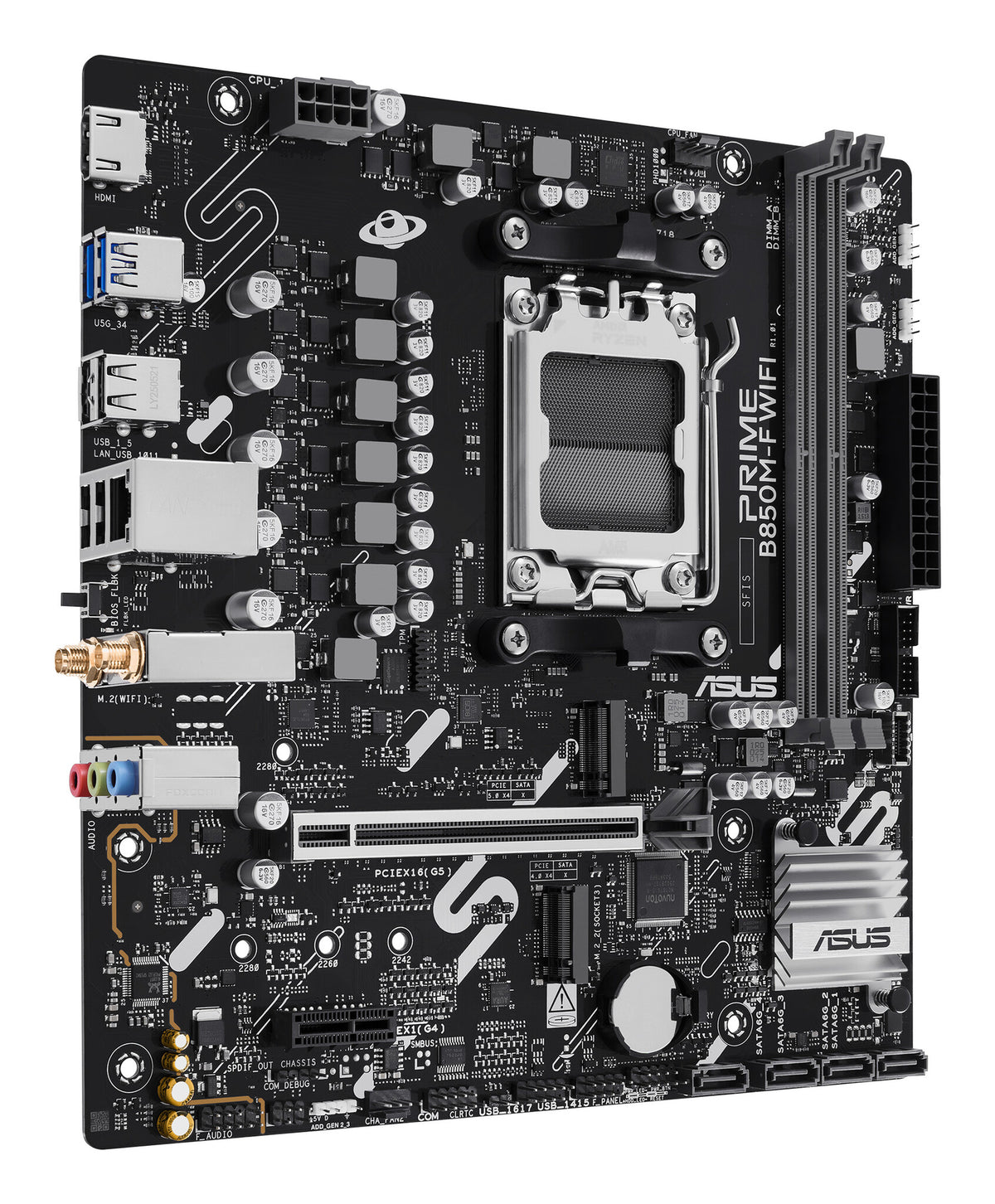

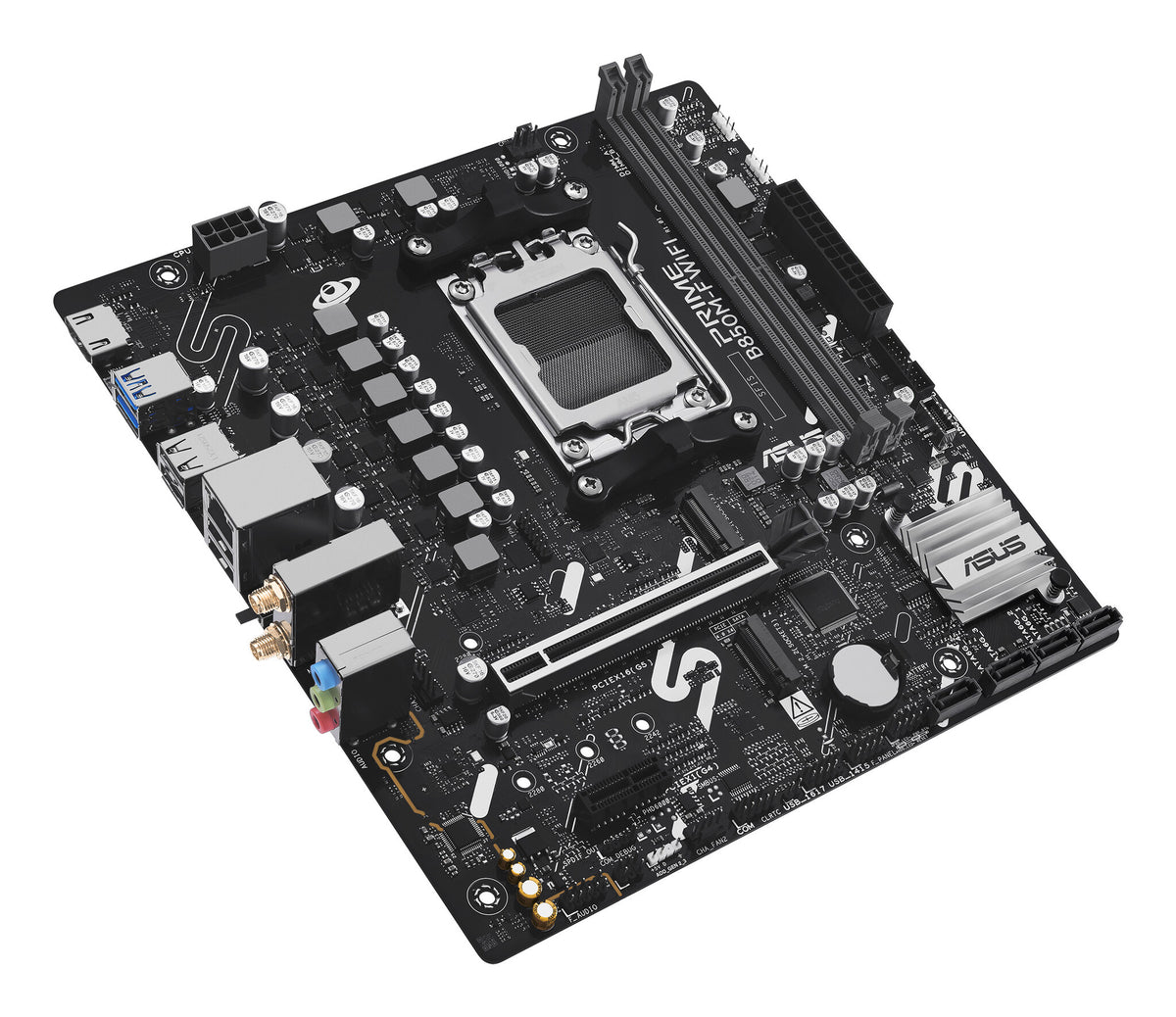

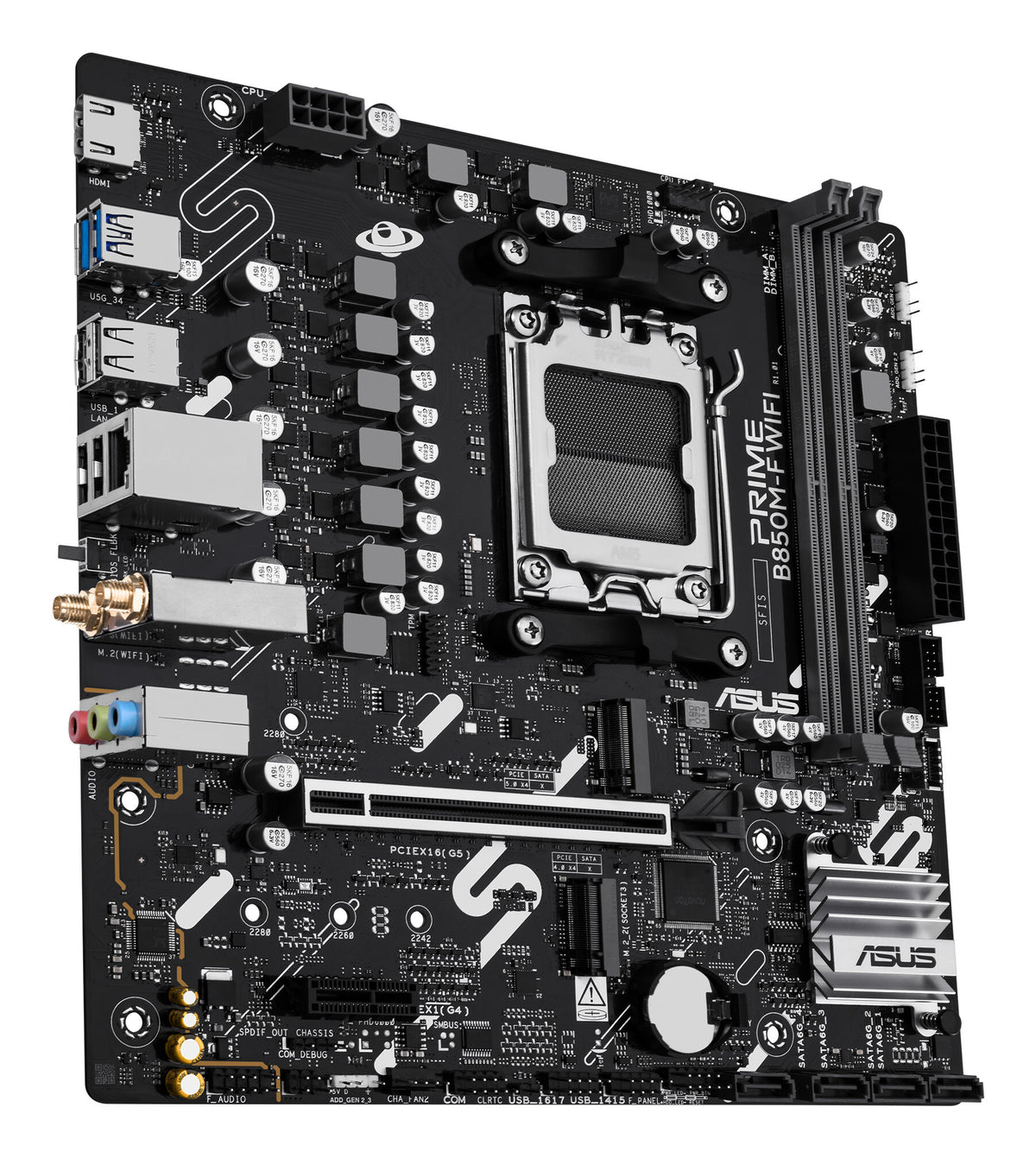

ASUS PRIME B850M-F WIFI AMD B850 Socket AM5 micro ATX
ASUS
-
Regular price
-
€132.99
-
Sale price
-
€132.99
-
Regular price
-
-
Unit price
-
/
per
Tax included.
- AMD Socket AM5 AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
- PC micro ATX AMD B850 7.1 channels
- DDR5-SDRAM 2 DIMM Maximum internal memory: 128 GB
- HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 6
- BIOS type: UEFI AMI 256 Mbit
- Gigabit Ethernet Wi-Fi Wi-Fi 6 (802.11ax) Bluetooth 5.3
| Processor |
|---|
| Processor manufacturer |
AMD |
| Processor socket |
Socket AM5 |
| Compatible processor series |
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Memory |
|---|
| Supported memory types |
DDR5-SDRAM |
| Number of memory slots |
2 |
| Memory slots type |
DIMM |
| Memory channels |
Dual-channel |
| ECC сompatibility |
ECC & Non-ECC |
| Supported memory clock speed (max) |
8400 MHz |
| Maximum internal memory |
128 GB |
| Unbuffered memory |
Yes |
| Storage controllers |
|---|
| Supported storage drive types |
HDD & SSD |
| Supported storage drive interfaces |
M.2, SATA III |
| Number of storage drives supported |
6 |
| Number of HDDs supported |
4 |
| RAID support |
Yes |
| RAID levels |
0, 1, 5, 10 |
| Internal I/O |
|---|
| USB 2.0 connectors |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
2 |
| Number of SATA III connectors |
4 |
| Front panel audio connector |
Yes |
| ATX Power connector (24-pin) |
Yes |
| CPU fan connector |
Yes |
| Number of CPU fan connectors |
1 |
| Number of chassis fan connectors |
2 |
| EPS power connector (8-pin) |
Yes |
| Number of EPS power connectors (8-pin) |
1 |
| 12V power connector |
Yes |
| TPM connector |
Yes |
| Number of COM connectors |
1 |
| Rear panel I/O ports |
|---|
| USB 2.0 ports quantity |
4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| Ethernet LAN (RJ-45) ports |
1 |
| HDMI ports quantity |
1 |
| Headphone outputs |
1 |
| Microphone in |
Yes |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ethernet interface type |
Gigabit Ethernet |
| Wi-Fi |
Yes |
| Top Wi-Fi standard |
Wi-Fi 6 (802.11ax) |
| Bluetooth |
Yes |
| Bluetooth version |
5.3 |
| Features |
|---|
| Component for |
PC |
| Motherboard form factor |
micro ATX |
| Motherboard chipset family |
AMD |
| Motherboard chipset |
AMD B850 |
| Audio output channels |
7.1 channels |
| Product colour |
Multicolour |
| Windows operating systems supported |
Windows 10 x64, Windows 11 |
| Expansion slots |
|---|
| PCI Express x1 (Gen 4.x) slots |
1 |
| Number of M.2 (M) slots |
2 |
| 1st M.2 largest key size |
2280 |
| 2nd M.2 largest key size |
2280 |
| BIOS |
|---|
| BIOS type |
UEFI AMI |
| BIOS memory size |
256 Mbit |
| Packaging data |
|---|
| Package width |
270 mm |
| Package depth |
260 mm |
| Package height |
51.5 mm |
| Package weight |
937 g |
| Weight & dimensions |
|---|
| Width |
222 mm |
| Depth |
226 mm |
| Height |
36.5 mm |
| Other features |
|---|
| Weight |
550 g |
