- AMD Socket AM4 AMD Ryzen 5000 Series, AMD Ryzen 4000 Series, AMD Ryzen 3000 Series
- PC micro ATX AMD A520 7.1 channels
- DDR4-SDRAM 2 DIMM Maximum internal memory: 64 GB
- HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 5
- BIOS type: UEFI AMI 128 Mbit
- Gigabit Ethernet

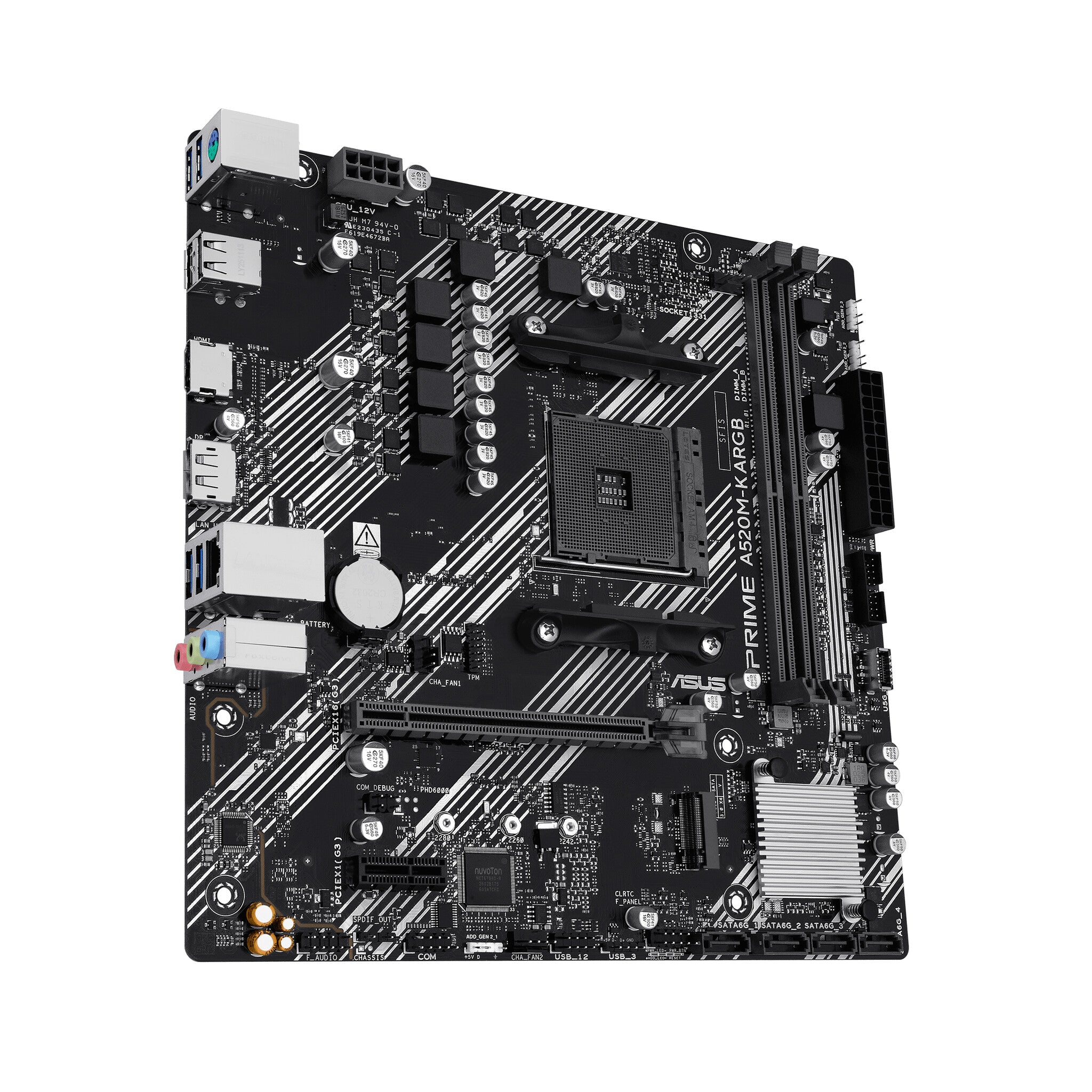

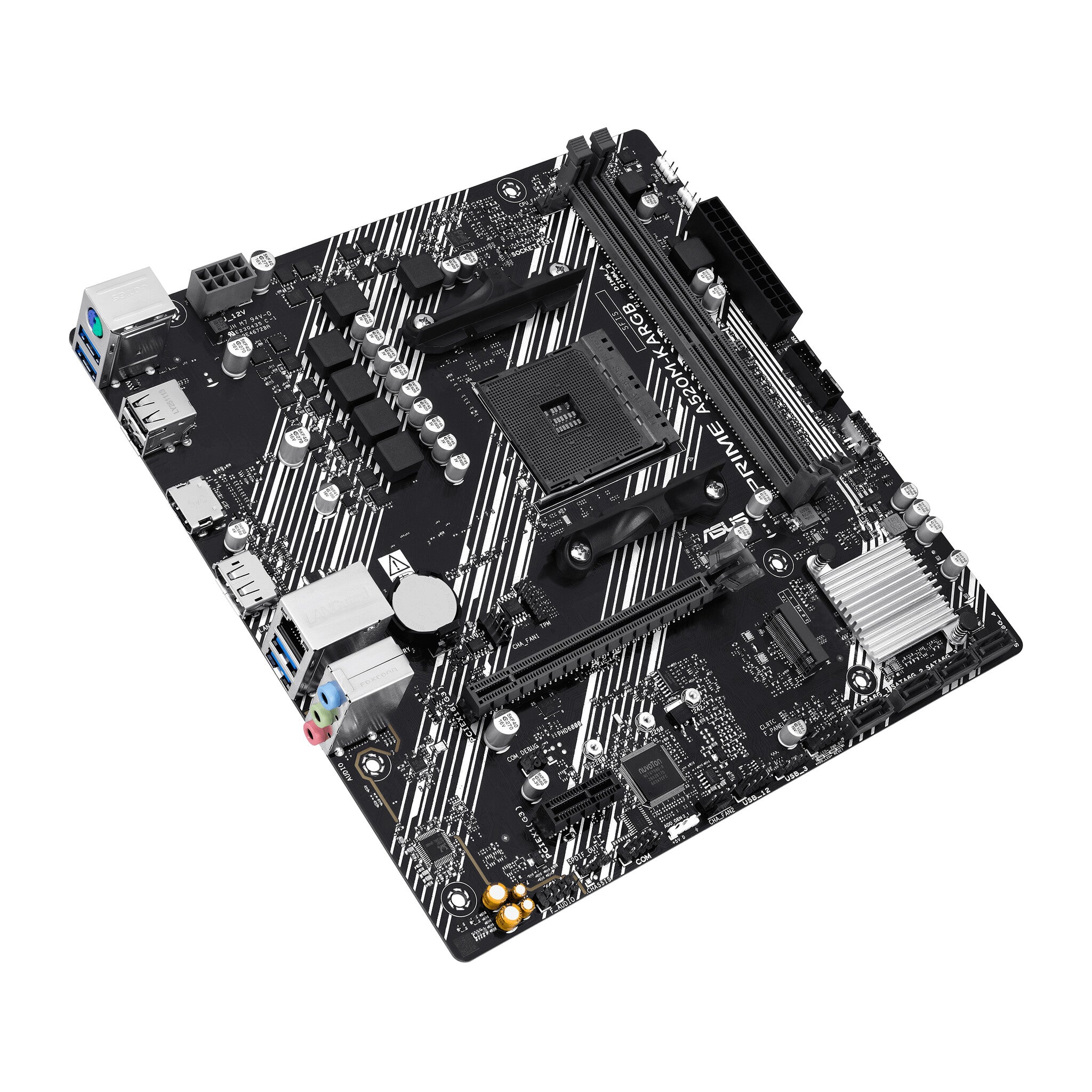

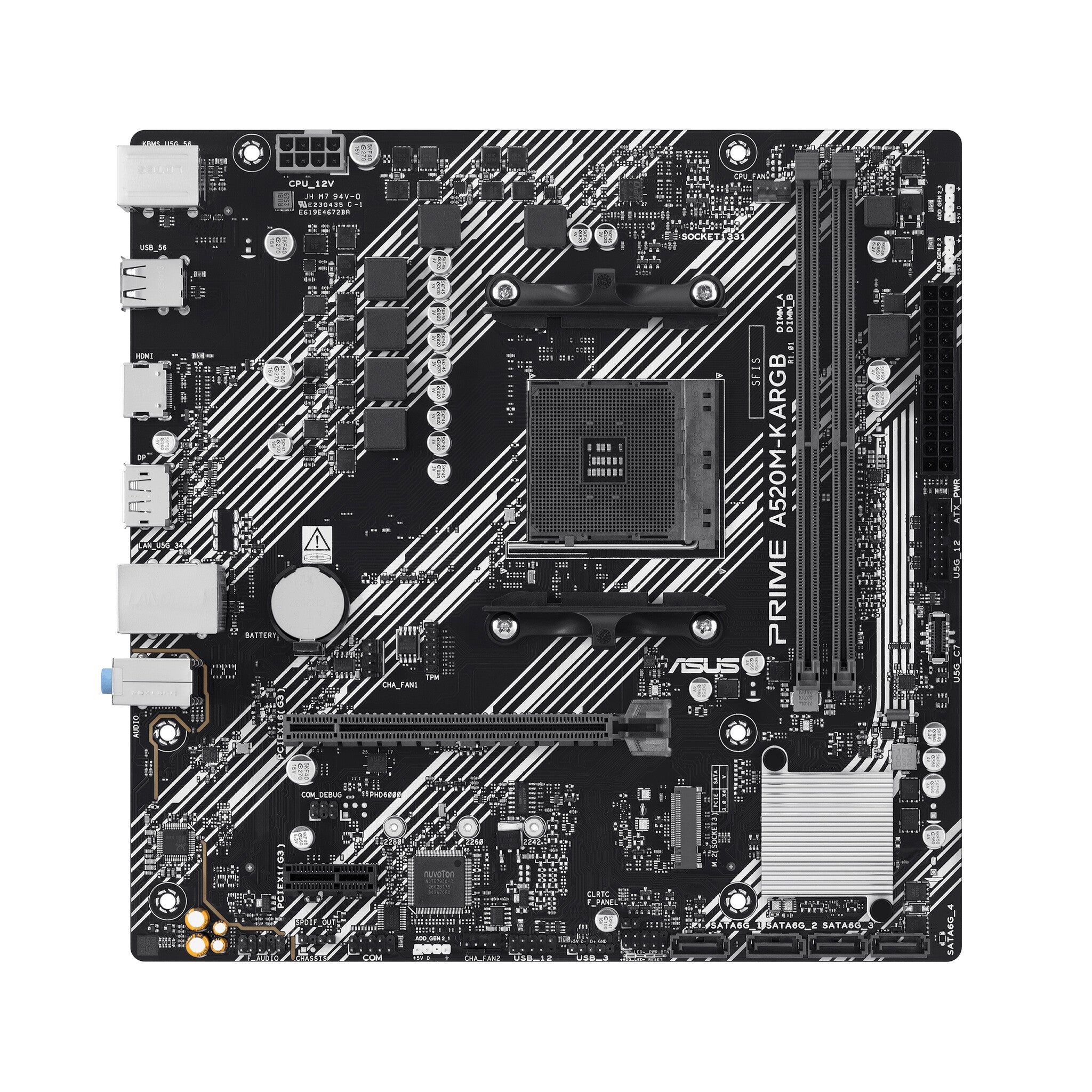

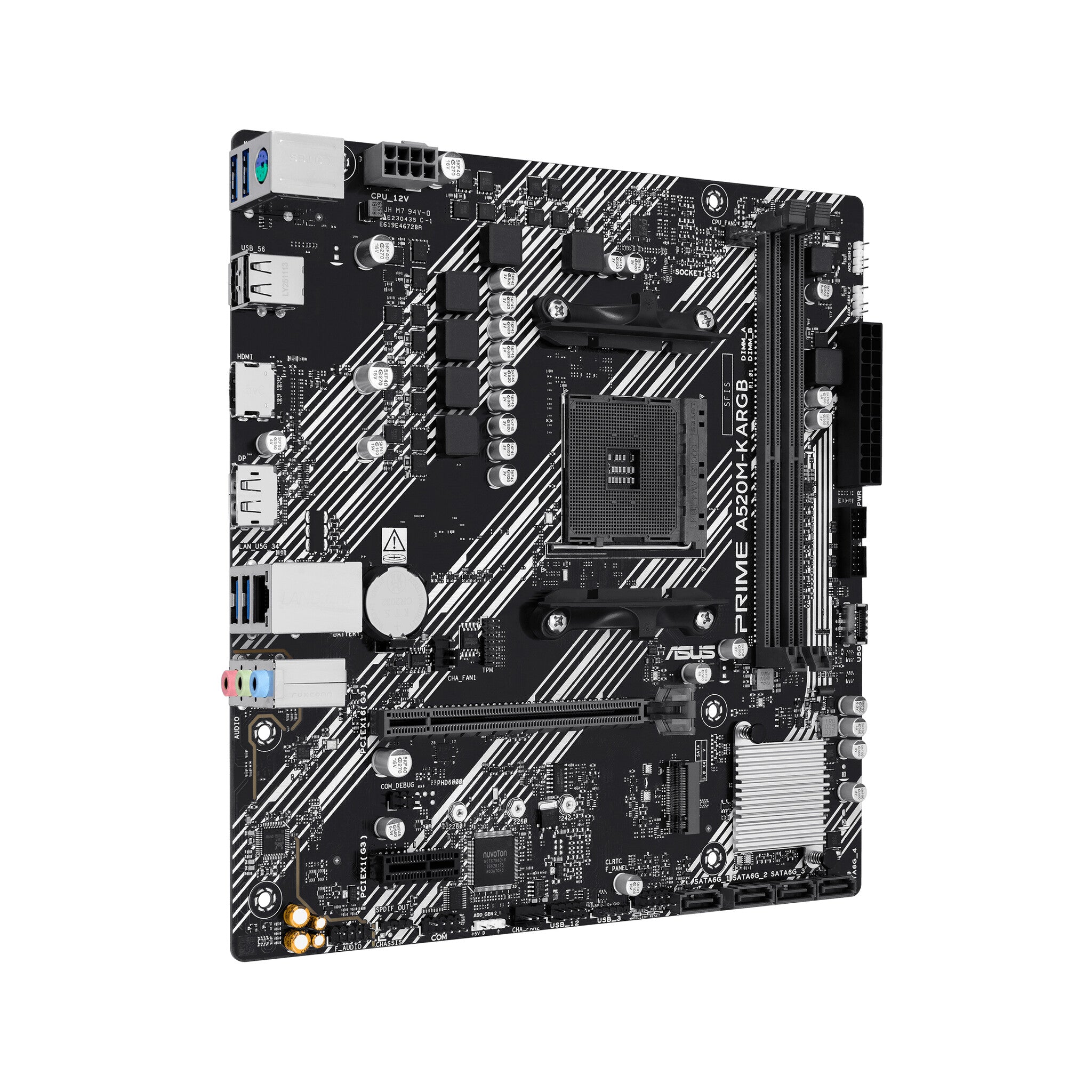

A520M-K ARGB
ASUS PRIME series motherboards are expertly engineered to unleash the full potential of 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series AMD Ryzen™ platform. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME A520 series motherboards provide daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features.
| Processor |
|---|
| Processor manufacturer |
AMD |
| Processor socket |
Socket AM4 |
| Compatible processor series |
AMD Ryzen 5000 Series, AMD Ryzen 4000 Series, AMD Ryzen 3000 Series |
| Supported processor sockets |
Socket AM4 |
| Memory |
|---|
| Supported memory types |
DDR4-SDRAM |
| Number of memory slots |
2 |
| Memory slots type |
DIMM |
| Memory channels |
Dual-channel |
| ECC сompatibility |
ECC |
| Maximum internal memory |
64 GB |
| Unbuffered memory |
Yes |
| Storage controllers |
|---|
| Supported storage drive types |
HDD & SSD |
| Supported storage drive interfaces |
M.2, SATA III |
| Number of storage drives supported |
5 |
| Number of HDDs supported |
4 |
| RAID support |
Yes |
| RAID levels |
0, 1, 10 |
| Graphics |
|---|
| Parallel processing technology support |
Not supported |
| Internal I/O |
|---|
| USB 2.0 connectors |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
2 |
| Number of SATA III connectors |
4 |
| S/PDIF out connector |
Yes |
| Front panel audio connector |
Yes |
| Front panel connector |
Yes |
| ATX Power connector (24-pin) |
Yes |
| CPU fan connector |
Yes |
| Number of CPU fan connectors |
1 |
| Number of chassis fan connectors |
2 |
| EPS power connector (8-pin) |
Yes |
| 12V power connector |
Yes |
| TPM connector |
Yes |
| Number of COM connectors |
1 |
| RGB LED pin header |
Yes |
| Number of RGB LED pin headers |
3 |

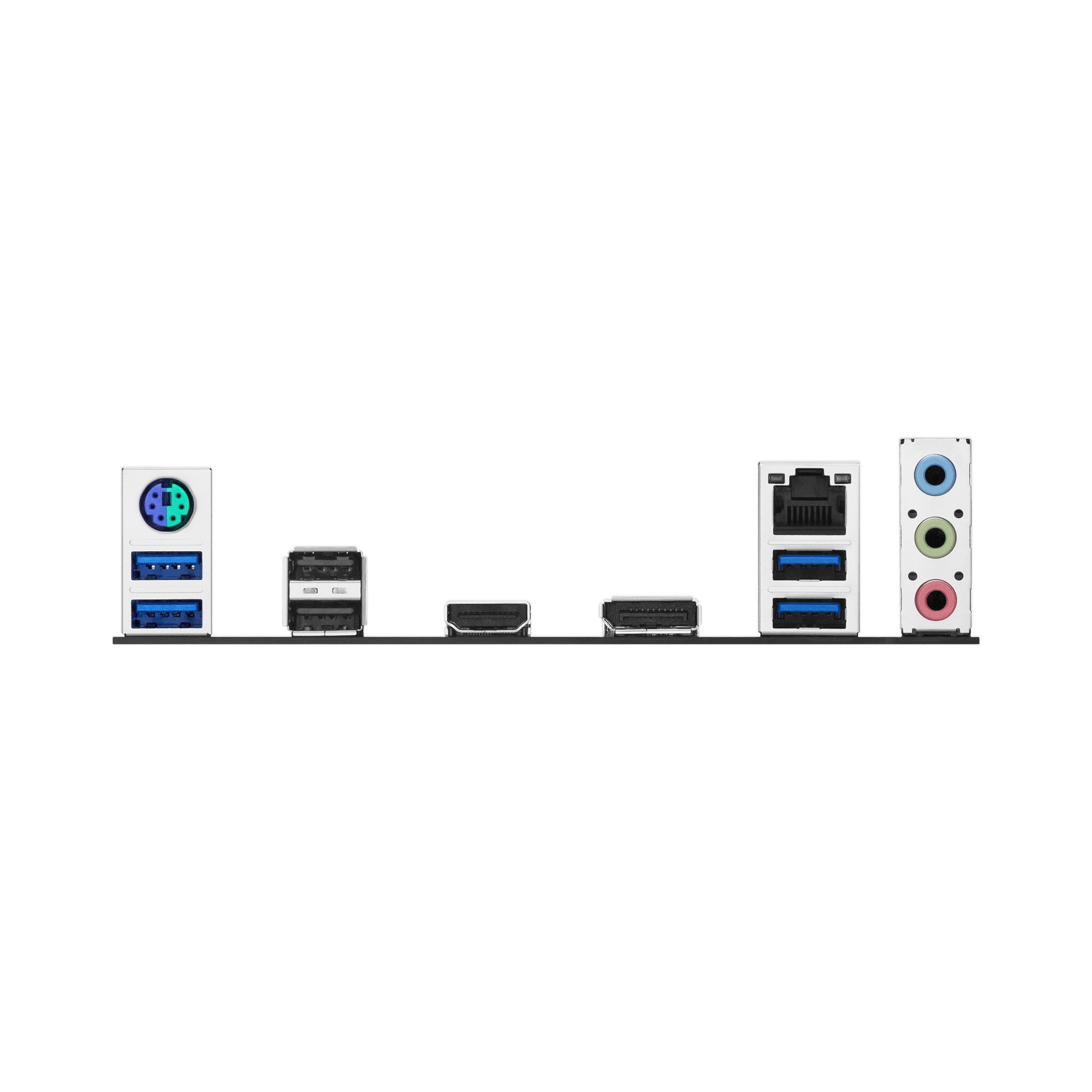

| Rear panel I/O ports |
|---|
| USB 2.0 ports quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
| Ethernet LAN (RJ-45) ports |
1 |
| PS/2 ports quantity |
1 |
| HDMI ports quantity |
1 |
| DisplayPorts quantity |
1 |
| Microphone in |
Yes |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ethernet interface type |
Gigabit Ethernet |
| Wi-Fi |
No |
| Top Wi-Fi standard |
Not available |
| Features |
|---|
| Component for |
PC |
| Motherboard form factor |
micro ATX |
| Motherboard chipset family |
AMD |
| Motherboard chipset |
AMD A520 |
| Audio output channels |
7.1 channels |
| Product colour |
Black, White |
| Windows operating systems supported |
Windows 10 x64, Windows 11 |
| Expansion slots |
|---|
| PCI Express x1 (Gen 3.x) slots |
1 |
| PCI Express x16 (Gen 3.x) slots |
1 |
| Number of M.2 (M) slots |
1 |
| 1st M.2 largest key size |
2280 |
| 1st M.2 highest PCI Express generation |
3.0 |
| BIOS |
|---|
| BIOS type |
UEFI AMI |
| BIOS memory size |
128 Mbit |
| Packaging data |
|---|
| Package width |
260 mm |
| Package depth |
270 mm |
| Package height |
51.5 mm |
| Package weight |
804 g |
| Weight & dimensions |
|---|
| Width |
226 mm |
| Depth |
226 mm |
| Packaging content |
|---|
| Screws included |
Yes |
| Cables included |
SATA |
