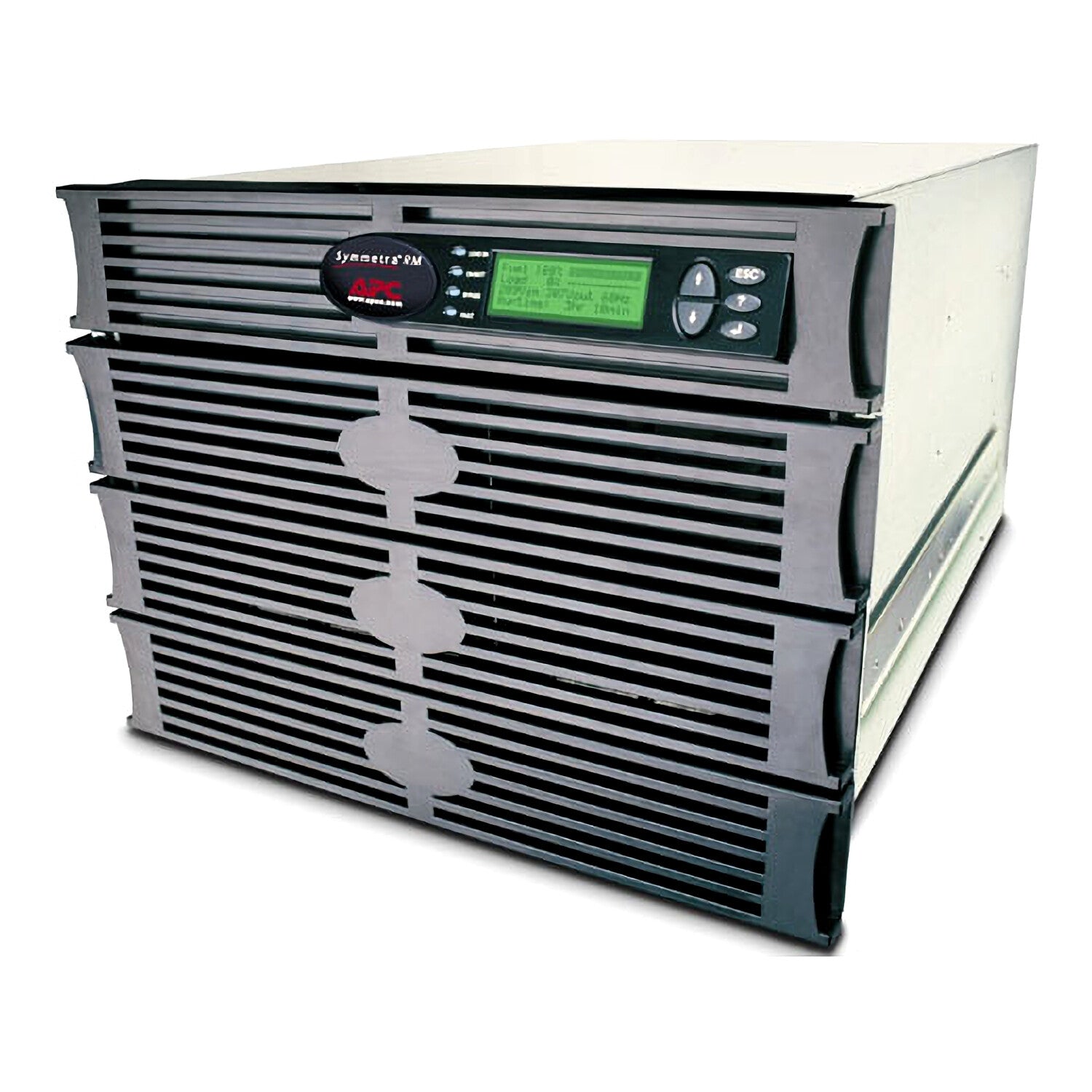

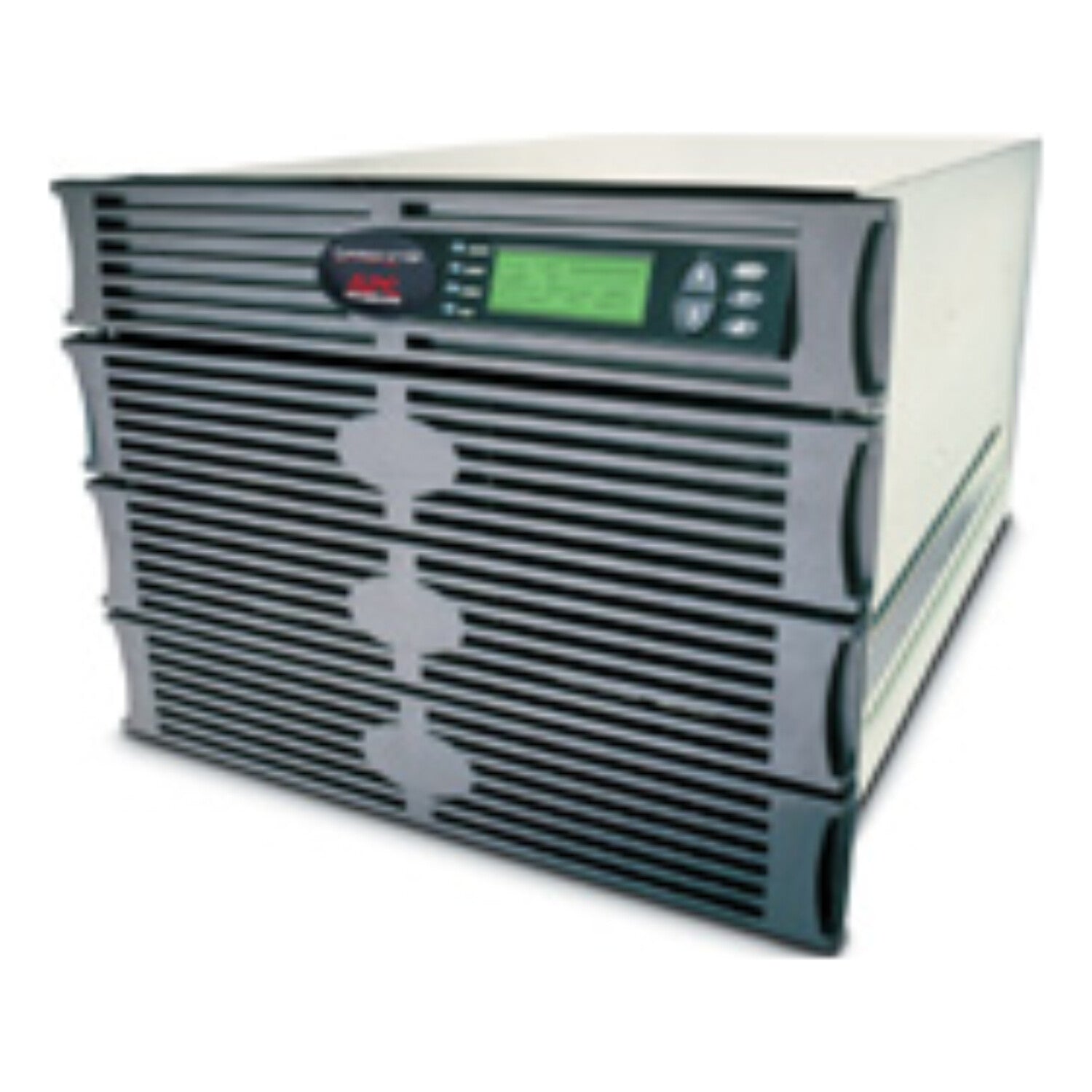

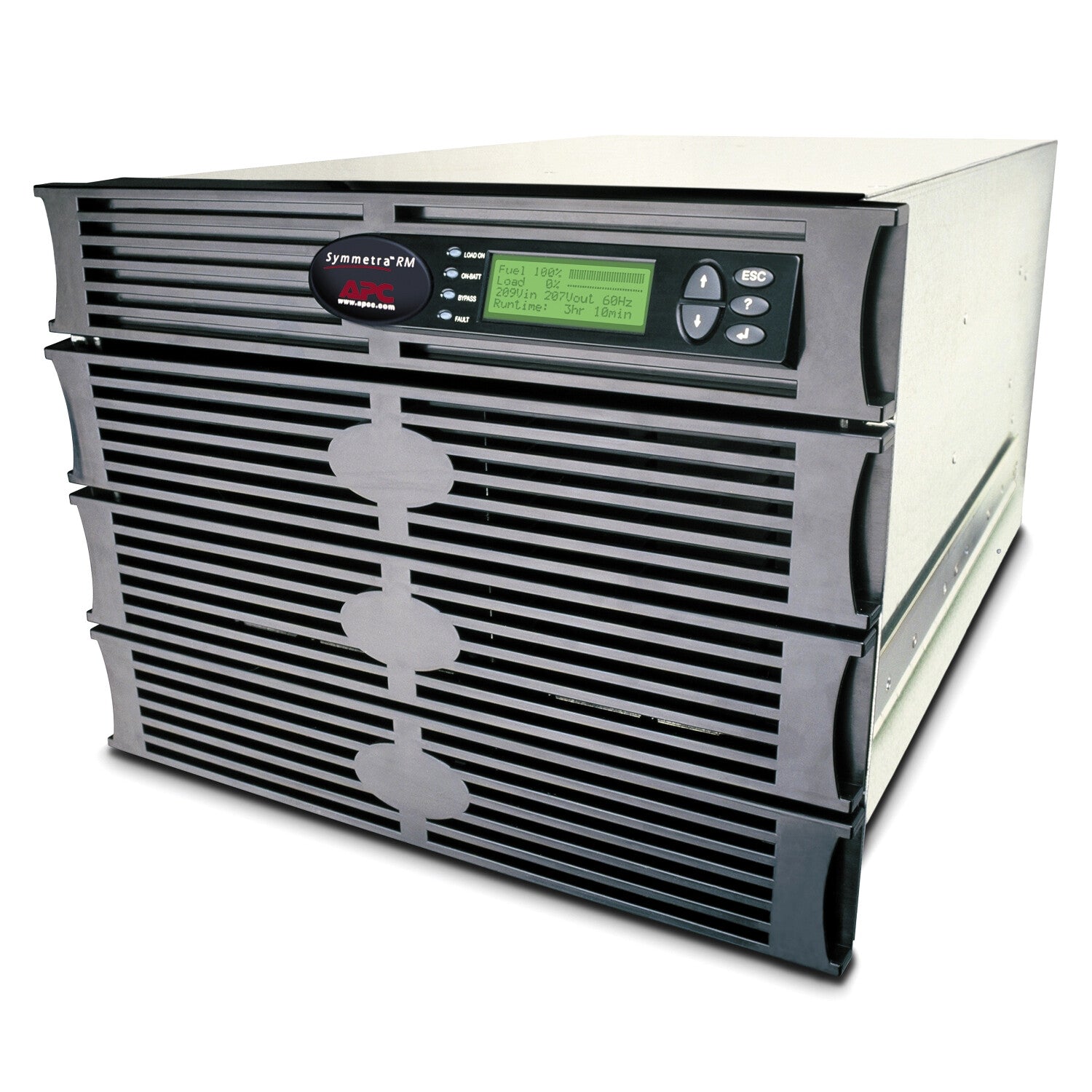

APC Symmetra RM 6kVA N+1 Frame 220-240V

APC
€3,154.99
€3,154.99
Tax included.
Out of Stock
  • Double-conversion (Online)
  • 6 kVA 4200 W
  • Sealed Lead Acid (VRLA)
  • Tower Black

"This parts kit contains spare parts for the APC product model shown."

Features
UPS topology Double-conversion (Online)
Output power capacity 6 kVA
Output power 4200 W
Input operation voltage (min) 155 V
Input operation voltage (max) 276 V
Input frequency 50 Hz
Output operation voltage (min) 220 V
Output operation voltage (max) 240 V
Output frequency regulation 47 - 53 Hz
Number of input phases 1
Number of output phases 1
Single-phase input voltage supported 230 V
Efficiency 89%
Ports & interfaces
RS-232 ports 1
Ethernet LAN (RJ-45) ports 1
Emergency Power Off (EPO) connector Yes
SmartSlot Yes
Battery
Battery replacement accessibility End-user
Battery technology Sealed Lead Acid (VRLA)
Number of batteries supported 3
Battery life (max) 5 year(s)
Battery recharge time 4 h
Design
Form factor Tower
Product colour Black
Rack capacity 8U
Display type LCD
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -15 - 45 °C
Operating relative humidity (H-H) 0 - 95%
Storage relative humidity (H-H) 0 - 95%
Operating altitude 0 - 15000 m
Technical details
Preferred mounting position no preference
Packaging recycled materials Recycled cardboard
Packaging without single use plastic No
Take-back system No
Sustainable packaging No
Certificates
Waste Electrical and Electronic Equipment (WEEE) compliance Yes
Compliance certificates RoHS, REACH, WEEE
Certification C-tick, CE, EN 50091-2, EN 60950, IRAM, VDE
Weight & dimensions
Width 483 mm
Depth 730 mm
Height 356 mm
Weight 44.5 kg
Packaging data
Package width 584 mm
Package depth 787 mm
Package height 508 mm
Logistics data
Customs product code (TARIC) 8504409590
Other features
Battery type SYBT2
Output voltage 230 V
