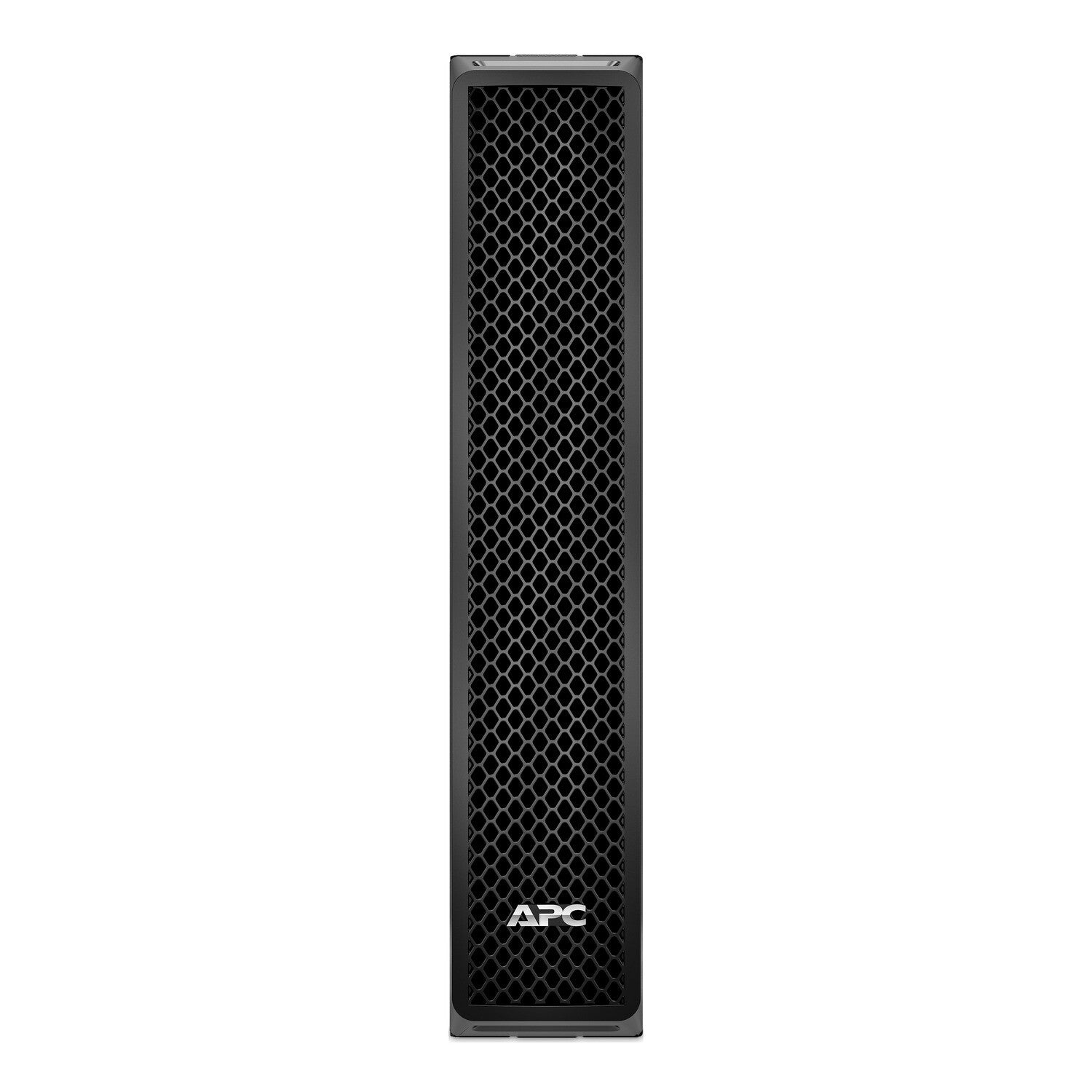

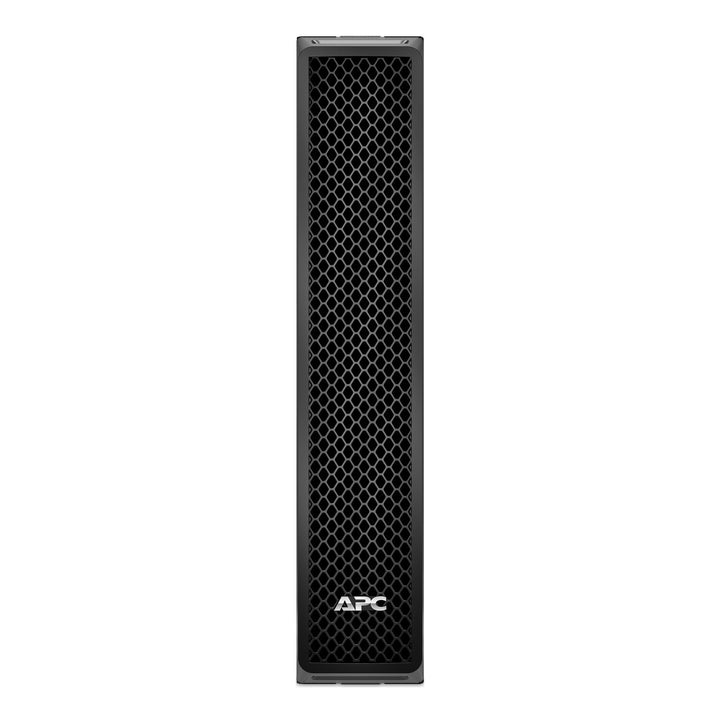

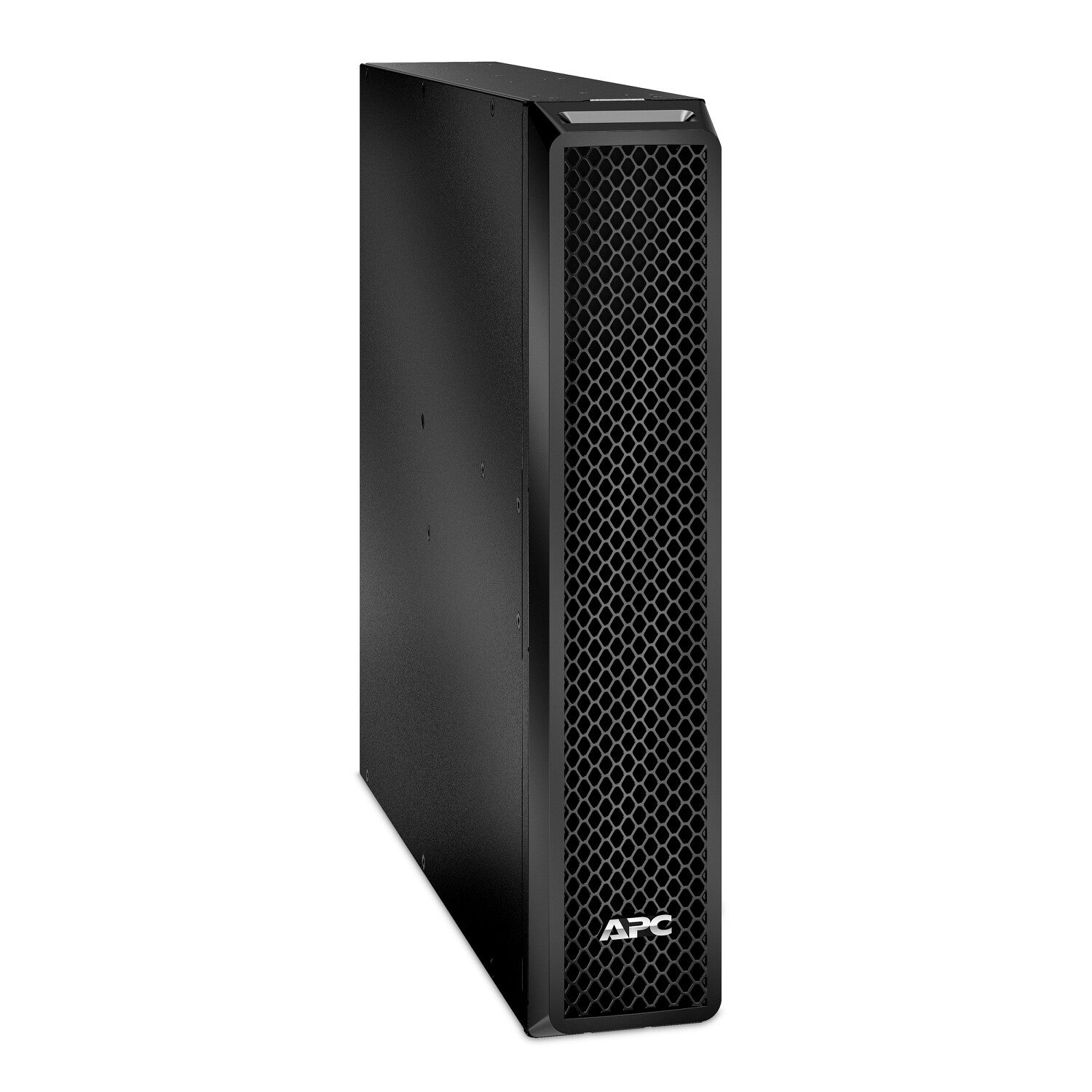

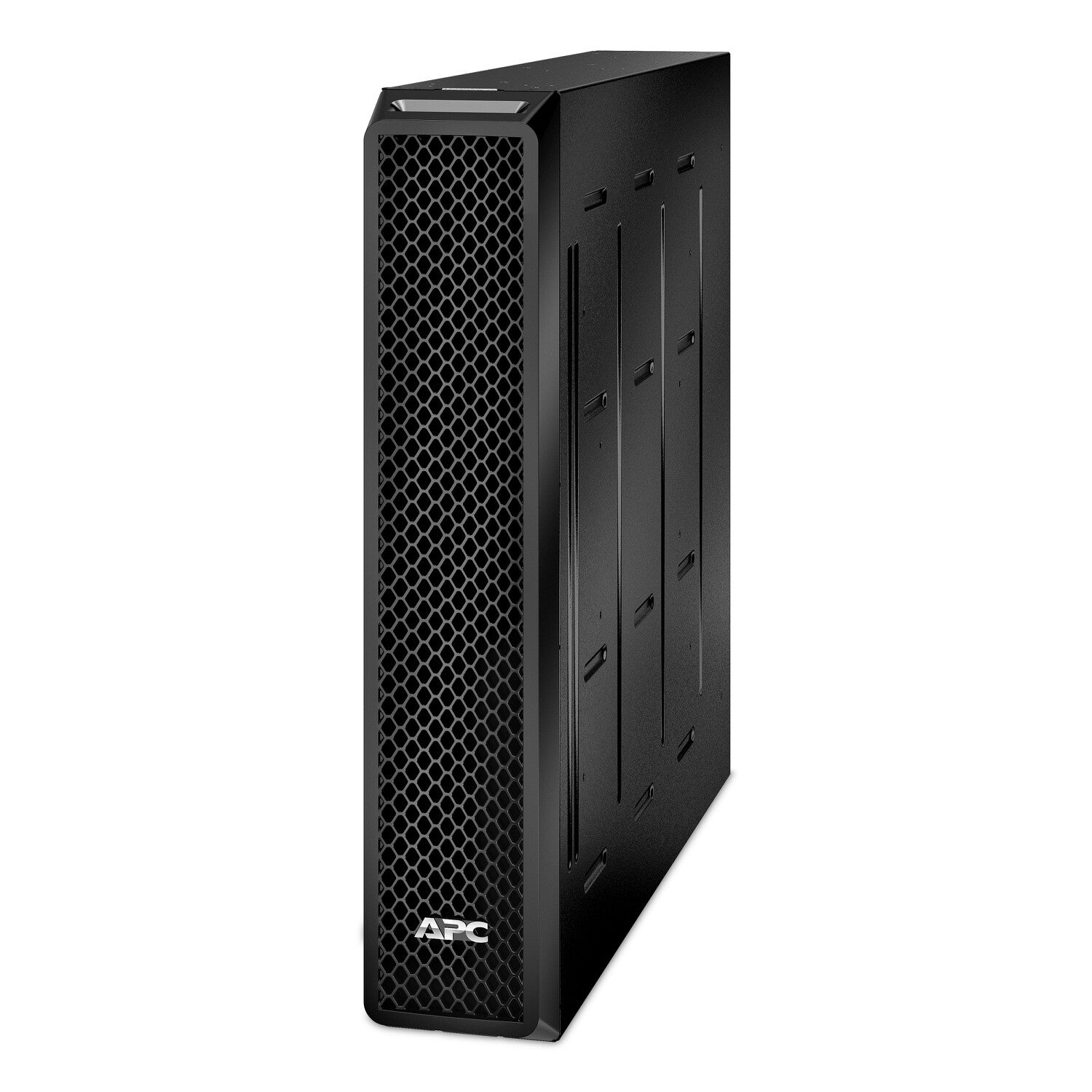

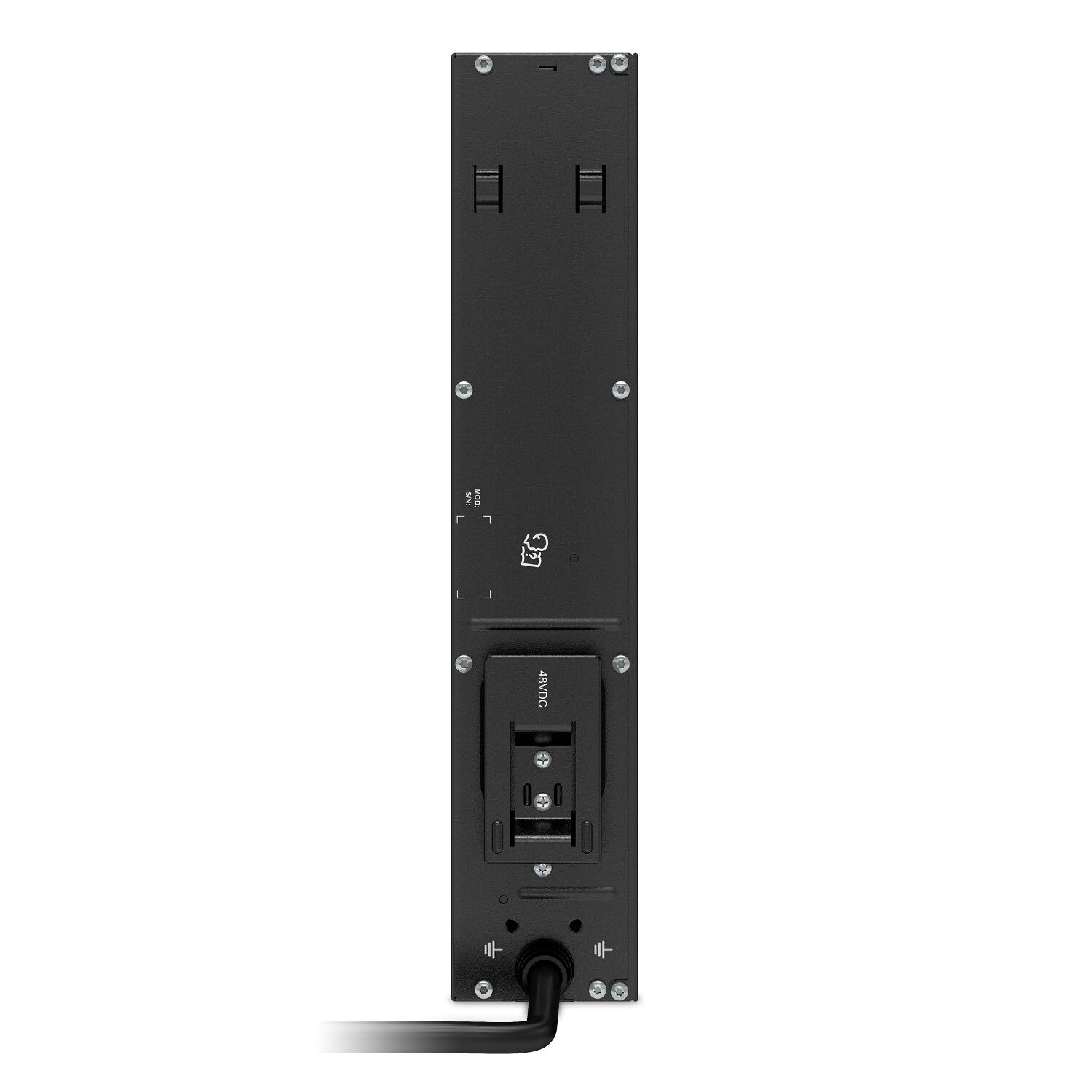

- Battery pack for Smart-UPS On-line SRT series
- Ideal for critical Smart-UPS applications
- Predictable and consistent runtime performance
- Peace of mind with 2-year UPS warranty
- Peace of mind with 2-year battery warranty
This product is part of the Smart-UPS battery systems, providing extended runtime to SRT mission critical applications. This extendable-run battery pack provides extended runtime during prolonged power outages. Embedded monitoring at the cell, module, and cabinet level provides data of battery runtime and health. It is a lead-acid battery with a 2-year warranty. Its dimensions are 536mm (depth) x 432mm (height) x 85mm (width) and weighs 29.9kg. Ideal for Smart-UPS on-line mission critical applications.
| Features |
|---|
| Product colour |
Black |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Hot-swap battery |
Yes |
| Rack capacity |
2U |
| Technical details |
|---|
| Packaging recycled materials |
Recycled cardboard |
| Proposition 65 |
Yes |
| Packaging without single use plastic |
No |
| Take-back system |
No |
| SCIP number |
488c31fb-3af8-42cf-9558-1362d000a07e |
| Sustainable packaging |
No |
| Battery |
|---|
| Battery replacement accessibility |
End-user |
| Certificates |
|---|
| Waste Electrical and Electronic Equipment (WEEE) compliance |
Yes |
| Compliance certificates |
RoHS, REACH, WEEE |
| Weight & dimensions |
|---|
| Weight |
29.9 kg |
| Width |
85 mm |
| Height |
432 mm |
| Depth |
536 mm |
| Packaging data |
|---|
| Package width |
594 mm |
| Package height |
244 mm |
| Package depth |
749 mm |
| Package weight |
37 kg |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-15 - 45 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating altitude |
0 - 3000 m |
| Non-operating altitude |
0 - 15000 m |
| Logistics data |
|---|
| Products per pallet |
6 pc(s) |
| Customs product code (TARIC) |
8507208090 |
| Total carbon footprint (kg of CO2e) |
7470.756573063853 |
| Harmonized System (HS) code |
85078000 |
| Country of origin |
Vietnam |
