- Ideal for providing uninterrupted power in critical marine applications
- DNV type approved
- Hot-swappable, front-accessible, user replaceable batteries
- Frequency Conversion Function 50Hz to 60Hz
- Operating temperature up to 55°C

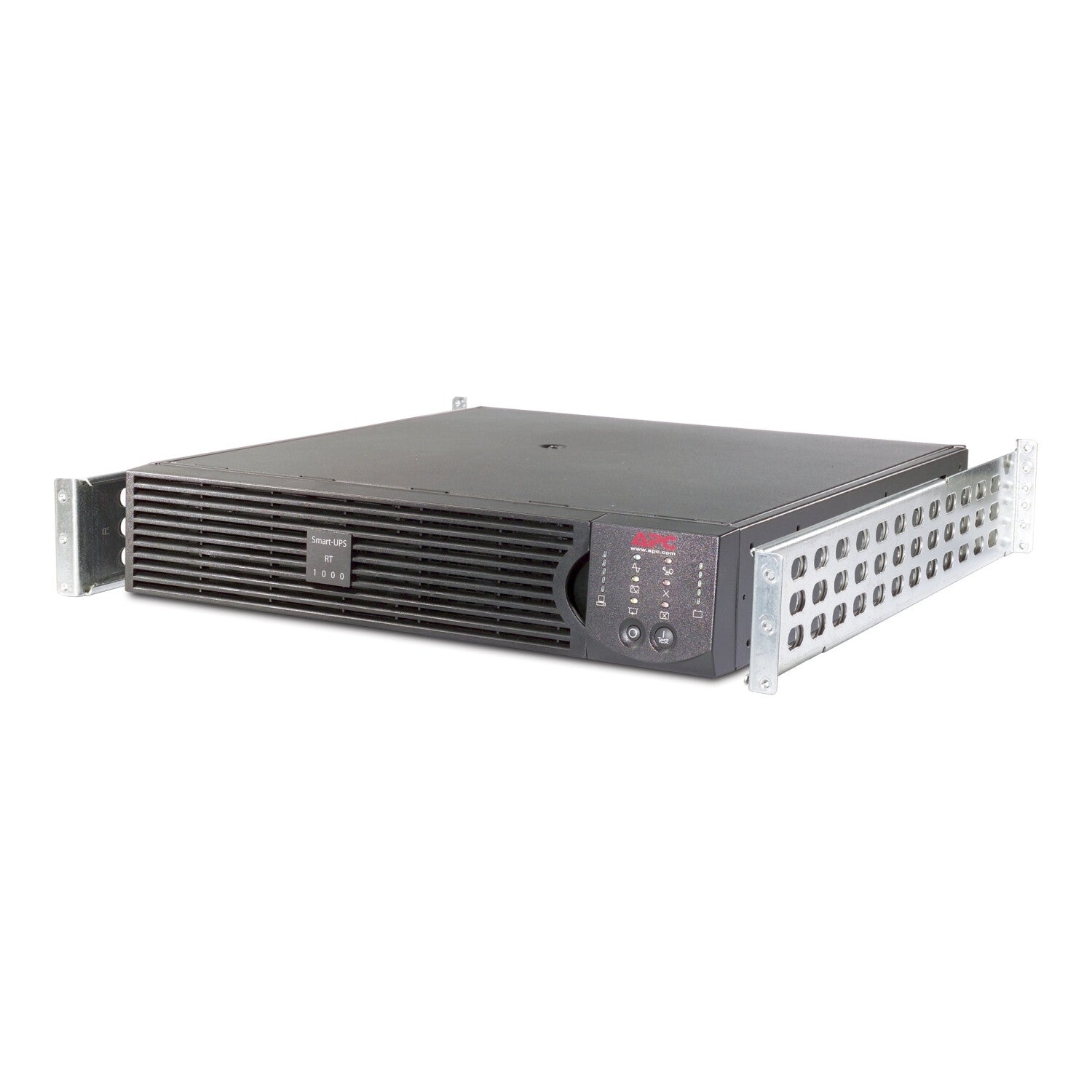

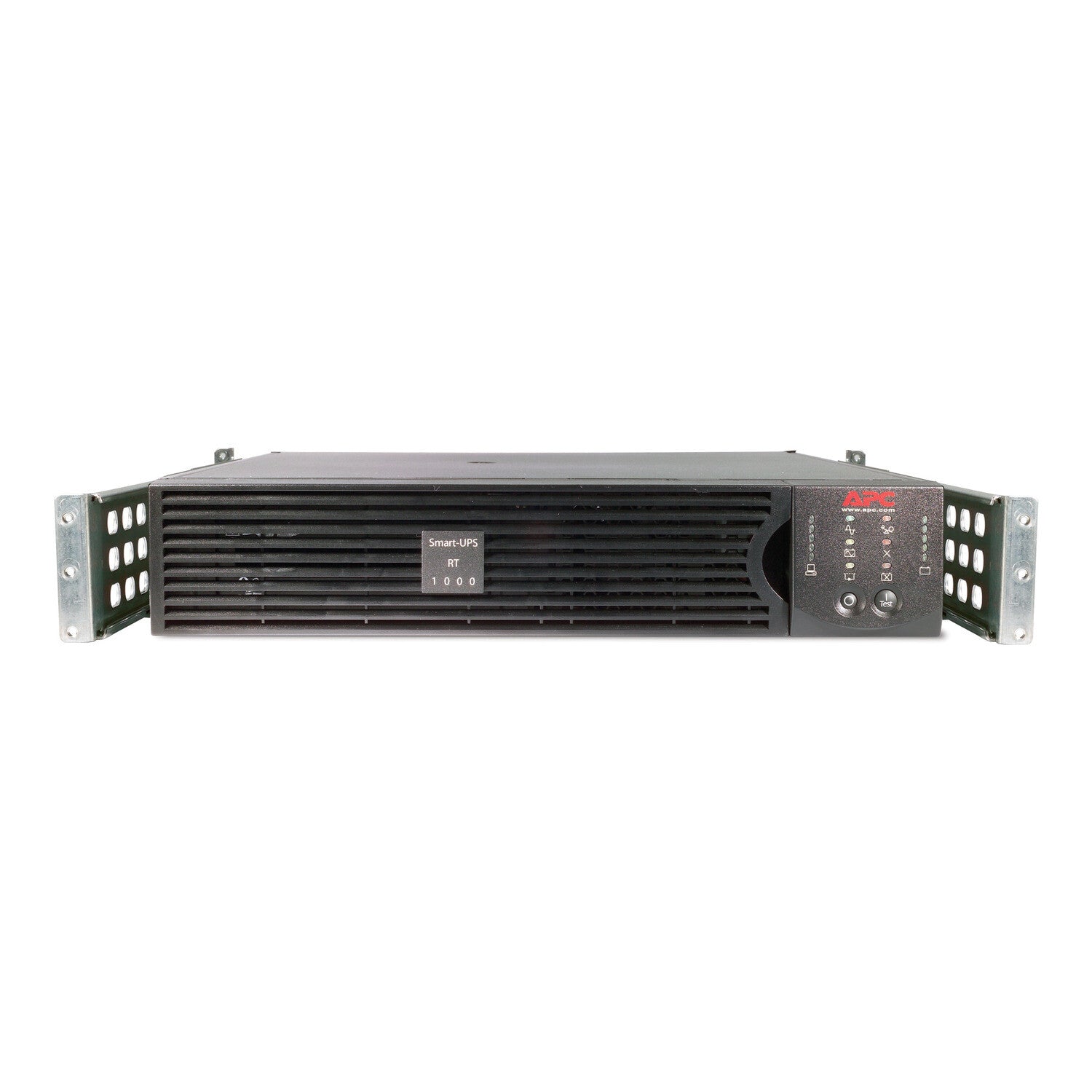

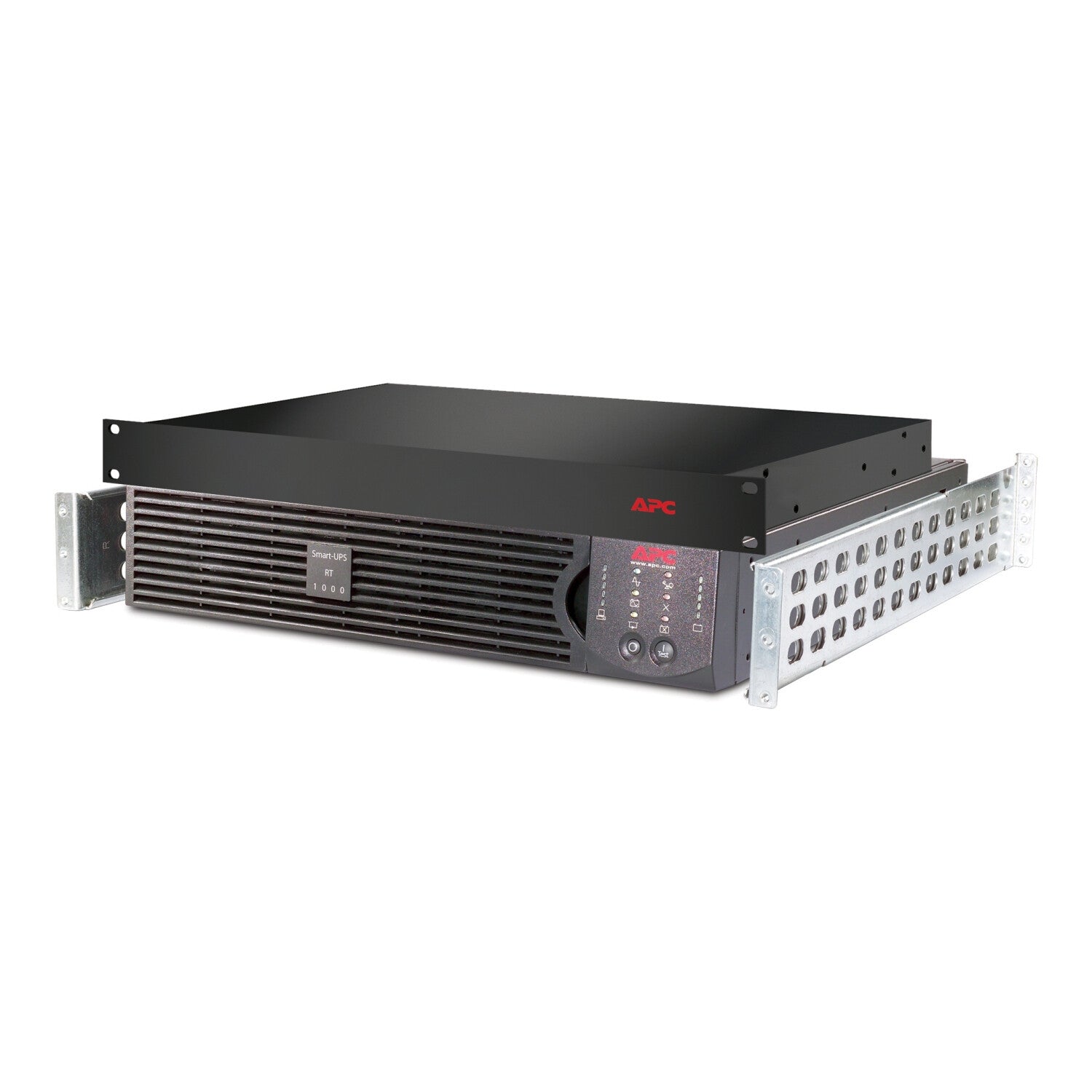

The APC Smart-UPS RT is an online UPS with a power rating of 1000VA and output power capacity of 700 watts. It operates at a nominal voltage of 230V and includes multiple output connections such as IEC 60320 and IEC Jumpers. This model is includes a lead-acid battery and is suitable for marine applications. The UPS features double conversion online technology and sine wave output.
| Features |
|---|
| Output power capacity |
1 kVA |
| Output power |
700 W |
| Waveform |
Sine |
| Input operation voltage (min) |
100 V |
| Input operation voltage (max) |
280 V |
| Input frequency |
50/60 Hz |
| Output operation voltage (min) |
220 V |
| Output operation voltage (max) |
240 V |
| Surge energy rating |
420 J |
| Efficiency |
88% |
| Crest factor |
3:1 |
| Emergency Power Off (EPO) |
Yes |
| Output voltage Total Harmonic Distortion (THD) |
3% |
| Noise level |
55 dB |
| Ports & interfaces |
|---|

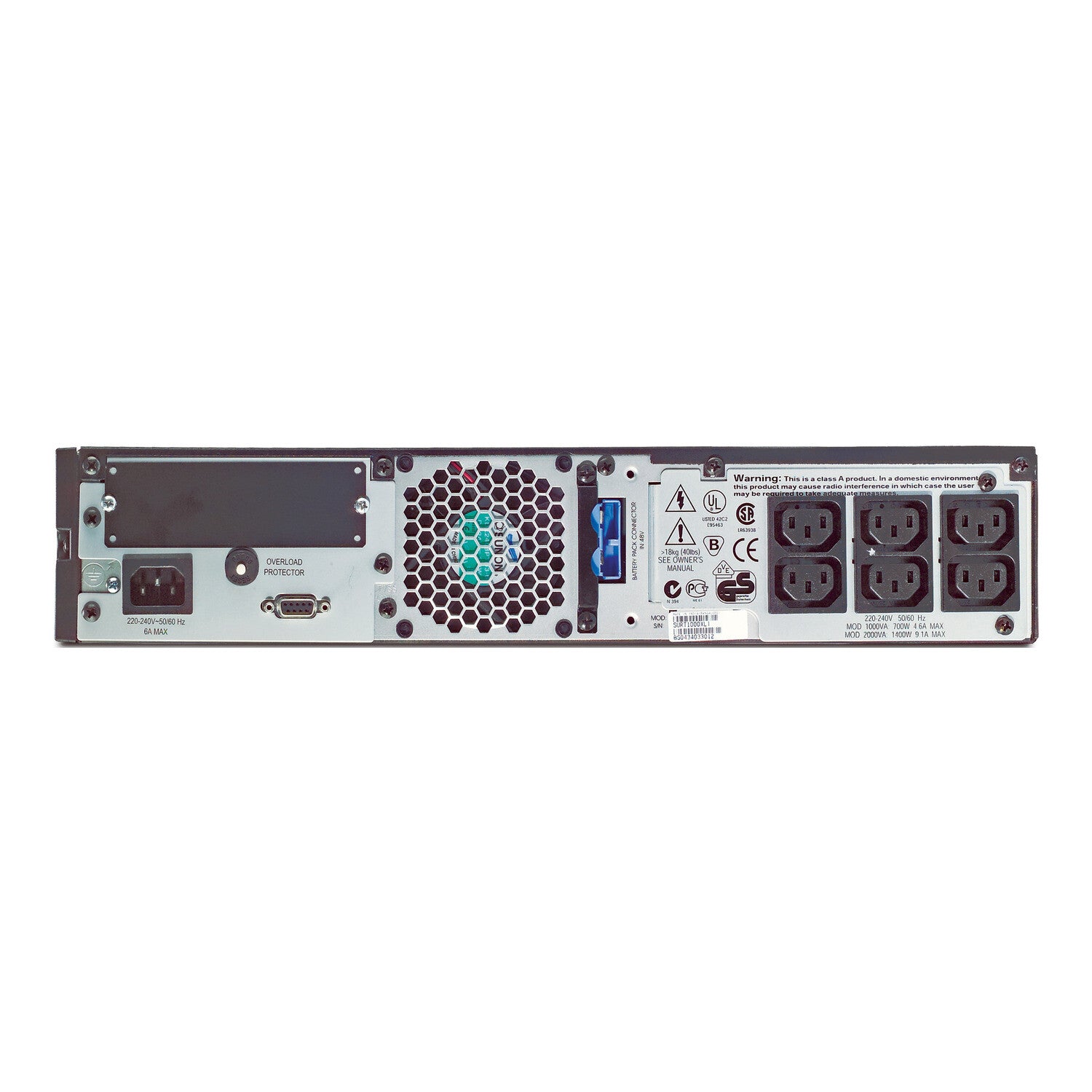

| AC outlet types |
C13 coupler |
| AC outlets quantity |
8 AC outlet(s) |
| Number of output IEC jumpers |
2 |
| RS-232 ports |
1 |
| Battery |
|---|
| Battery replacement accessibility |
End-user |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Battery recharge time |
3 h |
| Replacement battery cartridge |
RBC31 |
| Design |
|---|
| Form factor |
Rackmount |
| Product colour |
Black |
| Rack capacity |
2U |
| Cable length |
2.5 m |
| LED indicators |
Yes |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 55 °C |
| Storage temperature (T-T) |
-20 - 50 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating altitude |
0 - 3000 m |
| Non-operating altitude |
0 - 15000 m |
| Technical details |
|---|
| Preferred mounting position |
lower |
| Packaging recycled materials |
Recycled cardboard |
| Proposition 65 |
Yes |
| SCIP number |
4282bd22-a353-4f82-bb5c-97bbd7f1d1e9 |
| Packaging without single use plastic |
No |
| Take-back system |
No |
| Sustainable packaging |
No |
| Certificates |
|---|
| Waste Electrical and Electronic Equipment (WEEE) compliance |
Yes |
| Compliance certificates |
RoHS, REACH, WEEE |
| Certification |
CE; DNV; KCC |
| Weight & dimensions |
|---|
| Width |
85 mm |
| Depth |
483 mm |
| Height |
432 mm |
| Weight |
23 kg |
| Packaging data |
|---|
| Package weight |
27.8 kg |
| Logistics data |
|---|
| Customs product code (TARIC) |
8504409590 |
| Total carbon footprint (kg of CO2e) |
1896.8446263959675 |
| Harmonized System (HS) code |
85078000 |
| Country of origin |
Philippines |
| Other features |
|---|
| Input connection type |
IEC 60320 C14 |
| Dimensions (WxDxH) |
85 x 483 x 432 mm |
| Voltage |
230 V |
| Output connection type |
6 IEC 60320; 2 IEC Jumpers |
| Mounting |
front |
| Output voltage |
230 V |
| Nominal input voltage |
230 V |
| Nominal output voltage |
230 V |
| Package dimensions (WxDxH) |
630 x 594 x 286 mm |
