- 750VA load capacity, work without any interruption during power outages
- Up to 5 minute runtime on full load to preserve critical data from power shortage interruptions
- Provides enhanced protection in shipboard environments
- Provides quick access and control of the UPS in case of an emergency

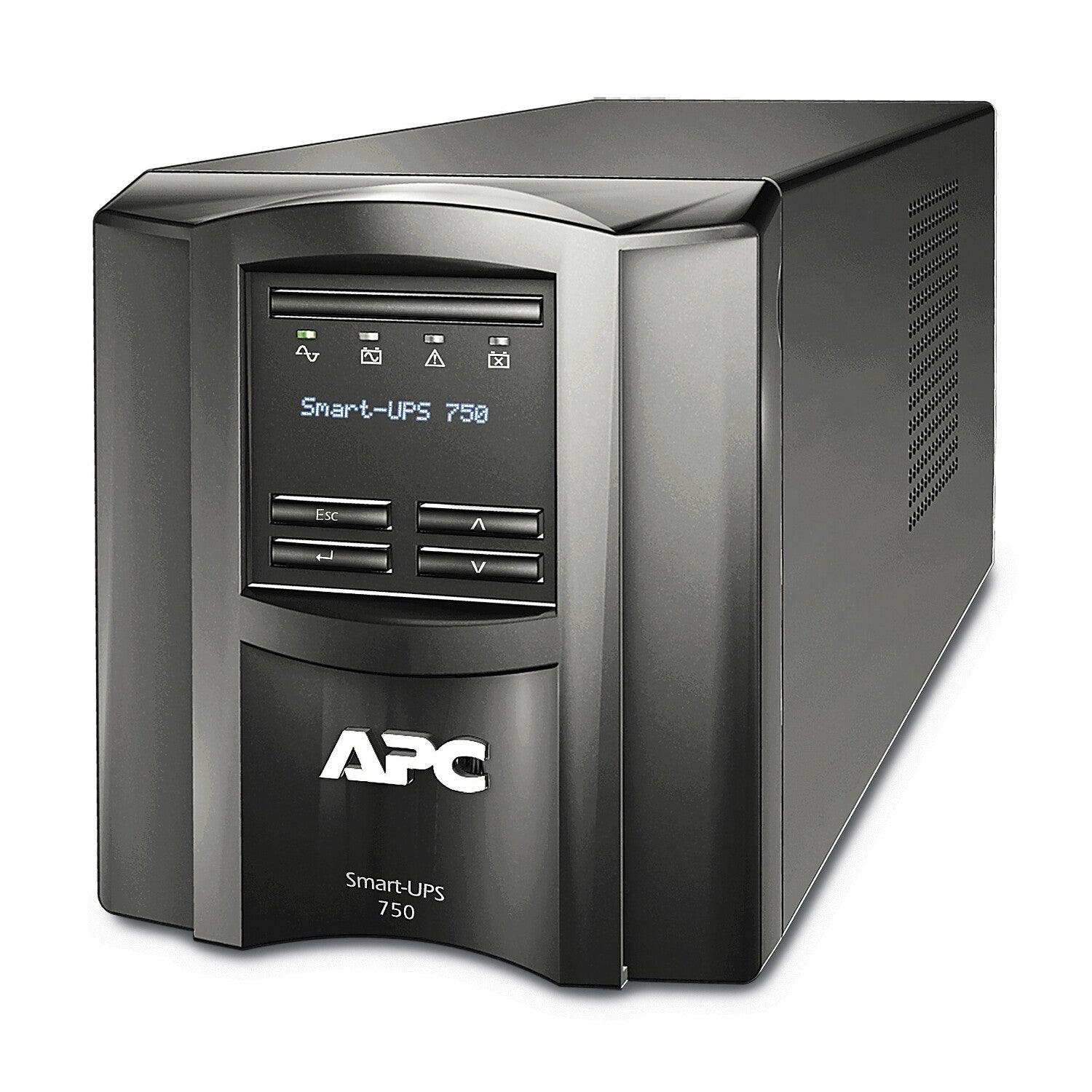

The APC Smart-UPS 750VA 120V Shipboard (SMT750X93) is a robust and reliable uninterruptible power supply (UPS) designed specifically for marine and shipboard applications. This UPS ensures continuous power supply during outages, protecting critical equipment and preserving data integrity.
| Features |
|---|
| UPS topology |
Line-Interactive |
| Output power capacity |
0.75 kVA |
| Output power |
500 W |
| Waveform |
Sine |
| Input operation voltage (min) |
82 V |
| Input operation voltage (max) |
144 V |
| Input frequency |
50/60 Hz |
| Output operation voltage (max) |
120 V |
| Output frequency |
50/60 Hz |
| Surge energy rating |
593 J |
| Response time |
6 ms |
| Number of input phases |
1 |
| Number of output phases |
1 |
| Single-phase input voltage supported |
120 V |
| Noise level |
41 dB |
| Audible alarm(s) |
Yes |
| Ports & interfaces |
|---|

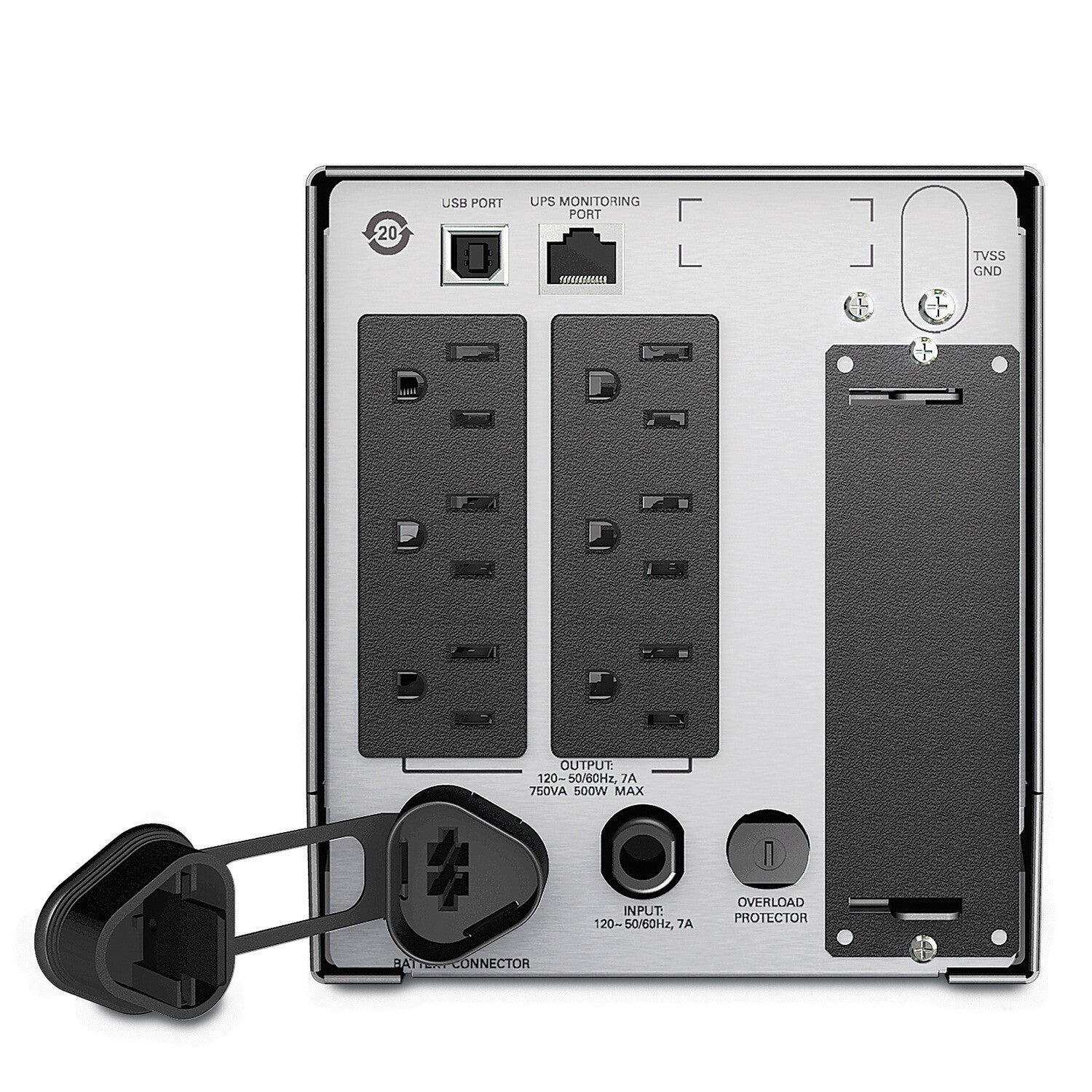

| AC outlet types |
NEMA 5-15R |
| Power plug |
NEMA 5-15P |
| AC outlets quantity |
6 AC outlet(s) |
| USB port |
Yes |
| USB port type |
USB Type-B |
| Battery |
|---|
| Battery replacement accessibility |
End-user |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Battery capacity |
172 Ah |
| Typical backup time at full load |
5 min |
| Typical backup time at half load |
15 min |
| Battery life (max) |
5 year(s) |
| Battery recharge time |
3 h |
| Design |
|---|
| Form factor |
Tower |
| Product colour |
Black |
| Control type |
Buttons |
| Display type |
LED |
| LED indicators |
Yes |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 55 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating altitude |
0 - 3000 m |
| Non-operating altitude |
0 - 15000 m |
| Technical details |
|---|
| Preferred mounting position |
no preference |
| Packaging recycled materials |
Recycled cardboard |
| SCIP number |
b2b22a56-41f2-497e-9ea6-cf093b3b8bd3 |
| Packaging without single use plastic |
No |
| Take-back system |
No |
| Sustainable packaging |
No |
| Sustainability |
|---|
| Doesn't contain |
Mercury |
| Packaging content |
|---|
| Manual |
Yes |
| Certificates |
|---|
| Waste Electrical and Electronic Equipment (WEEE) compliance |
Yes |
| Compliance certificates |
RoHS, REACH, WEEE |
| Certification |
CSA C22.2 No 107.1 |
| Weight & dimensions |
|---|
| Width |
138 mm |
| Depth |
369 mm |
| Height |
161 mm |
| Weight |
12.5 kg |
| Packaging data |
|---|
| Package width |
499 mm |
| Package depth |
278 mm |
| Package height |
301 mm |
| Package weight |
14 kg |
| Logistics data |
|---|
| Customs product code (TARIC) |
8504409590 |
| Warranty period |
3 year(s) |
| Total carbon footprint (kg of CO2e) |
548.4165222831 |
| Country of origin |
United States |
| Other features |
|---|
| Input connection type |
NEMA 5-15P |
| Output connection type |
6 NEMA5-15R |
| Mounting |
front |
| Output voltage |
120 V |
