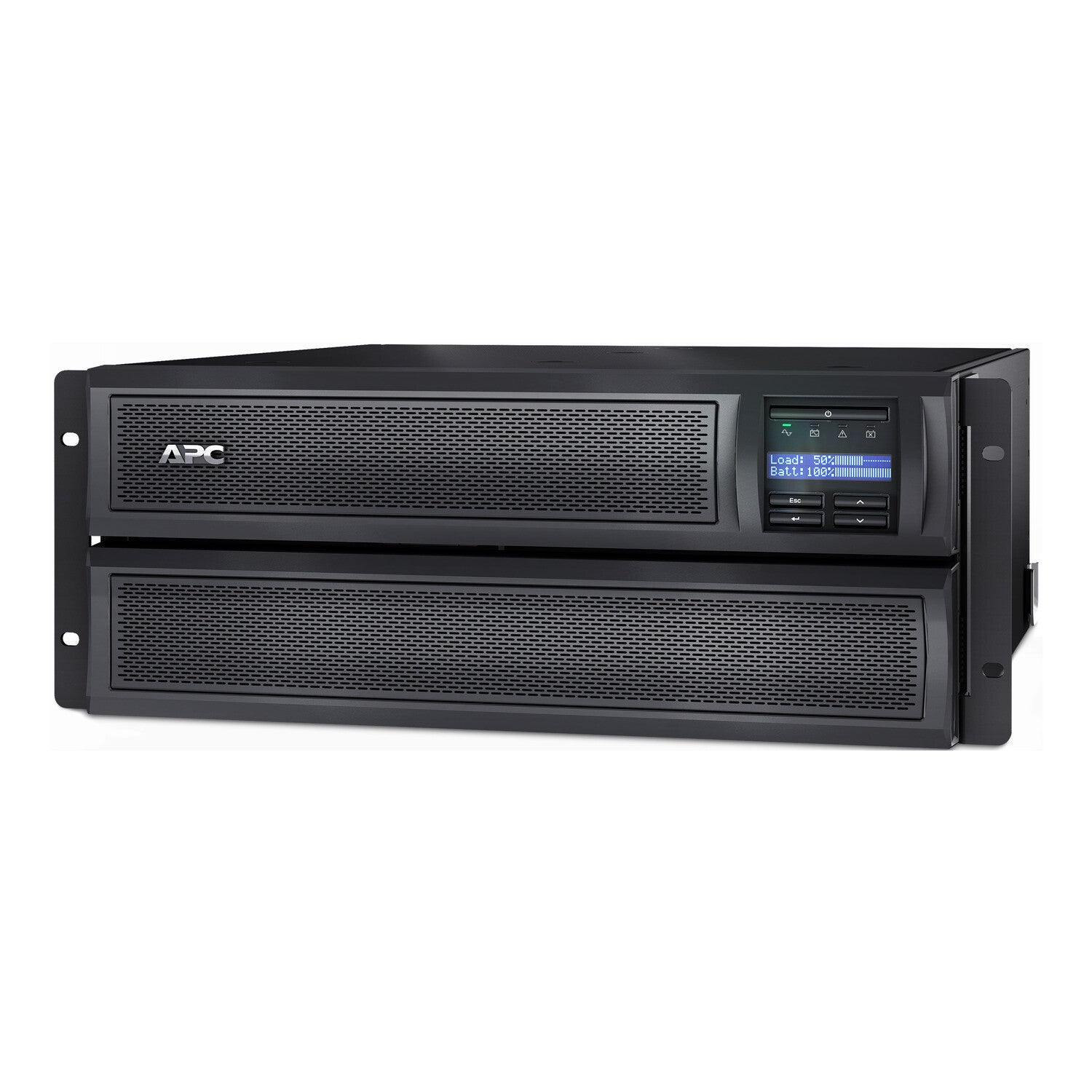

- 2880VA/2700W line interactive pure sine wave 4U rack/tower UPS (rail kit AP9625 sold separately)
- User-selectable low voltage setting of 100V-127V
- Add up to 10 external battery packs (SMX120BP)
- Short depth UPS provides extra space for cable management
- Graceful shutdown using serial or USB cables via PowerChute Serial Shutdown
- Automatic Voltage Regulation keeps output voltage within acceptable user selectable levels
- Ideal for servers, storage, networking & commercial applications

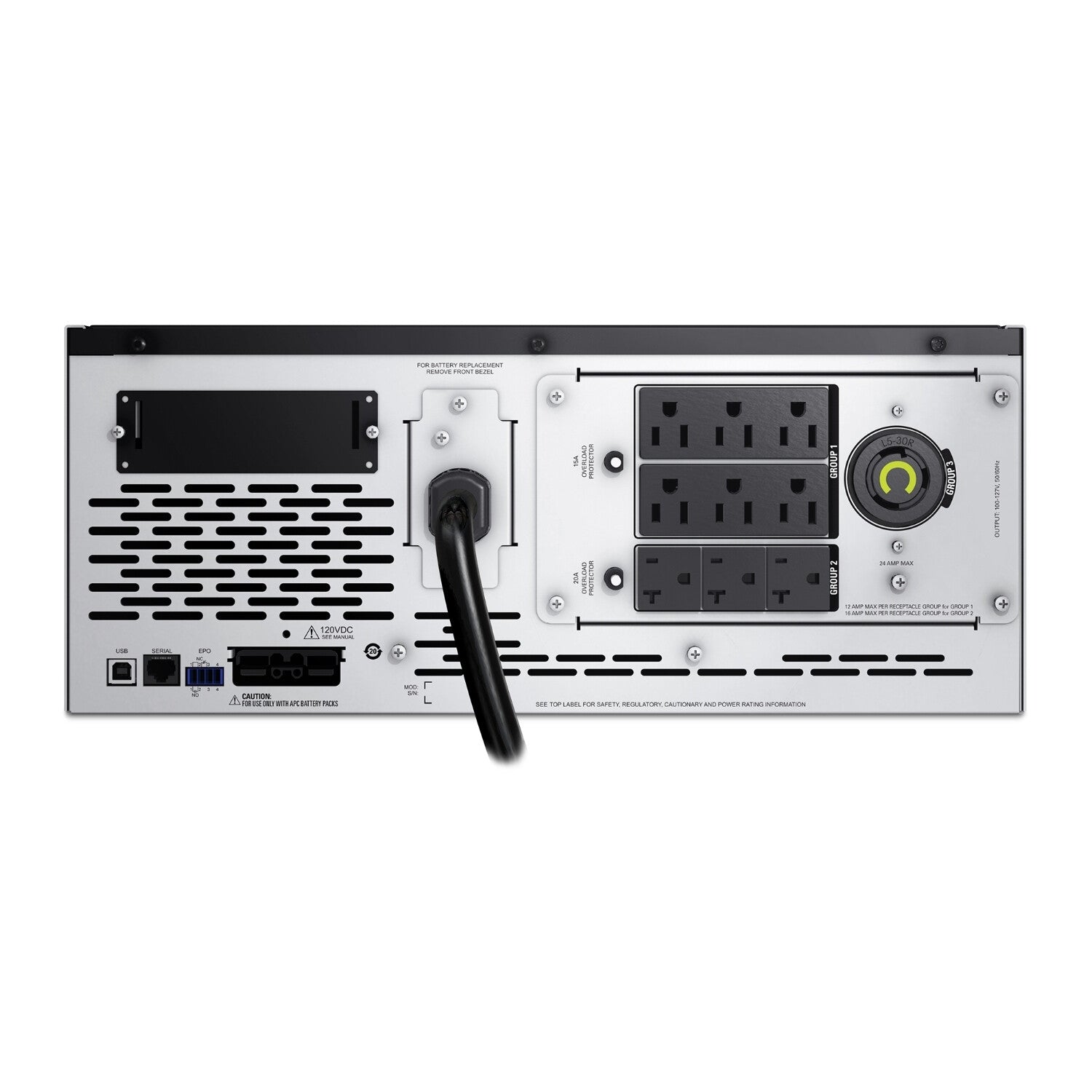

This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 3kVA line interactive 4U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with NEMA L5-30P input, 6x NEMA 5-15R, 3x NEMA 5-20R and 1x NEMA L5-30R outlets. The Smart-UPS has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. The 3 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies.
| Features |
|---|
| UPS topology |
Line-Interactive |
| Output power capacity |
2.88 kVA |
| Output power |
2700 W |
| Waveform |
Sine |
| Input operation voltage (min) |
70 V |
| Input operation voltage (max) |
153 V |
| Input frequency |
50/60 Hz |
| Output operation voltage (min) |
100 V |
| Output operation voltage (max) |
120 V |
| Output frequency |
50/60 Hz |
| Response time |
2 ms |
| Number of input phases |
1 |
| Number of output phases |
1 |
| Single-phase input voltage supported |
120 V |
| Emergency Power Off (EPO) |
Yes |
| Noise level |
55 dB |
| Audible alarm(s) |
Yes |
| Audible alarm modes |
Low battery alarm |
| Detachable power cord |
No |
| Ports & interfaces |
|---|
| AC outlet types |
NEMA 5-15R |
| Power plug |
NEMA L5-30P |
| AC outlets quantity |
3 AC outlet(s) |
| USB port |
Yes |
| USB port type |
USB Type-B |
| Serial interface |
Yes |
| Serial interface type |
RJ-45 |
| Battery |
|---|
| Battery replacement accessibility |
End-user |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Typical backup time at full load |
6.25 min |
| Typical backup time at half load |
18.3 min |
| Battery life (max) |
5 year(s) |
| Battery recharge time |
3 h |
| Replacement battery cartridge |
APCRBC117 |
| Design |
|---|
| Form factor |
Rackmount |
| Product colour |
Black |
| Rack capacity |
4U |
| Cable length |
2.4 m |
| Control type |
Buttons |
| Display type |
LED |
| LED indicators |
Yes |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-15 - 45 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating altitude |
0 - 3048 m |
| Non-operating altitude |
0 - 15240 m |
| Technical details |
|---|
| Preferred mounting position |
lower |
| Packaging recycled materials |
Recycled cardboard |
| SCIP number |
0637234b-27c7-4e32-ae29-543dd4803a99 |
| Packaging without single use plastic |
No |
| Take-back system |
No |
| Sustainable packaging |
No |
| Sustainability |
|---|
| Doesn't contain |
Mercury |
| Certificates |
|---|
| Waste Electrical and Electronic Equipment (WEEE) compliance |
Yes |
| Compliance certificates |
RoHS, REACH, WEEE |
| Certification |
BSMI |
| Weight & dimensions |
|---|
| Width |
178 mm |
| Depth |
483 mm |
| Height |
432 mm |
| Weight |
38.6 kg |
| Packaging data |
|---|
| Package width |
588 mm |
| Package depth |
663 mm |
| Package height |
330 mm |
| Package weight |
47.6 kg |
| Logistics data |
|---|
| Customs product code (TARIC) |
8504409590 |
| Warranty period |
3 year(s) |
| Total carbon footprint (kg of CO2e) |
3240.8561754502 |
| Country of origin |
United States |
| Other features |
|---|
| Input connection type |
NEMA L5-30P |
| Output connection type |
3 NEMA5-15R |
| Mounting |
front |
| Output voltage |
120 V |
| Equipment protection policy |
lifetime : $150000 |
