- 230V/100A bypass panel ensures seamless UPS maintenance without load interruption
- 4U rack-mountable with hardwire input for high-density power distribution
- Compatible with Symmetra/Smart-UPS systems up to 16kVA for data center reliability
- Includes rack brackets and guides for quick installation

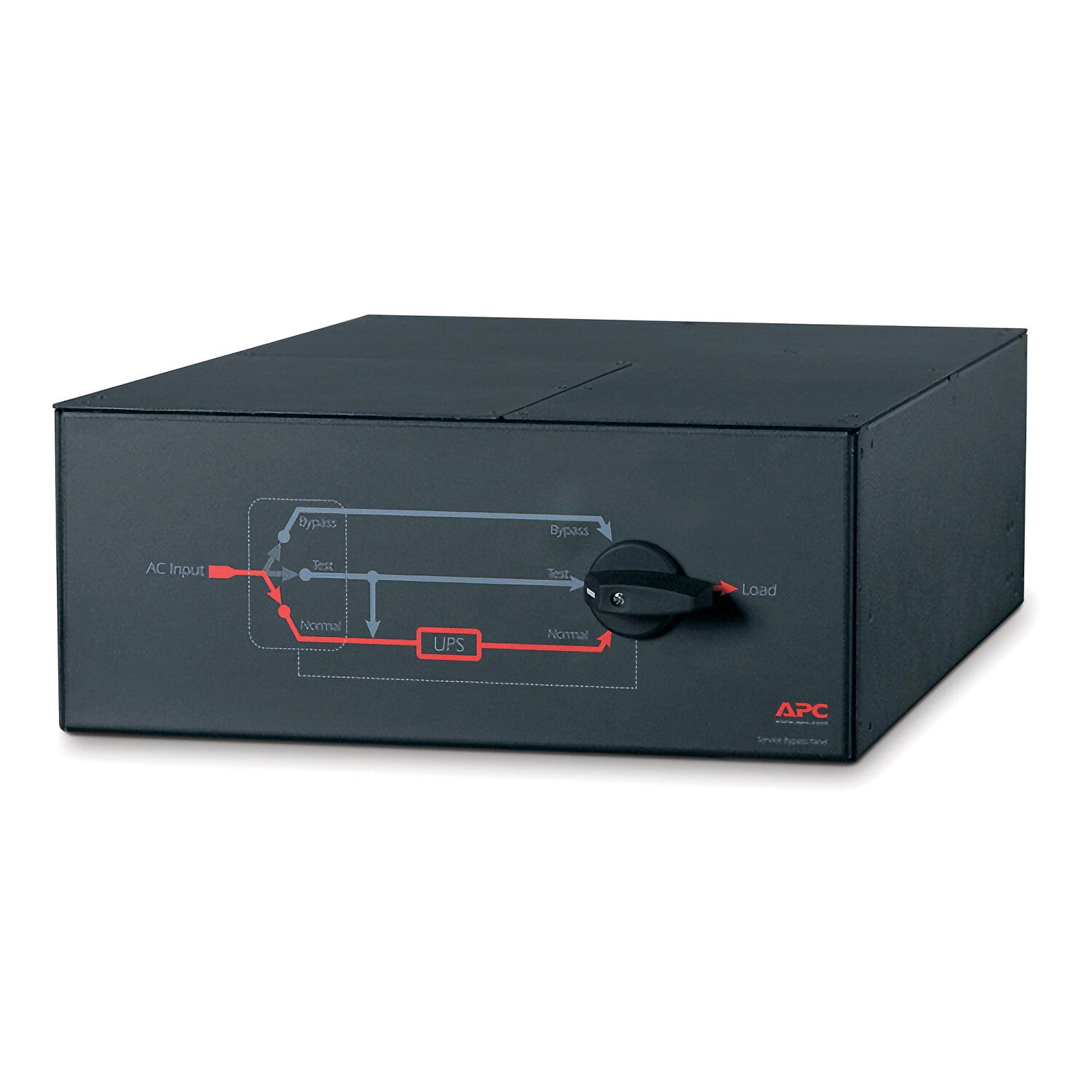

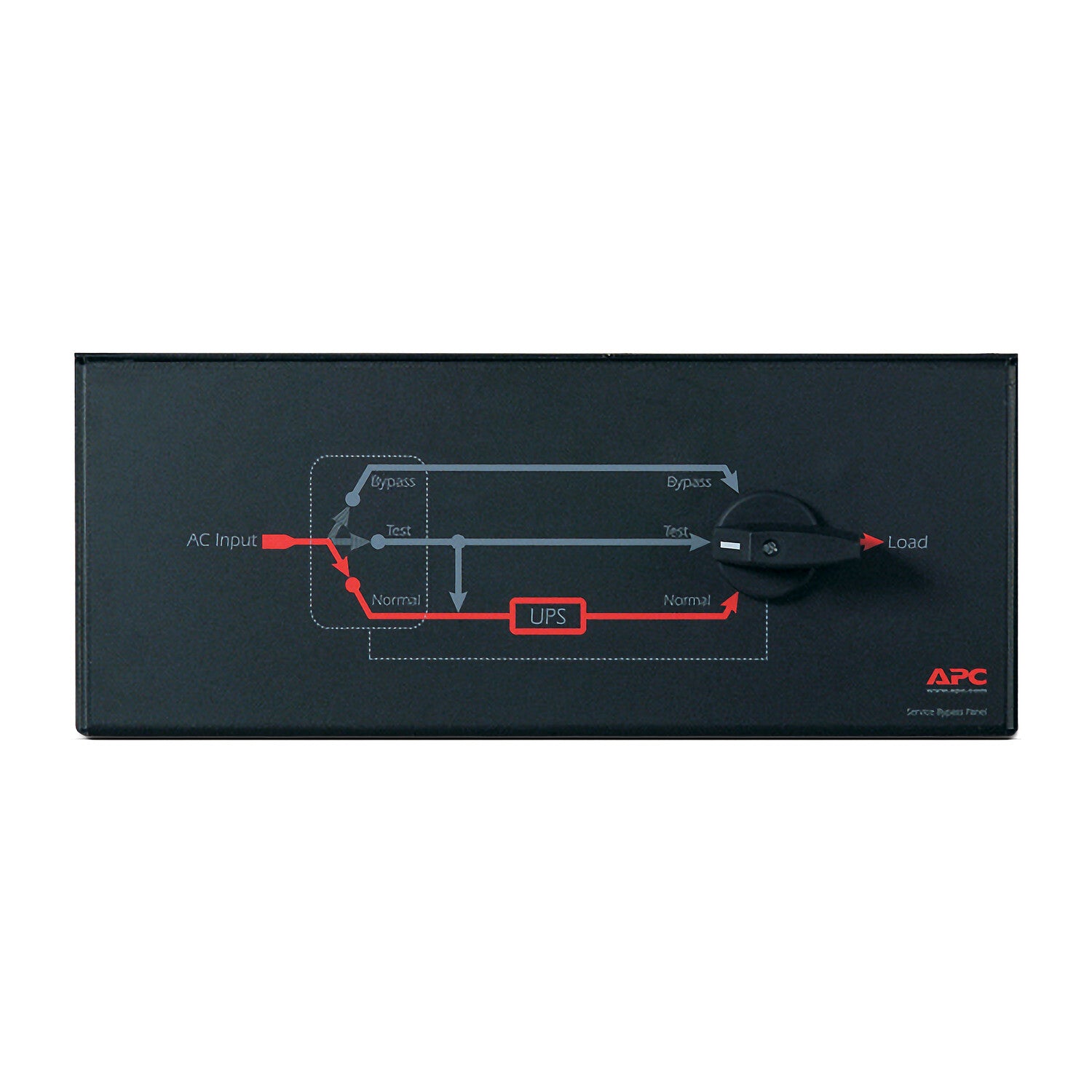

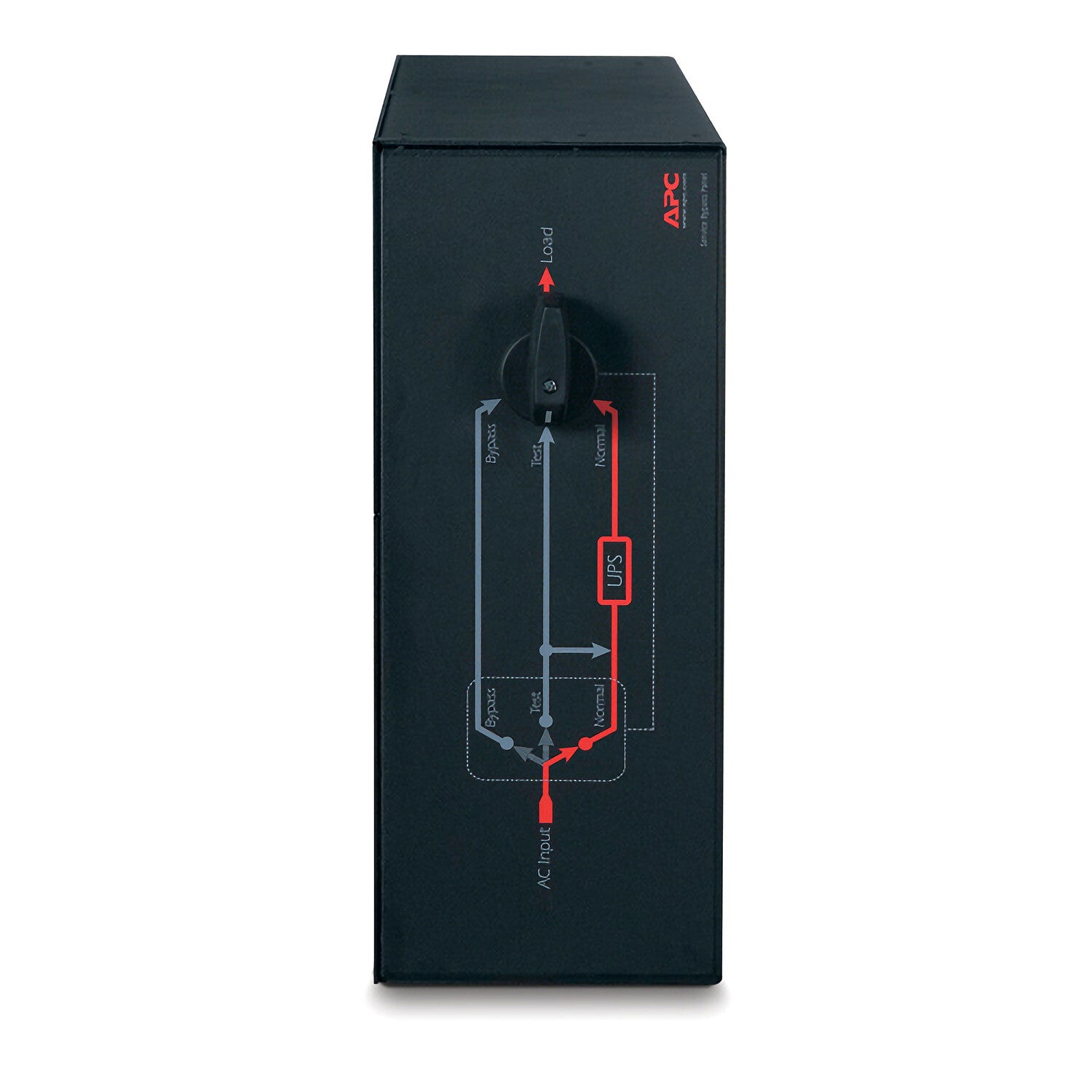

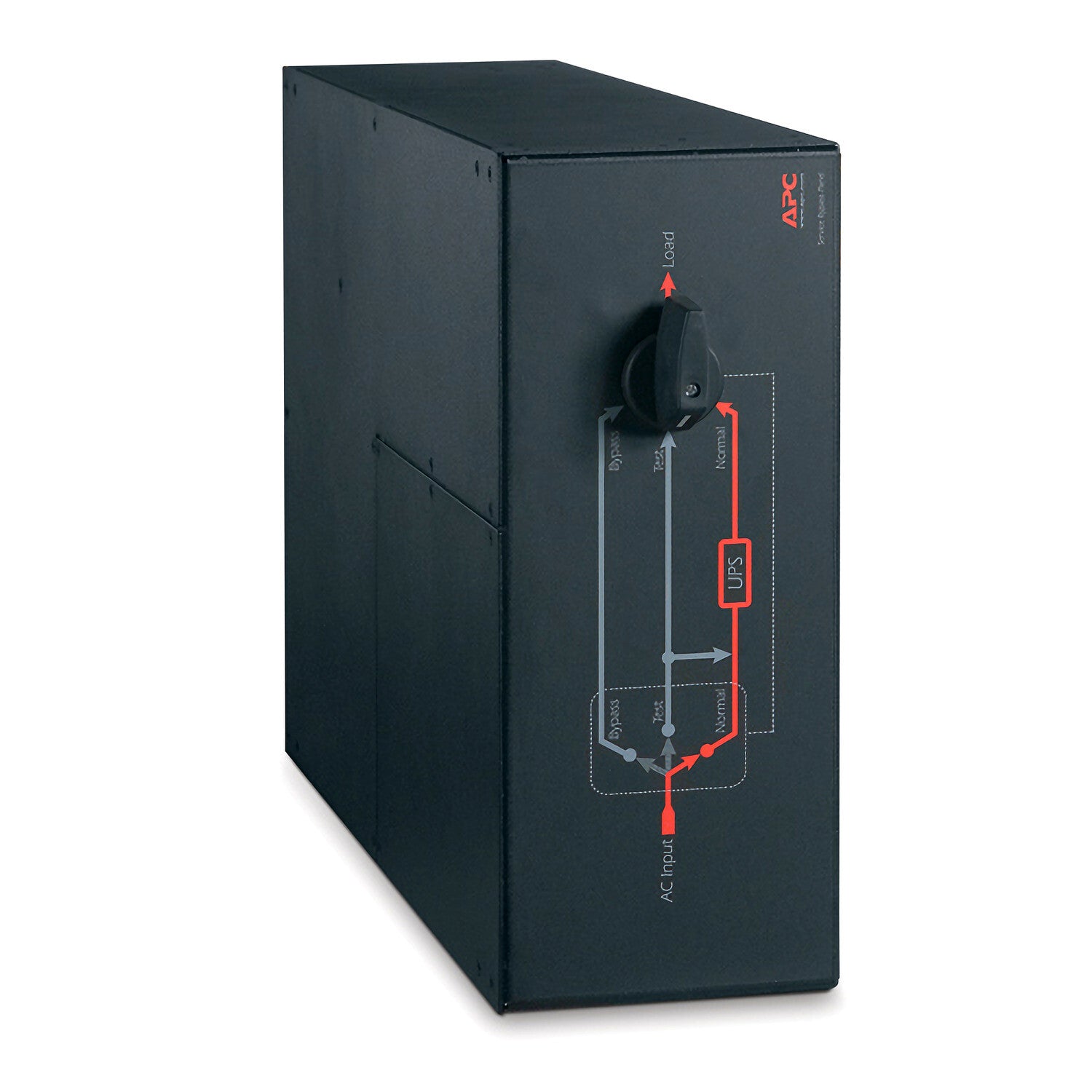

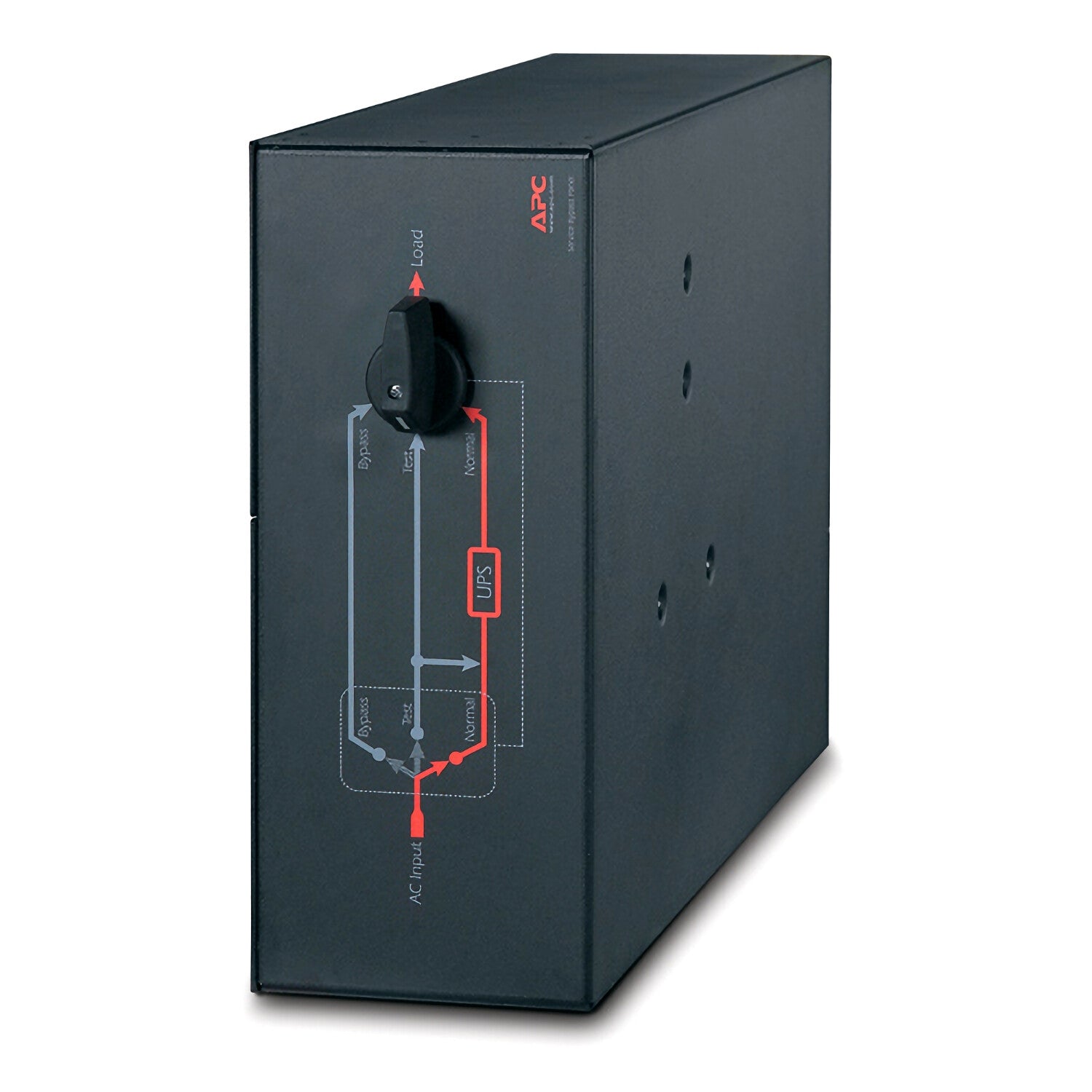

The APC Service Bypass Panel support voltage of 230V. It features a 4U form factor and provides a manual bypass switch for maintenance and service operations. It includes an installation guide, rack mounting brackets, and a user manual.
| Features |
|---|
| Product type |
Bypass switch |
| Mounting type |
Rack-mount |
| Product colour |
Black |
| Rack capacity |
4U |
| Compatibility |
CSA, EN 60950, GOST, IEC 60950, IEC 60950, UL 1778 |
| Power |
|---|
| Load capacity |
20000 VA |
| Input voltage |
230 V |
| Input frequency |
50/60 Hz |
| Number of phases |
1 |
| Maximum total current draw per phase |
100 A |
| Certificates |
|---|
| Compliance certificates |
RoHS, REACH, WEEE |
| Certification |
CSA; GOST |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-20 - 45 °C |
| Storage temperature (T-T) |
-40 - 65 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating altitude |
0 - 4500 m |
| Non-operating altitude |
0 - 15000 m |
| Weight & dimensions |
|---|
| Width |
432 mm |
| Depth |
673 mm |
| Height |
178 mm |
| Weight |
21.8 kg |
| Packaging data |
|---|
| Package width |
610 mm |
| Package depth |
991 mm |
| Package height |
305 mm |
| Package weight |
31.8 kg |
| Technical details |
|---|
| Mounting |
front |
| Preferred mounting position |
lower |
| Packaging without single use plastic |
No |
| Take-back system |
No |
| SCIP number |
7a19864b-8bf5-40ac-85e8-7678b0910185 |
| Sustainable packaging |
No |
| Logistics data |
|---|
| Customs product code (TARIC) |
8537109899 |
| Country of origin |
China |
| Harmonized System (HS) code |
85079080 |
