- Supports up to 100A, suitable for large-scale applications
- Compatible with various input and output voltages
- Includes a bypass switch for seamless maintenance
- Designed for rack installation, saving space in data centers

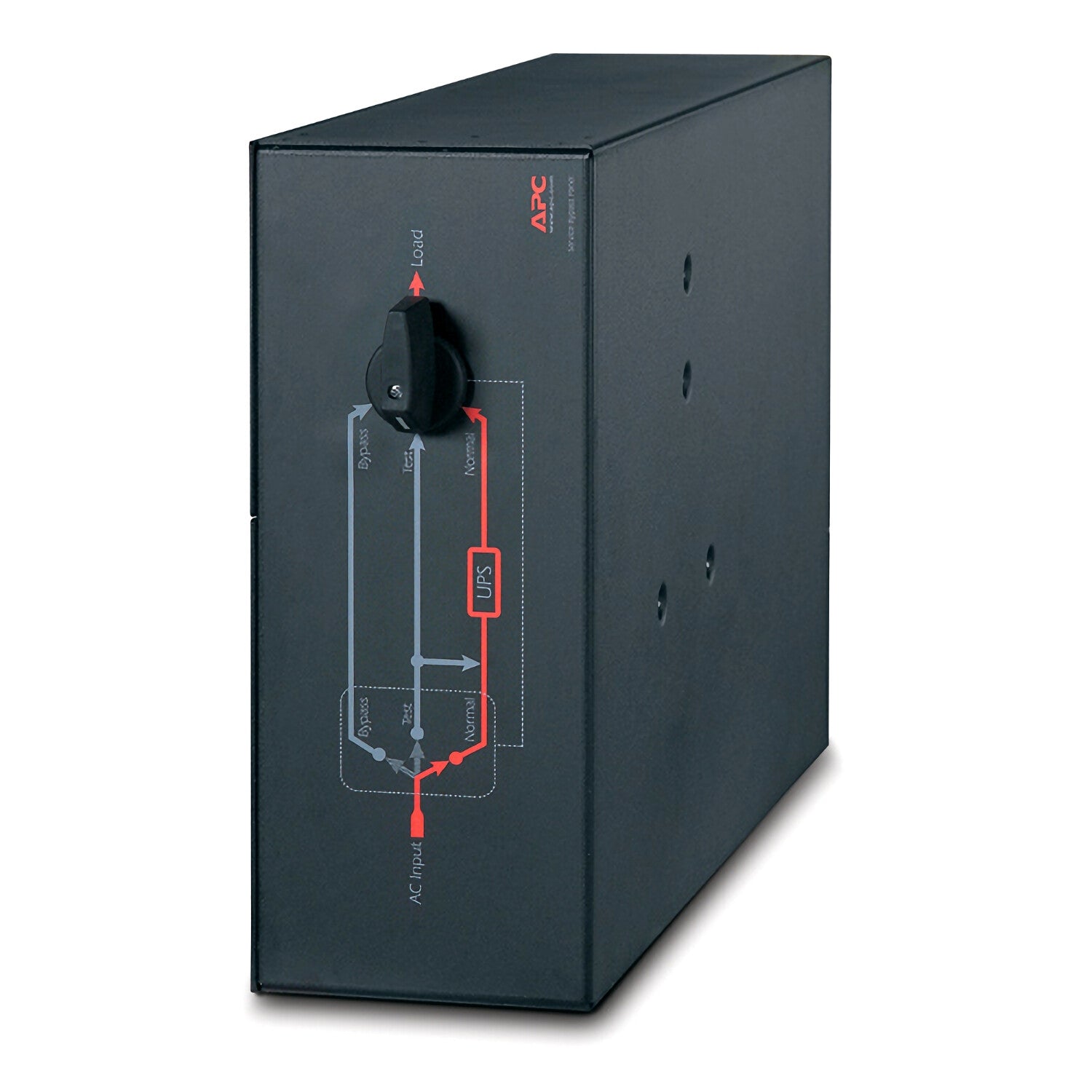

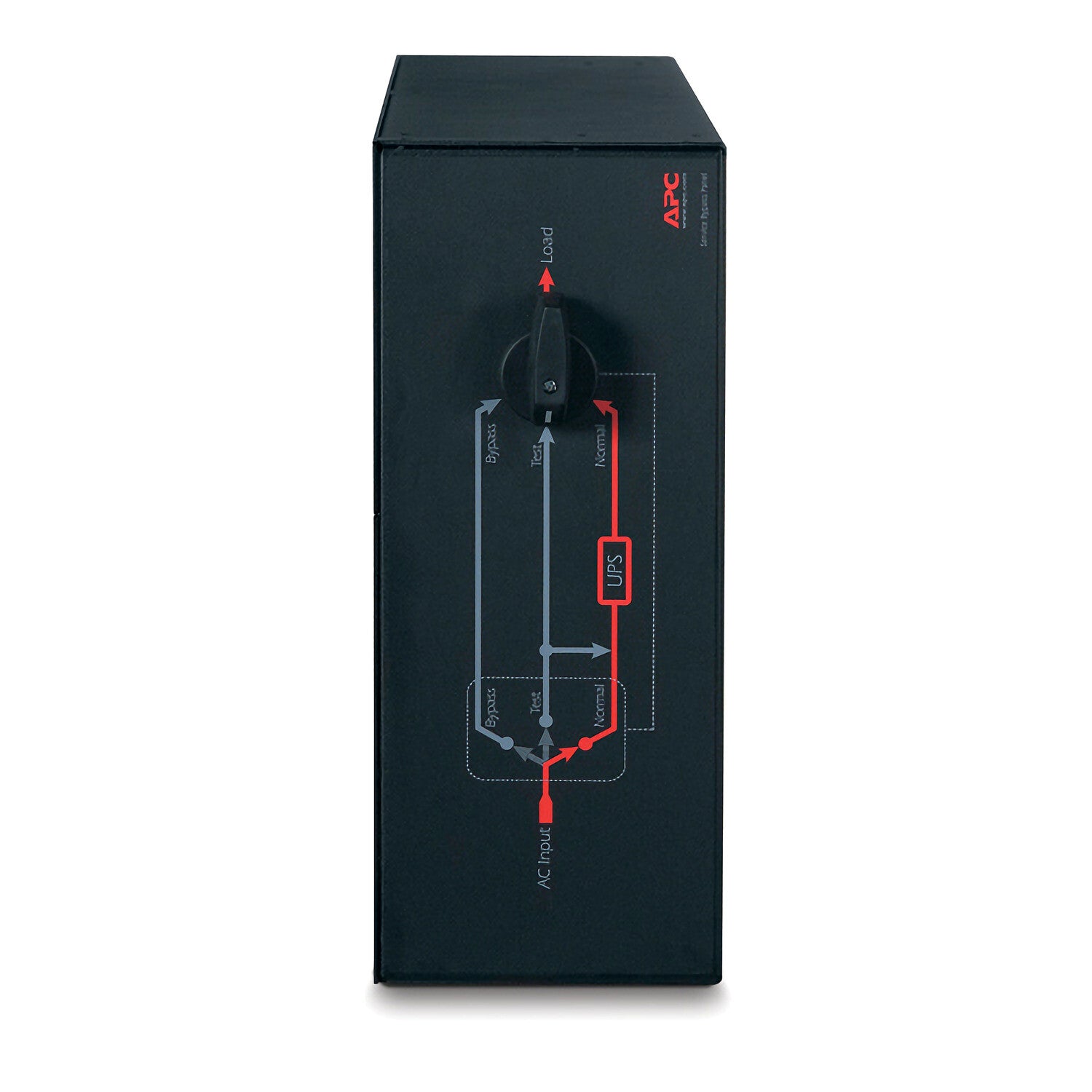

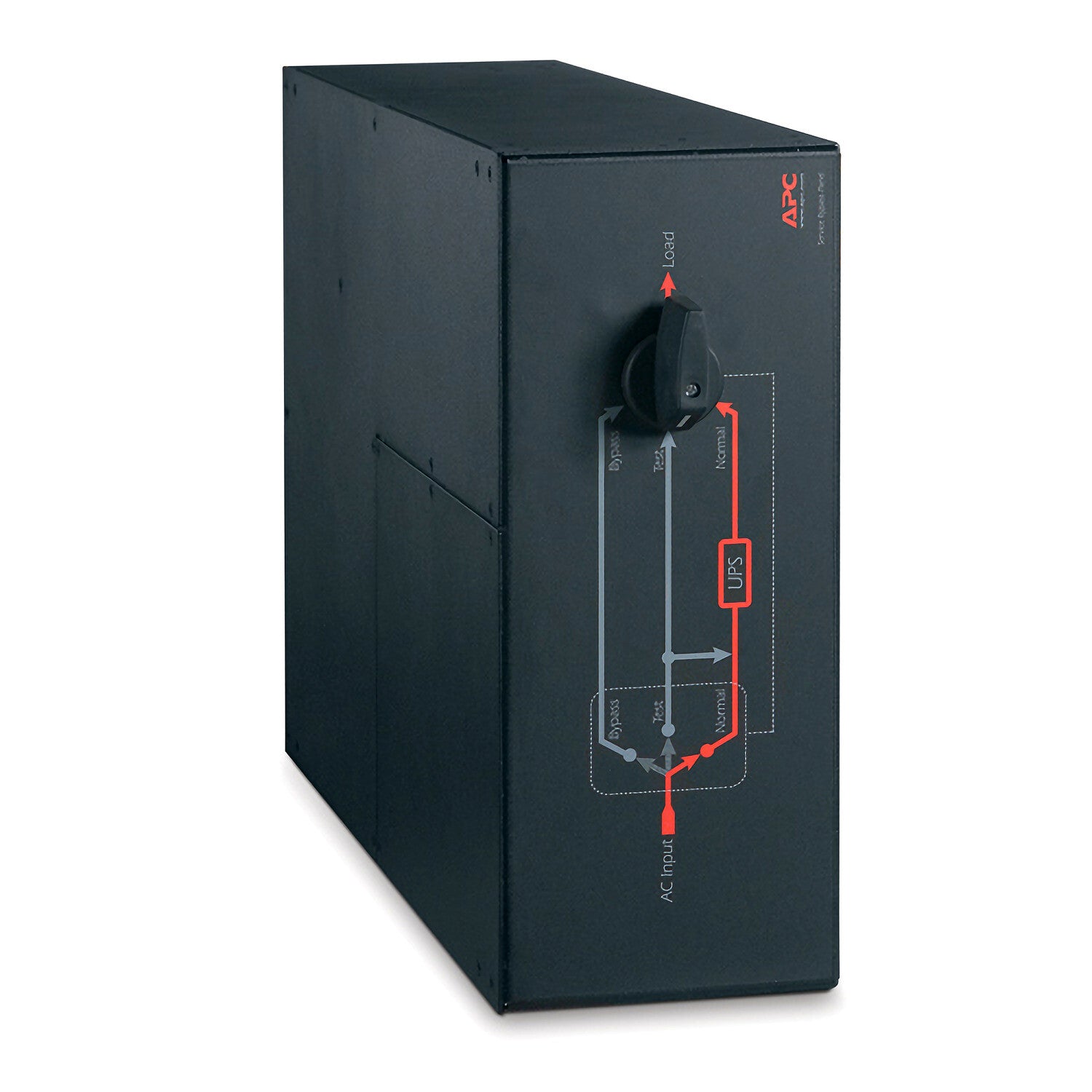

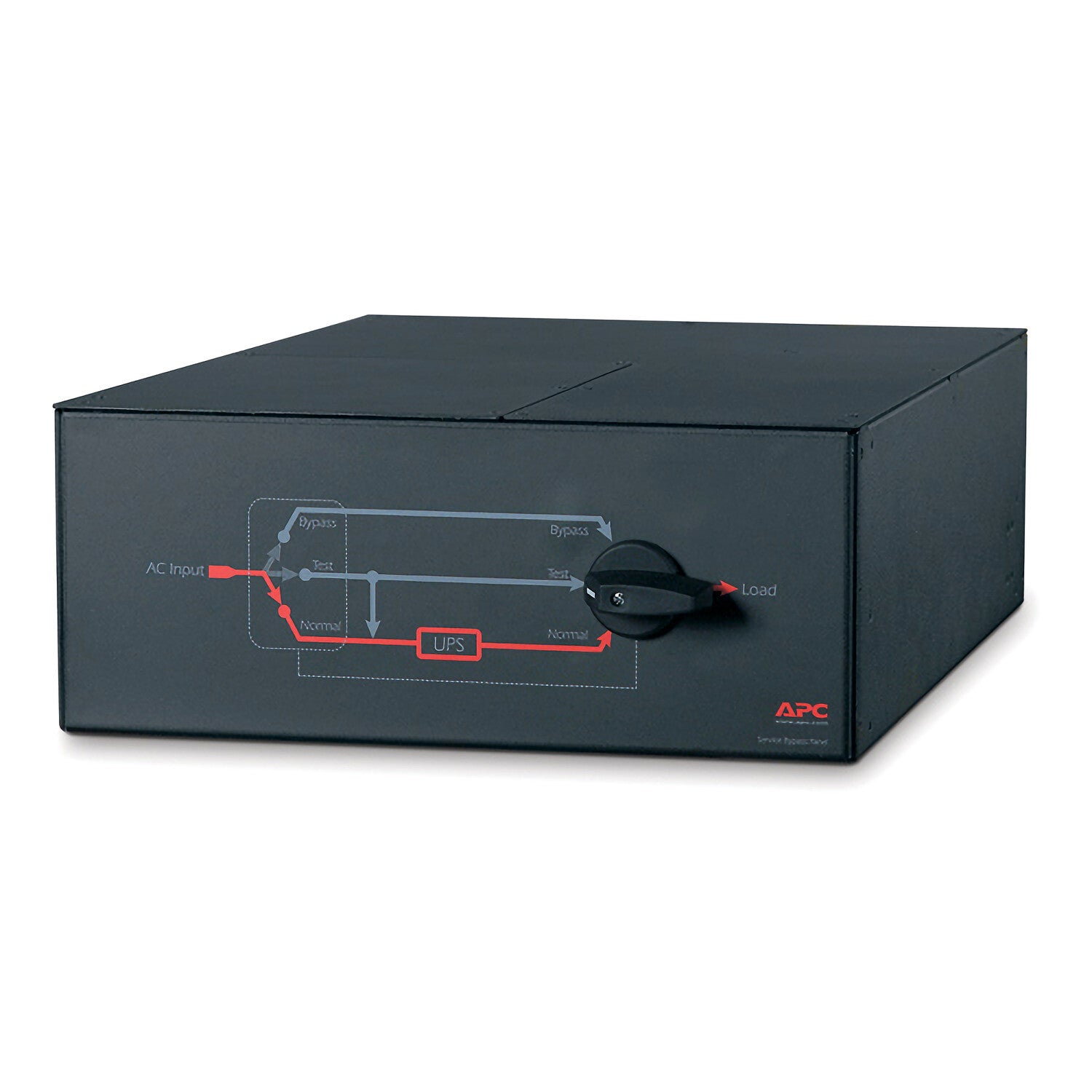

The APC Service Bypass Panel support voltage of 200V, 208V, and 240V. It features a 4U rack-mount design and is rack mountable. It includes an installation guide, rack mounting brackets, and a user manual.
| Features |
|---|
| Rack capacity |
4U |
| Country of origin |
China |

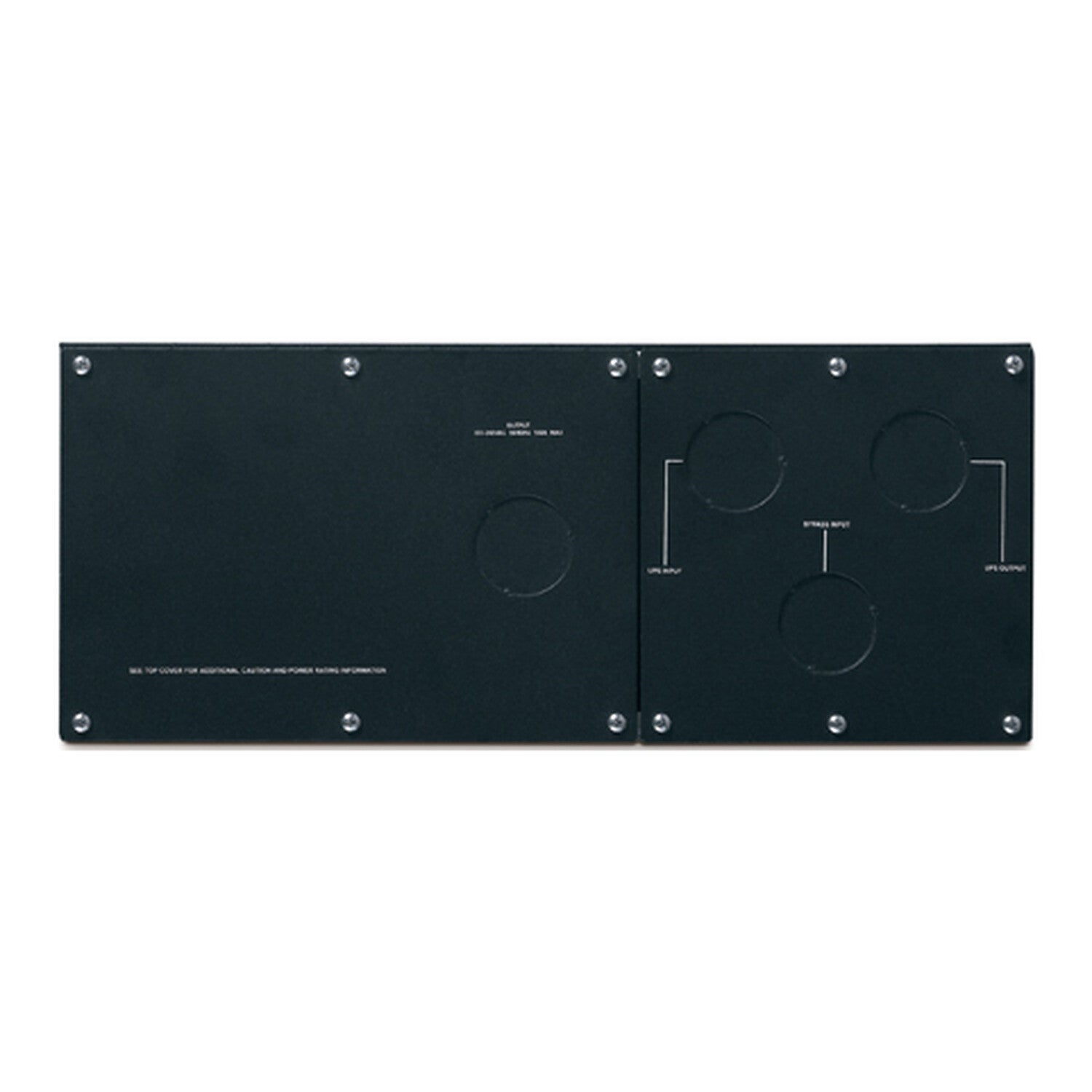

| Ports & interfaces |
|---|
| Output connections |
hard wire 3-wire (H N + E) for 1 zone(s); hard wire 3-wire (2P + E) for 1 zone(s); hard wire 4-wire (2P + N + E) for 1 zone(s) |
| Power |
|---|
| AC output voltage |
120 / 200 / 208 / 230 V |
| AC input voltage |
200 / 208 / 230 / 480 3 phases |
| Certificates |
|---|
| Compliance certificates |
RoHS, REACH, WEEE |
| Certification |
CSA; GOST |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-20 - 50 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Weight & dimensions |
|---|
| Width |
432 mm |
| Depth |
660 mm |
| Height |
178 mm |
| Weight |
21.4 kg |
| Technical details |
|---|
| Packaging recycled materials |
Recycled cardboard |
| Preferred mounting position |
lower |
| Mounting |
front |
| Packaging without single use plastic |
No |
| Take-back system |
No |
| Sustainable packaging |
No |
| Logistics data |
|---|
| Customs product code (TARIC) |
8537109199 |
