- Supports up to 125A, suitable for high-demand applications
- Compatible with various input and output voltages
- Includes a bypass switch for seamless maintenance
- Designed for rack installation, saving space in data centers

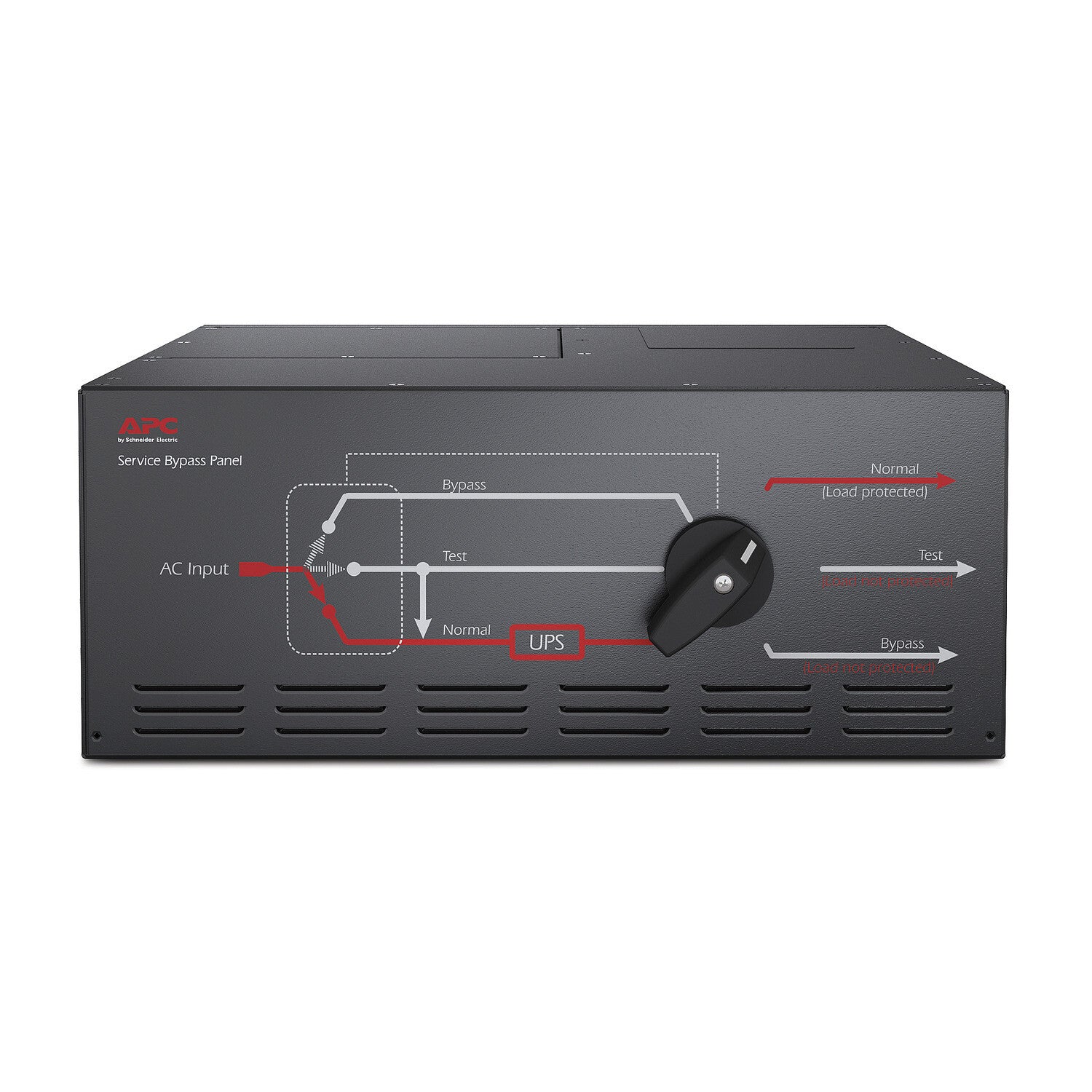

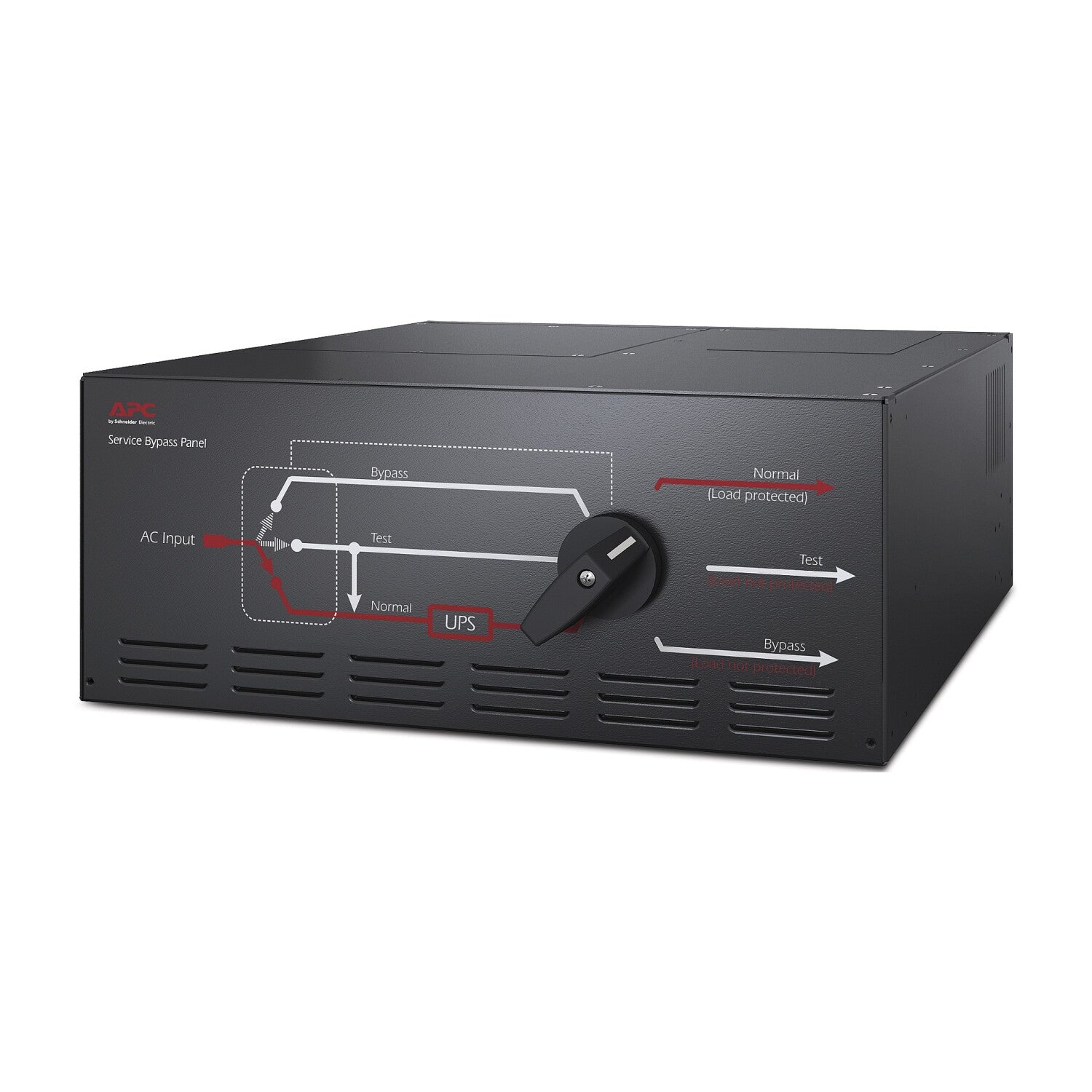

The APC Service Bypass Panel supports output voltage of 200V, 208V, 220V, 230V, and 240V. It features a 4U form factor and provides a manual bypass switch for maintenance and service operations. It includes an installation guide, rack mounting brackets, and a user manual.
| Features |
|---|
| Output power capacity |
20 kVA |
| Input operation voltage (min) |
200 V |
| Input operation voltage (max) |
240 V |
| Input frequency |
50/60 Hz |
| Maximum current |
125 A |
| Ports & interfaces |
|---|
| AC outlet types |
Hard Wire 5-wire (3PH + N + G) |
| Design |
|---|
| Form factor |
Tower |
| Product colour |
Black |
| Rack capacity |
4U |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-20 - 50 °C |
| Storage temperature (T-T) |
-40 - 65 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating altitude |
0 - 4500 m |
| Non-operating altitude |
0 - 15000 m |
| Technical details |
|---|
| Preferred mounting position |
lower |
| Packaging without single use plastic |
No |
| Take-back system |
No |
| Sustainable packaging |
No |
| Certificates |
|---|
| Compliance certificates |
RoHS, REACH, WEEE |
| Certification |
CSA; GOST |
| Weight & dimensions |
|---|
| Width |
432 mm |
| Depth |
554 mm |
| Height |
178 mm |
| Weight |
19.3 kg |
| Packaging data |
|---|
| Package weight |
31.4 kg |
| Logistics data |
|---|
| Customs product code (TARIC) |
8536508000 |
| Harmonized System (HS) code |
85078000 |
| Country of origin |
China |
| Other features |
|---|

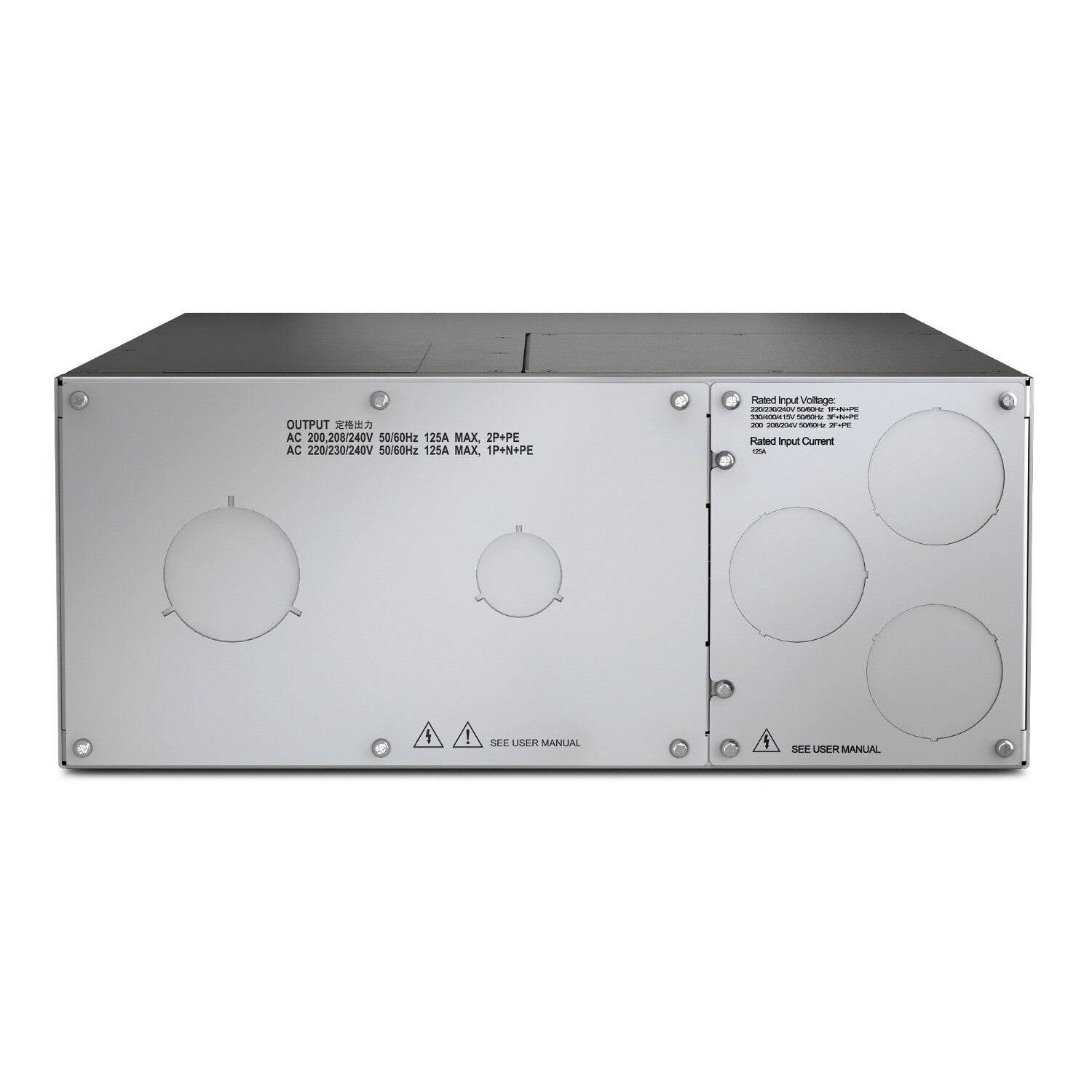

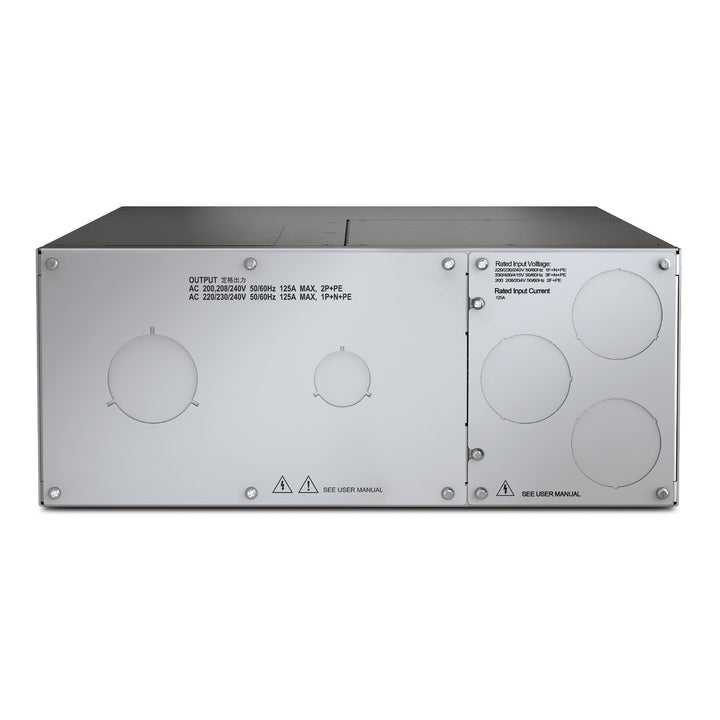

| Output connections |
hard wire 3-wire (H N + E) for 1 zone(s); hard wire 3-wire (2P + E) for 1 zone(s) |
| Mounting |
front |
| Overload protection |
Yes |
| Operating temperature (T-T) |
-4 - 122 °F |
| Package dimensions (WxDxH) |
610 x 845 x 305 mm |
