- Supports up to 30A, suitable for critical equipment
- Compatible with various input and output voltages
- Features a bypass switch for safe maintenance
- Ensures secure and stable hardwired connections

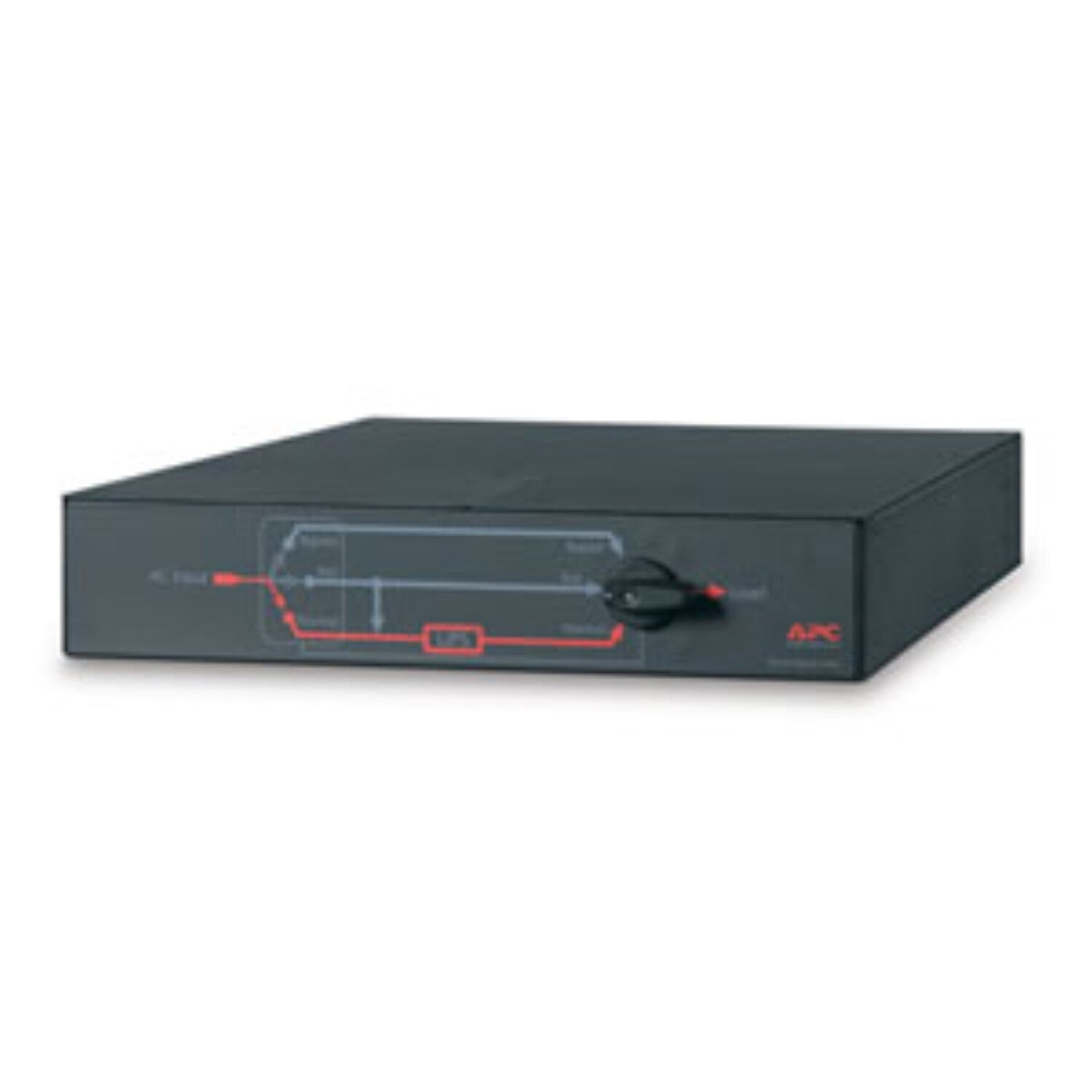

The APC Service Bypass Panel supports output voltage of 100V, 120V,and 230V. It features a 2U rack-mount design and is rack mountable. It includes rack mounting brackets and a user manual.
| Features |
|---|
| Rack capacity |
2U |
| Country of origin |
China |
| Ports & interfaces |
|---|
| Output connections |
hard wire 3-wire (H N + E) for 1 zone(s) |
| Power |
|---|
| Maximum current |
24 A |
| AC output voltage |
100 / 120 / 230 V |
| AC input voltage |
100 / 120 / 230 V |
| Certificates |
|---|
| Compliance certificates |
RoHS, REACH, WEEE |
| Certification |
CSA,EN 60950,GOST,IEC 60950,UL 1778,VDE |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-20 - 50 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Weight & dimensions |
|---|
| Width |
432 mm |
| Depth |
635 mm |
| Height |
89 mm |
| Weight |
12 kg |
| Technical details |
|---|
| Preferred mounting position |
no preference |
| Packaging without single use plastic |
No |
| Take-back system |
No |
| Sustainable packaging |
No |
| Logistics data |
|---|
| Customs product code (TARIC) |
8536508000 |
