1-Year Secure Network Management Card subscription included
Ideal for colocation, large or remote data center operators
Plan capacity and balance loads with +/- 3% metering accuracy (amps, volts, kW, kWh)
Stay on top of potential circuit overloads with user-defined alarms
Real-time remote monitoring and management through EcoStruxure IT & Secure NMC3
Zero U toolless installation
APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency
Design
PDU types
Metered
Rack capacity
0U
Mounting
Horizontal/Vertical
Product colour
Black

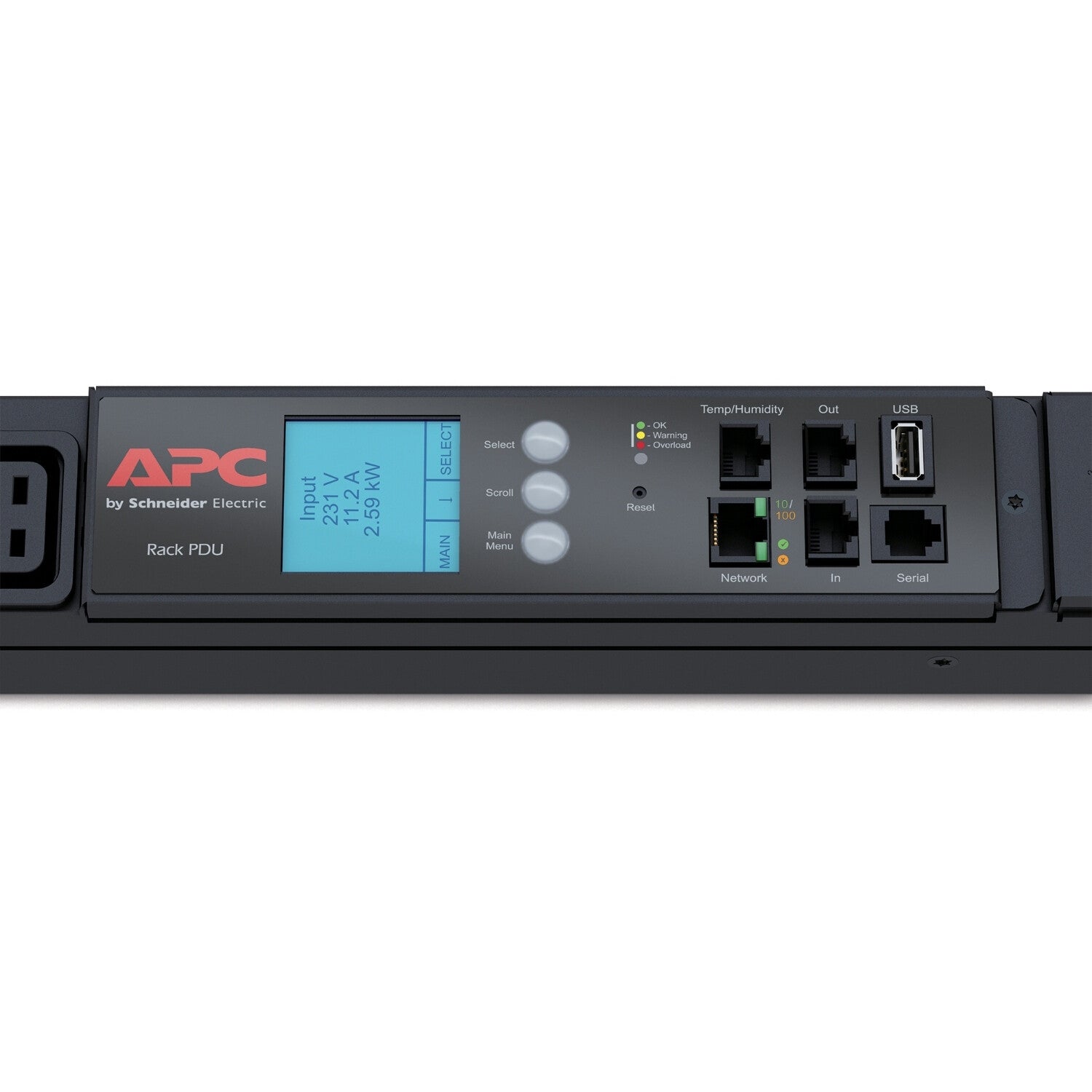

Display
LCD
Ports & interfaces
AC outlets quantity
42 AC outlet(s)
AC outlet types
C13 coupler, C19 coupler

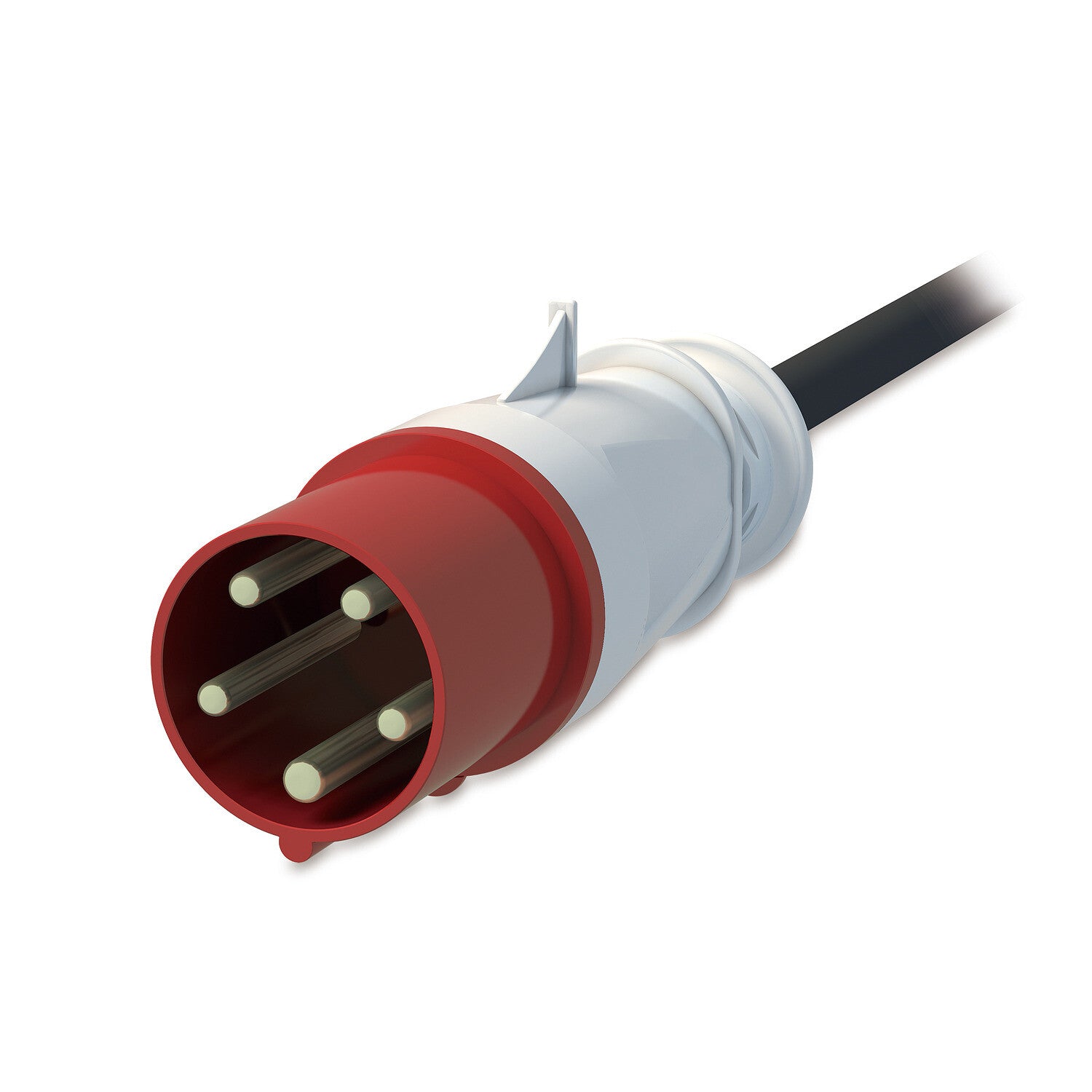

Input connection type
IEC 60309 30 A 3P + N + E
Features
Cable length
1.82 m
Power
Nominal input voltage
400 3 phases
AC input frequency
50 - 60 Hz
Maximum current
30 A
Nominal output voltage
240 V
Output voltage
240 V
Load capacity
17300 VA
Number of phases
3
Maximum input current per phase
30 A
Maximum total current draw per phase
24 A
Power protection features
Overload
Certificates
Waste Electrical and Electronic Equipment (WEEE) compliance
