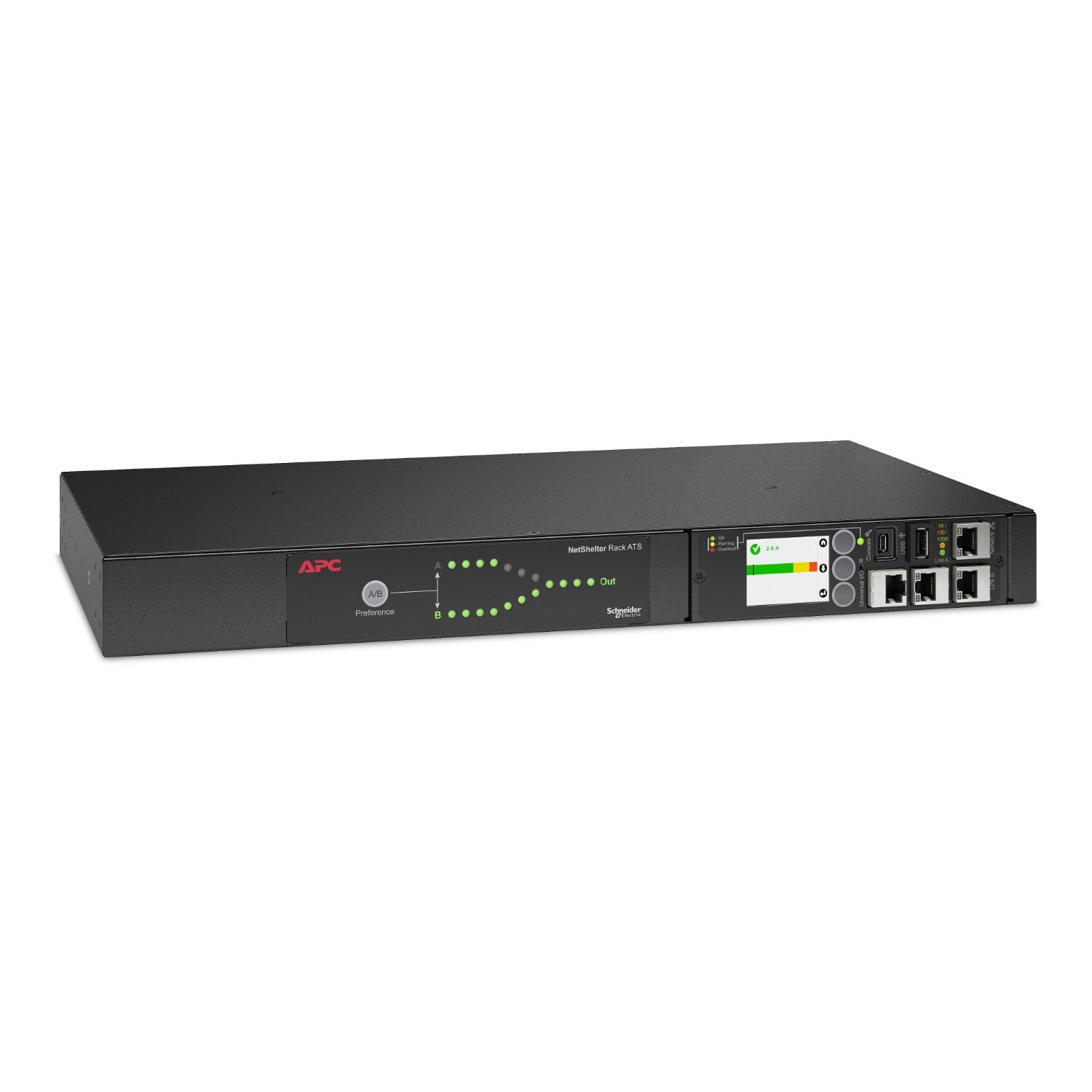

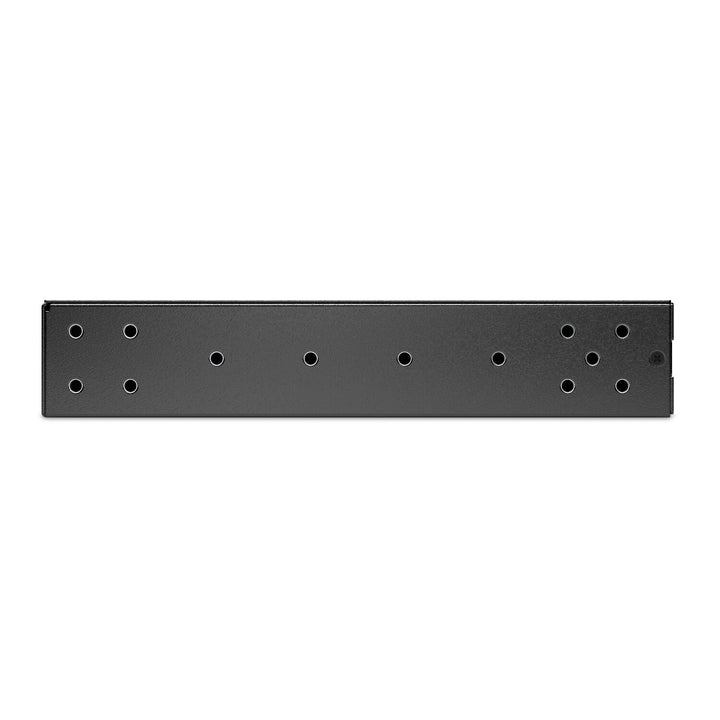

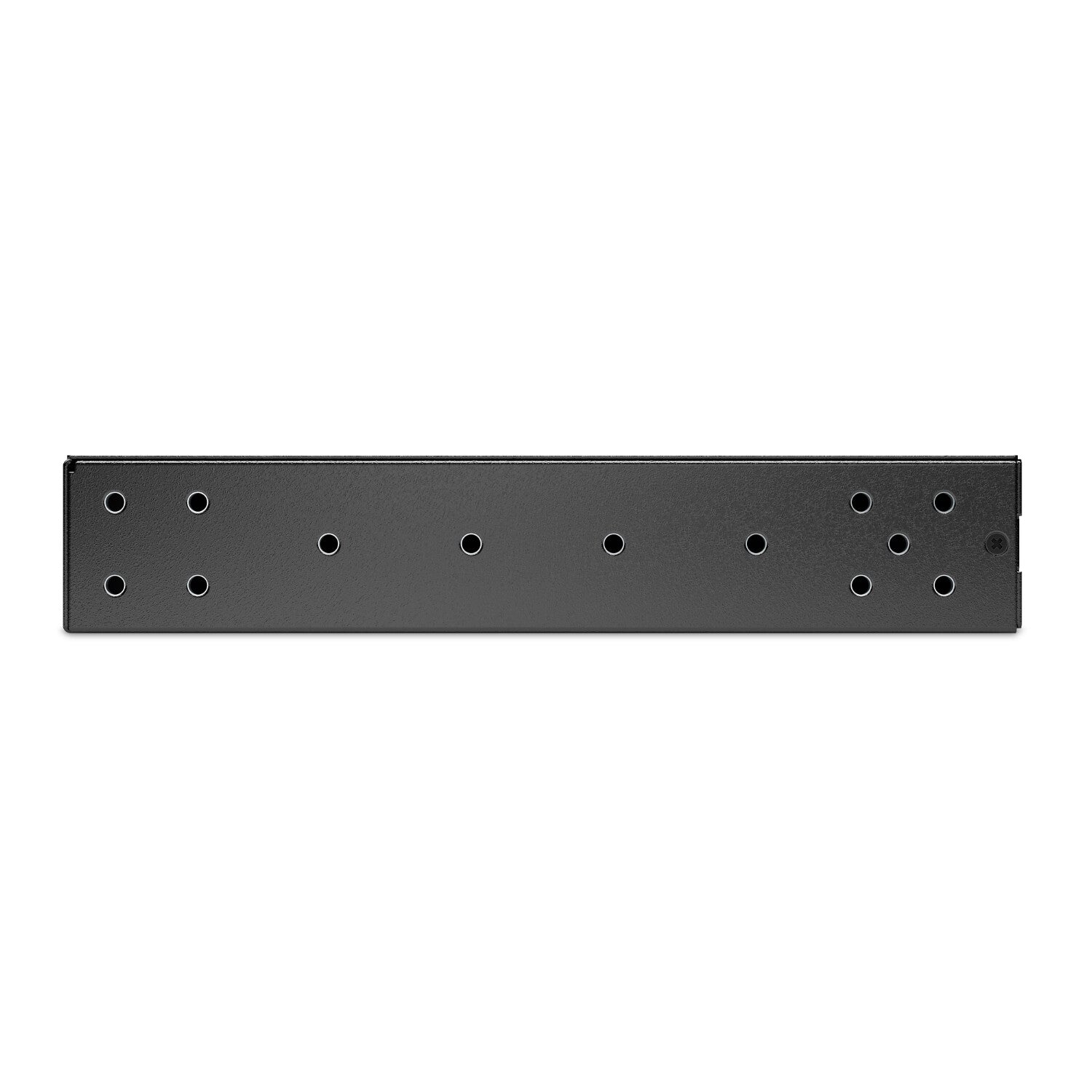

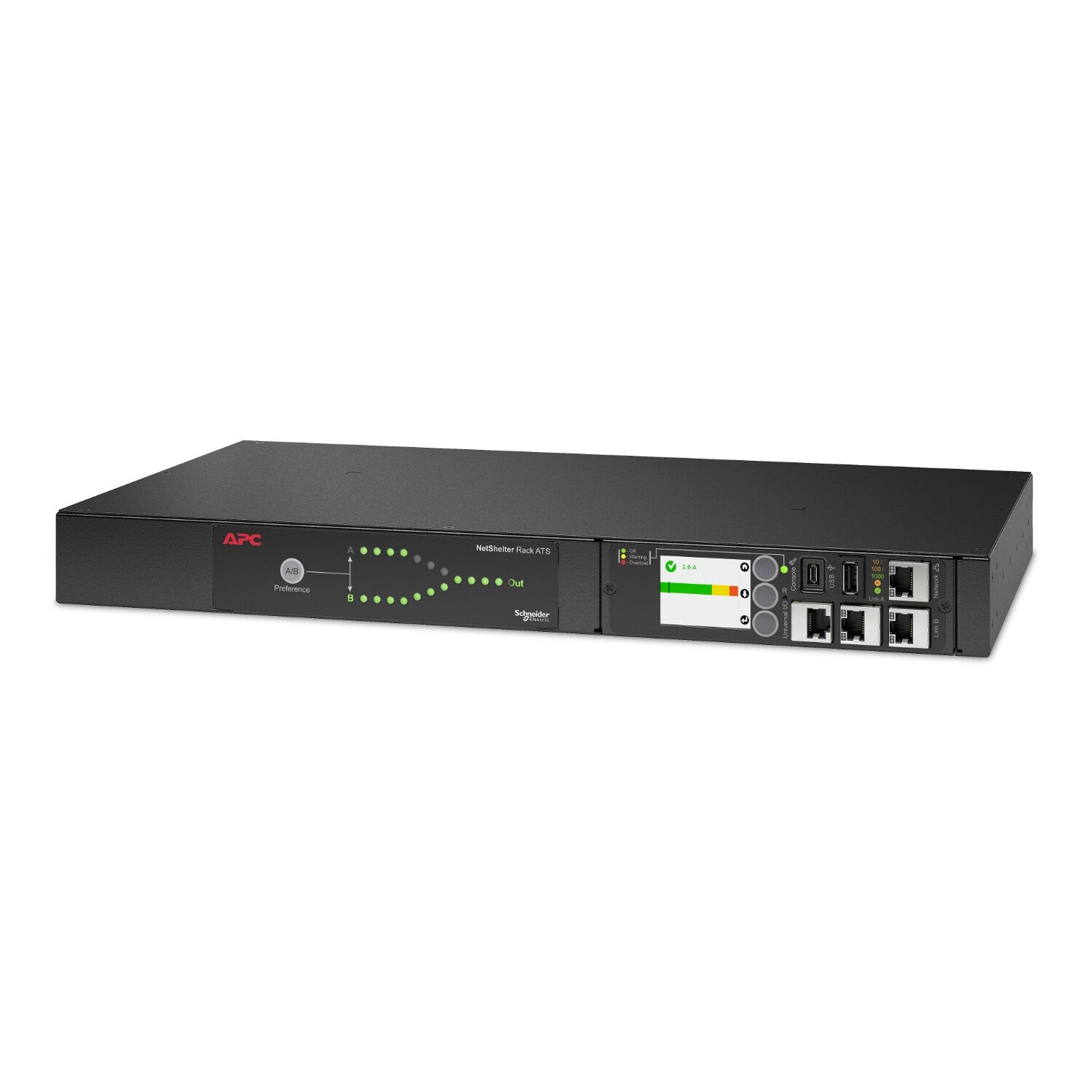

APC Netshelter Rack Automatic Transfer Switch, 1U, 15A, 100/120V, 5-15 IN, 10 5-15R OUT, 50/60Hz
APC Netshelter Rack Automatic Transfer Switch, 1U, 15A, 100/120V, 5-15 IN, 10 5-15R OUT, 50/60Hz
APC Netshelter Rack Automatic Transfer Switch, 1U, 15A, 100/120V, 5-15 IN, 10 5-15R OUT, 50/60Hz
1 / 3
APC Netshelter Rack Automatic Transfer Switch, 1U, 15A, 100/120V, 5-15 IN, 10 5-15R OUT, 50/60Hz
APC Netshelter Rack Automatic Transfer Switch, 1U, 15A, 100/120V, 5-15 IN, 10 5-15R OUT, 50/60Hz
APC Netshelter Rack Automatic Transfer Switch, 1U, 15A, 100/120V, 5-15 IN, 10 5-15R OUT, 50/60Hz
APC Netshelter Rack Automatic Transfer Switch, 1U, 15A, 100/120V, 5-15 IN, 10 5-15R OUT, 50/60Hz
APC Netshelter Rack Automatic Transfer Switch, 1U, 15A, 100/120V, 5-15 IN, 10 5-15R OUT, 50/60Hz
APC Netshelter Rack Automatic Transfer Switch, 1U, 15A, 100/120V, 5-15 IN, 10 5-15R OUT, 50/60Hz

APC Netshelter Rack Automatic Transfer Switch, 1U, 15A, 100/120V, 5-15 IN, 10 5-15R OUT, 50/60Hz

APC · MPN: AP4450A
€1,107.99 EUR
inc. VAT
Spread the cost with Klarna or PayPalFrom 3 interest-free payments of €369.33 See options

Credit subject to status. 18+, UK residents only. See each provider for terms.

Out of stock

FREE delivery

Express €9.99

Overview
  • Minimized downtime disruption with Field-replaceable NMC
  • Monitor temperature and humidity efficiently
  • Dual input power cords to enhance uptime for critcal loads
  • Connect and manage up to 32 Rack ATSs from one IP address
  • Seamless switching with transfer time 10ms
  • Supports APC Wi-fi USB device for cableless installation & setup
  • Gigabit Ethernet support for faster Communication
  • Remote management via Web UI, CLI, SNMP or EcoStruxure expert
  • APC NMC3 integrated for enhanced cyber security

APC NetShelter Rack Automatic Transfer Switch (ATS) AP4450A is the Fifth-Generation range of high availability switches offering greater control of your IT equipment from Cloud to Edge. With Industry leading reliability, agility, and manageability the APC NetShelter Rack ATS provides redundant power to single-corded equipment loads in the IT rack. AP4450A is single phase 1U Rack ATS with 15A rated current, 100V/120V rated voltage and 1440VA load capacity. For North America region, the Regulatory Derated Input Current is 12A. It comes with 2 NEMA 5-15P inlet and 10 NEMA 5-15R outlet sockets. This has been upgraded with APC NMC3 and various technical advancements for network port sharing, environmental monitoring and enhanced security. It has 2-years of standard warranty and 5-years of extended warranty for peace of mind and use for years to come. Users can access and configure Rack ATS through secure Web UI, SNMP, CLI and are fully compatible with EcoStruxure IT.

Specifications

Power

Input operation voltage (min)90 V
Input operation voltage (max)110 V
AC input frequency50 - 60 Hz
Input current15 A

Design

Form factorRackmount
Rack capacity1U
Product colourBlack
DisplayLCD
CertificationPSE; TÜV-C; TÜV-NURTL; VCCI class A
Show all 32 specificationsShow fewer specifications

Ports & interfaces

AC inlet typeNEMA 5-15P
AC outlets quantity10 AC outlet(s)
AC outlet typesNEMA 5-15R

Operational conditions

Operating temperature (T-T)-5 - 45 °C
Storage temperature (T-T)-25 - 65 °C
Operating relative humidity (H-H)5 - 95%

Certificates

Waste Electrical and Electronic Equipment (WEEE) complianceYes

Technical details

Preferred mounting positionno preference
Halogen freeNo
Removable batteryYes
Mountingfront; horizontal
Packaging recycled materialsRecycled cardboard
Compliance certificatesRoHS, REACH, WEEE
Total carbon footprint (kg of CO2e)942.894796271
Packaging without single use plasticNo
Take-back systemNo
Proposition 65Yes
SCIP number7547f066-9302-46d9-96e9-461928dd6901
Sustainable packagingNo

Weight & dimensions

Width432 mm
Depth236 mm
Height44 mm
Weight4.4 kg
