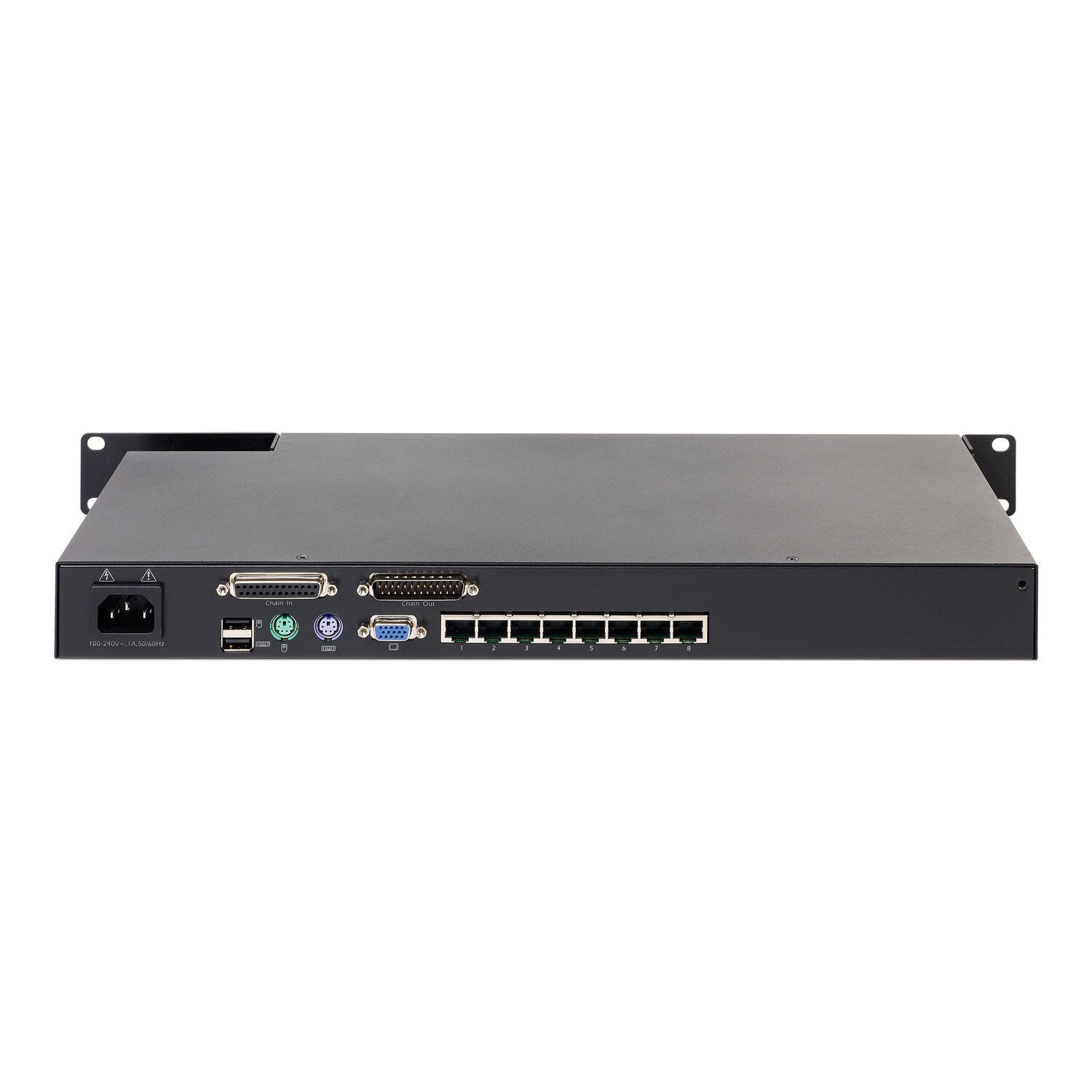

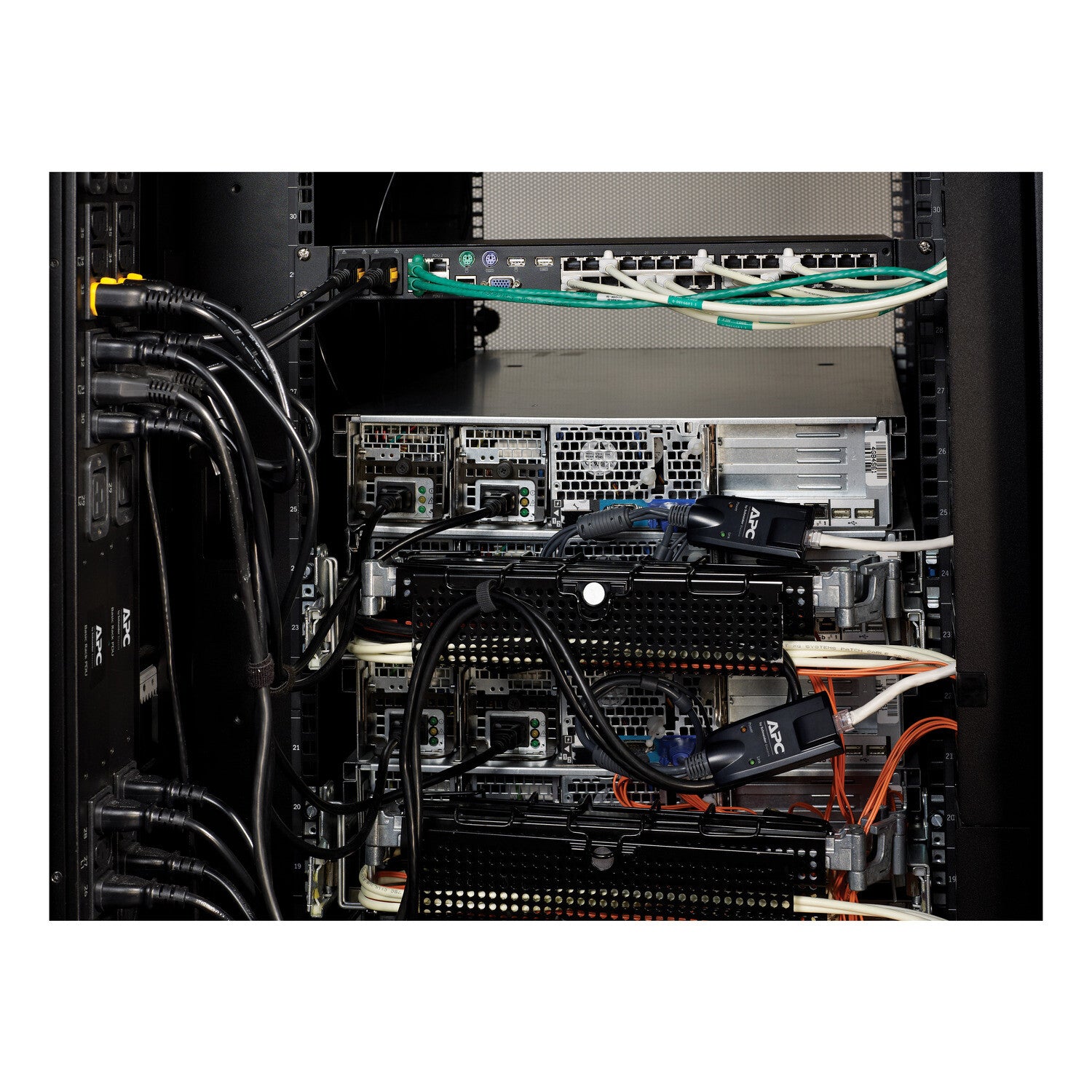

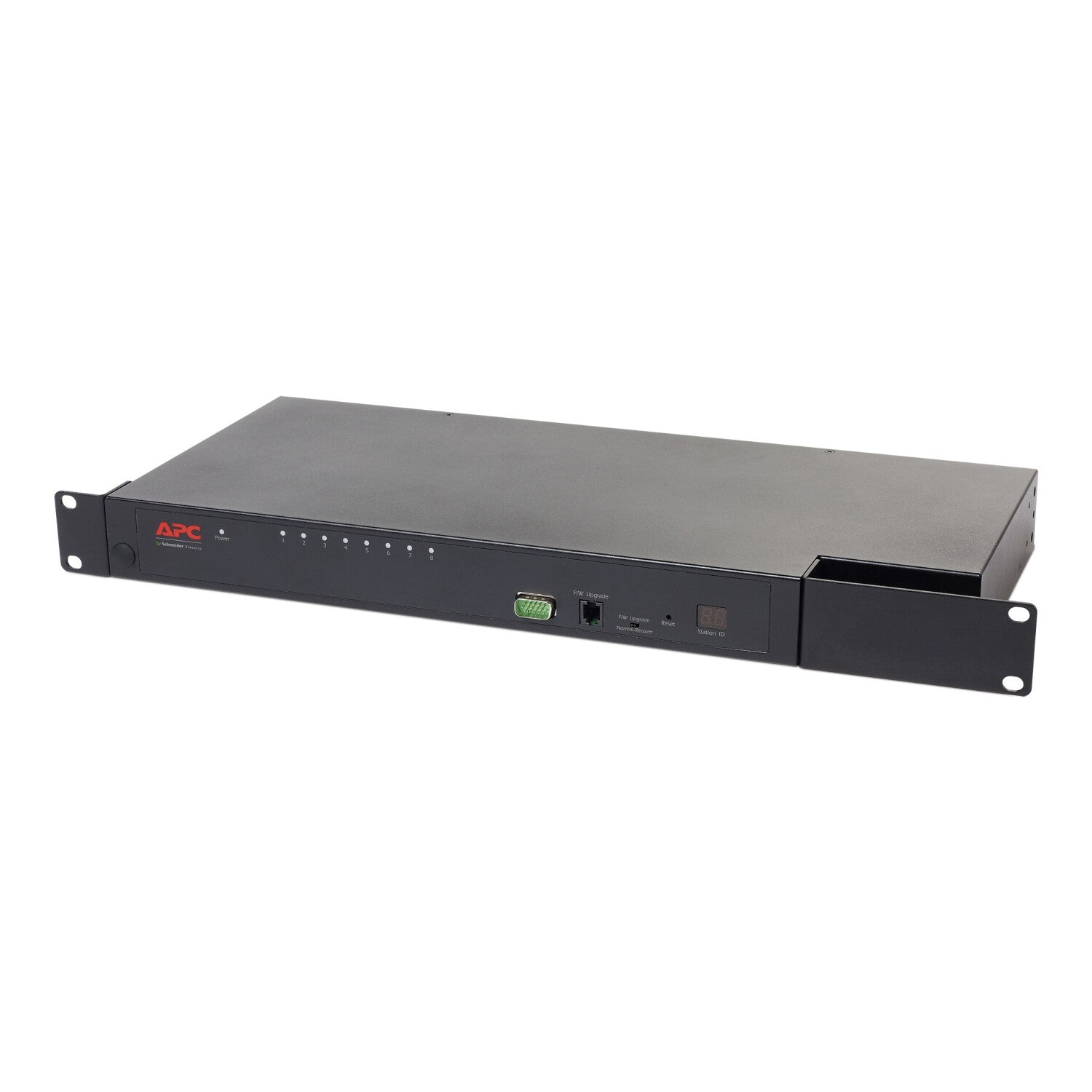

APC KVM 2G, Analog, 1 Local User, 8 ports

APC
€669.99
€669.99
Tax included.
Out of Stock
  • Supports up to 8 servers with a single keyboard, monitor, and mouse
  • Occupies only 1U of rack space, conserving valuable data center space
  • Servers can be added or removed without shutting down the switch
  • Compatible with Windows, Sun, Unix, and Linux systems

The APC KVM 2G Analog Switch supports one local user and eight ports. It is a 1U rack-mountable device. It includes a CD with software, installation guide, and rack mounting brackets. The switch supports multiple platforms and hot-pluggable operation.

Ports & interfaces
Number of computers controlled 8
Keyboard port type PS/2
Mouse port type PS/2
Video port type VGA
VGA (D-Sub) ports quantity 1
USB 2.0 ports quantity 2
PS/2 ports quantity 2
Console port RS-232
Performance
Maximum resolution 1600 x 1200 pixels
Number of users 1 user(s)
Design
Rack capacity 1U
Rack mounting Yes
Product colour Black
LED indicators Yes
Certification cUL listed; C-Tick; CE; EAC; TAA compliance; UL-AR; VCCI class A; VDE
Display
Built-in display No
Certificates
Waste Electrical and Electronic Equipment (WEEE) compliance Yes
Sustainability
Total carbon footprint (kg of CO2e) 8.422735630346152
Compliance certificates RoHS, REACH, WEEE
Operational conditions
Operating temperature (T-T) 0 - 50 °C
Storage temperature (T-T) -20 - 60 °C
Operating relative humidity (H-H) 0 - 80%
Storage relative humidity (H-H) 0 - 80%
Weight & dimensions
Width 424 mm
Depth 188 mm
Height 43 mm
Weight 2.4 kg
Packaging data
Package width 619 mm
Package depth 330 mm
Package height 146 mm
Package weight 3.9 kg
Packaging content
Manual Yes
Other features
Connectivity technology Wired
Ports quantity 8
Technical details
Preferred mounting position no preference
Mounting front
Packaging without single use plastic No
Take-back system No
Sustainable packaging No
Logistics data
Customs product code (TARIC) 8471800000
Harmonized System (HS) code 85176200
Country of origin Taiwan
