Alcatel-Lucent Enterprise OmniSwitch 6360-PH24 - Stackable Gigabit Ethernet LAN Switch

• 10, 24, and 48 Gigabit Ethernet data or PoE+ ports with line-rate performance
• Gigabit Ethernet SFP or SFP/RJ-45 combination uplink ports, or fixed 10 Gigabit Ethernet SFP+/RJ45 combination
• uplink ports (X models)
• 10 GigE virtual chassis bandwidth up to 8 units (stacking) or 416 ports
• Perpetual and fast PoE+ support across all PoE models
• Compact fanless models for co-location work environments
• Cloud enabled with Alcatel-Lucent OmniVista Cirrus for secure, resilient, and scalable cloud based network management
• Flexible device and user authentication with Alcatel-Lucent Access Guardian 2.0 (IEEE 802.1x/MAC/captive portal/UNP/ BYOD/IoT)
• Two multi-gigabit (10/100/1G/2.5) RJ-45 HPoE (95W IEEE802.3bt) user interfaces (-P48X)
• IEEE 802.3af, IEEE 802.3at and IEEE802.3bt (-P48X) PoE support for IP phones, wireless LAN (WLAN) access points, PTZ video cameras and IoT devices

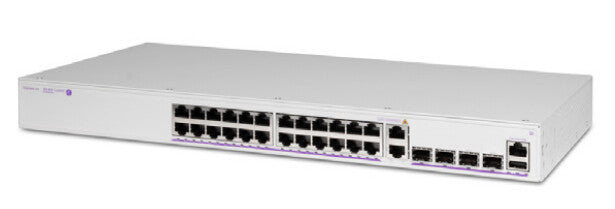

Fixed 1RU chassis 24 RJ-45 PoE 10/100/1G BaseT, 2 1G* RJ45/SFP combo, 2 SFP+ (1G/10G) uplink or VFL ports. 380W power budget. *10G license upgradeable.


The Alcatel-Lucent OmniSwitch® 6360 Stackable Gigabit Ethernet LAN Switch Family is an industry leading, branch, campus workgroup, and enterprise, value access solution. These are simple, flexible, and secure switches ideal for out-of-the-wiring-closet workstation, accesspoint, IP telephony and critical Internet of Things (IoT) deployment.

OmniSwitch 6360 operates using the field proven Alcatel-Lucent Operating System (AOS) software supporting simple device management and network management with a Command-Line Interface (CLI) in addition to an inbox web browser graphical user interface (GUI). These switches deliver enhanced network security, reliability, and operational efficiency for Small- and Medium-sized Businesses (SMB) or Enterprise edge networks.

The Alcatel-Lucent OmniSwitch 6360 family is embedded with the latest technology innovations, and offers maximum investment protection.

Deployments that benefit from the OmniSwitch 6360 family include:
• Classroom and campus workgroups
• Small enterprise or branch office enterprise
• Small-to-mid-sized and enterprise edge networks
