TP-Link Omada 5GHz 867Mbps Long-Range Indoor/Outdoor Wireless Bridge

TP-LINK
€142.00
€142.00
Tax included.
88 in Stock
  • 802.11ac for up to 867 Mbps on the 5 GHz wireless data rate
  • Ideal for long-range wireless transmission up to 5 km
  • Auto-pairing and agile LEDs for efficient deployment

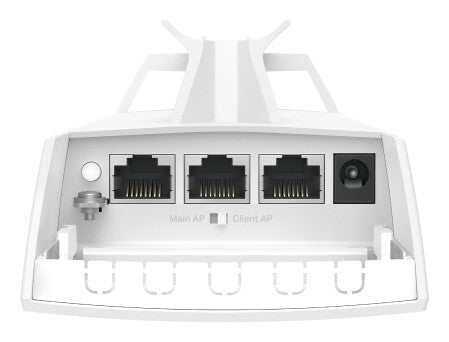

  • 3 × Gigabit Ethernet ports for more high-speed IP camera connections
  • Supports Omada SDN for remote and centralized management
  • IP65 weatherproof enclosure and 6kV lightning protection ensure all-weather suitability
  • Supports Passive PoE for flexible deployment (adapter included)

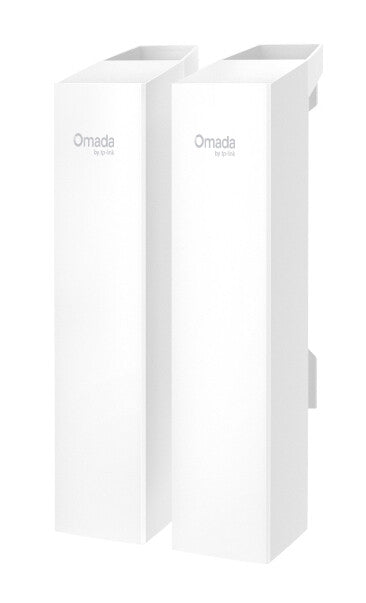

EAP215-Bridge KIT
Omada 5GHz 867Mbps Long-Range Indoor/Outdoor Wireless Bridge

- 802.11ac, up to 867 Mbps on 5 GHz
- Up to 3.1 mi (5 km) Long-Range Transmission
- Auto-Pairing and Multi-Bridge Auto-Pairing
- App-Guided Alignment and Speed Testing
- 3× Gigabit Ethernet Ports
- 802.3af PoE & DC Power Supply & Passive PoE
- IP65 Weatherproof and Operating Range of -40 °C to +70 °C.
- Remote Monitoring & Management

Data transmission
Maximum data transfer rate 867 Mbit/s
Maximum transfer distance 5000 m
Antenna
Antenna design Internal
Antenna type 2x2
Antenna gain level (max) 14 dBi
Wireless LAN features
Wi-Fi Yes
Wi-Fi band Single-band (5 GHz)
Top Wi-Fi standard Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max) 867 Mbit/s
Frequency band 5 GHz
Network
Ethernet LAN Yes
Ethernet LAN interface type Gigabit Ethernet
Ethernet LAN data rates 10,100,1000 Mbit/s
Networking standards IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n
Cabling technology 10/100/1000Base-T(X)
Ports & interfaces
Connectivity technology Wired & Wireless
Ethernet LAN (RJ-45) ports 3
DC-in jack Yes
Security
Security algorithms SNMP, SNMPv2, SNMPv3, SSH
MAC address filtering Yes
Management features
Web-based management Yes
Features
Product type Network bridge
Mounting type Pole
Product colour White
LED indicators Power
Quality of Service (QoS) support Yes
International Protection (IP) code IP65
Reset button Yes
Power
Power source type DC, PoE
DC input voltage 12 V
Power over Ethernet (PoE) Yes
Power over Ethernet (PoE) voltage 24 V
Operational conditions
Operating temperature (T-T) -40 - 70 °C
Operating relative humidity (H-H) 10 - 90%
Storage temperature (T-T) -40 - 70 °C
Storage relative humidity (H-H) 5 - 90%
Certificates
Certification CE, FCC, RoHS
General
Product family Omada
Weight & dimensions
Width 224 mm
Depth 79 mm
Height 60 mm
Packaging content
PoE+ Injector(s) Yes
Cables included AC
