- 4× 10/100 Mbps PoE+ ports with up to 30 W PoE output per port*
- 2× 10/100 Mbps Non-PoE Ports
- 65 W total PoE budget*
- Up to 250 m (820ft) data and power transmitting range under Extend Mode**
- Isolation Mode allows one-click client traffic separation for higher security and performance
- PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
- Simply plug and play for instant connectivity with no configuration required.
- Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses.
- Desktop / Wall-mounting

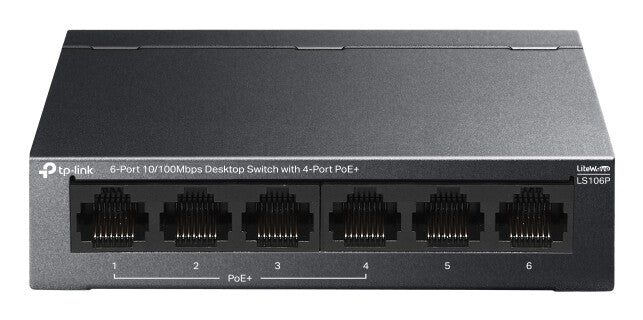

The LS106P is an 6-Port 10/100Mbps Desktop Switch with 4 ports supporting the PoE+ standard. It offers a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. It provides a total power budget of 65 W*, with up to 30 W per port. It supports up to 250 m (820ft) data and power transmitting range under Extend Mode**. Featured with Isolation Mode & PoE Auto Recovery, LS106P is ideal for surveillance scenario.
| Management features |
|---|
| Switch type |
Unmanaged |
| Switch layer |
L2 |
| Ports & interfaces |
|---|
| Basic switching RJ-45 Ethernet ports quantity |
6 |
| Basic switching RJ-45 Ethernet ports type |
Fast Ethernet (10/100) |
| Network |
|---|
| Networking standards |
IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at |
| 10G support |
No |
| Data transmission |
|---|
| MAC address table |
2000 entries |
| Switching capacity |
1.2 Gbit/s |
| Forwarding rate |
0.893 Mpps |
| Jumbo frames support |
Yes |
| Packet buffer memory |
0.002048 MB |
| Design |
|---|
| Rack mounting |
No |
| Stackable |
No |
| Form factor |
Desktop |
| Product colour |
Black |
| LED indicators |
Power, PoE, Link |
| Power |
|---|
| Power source |
DC |
| Power supply included |
Yes |
| AC input voltage |
220 - 240 V |
| AC input frequency |
50/60 Hz |
| Power consumption (max) |
66.53 W |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) |
Yes |
| Power over Ethernet (PoE) ports quantity |
4 |
| Total Power over Ethernet (PoE) budget |
65 W |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Heat dissipation |
226.19 BTU/h |
| Weight & dimensions |
|---|
| Width |
99.8 mm |
| Depth |
98 mm |
| Height |
25 mm |
| Packaging content |
|---|
| User guide |
Yes |
| Certificates |
|---|
| Certification |
CE, ROHS, KC, NTRA |
