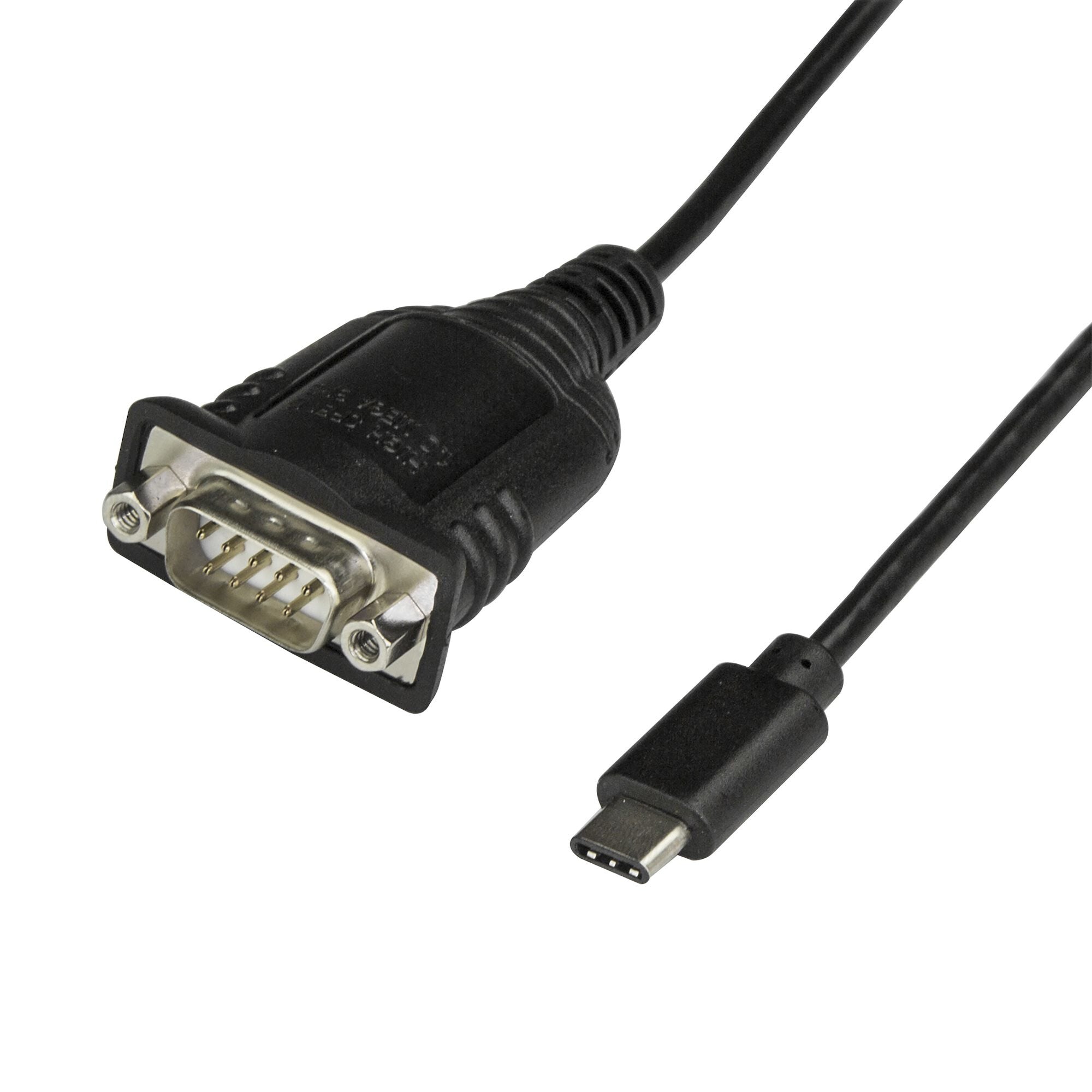

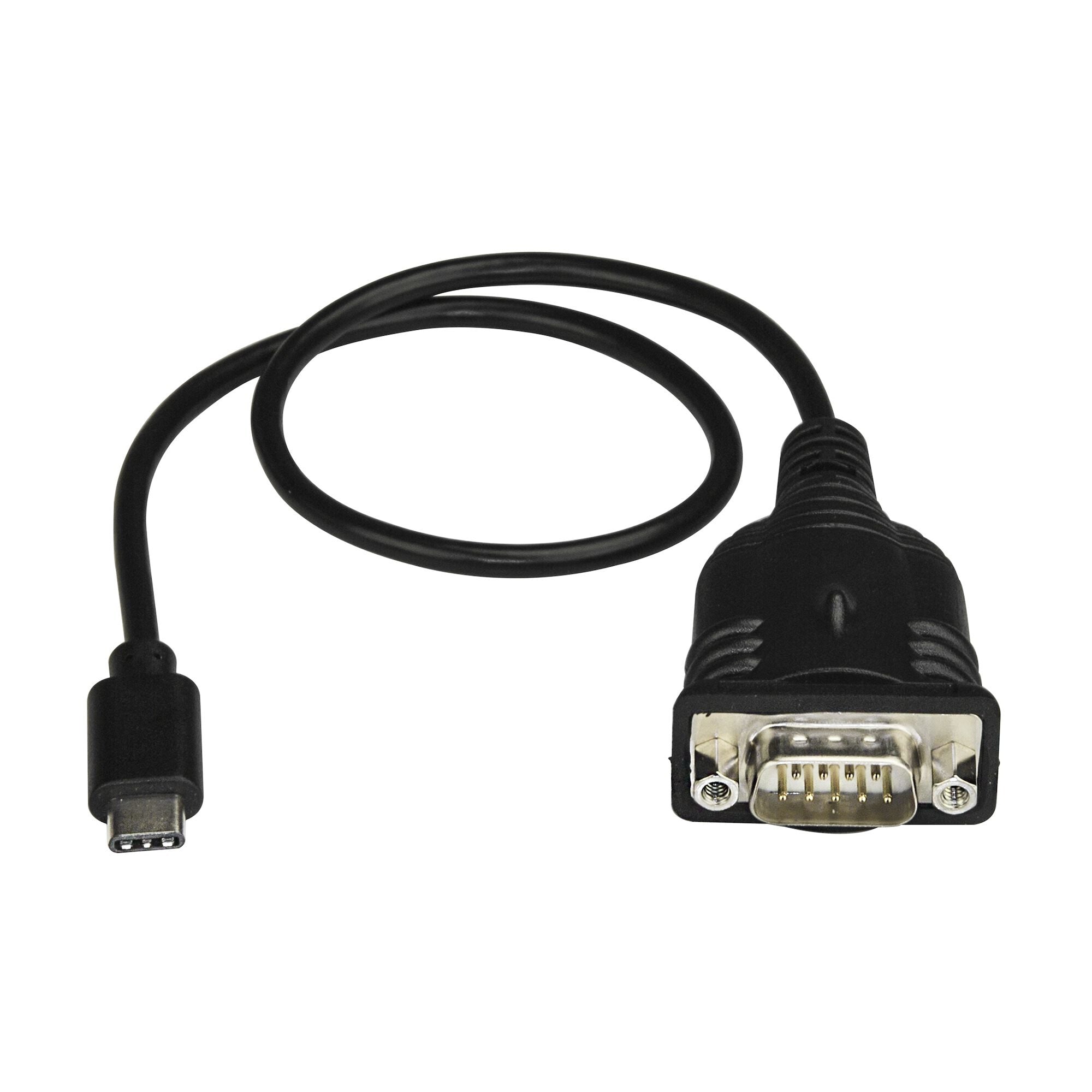

- USB-C TO SERIAL: Interface with Serial RS-232 (DB9) equipment using this black USB Type-C Serial adapter converter cable; Male DB9 connector features screw-lock nuts; Cable length of 16" [40 cm]
- TECH SPECS: 921.6 Kbps baud / 512 byte FIFO / Data bits of 5/6/7/8 and stop bits 1/1.5/2 / Parity Modes of None, Xon/Xoff, RTS/CTS, DTR/DSR / Flow control options Odd/Even/Mark/Space/None
- APPLICATIONS: Using your laptop's USB-C port, control serial equipment such as PLCs, scanners, sensors, oscilloscopes, medical, scales or receipt printers; Use in manufacturing, scientific, automation
- HOST COMPATIBILITY: Driverless setup for easy install; Tested on major operating systems, including Windows 7 and up, macOS 10.11 and up, Linux 2.6 and up; USB bus powered
- STARTECH.COM ADVANTAGE: IT professionals choice for over 30 years; This RS232 Serial Adapter is backed for 2-years by StarTech.com, including free 24/5 North America based multi-lingual tech support
Connect an RS232 (DB9) peripheral to your USB-C device
This USB-C™ to serial adapter lets you connect your USB-C devices to your legacy serial equipment. It converts a USB-C port on your laptop or computer into a RS232 DB9 serial port, giving you a cost-saving way to connect to serial devices such as point-of-sale terminals, serial modems, industrial equipment, and a wide variety of other RS232 peripherals.
Connect with ease
The RS232 adapter cable is compatible with Windows®, macOS and Linux® operating systems, which makes it easy to integrate into mixed environments.
Ready for mobile or desktop applications
The USB-C to serial adapter is USB powered, so you don’t need an additional external power supply. It’s a compact solution that’s easy to bring along with your laptop, when you’re on the go.
The ICUSB232C is backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Features |
|---|
| Product colour |
Black |
| Cable length |
0.4 m |
| Connector 1 |
USB C |
| Connector 2 |
DB-9 |
| Connector 2 gender |
Male |
| Connector 1 gender |
Male |
| Connector 2 form factor |
Straight |
| Connector 1 form factor |
Straight |
| Chipset |
Prolific - PL2303RA |
| Mac operating systems supported |
Mac OS X 13.0 Ventura |
| Packaging data |
|---|
| Quantity per pack |
1 pc(s) |
| Package width |
199 mm |
| Package depth |
137 mm |
| Package height |
21 mm |
| Package weight |
52 g |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 60 °C |
| Storage temperature (T-T) |
-20 - 80 °C |
| Operating relative humidity (H-H) |
0 - 65% |
| Certificates |
|---|
| Compliance certificates |
CE, RoHS |
| Weight & dimensions |
|---|
| Weight |
36 g |
| Logistics data |
|---|
| Harmonized System (HS) code |
84733080 |
| Master (outer) case width |
370 mm |
| Master (outer) case length |
410 mm |
| Master (outer) case height |
280 mm |
| Products per master (outer) case |
200 pc(s) |
