- LARGE 70" TV WALL MOUNT: This heavy-duty TV wall mount supports VESA compatible displays (incl. curved TVs) up to 70 inch (99 lb/45 kg) w/ a durable full-motion steel frame and a powder-coated finish

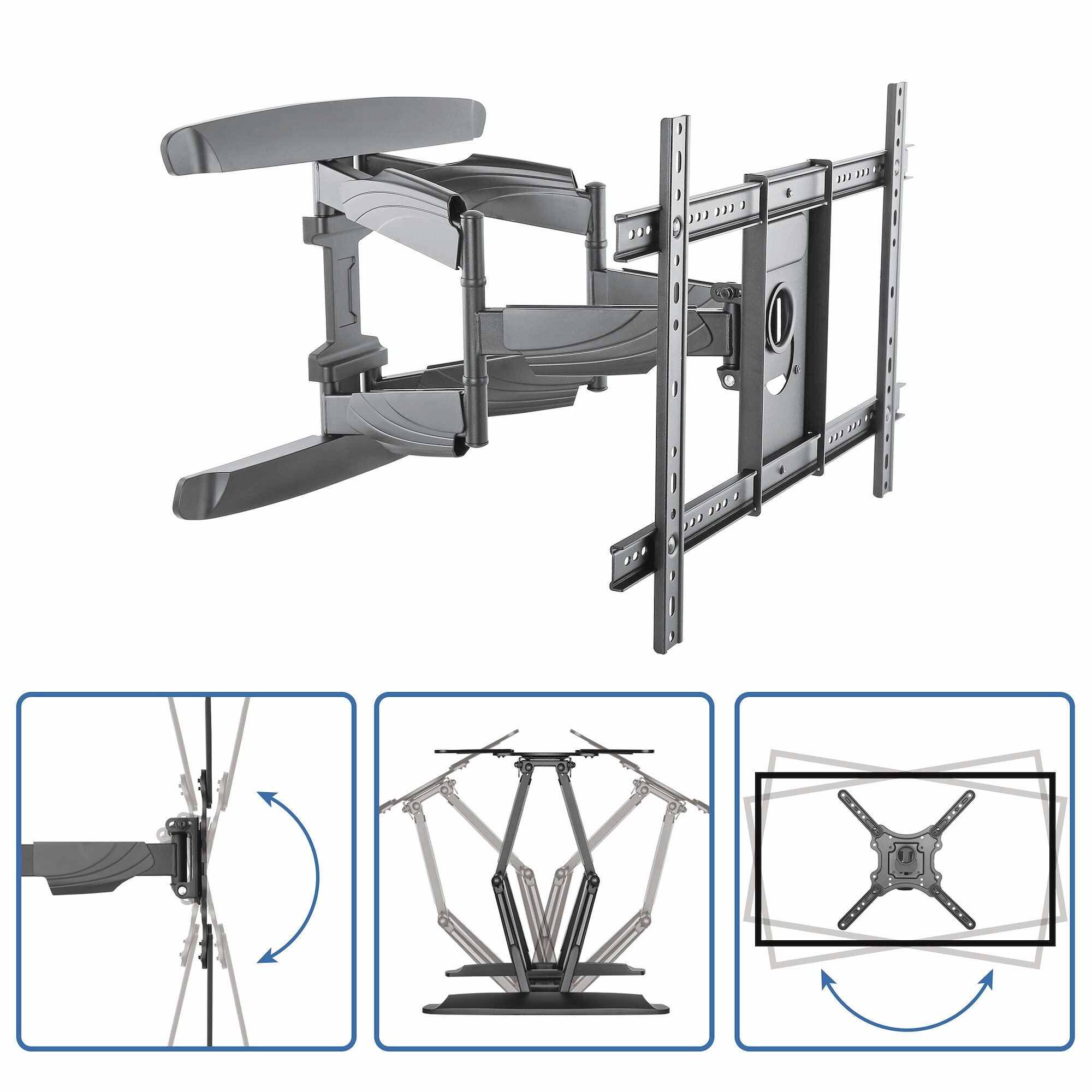

- WIDE RANGE OF MOTION: Articulating & adjustable TV wall mount offers +/-90° swivel, +2/-15° tilt & +/-5° LCD screen level adjustment without the use of additional tools to ensure display is level
- EXTENDING ARMS: Arms extend from 2.4" (57mm) to 20.4" (517mm) from the wall; With the length of the arms, center of the television display has an overall lateral range (left to right) of 34.6" (880mm)
- COMPATIBILITY: Universal TV wall mount supports LG, Samsung, Sony, Sharp, and others (screws/spacers incl) & VESA hole patterns 200x100, 200x200, 200x300, 200x400, 300x200, 300x300, 400x200, 400x300, 400x400, 600x200, 600x300, 600x400

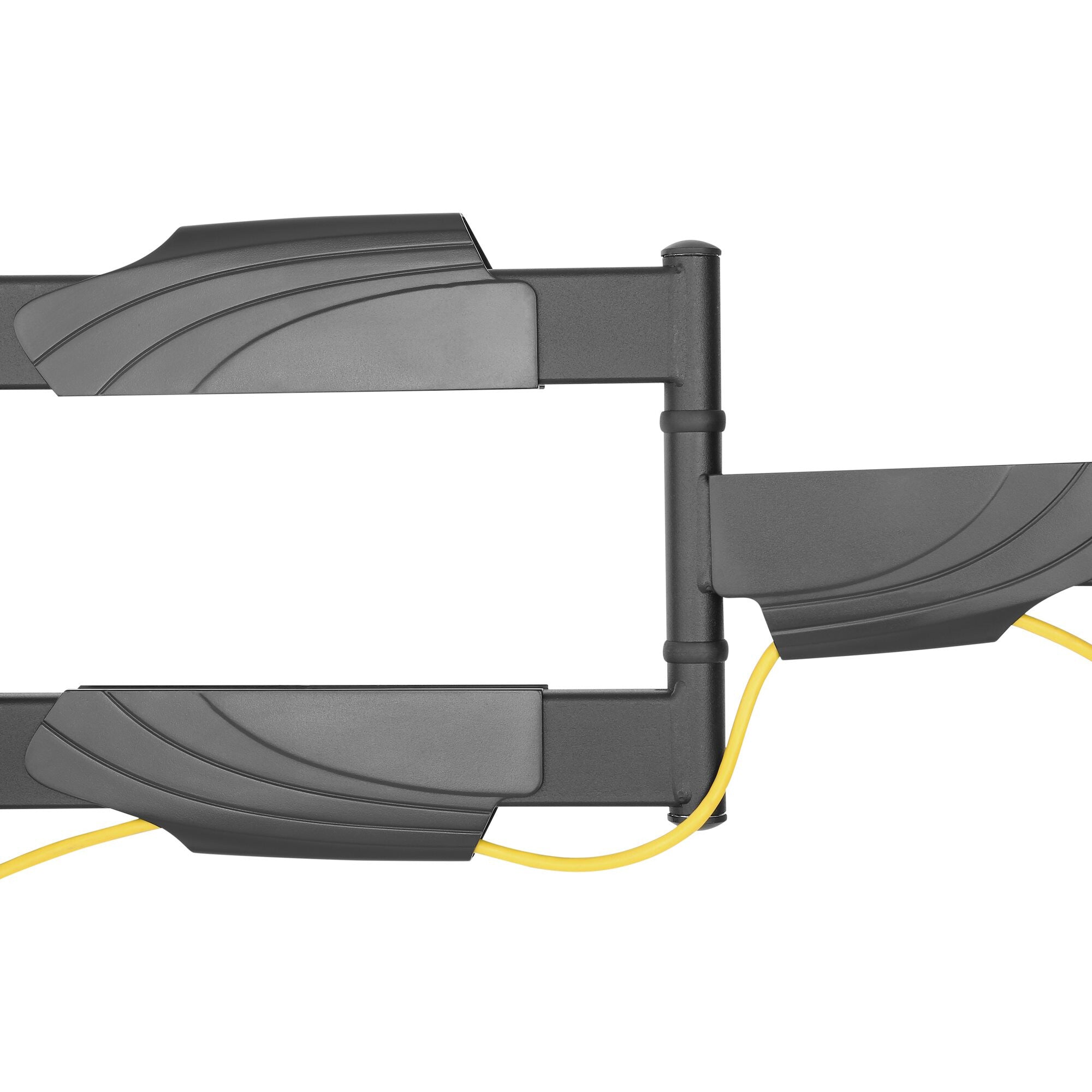

- TIDY AESTHETIC: The flat panel TV wall mounting bracket w/ integrated cable management & optional black snap-on covers keeps cables organized; ideal for customer-facing digital signage

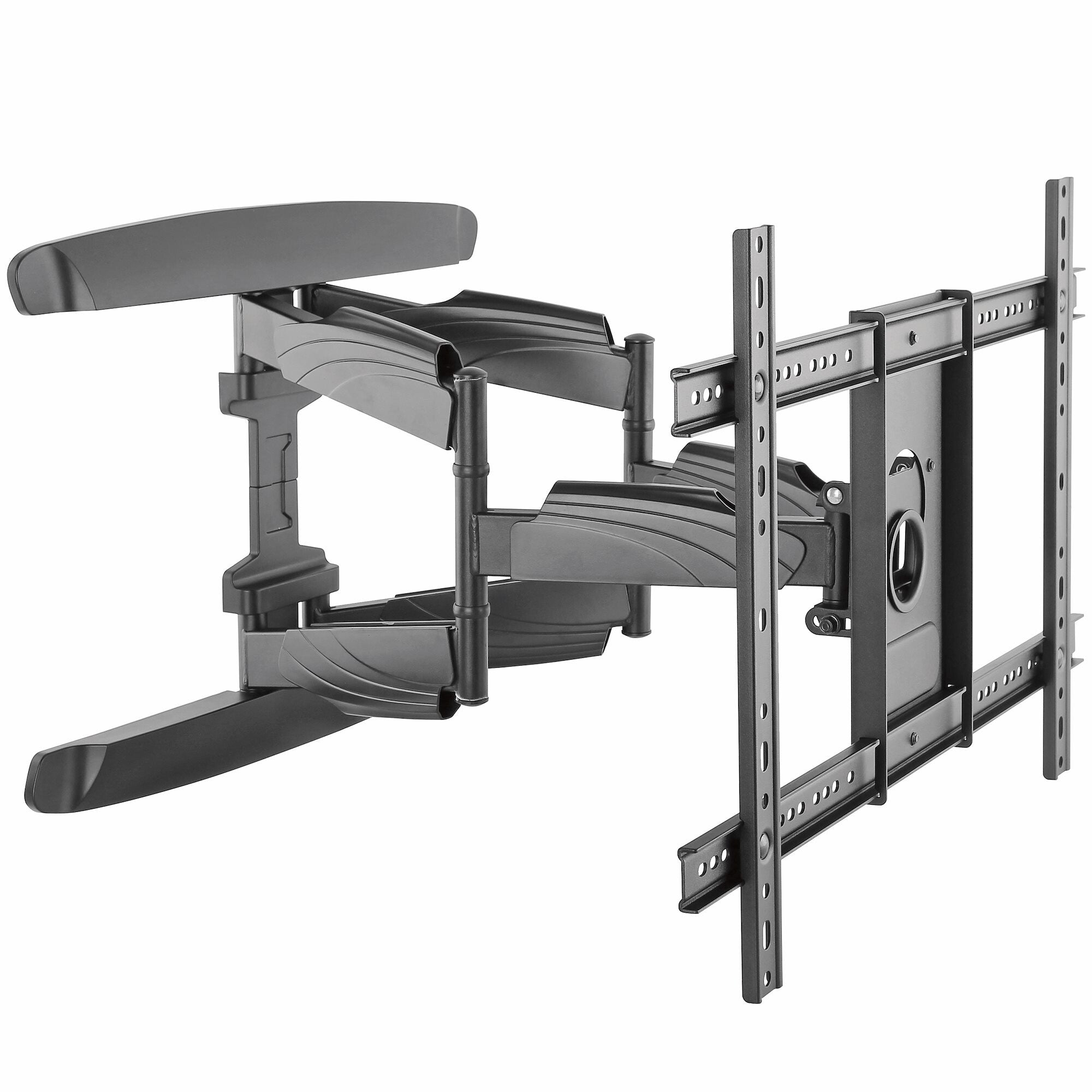

Flat-Screen TV Mount | Steel | For 32" to 70" Displays

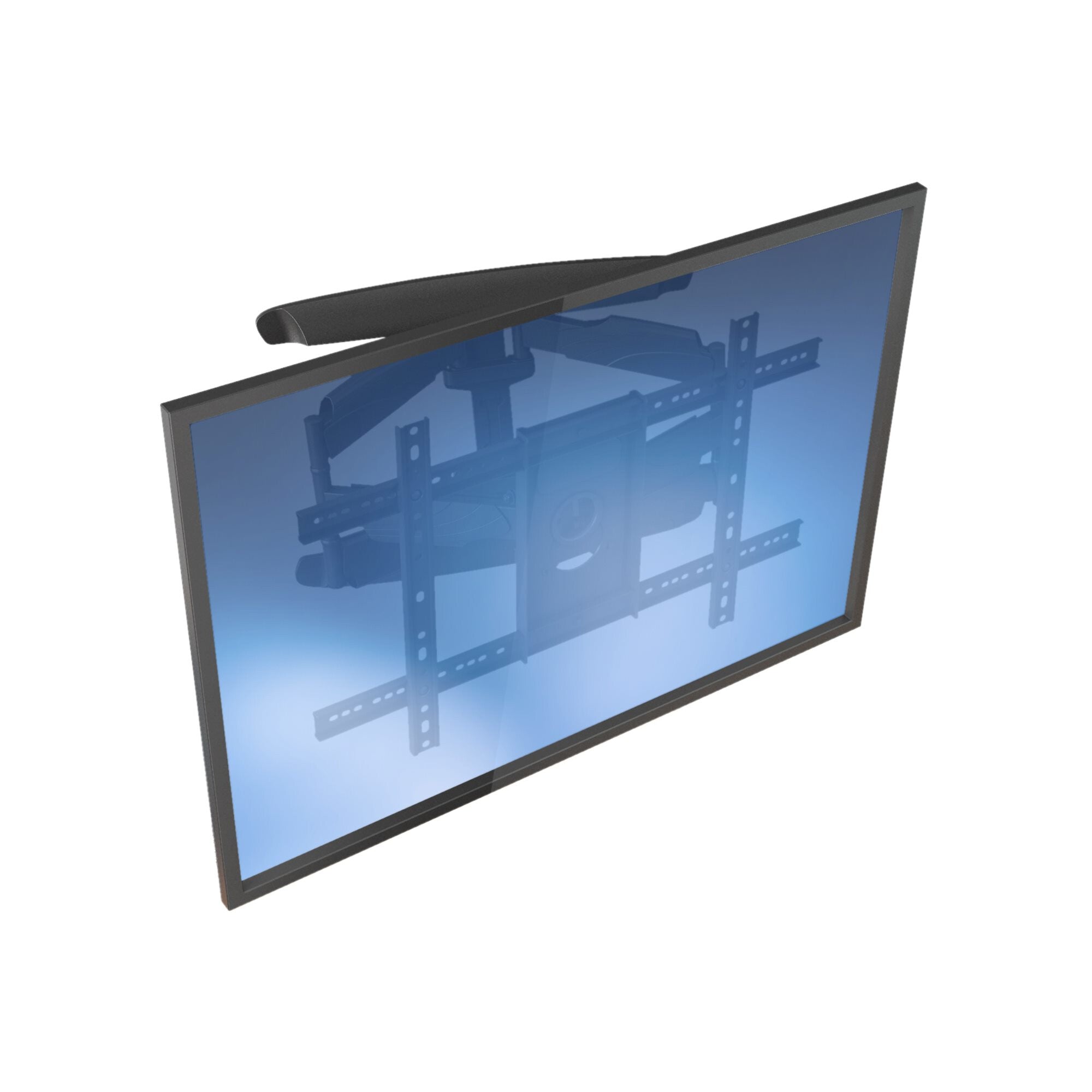

Maximize space while creating an impressive display. This full-motion TV wall mount supports flat-screen TVs from 32" to 70" in size, with a weight capacity of 99 lb. (45 kg).
Save Space
Mount your flat-screen TV in a location that's convenient for visitors, clients and employees, and free up valuable space. The wall mount is ideal for a lobby, boardroom or other venue. The TV wall mount also includes built-in cable management to keep cables neatly out of sight.
Full-Motion Adjustment

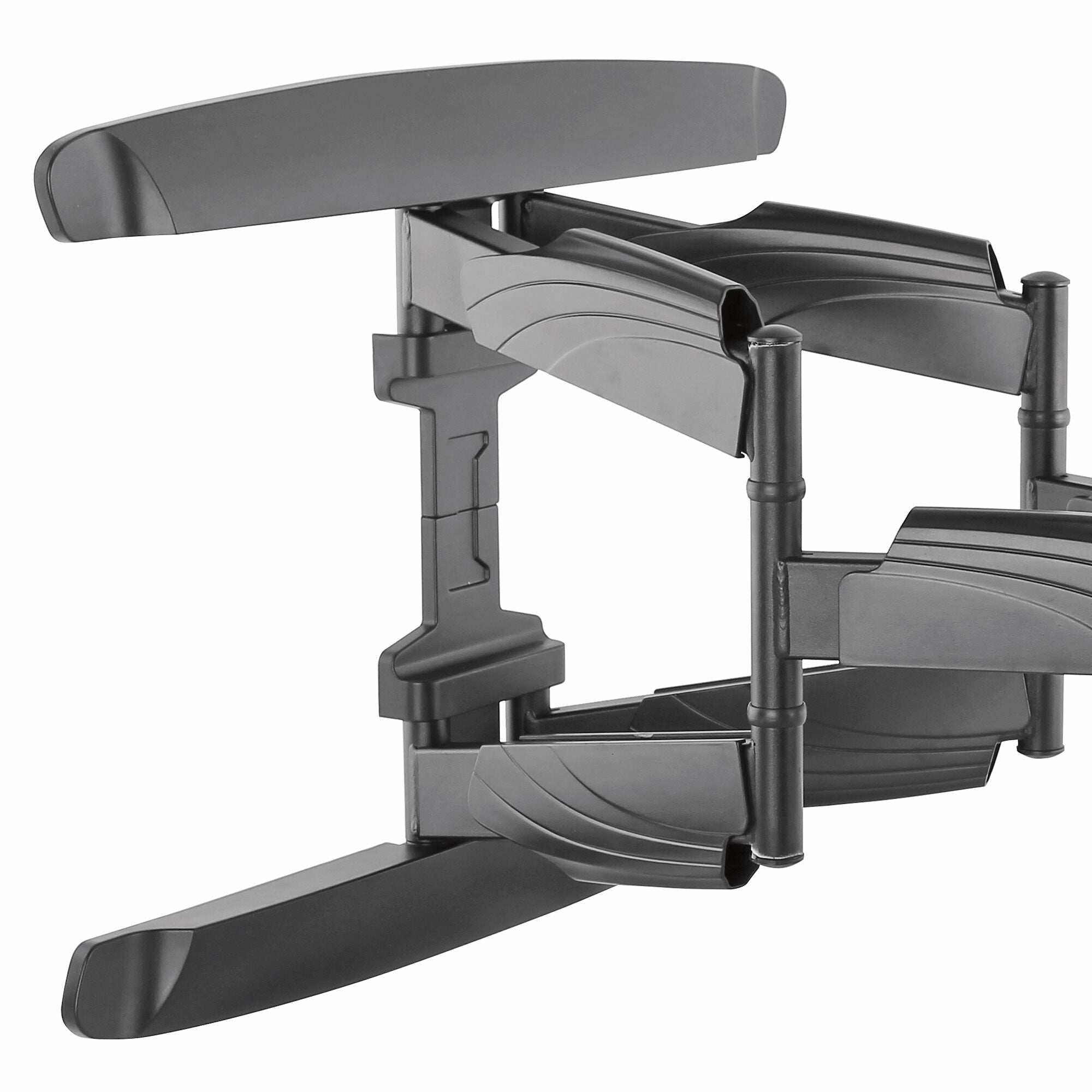

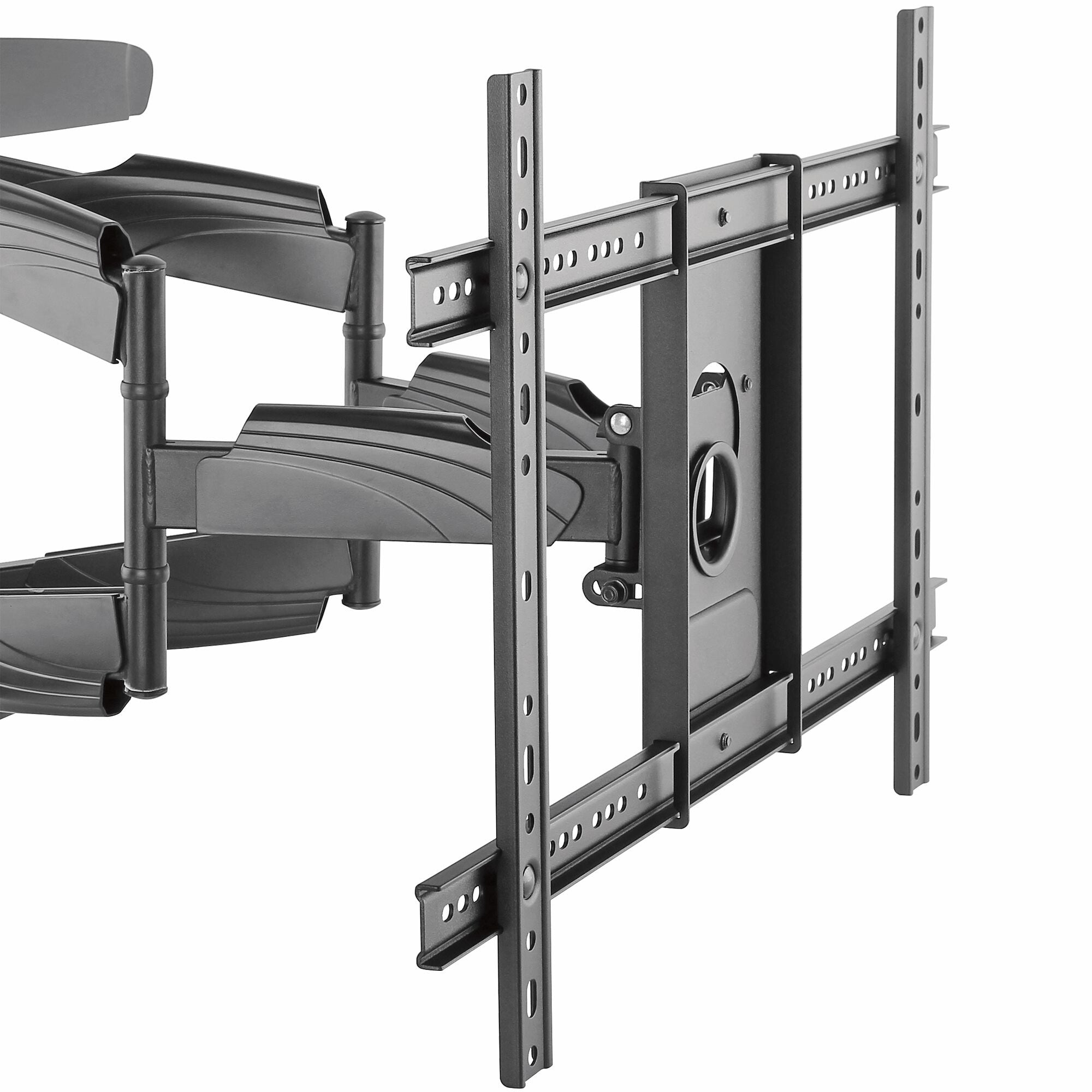

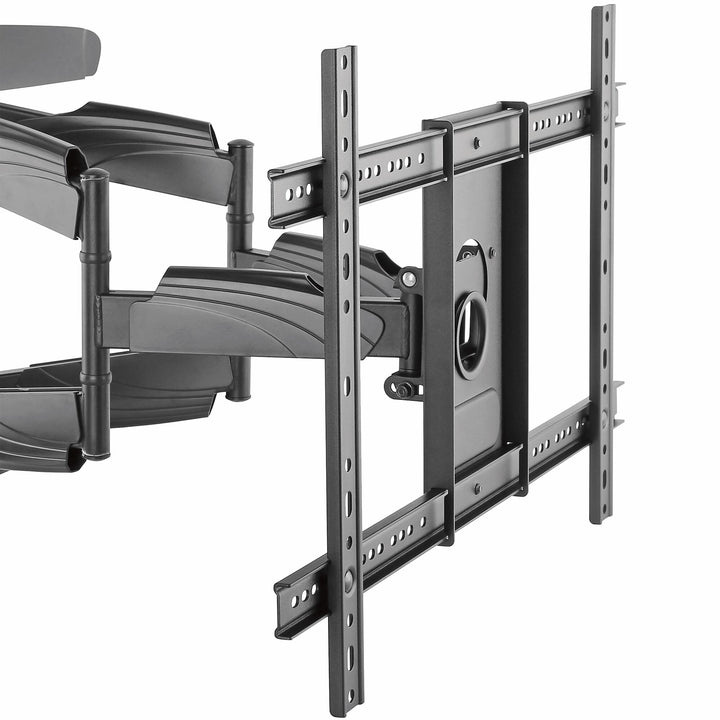

The TV wall mount features dual arms that extend out to 20.4" (517 mm) from the wall to provide a wide range of movement and accommodate different screen positions and angles. The arms can also fold to tuck in closely to the wall, providing a low profile that enables your display to be positioned just 2.24" (57 mm) from the wall.
You can swivel your display +90 / -90 degrees and tilt +5 / -8 degrees, letting you angle your TV display toward your audience. Plus, the tilt feature lets you adjust the TV so that you can view it comfortably at any height. A built-in level adjustment also offers 5 degree clockwise and counterclockwise turning, to ensure your display is perfectly level.
Secure Installation
The heavy-duty steel construction, dual-arm design and dual-stud mounting for studs placed 16" apart, provides increased durability and security. It safely and securely supports your flat-screen TV, to protect your investment.
FPWARTB2 is backed by a StarTech.com 5-year warranty and free lifetime technical support.
| Mounting |
|---|
| Maximum weight capacity |
45 kg |
| Minimum screen size |
81.3 cm (32") |
| Maximum screen size |
177.8 cm (70") |
| Mounting type |
Wall |
| Suitable for computer monitor |
Yes |
| Minimum VESA mount |
200 x 100 mm |
| Maximum VESA mount |
600 x 400 mm |
| Panel mounting interface |
200 x 100,200 x 200,300 x 200,300 x 300,400 x 200,400 x 400,400 x 300,600 x 400 |
| Number of displays supported |
1 |
| Ergonomics |
|---|
| Tilt angle range |
-8 - 5° |
| Swivel angle range |
-90 - 90° |
| Pivot angle |
-90 - 90° |
| Cable management |
Yes |
| Design |
|---|
| Product colour |
Black |
| Housing material |
Plastic, Steel |
| Anti-theft function |
No |

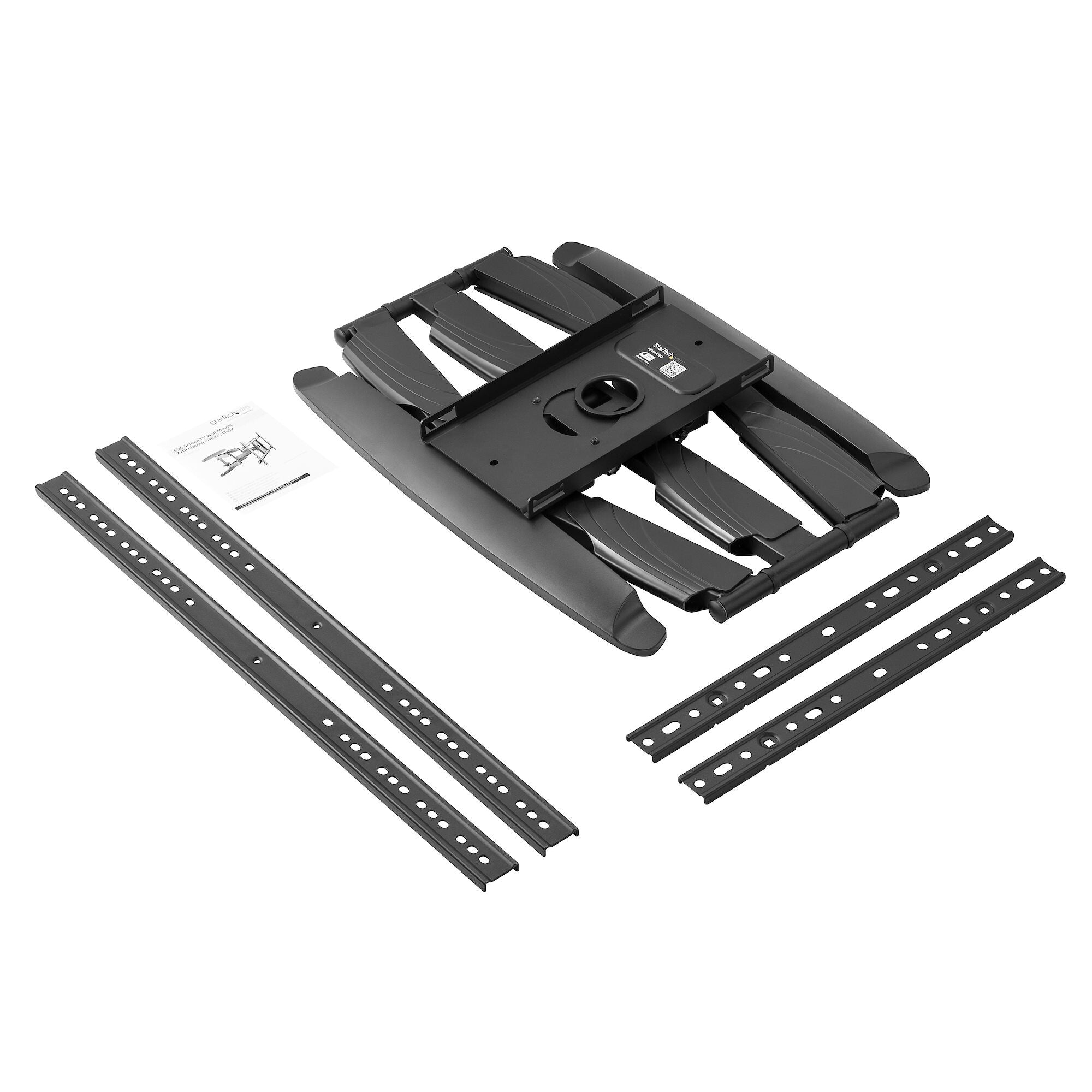

| Packaging content |
|---|
| Adapter bracket included |
Yes |
| Number of adapter brackets included |
4 |
| Wrench included |
Yes |
| Washers included |
Yes |
| Number of washers included |
14 |
| Spacer included |
Yes |
| Number of spacers included |
16 |
| Screws included |
Yes |
| Number of screws |
38 |
| Number of wrenches included |
1 |
| Mounting kit |
Yes |
| Manual |
Yes |
| Technical details |
|---|
| Compliance certificates |
RoHS |
| Weight & dimensions |
|---|
| Width |
517 mm |
| Height |
418 mm |
| Weight |
6.8 kg |
| Arm length |
64.3 cm |
| Packaging data |
|---|
| Package width |
676 mm |
| Package depth |
418 mm |
| Package height |
78 mm |
| Package weight |
7.7 kg |
| Logistics data |
|---|
| Master (outer) case width |
699 mm |
| Master (outer) case length |
468 mm |
| Master (outer) case height |
239 mm |
| Products per master (outer) case |
3 pc(s) |
| Harmonized System (HS) code |
85299097 |
