- Dual ball bearing design
- 3-pin connector with tachometer wire
Keep a system running cooler with a 70mm ball bearing case fan

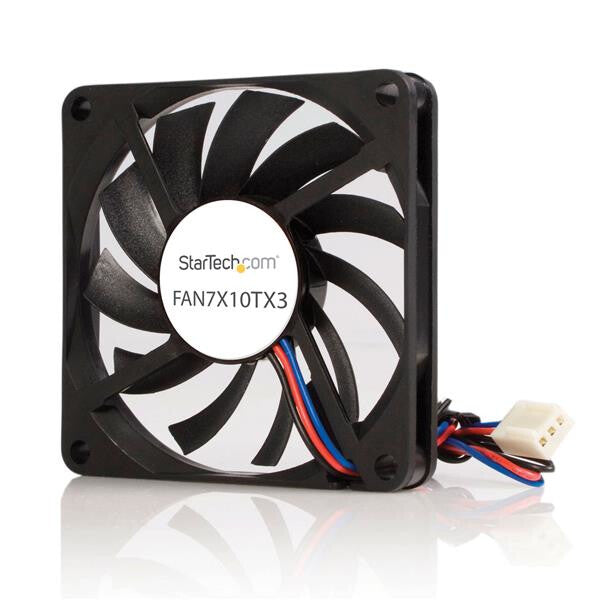

This 70mm TX3 Dual Ball Bearing CPU Cooler Fan is a cost-effective replacement fan for standard CPUs as well as many different types of 1U or low profile CPU coolers that use a 70mm fan.
For peace of mind, the CPU cooling fan features a Tachometer pin on the TX3 motherboard connector that provides the host system with fan operating status, while a dual ball bearing design helps provide smooth operation and longer (fan) lifespan.
| Performance |
|---|
| Suitable location |
Computer case |
| Type |
Fan |
| Fan diameter |
7 cm |
| Rotational speed (max) |
3500 RPM |
| Noise level (high speed) |
33 dB |
| Maximum airflow |
21.33 cfm |
| Design |
|---|
| Product colour |
Black |
| Material |
Plastic |
| Power |
|---|
| Power consumption (typical) |
2.16 W |
| Voltage |
12 V |
| Rated current |
0.25 A |
| Weight & dimensions |
|---|
| Width |
10 mm |
| Depth |
70 mm |
| Height |
70 mm |
| Weight |
35 g |
| Package width |
143 mm |
| Package depth |
95 mm |
| Package height |
35 mm |
| Package weight |
58 g |
| Technical details |
|---|
| Compliance certificates |
RoHS |
| Logistics data |
|---|
| Harmonized System (HS) code |
84733080 |
| Master (outer) case width |
366 mm |
| Master (outer) case length |
586 mm |
| Master (outer) case height |
222 mm |
| Products per master (outer) case |
100 pc(s) |
