- Innovative bracket design adapts and secures the existing low profile/half-height bracket of the PCI Card
- PCI revision 2.3 compliant with up to 133MBps of available bandwidth
- Works with Universal Voltage PCI Slots (5V and 3.3V & 5V)
- Compliant with PCI-to-PCIe Bridge Architecture Spec Revision 1.2
- No driver or software installation
Install half-height/low profile x1 PCI Express interface cards in a standard PCI expansion slot

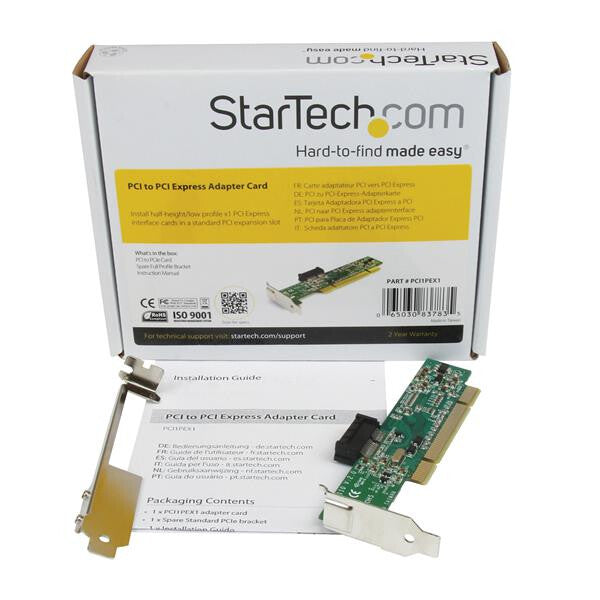

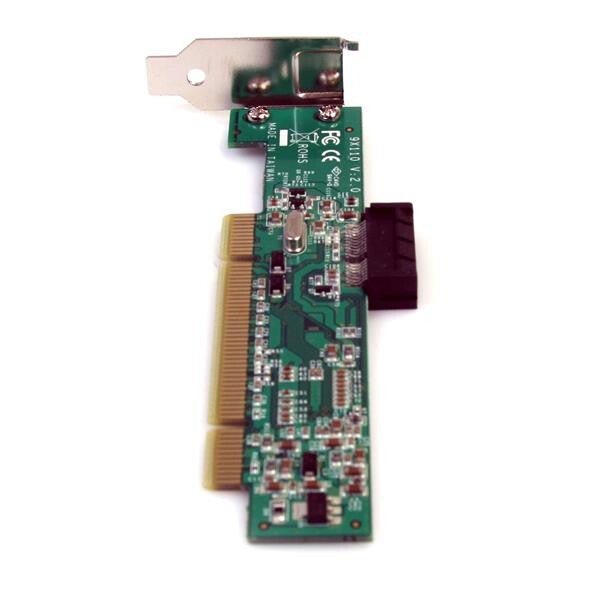

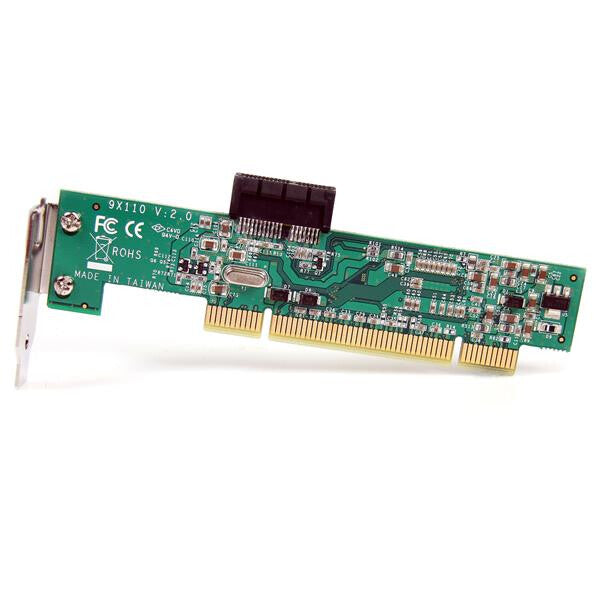

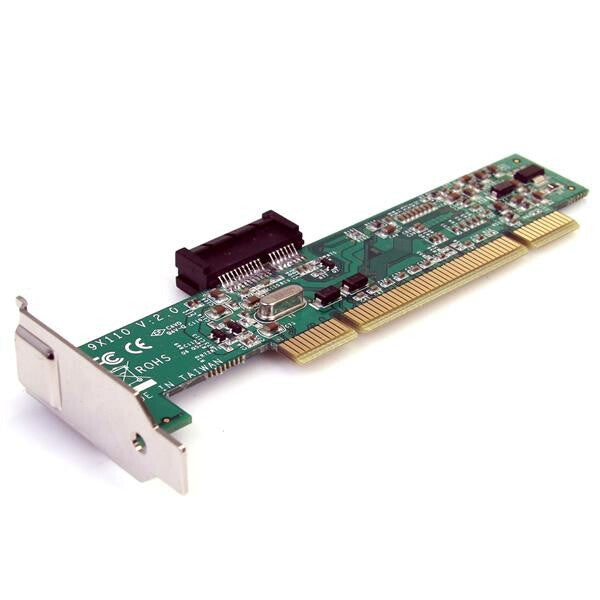

The PCI1PEX1 PCI to PCI Express Adapter card lets you use low profile PCIe expansion cards in a server/desktop motherboard PCI slot. The adapter connects through a 32-bit PCI slot to provide a low profile PCIe x1 slot in its place; a spare, full size bracket is included for installation in larger desktop or server expansion slots that can accommodate a full-sized card.

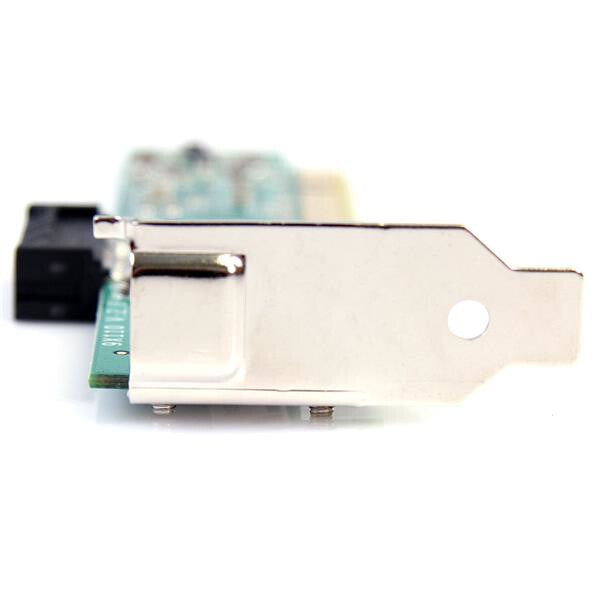

The PCI to PCI Express Adapter features an innovative bracket design that adapts and secures the low profile PCI Express card into the converted slot, ensuring a versatile and economical solution for extending the usability of older PCI motherboards or using low profile PCIe cards that do not have PCI equivalents.
| Ports & interfaces |
|---|
| Host interface |
PCI |
| Output interface |
PCIe |
| Expansion card standard |
PCI 2.3 |
| Design |
|---|
| Internal |
Yes |
| Certification |
CE, FCC, TAA |
| Features |
|---|
| Chipset |
Pericom - PI7C9X111SL |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 85 °C |
| Storage temperature (T-T) |
-10 - 95 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Technical details |
|---|
| Compliance certificates |
RoHS |
| Weight & dimensions |
|---|
| Width |
60 mm |
| Depth |
135 mm |
| Height |
20 mm |
| Weight |
32 g |
| Packaging data |
|---|
| Quantity |
1 |
| Manual |
Yes |
| Package width |
143 mm |
| Package depth |
175 mm |
| Package height |
33 mm |
| Package weight |
102 g |
| Logistics data |
|---|
| Harmonized System (HS) code |
84733020 |
| Products per master (outer) case |
75 pc(s) |
| Master (outer) case width |
352 mm |
| Master (outer) case length |
690 mm |
| Master (outer) case height |
314 mm |
