- Convert and scale Composite/S-Video input to VGA/Component output
- Accepts NTSC and PAL input
- On-Screen Display for simple output setting selection

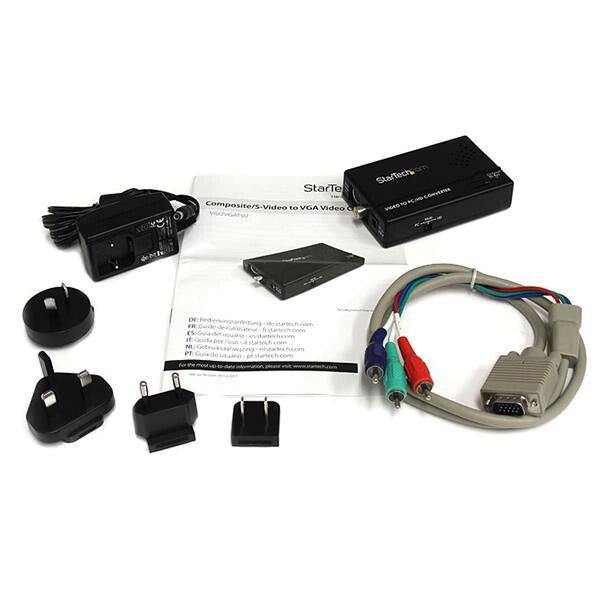

- VGA to Component (YPbPr) RCA Adapter included
- 50 Hz to 60 Hz frame rate conversion
- Plug & Play installation - no drivers or software required
Convert and Scale a Composite or S-Video Signal to Work with a VGA Display

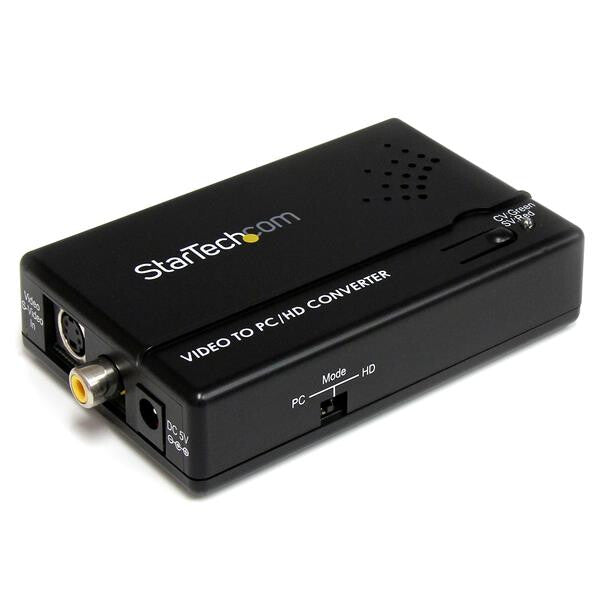

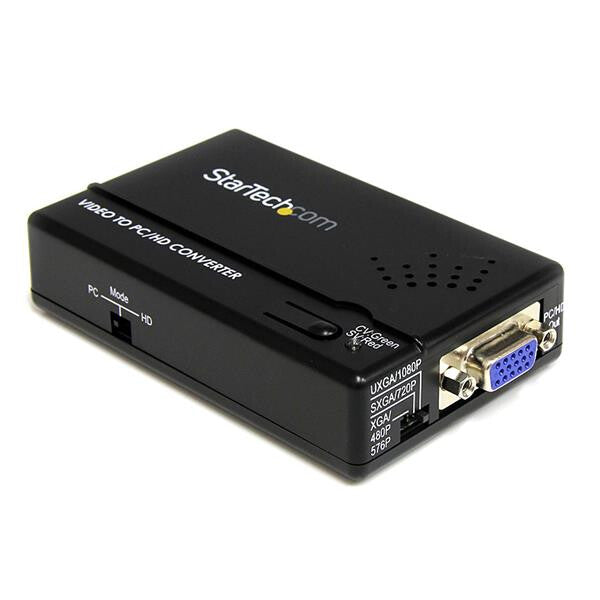

The VID2VGATV2 Composite and S-Video to VGA Video Scan Converter (with Scaler) provides a simple way to convert Composite or S-Video signals to VGA (or Component RCA) output, for use with computer monitors, projectors or HDTV sets. Equipped with an On-Screen Display (OSD) menu and dip switches for simple configuration and selection of your video output settings, this compact video scaler installs quickly and easily for a true plug-and-play experience. An integrated scaler circuit dynamically converts the S-Video or Composite video input signal, giving you multiple output resolutions to choose from, to ensure compatibility with your display or projector. Plus, the Component/S-Video-VGA Converter includes a VGA to Component (RCA) breakout cable, which enables you to connect to TV sets that are not equipped with a VGA port. Backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Features |
|---|
| Converter type |
Active video converter |
| On Screen Display (OSD) |
Yes |
| Plug and Play |
Yes |
| Product colour |
Black |
| Housing material |
Plastic |
| Certification |
CE, FCC, TAA, REACH |
| Video |
|---|
| Maximum video resolution |
1600 x 1200 pixels |
| Video resolutions |
1024 x 768,1280 x 1024,1600 x 1200 |
| Analog signal format system |
NTSC, PAL |
| Maximum refresh rate |
60 Hz |
| Ports & interfaces |
|---|

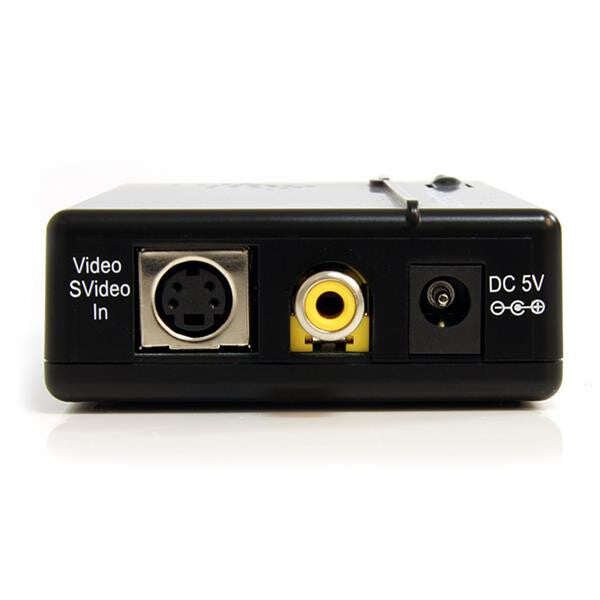

| Host interface |
Composite, S-Video |

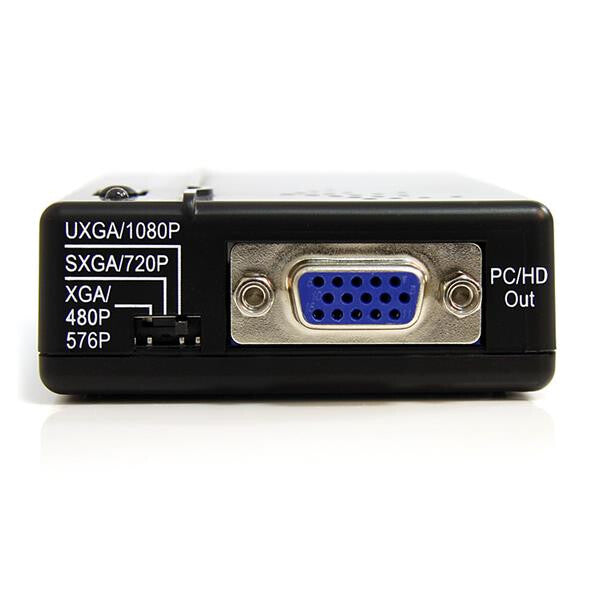

| Output interface |
VGA |
| Power |
|---|
| Power consumption (typical) |
2.5 W |
| Operating current |
1 A |
| Operating voltage |
5 V |
| External power adapter |
Yes |
| Technical details |
|---|
| Compliance certificates |
RoHS |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
0 - 60 °C |
| Operating relative humidity (H-H) |
0 - 60% |
| Weight & dimensions |
|---|
| Width |
64 mm |
| Depth |
112 mm |
| Height |
26 mm |
| Weight |
86 g |
| Packaging data |
|---|
| Package width |
117 mm |
| Package depth |
210 mm |
| Package height |
62 mm |
| Package weight |
459 g |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
| Master (outer) case width |
384 mm |
| Master (outer) case length |
450 mm |
| Master (outer) case height |
336 mm |
| Products per master (outer) case |
30 pc(s) |
