- Dual ball bearing design
- 3-pin connector with tachometer wire

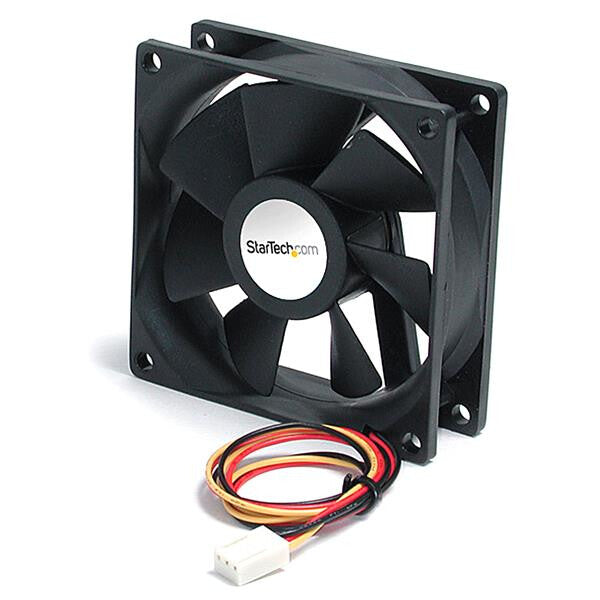

Add additional chassis cooling with a 92mm ball bearing fan
This quiet, dual ball-bearing (9.25cm) Case Fan offers a cost-effective solution for replacing a non-functional or noisy fan in your PC. Powered through a simple TX3 connection to the host computer power supply, the 8cm case fan helps keep your computer running at optimal temperatures for stable system performance.
| Performance |
|---|
| Suitable location |
Computer case |
| Type |
Fan |
| Fan diameter |
9.2 cm |
| Rotational speed (max) |
1800 RPM |
| Noise level (high speed) |
22 dB |
| Maximum airflow |
31.84 cfm |
| Mean time between failures (MTBF) |
50000 h |
| Operating temperature (T-T) |
-10 - 80 °C |
| Design |
|---|
| Product colour |
Black |
| Material |
Plastic |
| Number of fans |
1 fan(s) |
| Power |
|---|
| Power consumption (typical) |
1.08 W |
| Voltage |
12 V |
| Weight & dimensions |
|---|
| Width |
25 mm |
| Depth |
92 mm |
| Height |
92 mm |
| Weight |
108 g |
| Package width |
95 mm |
| Package depth |
141 mm |
| Package height |
32 mm |
| Package weight |
98 g |
| Technical details |
|---|
| Compliance certificates |
RoHS |
| Bearing technology |
Ball bearing |
| Other features |
|---|
| Rotational speed |
1600 RPM |
| Connector(s) |
1 - TX3 Female |
| Dimensions (WxDxH) |
92 x 92 x 25 mm |
| Airflow |
35.7 |
| Logistics data |
|---|
| Harmonized System (HS) code |
84733080 |
| Master (outer) case width |
364 mm |
| Master (outer) case length |
590 mm |
| Master (outer) case height |
216 mm |
| Products per master (outer) case |
100 pc(s) |
