- Dual ball bearing design
- 3-pin connector with tachometer wire

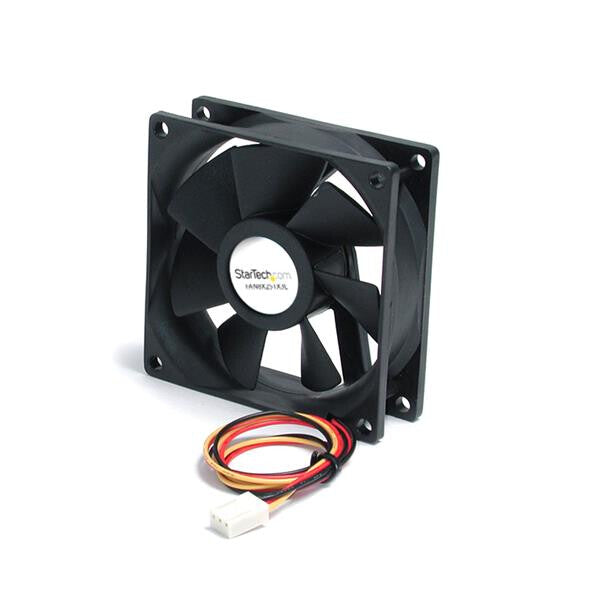

Add additional chassis cooling with a 80mm ball bearing fan
This quiet, dual ball-bearing (8cm) Case Fan offers a cost-effective solution for replacing a non-functional or noisy fan in your PC.
Powered through a simple TX3 connection to the host computer’s motherboard, the 8cm case fan helps keep your computer running at optimal temperatures for stable system performance.
| Performance |
|---|
| Suitable location |
Computer case |
| Type |
Fan |
| Fan diameter |
8 cm |
| Rotational speed (max) |
2000 RPM |
| Noise level (high speed) |
27 dB |
| Maximum airflow |
26.6 cfm |
| Operating temperature (T-T) |
-10 - 80 °C |
| Design |
|---|
| Product colour |
Black |
| Material |
Plastic |
| Number of fans |
1 fan(s) |
| Weight & dimensions |
|---|
| Width |
25 mm |
| Depth |
80 mm |
| Height |
80 mm |
| Weight |
73 g |
| Package width |
95 mm |
| Package depth |
144 mm |
| Package height |
34 mm |
| Package weight |
98 g |
| Technical details |
|---|
| Compliance certificates |
RoHS |
| Other features |
|---|
| Power requirements |
12 V |
| Rotational speed |
2000 RPM |
| Dimensions (WxDxH) |
80 x 80 x 25 mm |
| Airflow |
26.6 |
| Logistics data |
|---|
| Harmonized System (HS) code |
84733080 |
| Master (outer) case width |
364 mm |
| Master (outer) case length |
582 mm |
| Master (outer) case height |
228 mm |
| Products per master (outer) case |
100 pc(s) |
