- Supports Hotkey and front panel push-button switching
- Identify and select computers by names assigned via the OSD menu
- OSD security allows each PC to be password protected
- Supported Wide Screen Resolutions: 1920x1200, 1920x1080, 1680x1050, 1400x1050, 1440x900, 1360x768
- Supported 4:3 Resolutions: 1920x1440, 1600x1200, 1280x1024, 1024x768
- Auto-scan function automatically selects computer sequentially
- Cascade configuration expands system capability
- USB console interface
- Plug-and-play system configuration
- USB Keyboard and Mouse combo supported on one USB connection
Control up to 8 VGA and USB computers from a single keyboard, mouse and monitor

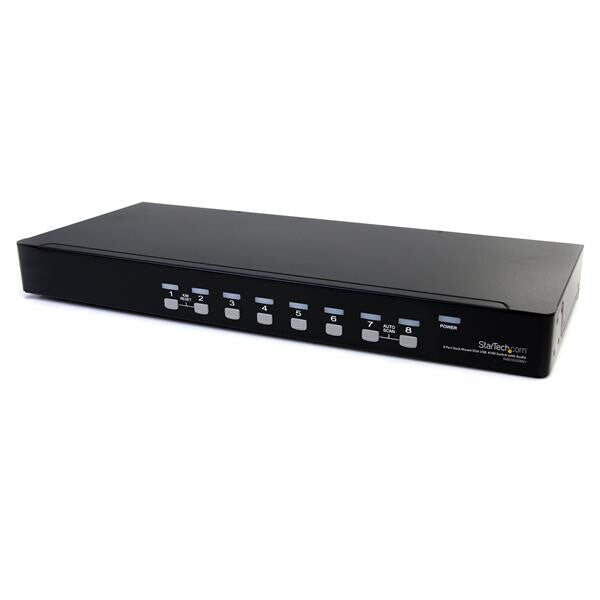

The SV831DUSBAU 8 Port Rack Mount USB VGA KVM Switch (with Audio Cables Included) allows you to control up to 8 USB computers using a single keyboard, mouse and monitor, and features Audio and Microphone ports to switch between audio signals as well as PC ports.

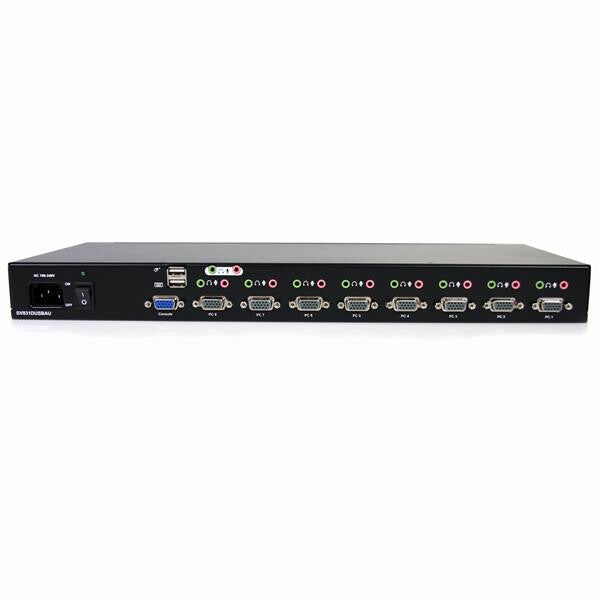

Based on a 1U rack mountable slim form factor design, this 8 Port USB KVM uses rear cable connections to maximize space efficiency. Multiple KVM units can also be connected (cascaded) together for control of up to 64 computers, ensuring a scalable KVM solution that can be expanded as necessary.
To ensure seamless operation, the switch features automatic and manual scan modes, supports both hot-key and front panel push-button switching, and features a convenient OSD (on-screen display) for added configuration options.
This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.
The SV831DUSBAU only works with specific 2-in-1 VGA and USB cables (sold separately), a list of StarTech.com approved cables are below:
6 ft Ultra Thin USB VGA 2-in-1 KVM Cable
6 ft Ultra Thin USB VGA 2-in-1 KVM Cable
10 ft Ultra Thin USB VGA 2-in-1 KVM Cable
15 ft Ultra Thin USB VGA 2-in-1 KVM Cable
| Ports & interfaces |
|---|
| Number of computers controlled |
8 |
| Keyboard port type |
USB |
| Mouse port type |
USB |
| Video port type |
VGA |
| Console USB ports quantity |
2 |
| Console ports |
3.5mm headphone, 3.5mm mic, USB A, VGA (D-Sub) |
| USB 2.0 ports quantity |
2 |
| USB connector type |
USB Type-A |
| Headphone outputs |
8 |
| Number of microphone inputs |
8 |
| DC-in jack |
Yes |
| Performance |
|---|
| Maximum analog resolution |
1920 x 1440 pixels |
| Maximum resolution |
1920 x 1440 pixels |
| Plug and Play |
Yes |
| Daisy chain |
Yes |
| Number of users |
1 user(s) |
| Design |
|---|
| Rack capacity |
1U |
| Rack mounting |
Yes |
| Product colour |
Black |
| Housing material |
Steel |
| Cascadable |
Yes |
| LED indicators |
Yes |
| Certification |
CE, FCC, UL |
| Display |
|---|
| On Screen Display (OSD) |
Yes |
| Power |
|---|
| Input voltage |
110-240 V |
| Input current |
1.8 A |
| Output voltage |
12 V |
| Output current |
4 A |
| Power plug type |
Type M |
| Power consumption (typical) |
48 W |
| Sustainability |
|---|
| Compliance certificates |
RoHS |
| Operational conditions |
|---|
| Operating temperature (T-T) |
5 - 40 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
0 - 80% |
| Weight & dimensions |
|---|
| Width |
540 mm |
| Depth |
180 mm |
| Height |
45 mm |
| Weight |
2.6 kg |
| Packaging data |
|---|
| Package width |
598 mm |
| Package depth |
263 mm |
| Package height |
123 mm |
| Package weight |
4.7 kg |
| Packaging content |
|---|
| Cables included |
AC |
| Rubber feet |
Yes |
| AC adapter included |
Yes |
| Manual |
Yes |
| Other features |
|---|
| Audio support |
Yes |
| IP control |
No |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176200 |
| Master (outer) case width |
292 mm |
| Master (outer) case length |
610 mm |
| Master (outer) case height |
409 mm |
| Products per master (outer) case |
3 pc(s) |
